Loosening Main Wire Harness In Engine Compartment At The Right

NOTE: Incorrect handling of main wire harness

Risk of damage to lines
→ The main wire harness contains all airbag lines, antenna lines and optical waveguides.

→ The main wire harness must not be separated and is always replaced as a complete wire harness when carrying out extensive repairs.

→ If individual lines are damaged, shut off these lines and install new lines. Lay the new lines along the main wire harness and secure them to the main wire harness.

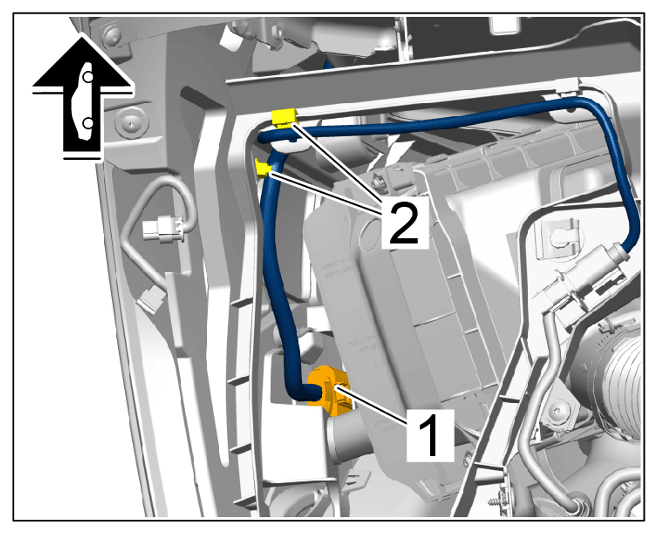

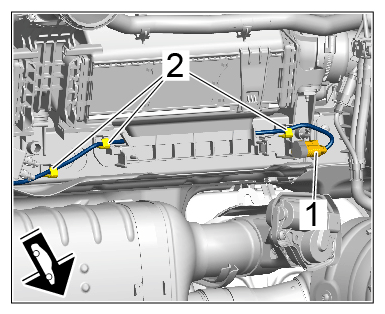

Disconnect electric line for air cleaner.
1. 1.1 Release and disconnect electric plug connection for air cleaner -1- .
2. 1.2 Loosen fixing clips -2- .
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric line

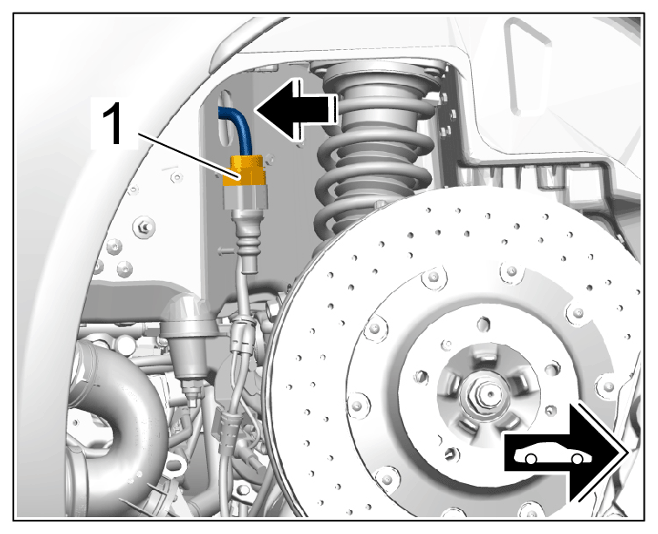

Disconnect wire harness.
1. 2.1 Release and disconnect electric plug connection for ABS -1- .
2. 2.2 Guide wire harness out through the opening in the body -arrow- .
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Wiring harness

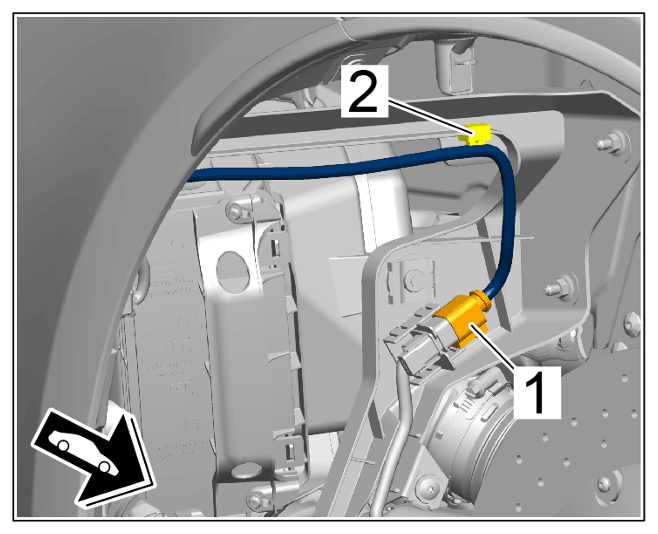

Disconnect electric line.
1. 3.1 Release and disconnect electric plug connection for oxygen sensor -1- .
2. 3.2 Loosen the fixing clip -2- .
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric plug connection

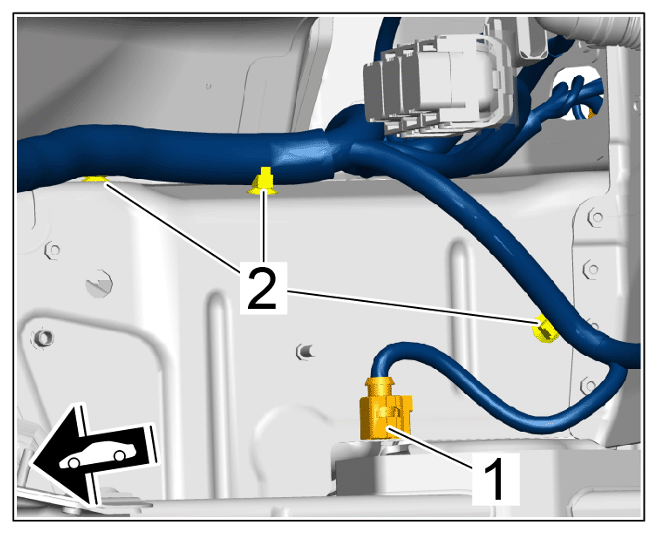

Disconnect electric plug connections -1- .
1. 4.1 Release and disconnect electric plug connections -1- for the rear apron.
2. 4.2 Loosen the fixing clip -2- .
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric plug connection

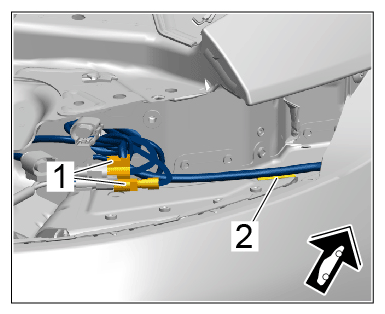

Disconnect electric wire harness.
1. 5.1 Release and disconnect electric plug connection -1- for the exhaust system.
2. 5.2 Loosen fixing clips -2- .
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric wire harness

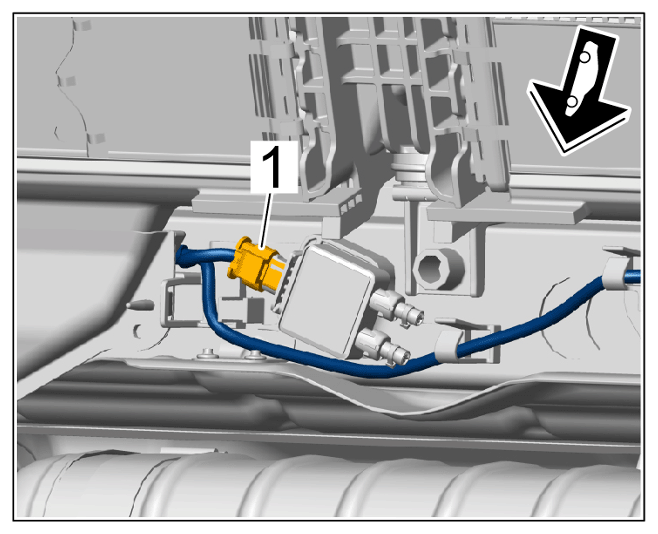

Release and disconnect electric plug connection for exhaust temperature sensor -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric plug connection
Disconnect electric line.
1. 7.1 Release and disconnect electric plug connection for engine mount -1- .
2. 7.2 Loosen fixing clips -2- .
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Line

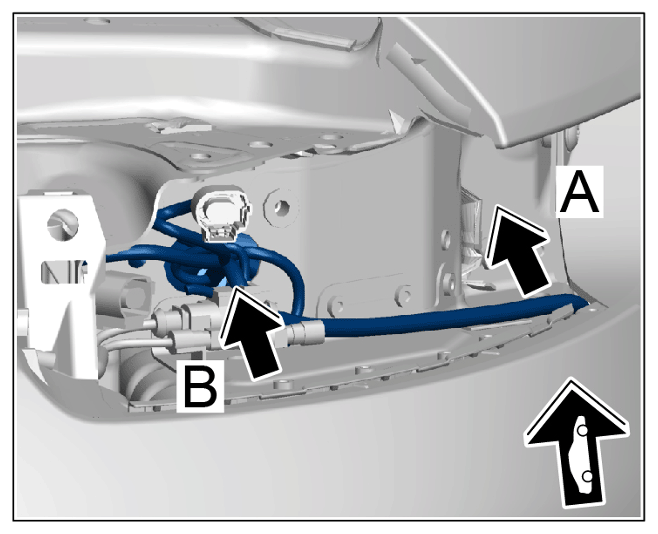

Guide main wire harness for engine compartment at the right out of the wheel housing -arrow A- and pull it into the engine compartment through the opening in the body -arrow B- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Main wire harness in engine compartment, right

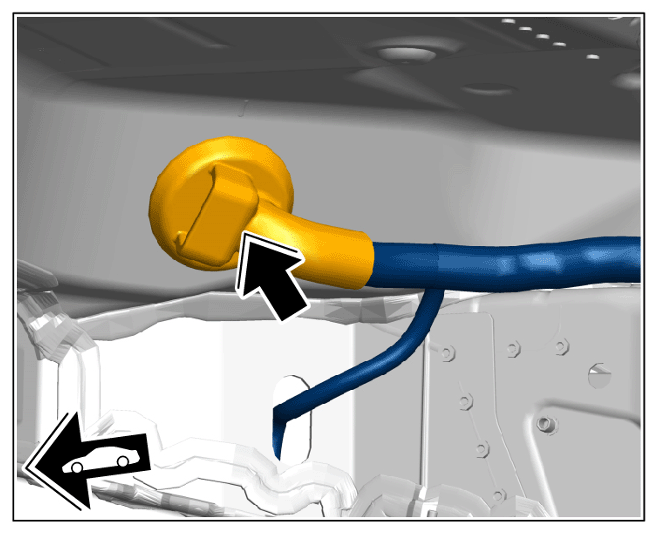

Press rubber sleeve together and pull it into the interior of the vehicle with main wire harness for engine compartment -arrow- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rubber sleeve
