Loosening Main Wire Harness In Engine Compartment At The Left

NOTE: Incorrect handling of main wire harness

Risk of damage to lines
→ The main wire harness contains all airbag lines, antenna lines and optical waveguides.

→ The main wire harness must not be separated and is always replaced as a complete wire harness when carrying out extensive repairs.

→ If individual lines are damaged, shut off these lines and install new lines. Lay the new lines along the main wire harness and secure them to the main wire harness.

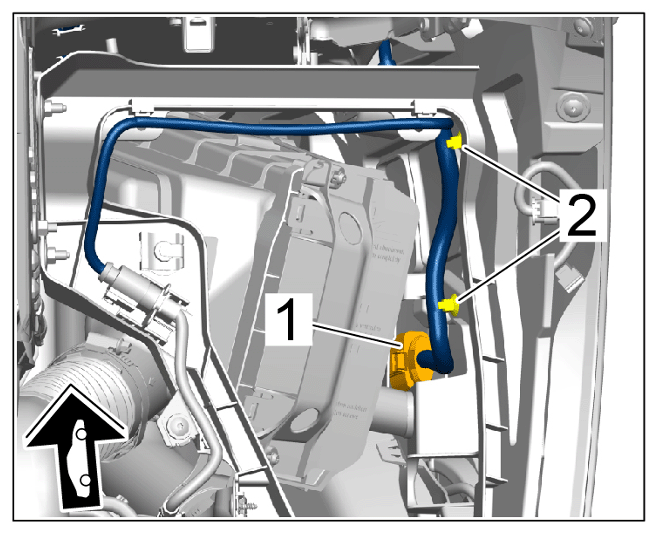

Loosen fixing clips -2- and release and disconnect electric plug connection -1- for the air cleaner.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric plug connection

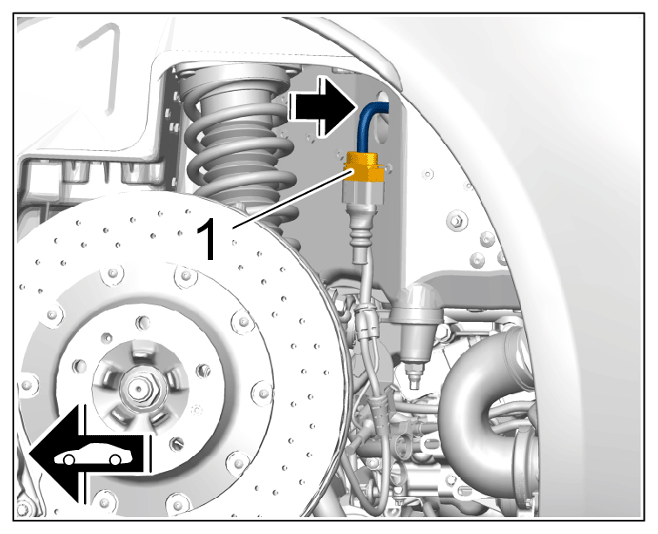

Disconnect electric plug connection for ABS wiring harness on rear axle -1- .
1. 2.1 Release and disconnect electric plug connection for ABS wiring harness on rear axle -1- .
2. 2.2 Guide wire harness out through the opening in the body -arrow- .
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric plug connection

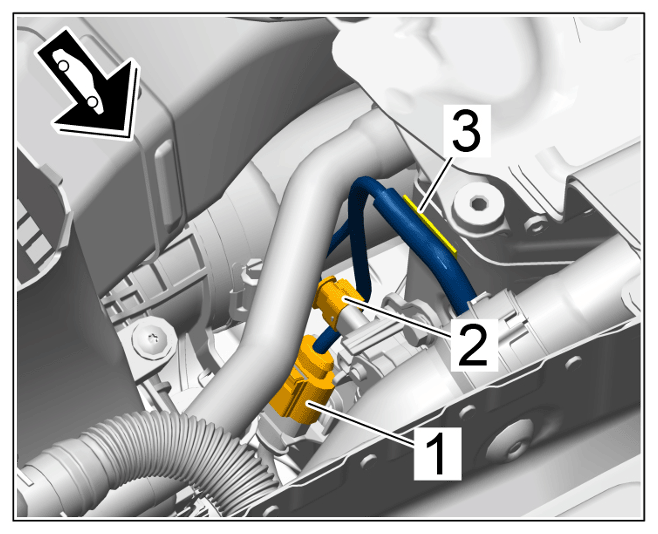

Loosen fixing clips -2- and release and disconnect electric plug connection for oxygen sensor -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fixing clip

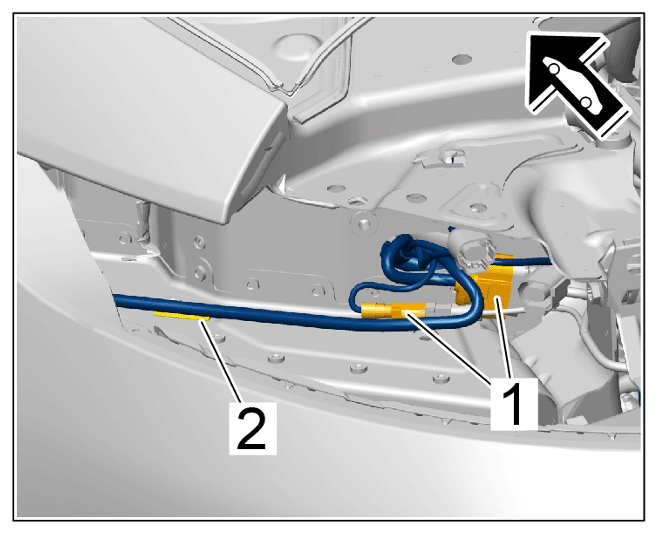

Loosen fixing clip -2- and release and disconnect electric plug connections -1- for the rear apron.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric plug connection

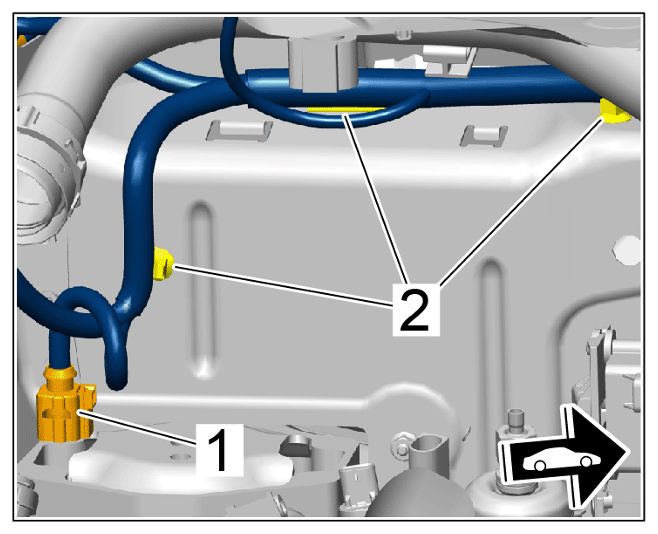

Release and disconnect electric plug connections.
1. 5.1 Release and disconnect electric plug connection for oxygen sensor -1- .
2. 5.2 Release and disconnect electric plug connection on pressure sensor -2- .
3. 5.3 Loosen the fixing clip -3- .
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric plug connections

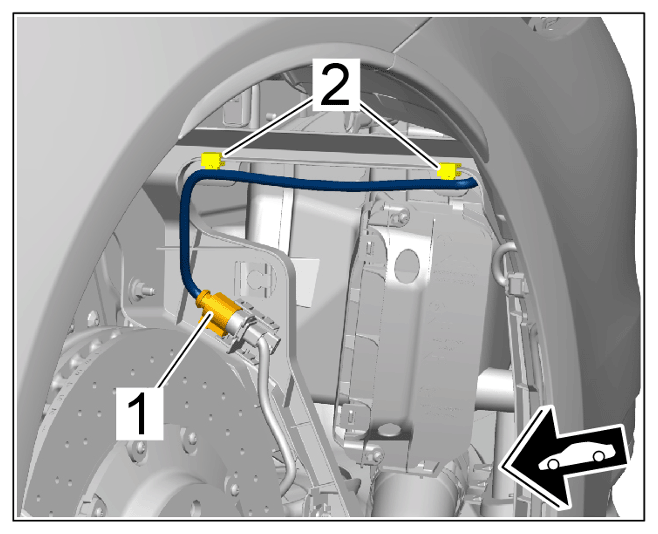

Disconnect electric plug connection for engine mount -1- .
1. 6.1 Release and disconnect electric plug connection for engine mount -1- .
2. 6.2 Loosen fixing clips -2- .
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric plug connection

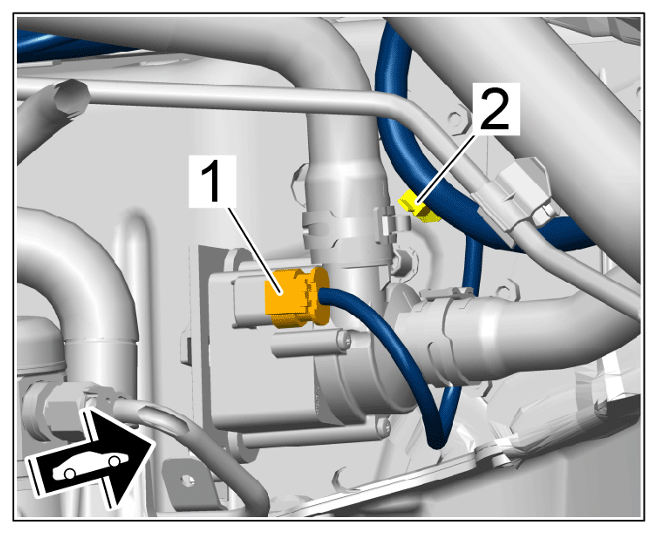

Disconnect electric plug connection for coolant pump -1- .
1. 7.1 Release and disconnect electric plug connection for coolant pump -1- .
2. 7.2 Loosen fixing clips -2- .
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric plug connection

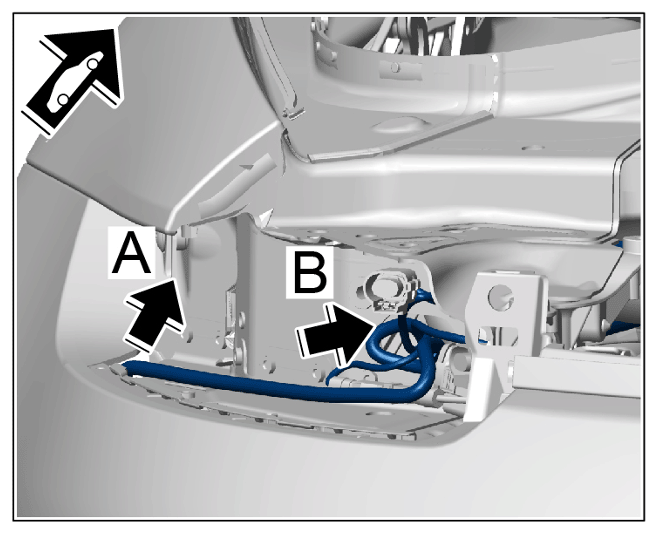

Guide main wire harness for engine compartment out of the wheel housing -arrow A- and pull it into the engine compartment through the opening in the body -arrow B- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Main wire harness in engine compartment

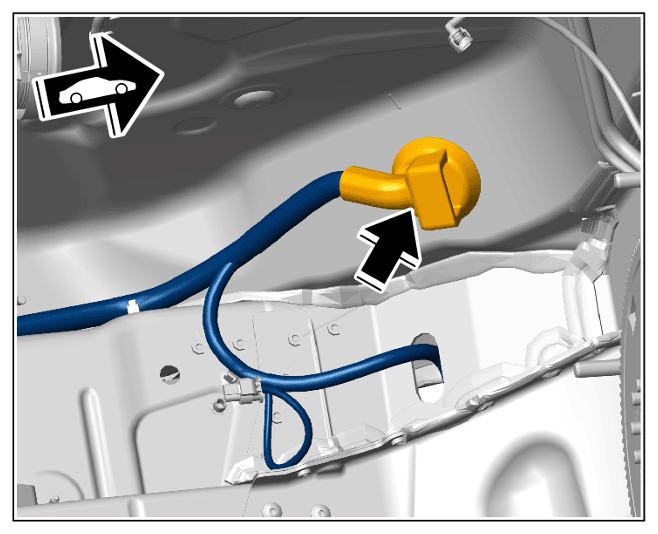

Press rubber sleeve together and pull it into the interior of the vehicle with main wire harness for engine compartment -arrow- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rubber sleeve
