Removing Servo Motor For Ram Air/Fresh Air Flap

1. Remove servo motor for ram air/fresh-air flap -3-  .
   1. 1.1 Release and unplug electric plug connection -1-  .
   2. 1.2 Unscrew and remove screws -2-  .
   3. 1.3 Remove servo motor for ram air/fresh-air flap -3-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

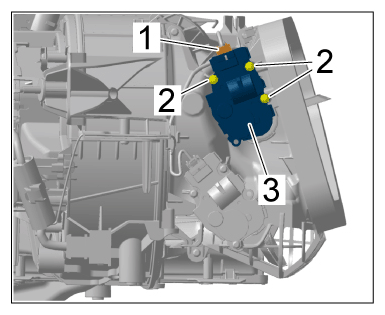

Servo motor for ram air/fresh-air flap
