Removing Centre Air Vent

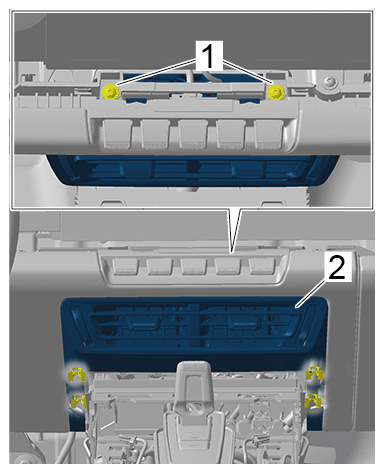

  1. Unscrew and remove screws -1-  .
    G15534709Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Screws

  2. Unclip centre air vent -2-  and remove it until the electric plug connection is accessible.
    G15534710Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Centre air vent

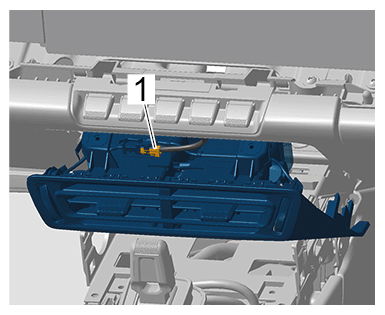

  3. Release and unplug electric plug connection -1-  .
    G15534711Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connection

  4. Remove centre air vent.
