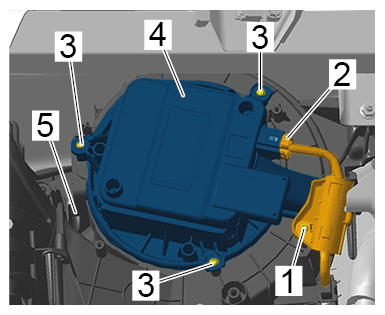

Removing Fan Motor

1. Unscrew screw -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Screw

2. Release and unplug electric plug connection -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Electric plug connection

3. Unscrew and remove screws -3-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Screws

4. Guide fan motor -4-  out of the heating/fresh-air unit -5-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fan motor
