Removing (Technical Equipment Space) Cover

Information

The (technical equipment space) cover does not have to be removed in order to work in the technical equipment space. The (technical equipment space) cover can be moved to service position for this purpose.

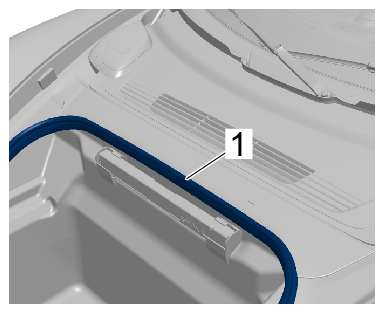

  1. Pull off front lid seal -1-  in the (technical equipment space) cover area.
    G15534697Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Front lid seal

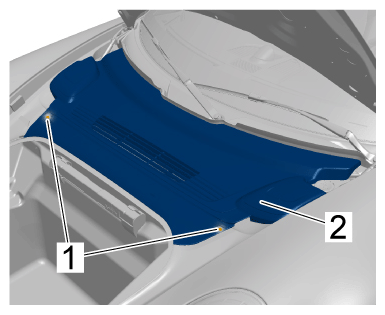

  2. Unclip retaining clips -1-  and remove (technical equipment space) cover -2-  .
G15534698Courtesy of PORSCHE CARS NORTH AMERICA, INC.

(Technical equipment space) cover
