Moving (Technical Equipment Space) Cover To Service Position

Information

The (technical equipment space) cover does not have to be removed in order to work in the technical equipment space. The (technical equipment space) cover can be moved to service position for this purpose.

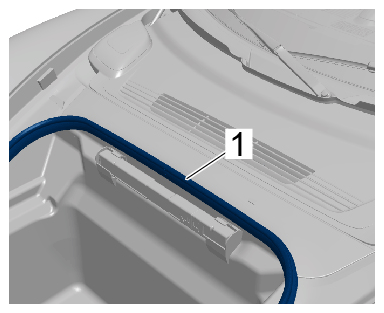

1. Pull off front lid seal -1-  in the (technical equipment space) cover area.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Front lid seal

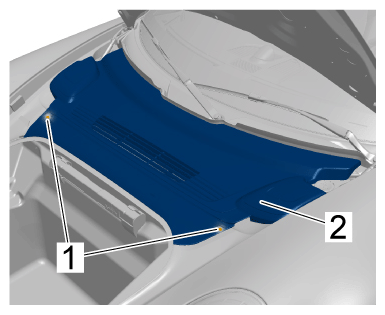

2. Unclip retaining clips -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Retaining clips

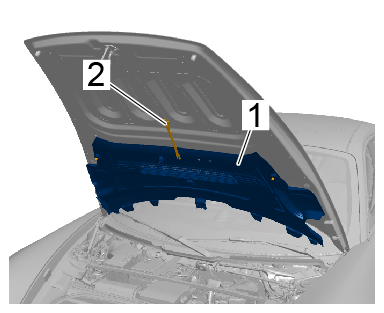

3. Open (technical equipment space) cover -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   (Technical equipment space) cover

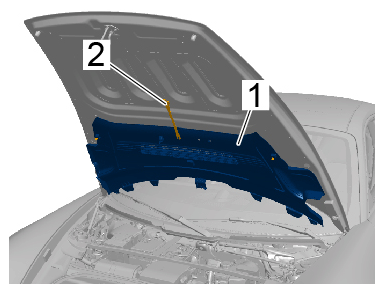

4. Position support -2-  on the front lid and secure it in the opening provided for this purpose on the frame.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Bracket
