Technical Values

Location	Description	Type	Basic value
Nut securing air inlet to firewall	Item 2	Tightening torque	3.2 Nm (2.1 ftlb.)
Screw securing diagonal brace to body, front	Item 2: Screw, M8 x 50	Tightening torque	20 Nm

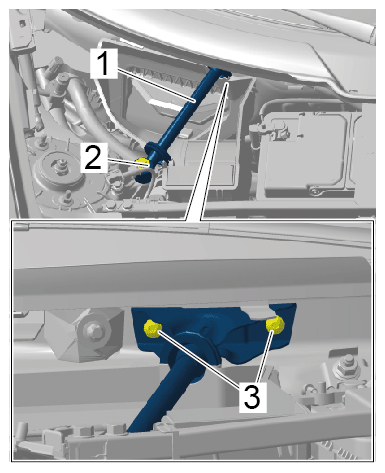

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Diagonal brace
Screws securing diagonal brace to body, rear	Item 3: Screw, M6 x 20	Tightening torque	8 Nm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Diagonal brace
