Removing Air Inlet Housing

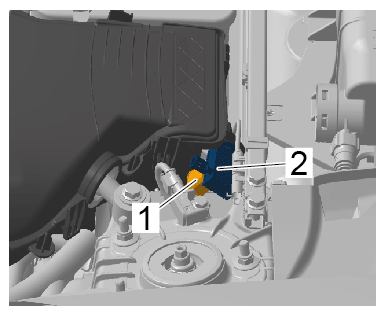

1. Release and disconnect electric plug connection -1-  on air quality sensor -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Electric plug connection

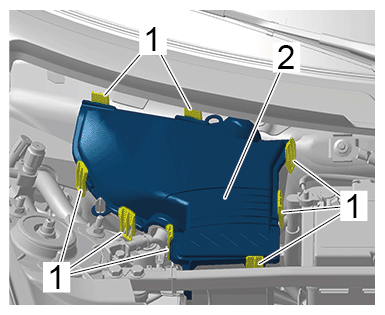

2. Open locking mechanisms -1-  and remove cover on air inlet housing -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Air inlet housing cover

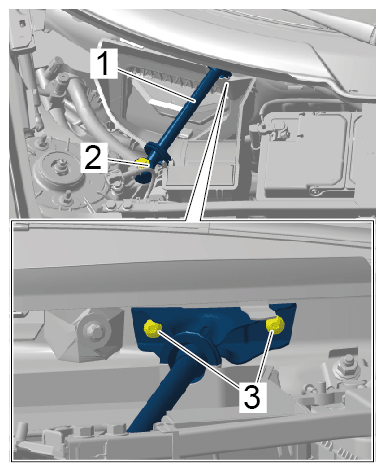

3. Remove diagonal brace -1-  .
   1. 3.1 Unscrew screw -2-  .
   2. 3.2 Unscrew and remove screws -3-  .
   3. 3.3 Guide out diagonal brace -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Diagonal brace

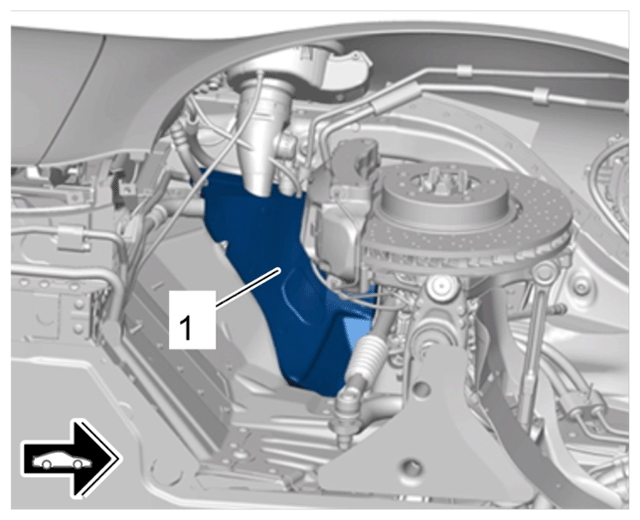

4. Remove foam part -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Foam part on filler neck

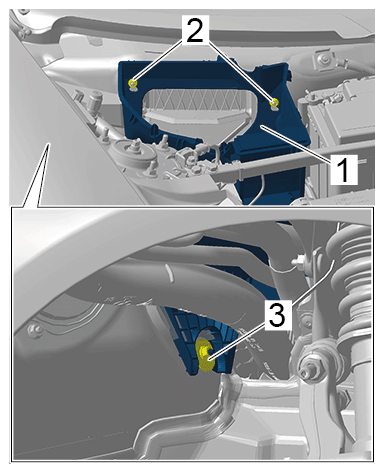

5. Remove air inlet housing -1-  .
   1. 5.1 Unscrew nuts -2-  .
   2. 5.2 Loosen nut -3-  in the front right wheel housing.
   3. 5.3 Guide air inlet housing -1-  up and out.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Air inlet housing
