Technical Values

Location Description Type Basic value Tolerance 1 Tolerance 2

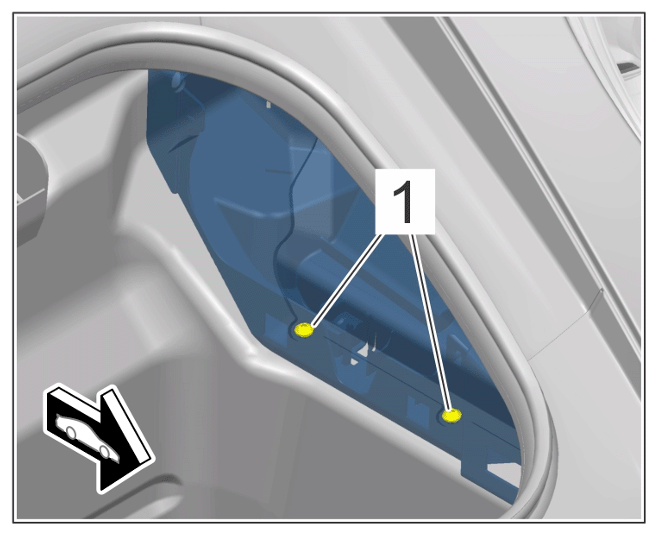

Tool kit screws item. 1 Tightening torque 7 Nm
G15534570Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws

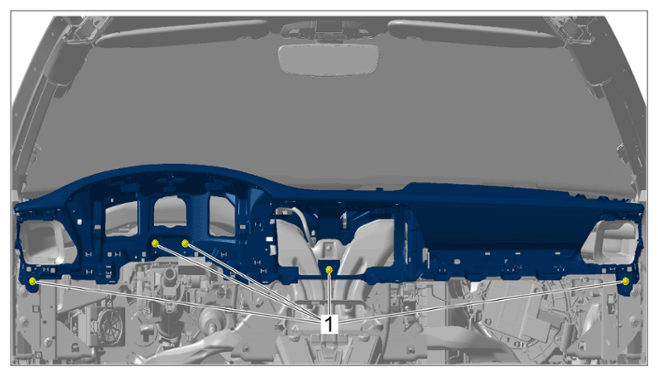

Screws securing dashboard to body Item 1 Tightening torque 3.2 Nm (2.2 ftlb.)
G15534571Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws

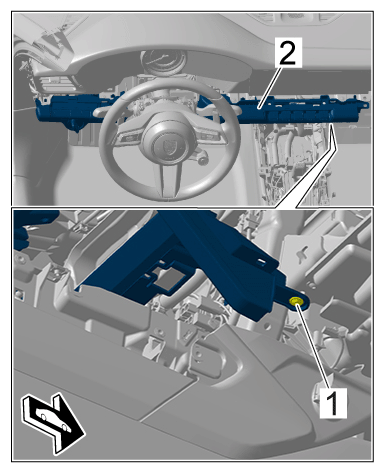

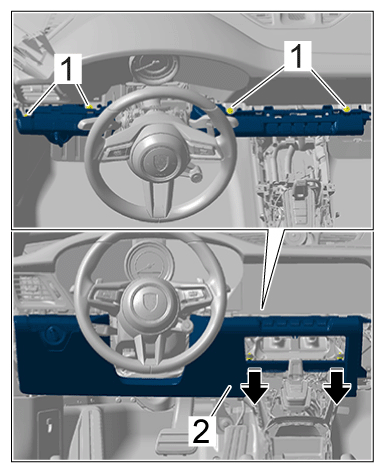

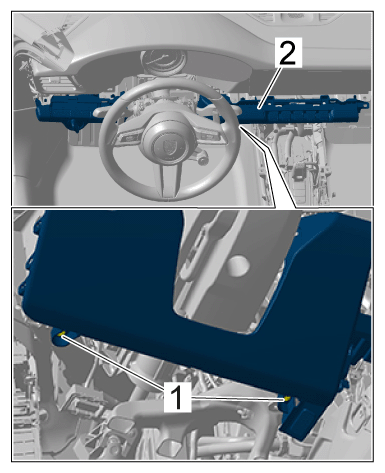

Screws securing dashboard trim panel to dashboard Item 1 Tightening torque 3.2 Nm (2.1 ftlb.)
G15534572G15534573G15534574Courtesy of PORSCHE CARS NORTH AMERICA, INC.PORSCHE CARS NORTH AMERICA, INC.PORSCHE CARS NORTH AMERICA, INC.

Top screws
G15534572G15534573G15534574Courtesy of PORSCHE CARS NORTH AMERICA, INC.PORSCHE CARS NORTH AMERICA, INC.PORSCHE CARS NORTH AMERICA, INC.

Bottom right screws
G15534572G15534573G15534574Courtesy of PORSCHE CARS NORTH AMERICA, INC.PORSCHE CARS NORTH AMERICA, INC.PORSCHE CARS NORTH AMERICA, INC.

Bottom left screws

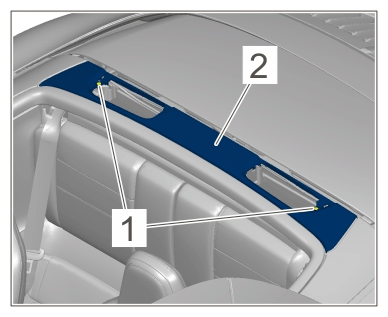

Rear cover Item 1 Tightening torque 3 Nm (2 ftlb.) +/- 0.2 Nm (0.1 ftlb.)
G15534575Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rear cover
Screws on holder for rear cover Item 2 Tightening torque 8 Nm (6 ftlb.)
G15534576Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws

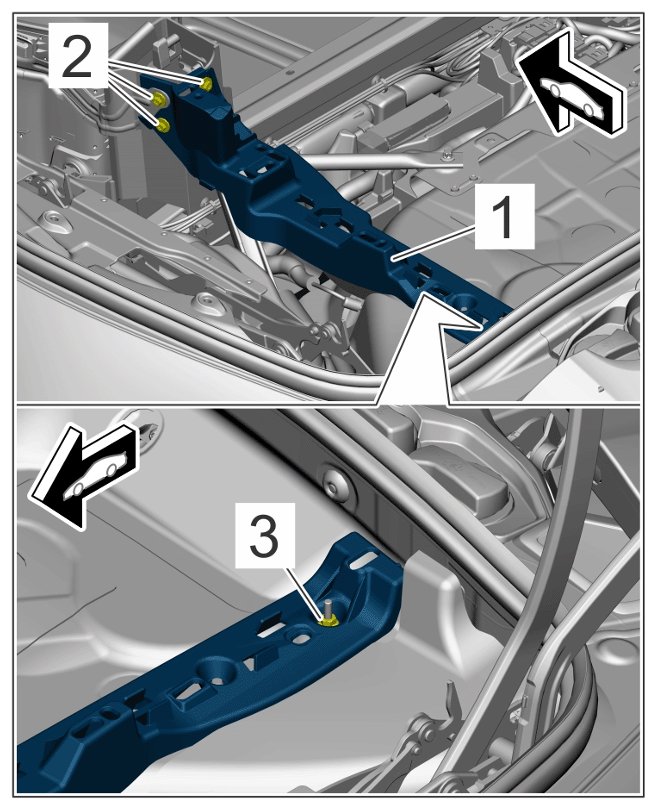

Nut on holder for rear cover Item 3 Tightening torque 7 Nm (5 ftlb.)
G15534577Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Nut

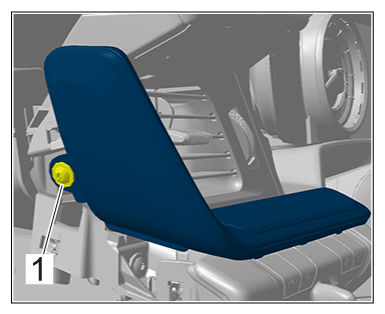

Screw securing dashboard moulding on driver's side to dashboard Item 1 Tightening torque 3.2 Nm (2.4 ftlb.)
G15534578Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw

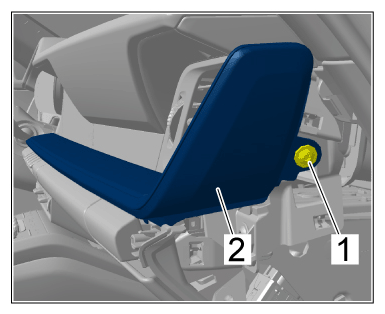

Screw securing side dashboard moulding on passenger's side to dashboard Item 1 Tightening torque 3.2 Nm (2.4 ftlb.)
G15534579Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Side screw

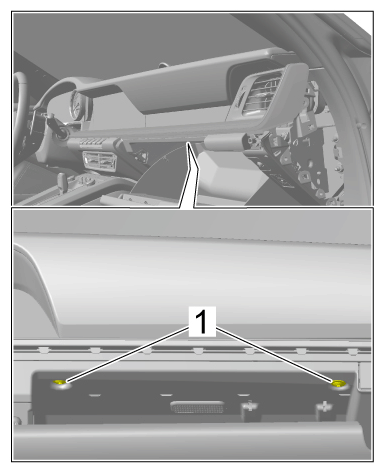

Screws in glove compartment securing dashboard moulding on passenger's side Item 1 Tightening torque 3, 2 Nm (2.4 ftlb.)
G15534580Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws in glove compartment

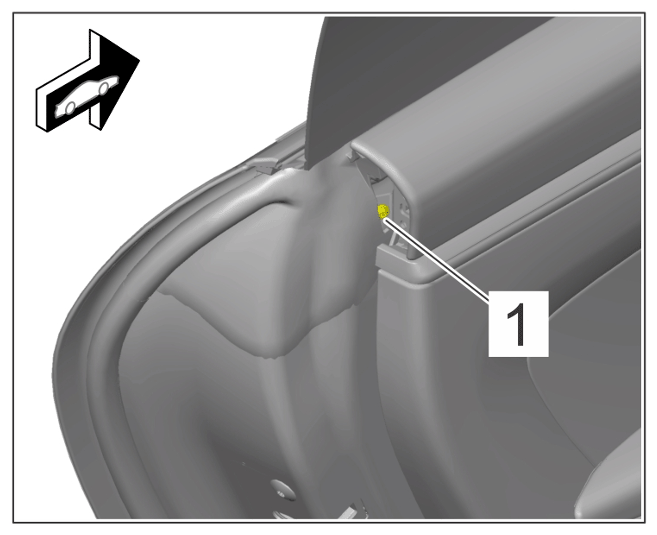

Rear screw Item 1 Tightening torque 5.6 Nm (4 ftlb.) +/- 0.5 Nm (0.35 ftlb.)
G15534581Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rear screw

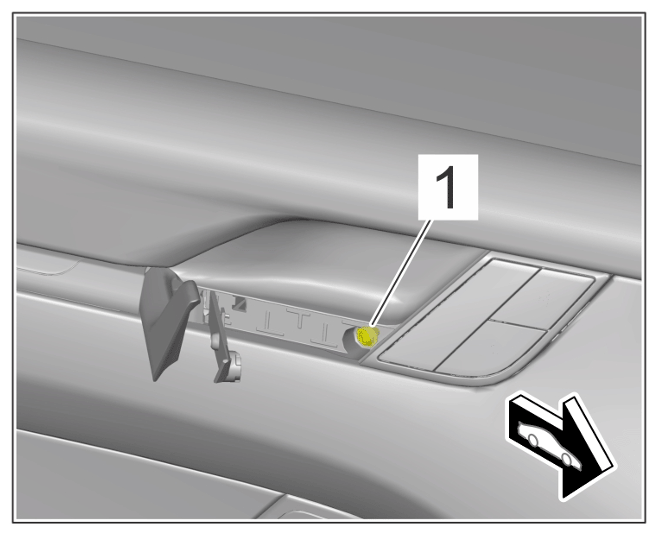

Front screw Item 1 Tightening torque 5.6 Nm (4 ftlb.) +/- 0.5 Nm (0.35 ftlb.)
G15534582Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Front screw

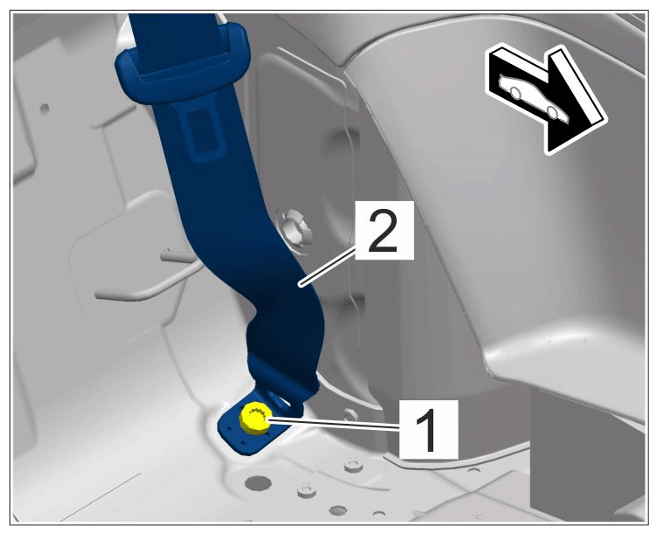

Seat belt mount for rear three-point belt Item 1 Replace screw Tightening torque 50 Nm (36.9 ftlb.)
G15534583Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Seat belt mount

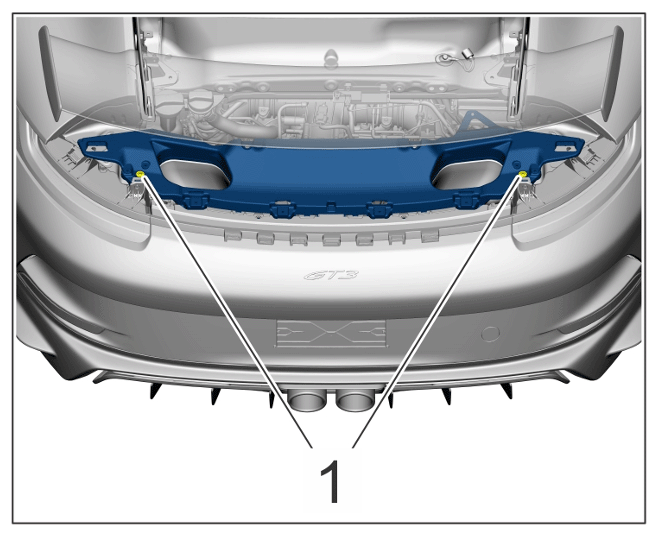

Screws for rear cover Item 1 Tightening torque 23.7 Nm (17.5 ftlb.)
G15534584Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws

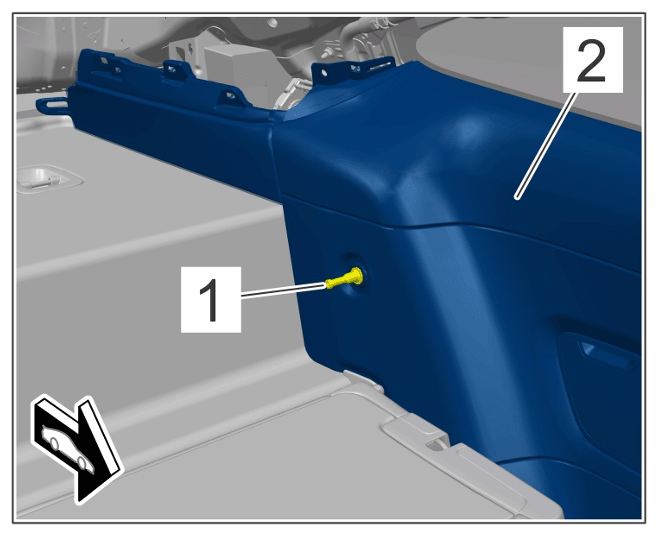

Locking pins for rear seat backrest Item 1 Tightening torque 20 Nm (14.8 ftlb.)
G15534585Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Locking pins

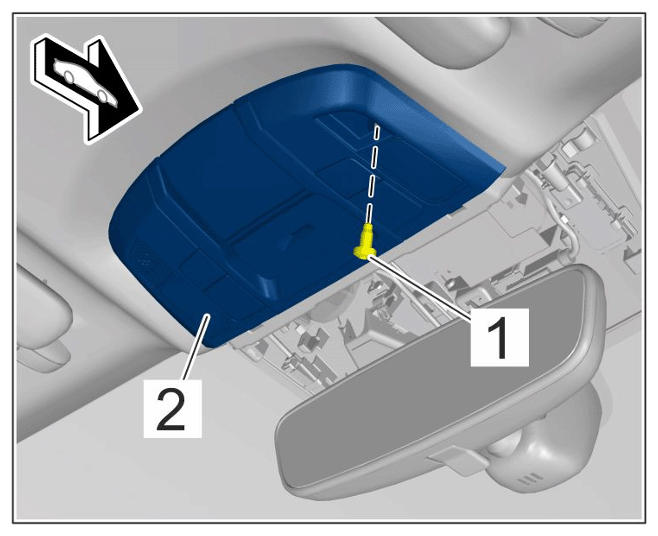

Screw for front roof console Item 1 Tightening torque 1.0 Nm (0.7 ftlb.)
G15534586Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw on front roof console

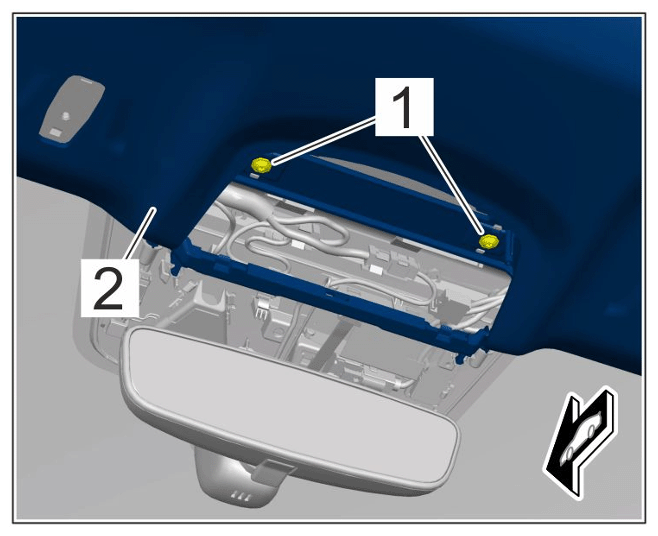

Front roof trim panel (centre) Item 1 Tightening torque 1 Nm (0.5 ftlb.)
G15534587Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Front screws

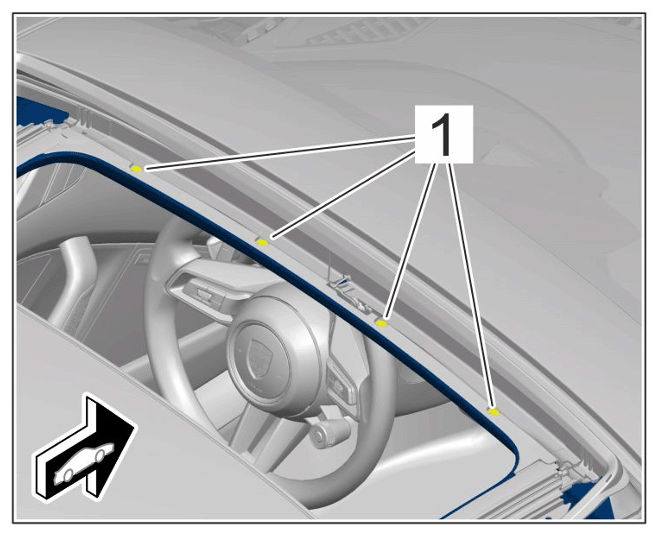

Sliding roof Item 1 Tightening torque 1.5 Nm (1 ftlb.) + 0.1 Nm (0.1 ftlb.)
G15534588Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws for sliding roof

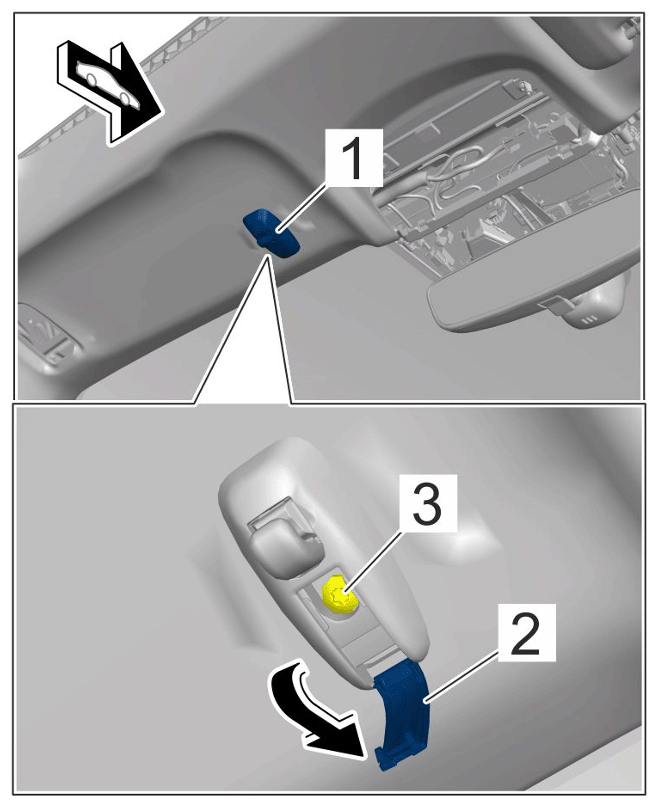

Sun visor holder Item 3 Tightening torque 5.5 Nm (4 ftlb.)
G15534589Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Sun visor holder

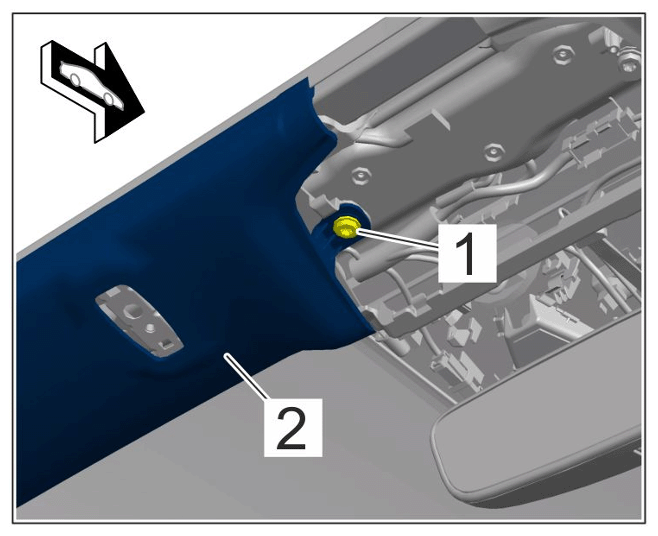

Front roof trim panel (Cabriolet) Item 1 Tightening torque 5.5 Nm (4 ftlb.)
G15534590Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw

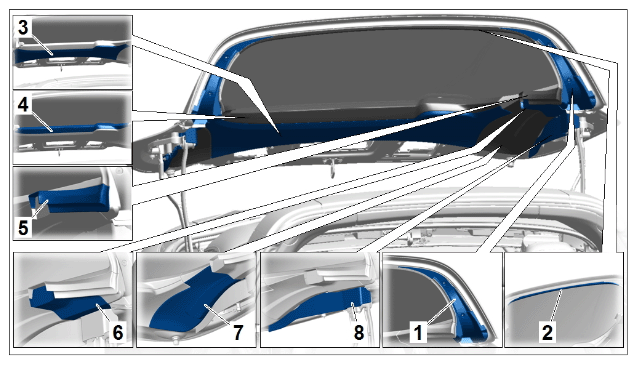

Screws on trim panel for rear lid Tightening torque 2.2 Nm (1.6 ftlb.) +/- 0.2 Nm (0.1 ftlb.)
G15534591Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Installation position of trim panel

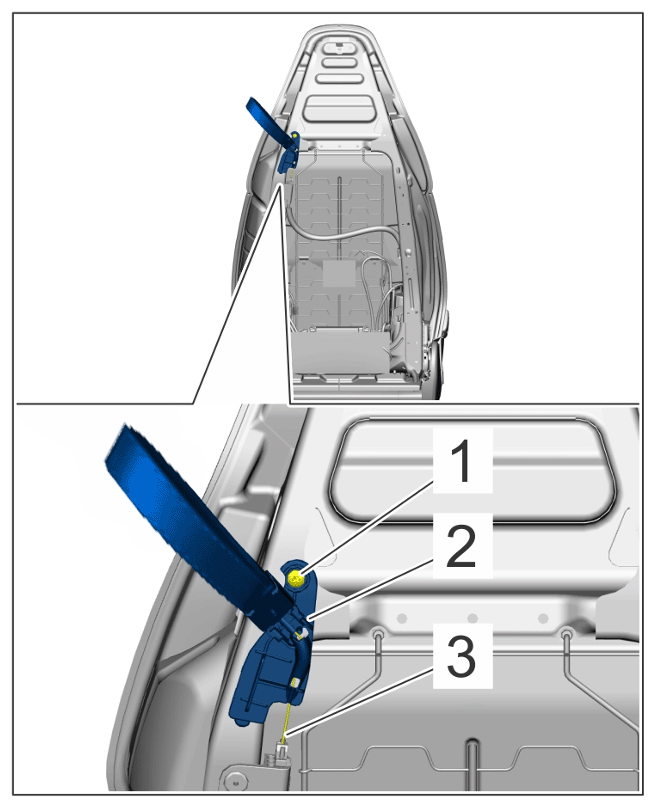

Screw for backrest release Item 1 Tightening torque 5 Nm (3.5 ftlb.)
G15534592Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Backrest release

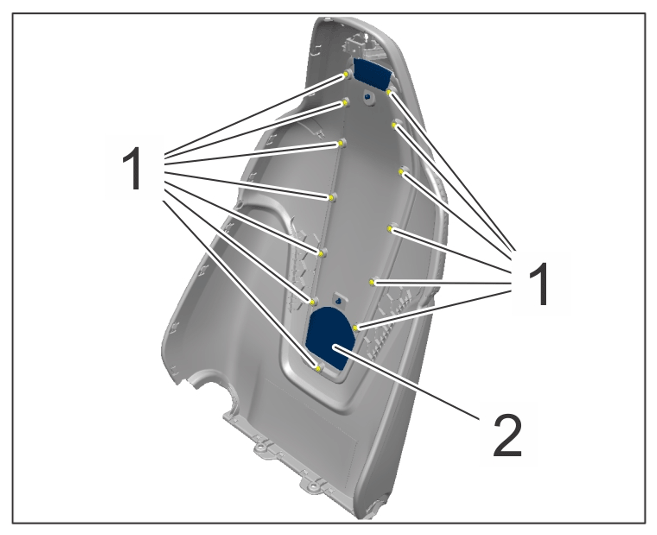

Screws for cushion carrier for front backrest (decorative trim) Item 1 Tightening torque 3 Nm (2 ftlb.)
G15534593Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws

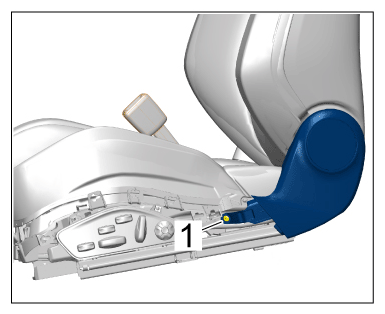

Screw securing backrest cover to seat Item 1 Tightening torque 2, 2 Nm +/- 0.2 Nm (0.15 ftlb.)
G15534594Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fastening screw

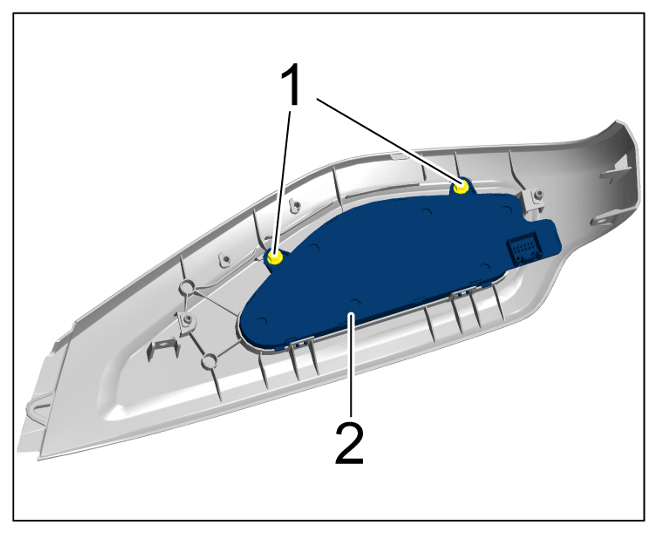

Screws securing front seat adjustment switch to seat Item 1 Tightening torque 3 Nm (2.2 ftlb.) +/- 0.5 Nm (0.4 ftlb.)
G15534595Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Switch for memory seat adjustment
Screws securing trim panel holder to seat frame Item 1 Tightening torque 3 Nm (2.2 ftlb.) +/- 0.5 Nm (0.4 ftlb.)
G15534596Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws

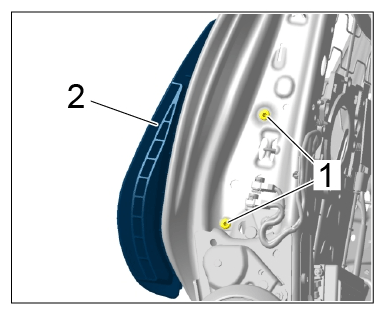

Screws securing air cushion for backrest to seat backrest Item 1 1 Tightening torque 3 Nm (2.2 ftlb.) +/- 0.5 Nm (0.4 ftlb.)
G15534597Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Air cushion for backrest

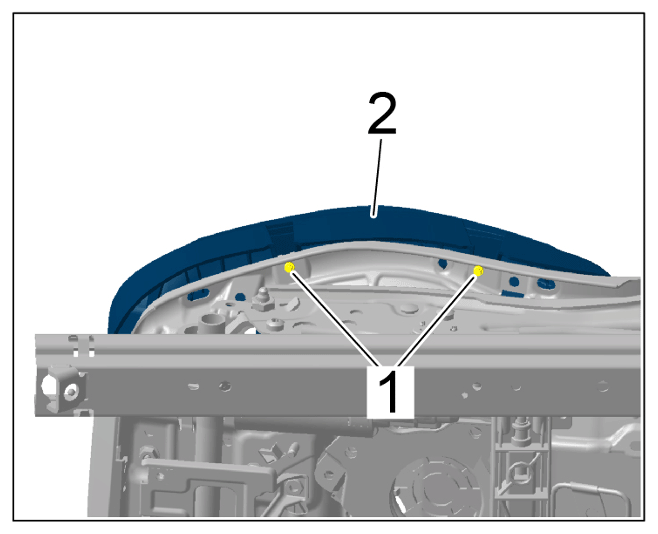

Screws securing air cushion for seat to seat backrest Item 1 Tightening torque 3 Nm (2.2 ftlb.) +/- 0.5 Nm (0.4 ftlb.)
G15534598Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Air cushion for seat

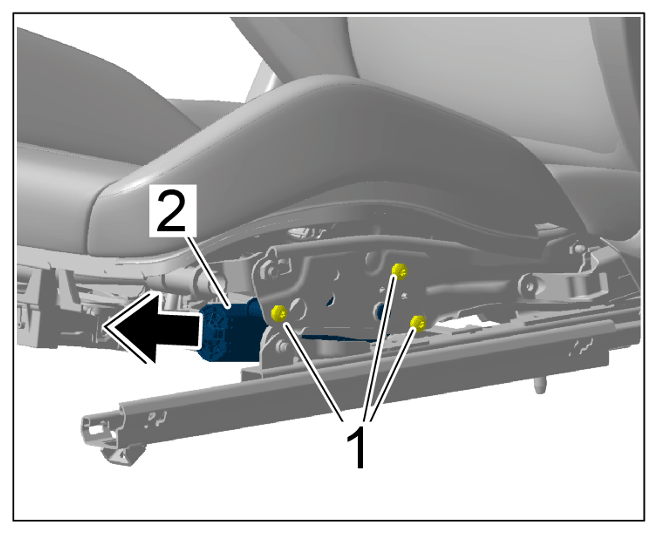

Screws securing height adjustment motor to front seat frame Item 1 Tightening torque 3 Nm (2.2 ftlb.) +/- 0.5 Nm (0.4 ftlb.)
G15534599Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Height adjustment motor for front seat

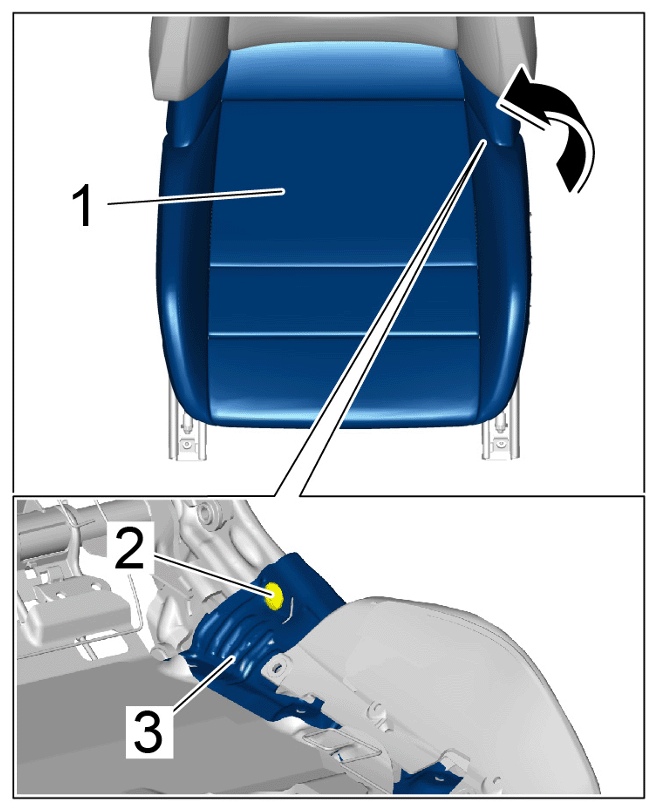

Screws securing seat shell to rear seat frame Item 2 Tightening torque 6 Nm (4.4 ftlb.) +/- 1 Nm (0.7 ftlb.)
G15534600Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Seat cover

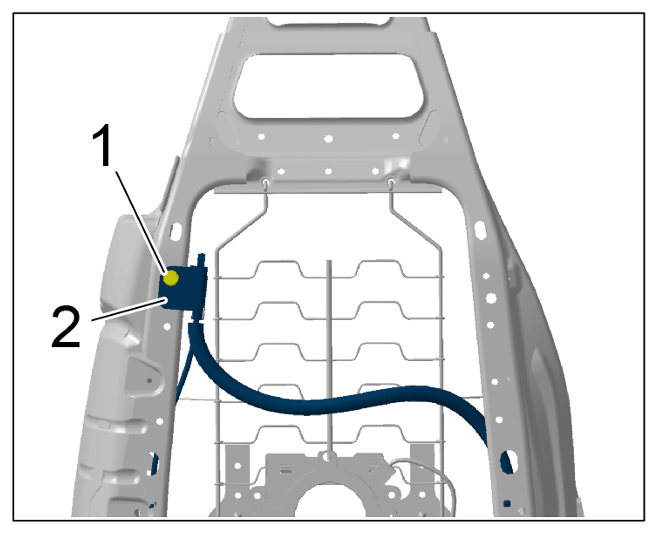

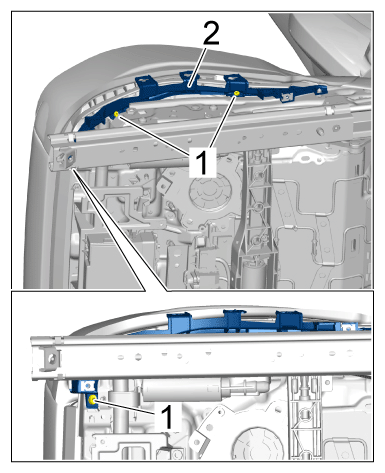

Screw securing bowden cable for backrest release to seat frame Item 1 Tightening torque 5 Nm (3.7 ftlb.) +/- 0.2 Nm (0.1 ftlb.)
G15534601Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Bowden cable for backrest release

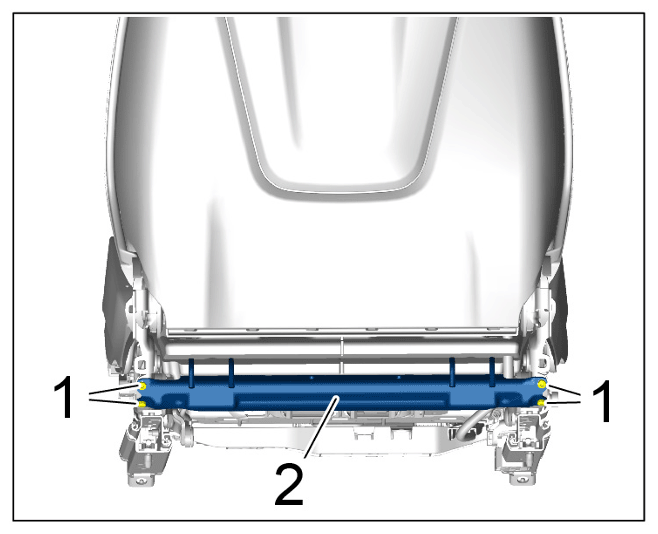

Screws securing ISOFIX to seat frame item 1 Tightening torque 6 Nm (4.4 ftlb.) +/- 1 Nm (0.7 ftlb.)
G15534602Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws

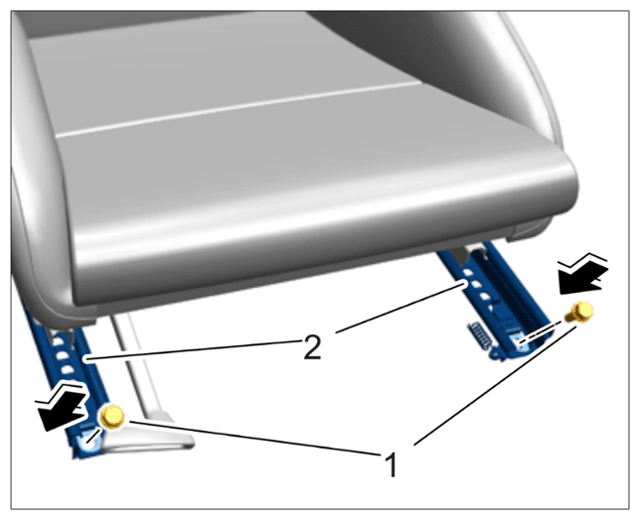

Screws for sports bucket seat Item 1 Tightening torque 50 Nm (36.9 ftlb.)
G15534603Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Tightening fastening screws at the front

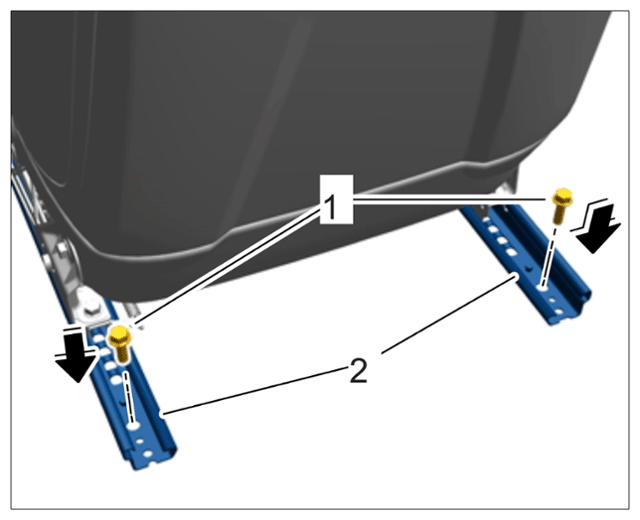

Screws on sports bucket seat item 1 Tightening torque 50 Nm (36.9 ftlb.)
G15534604Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Securing sports bucket seat at the rear

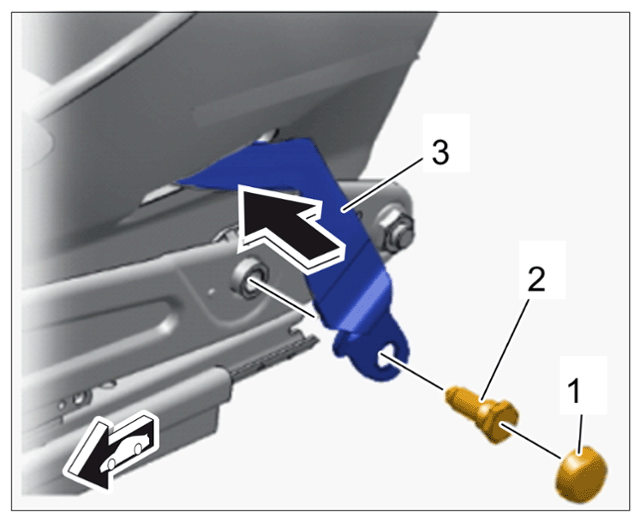

Mounting for seat belt mount on seat frame Item 2 (7/16" - 20 UNF) Tightening torque 50 Nm (36.9 ftlb.)
G15534605Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Loosen seat belt mount

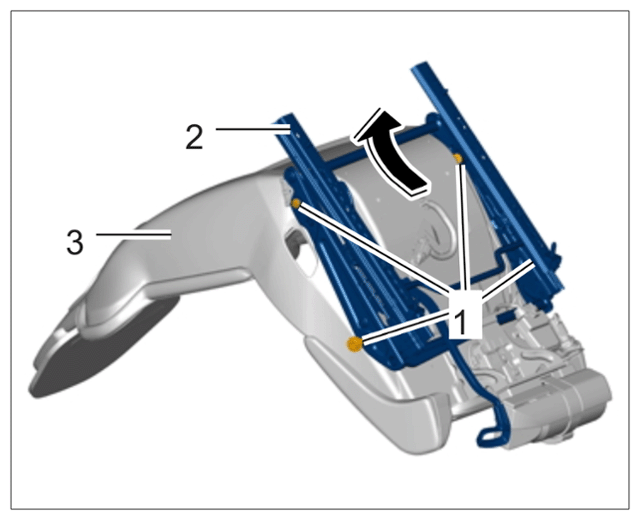

Seat frame to seat shell Item 1 (M8x40) Tightening torque 22 Nm (16.2 ftlb.)
G15534606Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing seat frame

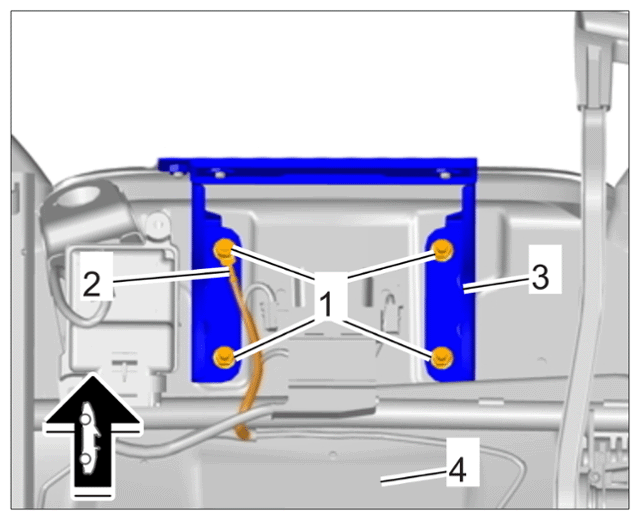

Fastening nut securing fire extinguisher holder to seat shell item 1 (M6) Tightening torque 7 Nm (5.2 ftlb.)
G15534607Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing bracket

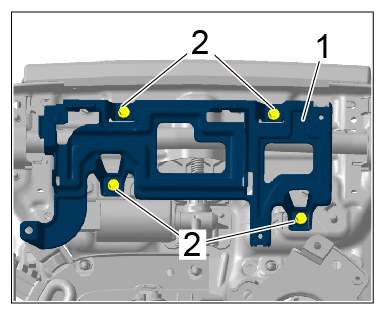

Screw Holder control unit for memory seat adjustment to control unit Item 2 Tightening torque 3 Nm (2.2 ftlb.) +/- 0.5 Nm (0.4 ftlb.)
G15534608Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Holder

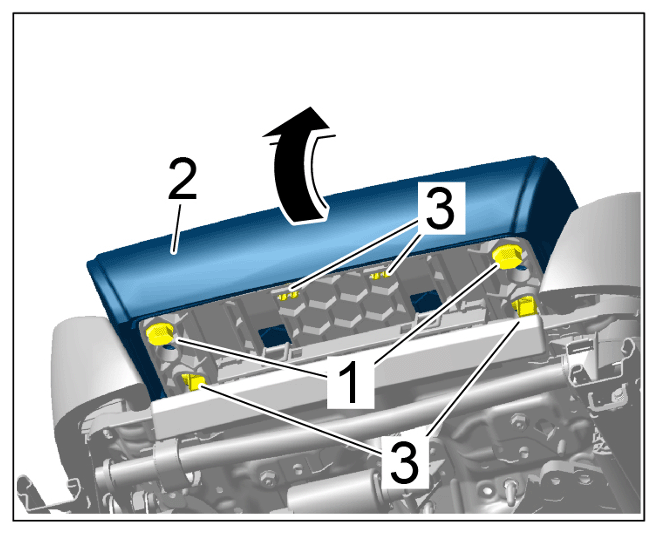

Screw securing padding for seat-surface extension to seat-surface extension Item 1 Tightening torque 1.8 Nm (1.3 ftlb.) +/- 0.2 Nm (0.1 ftlb.)
G15534609Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Padding for seat-surface extension

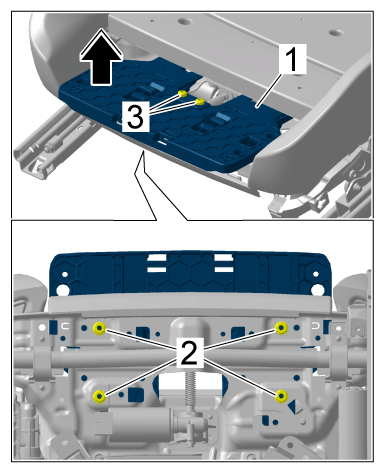

Screw seat extension to seat Item 3 Tightening torque 6 Nm (4.4 ftlb.) +/- 1 Nm (0.7 ftlb.)
G15534610Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Seat-surface extension, front

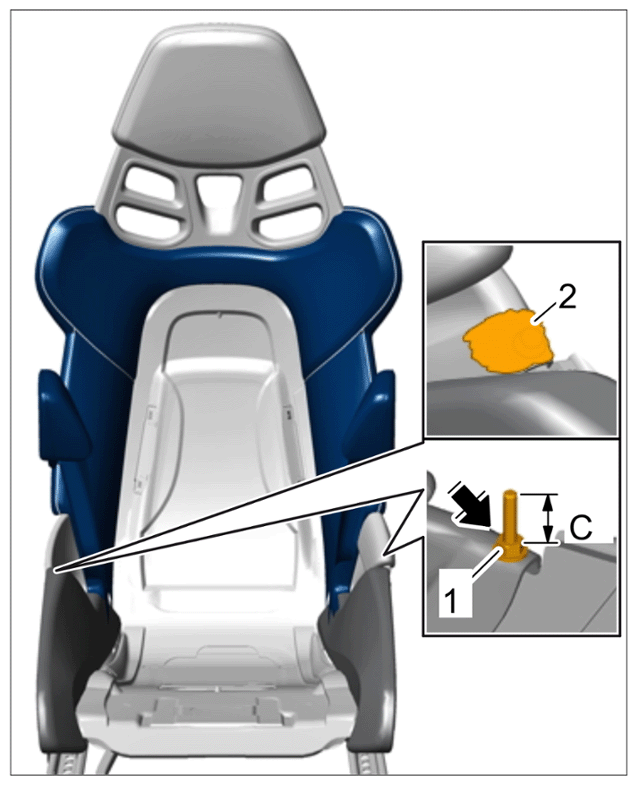

Bowden cable for belt guide Dimension C Length 25 mm
G15534611Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Securing Bowden cable
Fastening clamp for seat shell Dimension B Length 55 mm
G15534612Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Backrest clamps

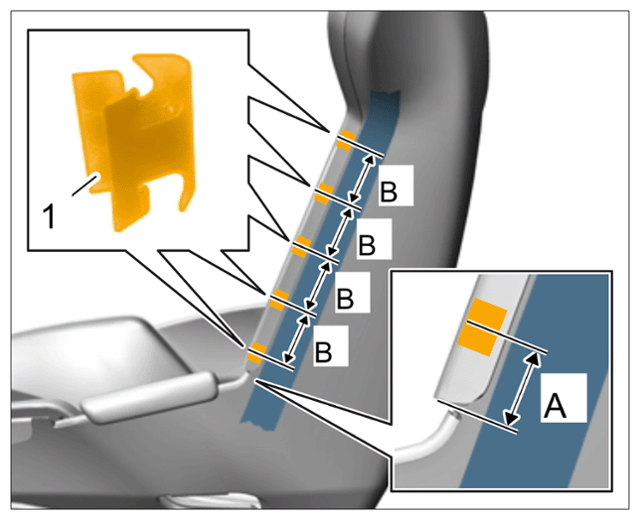

Fastening clamp for seat shell Dimension A Length 20 mm
G15534613Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Backrest clamps
Holder for plug connections on seat shell Item 2 (M5 x 16) Tightening torque 4 Nm (3 ftlb.) (3 ftlb.)
G15534614Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Secure supports

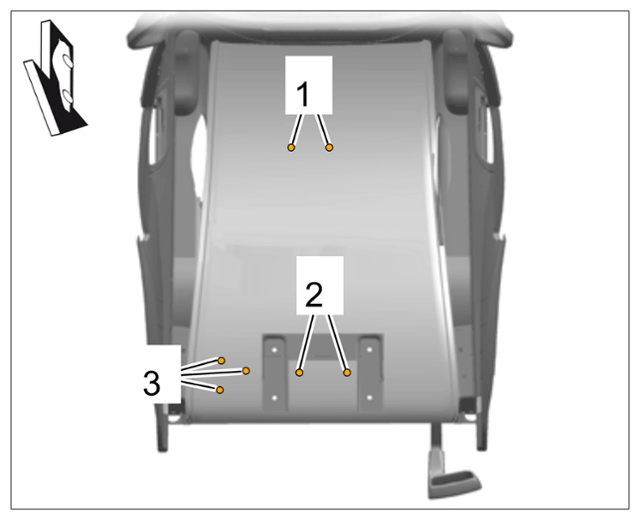

Control unit holder on seat shell Item 3 (M5x16) Tightening torque 6 Nm (4.4 ftlb.) (4.4 ftlb.)
G15534615Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Secure supports
