Seat-Surface Extension, Front

Location	Description	Type	Basic value	Tolerance

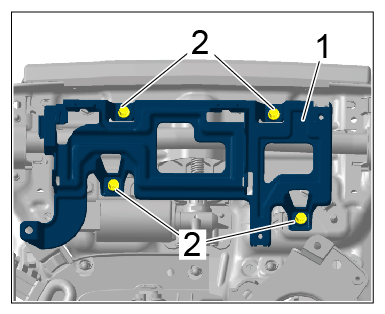

Screw Holder control unit for memory seat adjustment to control unit	Item 2	Tightening torque	3 Nm (2.2 ftlb.)	+/- 0.5 Nm (0.4 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Holder

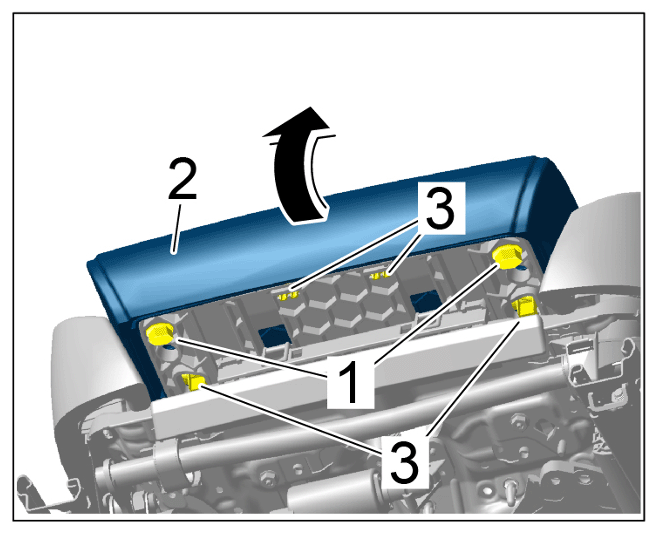

Screw securing padding for seat-surface extension to seat-surface extension	Item 1	Tightening torque	1.8 Nm (1.3 ftlb.)	+/- 0.2 Nm (0.1 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Padding for seat-surface extension

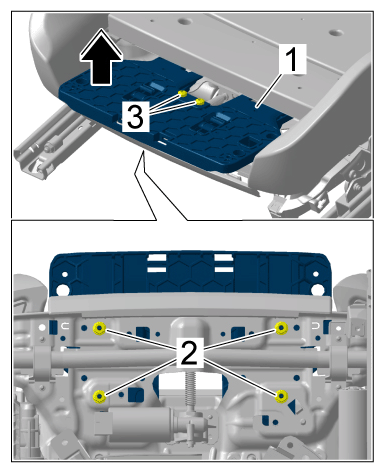

Screw seat extension to seat	Item 3	Tightening torque	6 Nm (4.4 ftlb.)	+/- 1 Nm (0.7 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Seat-surface extension, front

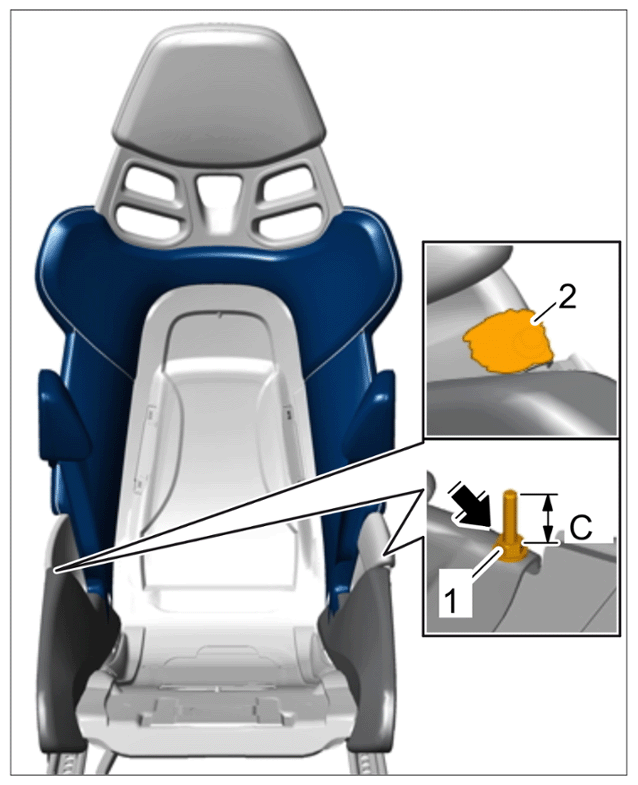

Bowden cable for belt guide	Dimension C	Length	25 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Securing Bowden cable

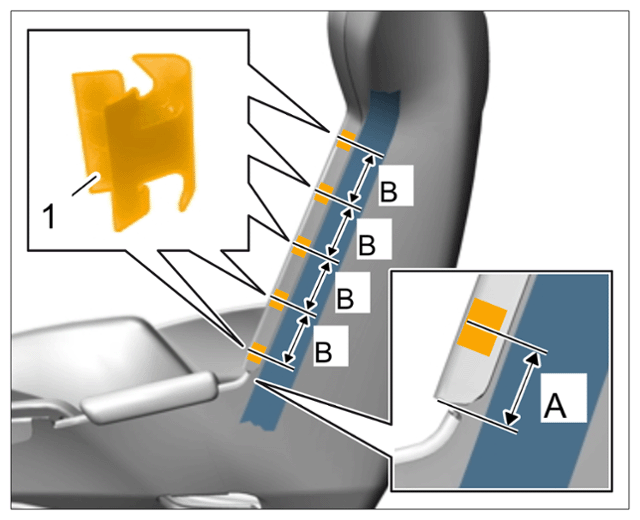

Fastening clamp for seat shell	Dimension B	Length	55 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Backrest clamps
Fastening clamp for seat shell	Dimension A	Length	20 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Backrest clamps

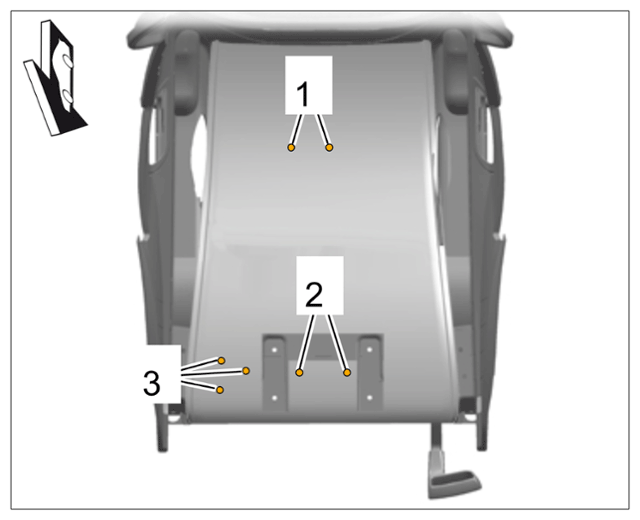

Holder for plug connections on seat shell	Item 2 (M5 x 16)	Tightening torque	4 Nm (3 ftlb.) (3 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Secure supports
Control unit holder on seat shell	Item 3 (M5x16)	Tightening torque	6 Nm (4.4 ftlb.) (4.4 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Secure supports
