Front Seat

Location	Description	Type	Basic value	Tolerance
Screws securing front seat adjustment switch to seat	Item 1	Tightening torque	3 Nm (2.2 ftlb.)	+/- 0.5 Nm (0.4 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Switch for memory seat adjustment

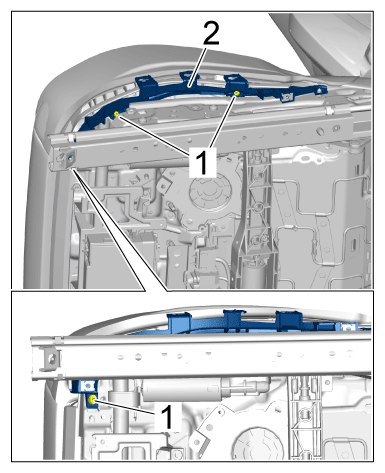

Screws securing trim panel holder to seat frame	Item 1	Tightening torque	3 Nm (2.2 ftlb.)	+/- 0.5 Nm (0.4 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws

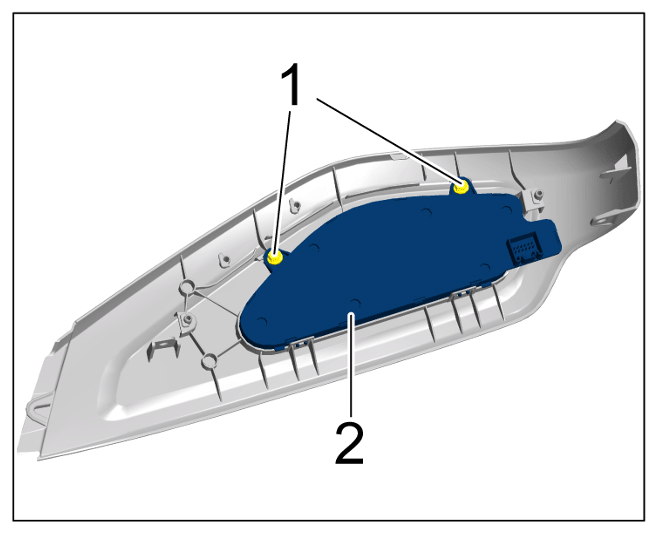

Screws securing air cushion for backrest to seat backrest	Item 1 1	Tightening torque	3 Nm (2.2 ftlb.)	+/- 0.5 Nm (0.4 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Air cushion for backrest

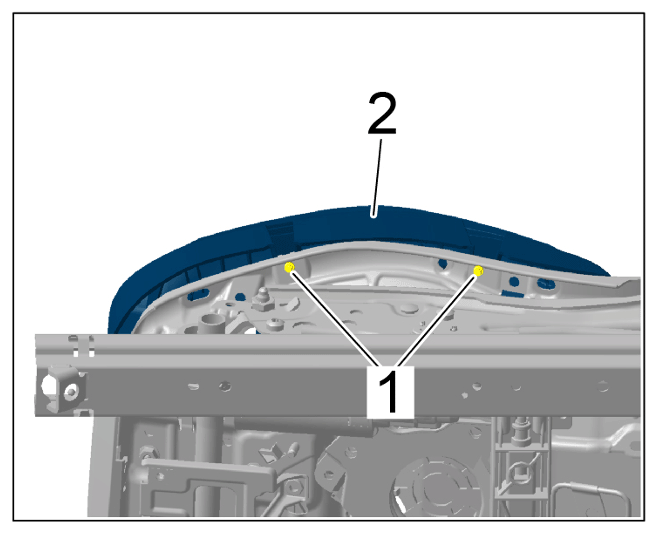

Screws securing air cushion for seat to seat backrest	Item 1	Tightening torque	3 Nm (2.2 ftlb.)	+/- 0.5 Nm (0.4 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Air cushion for seat

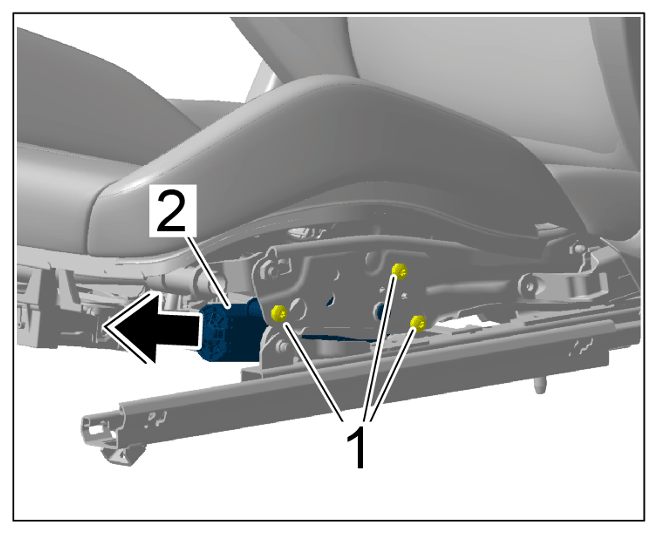

Screws securing height adjustment motor to front seat frame	Item 1	Tightening torque	3 Nm (2.2 ftlb.)	+/- 0.5 Nm (0.4 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Height adjustment motor for front seat

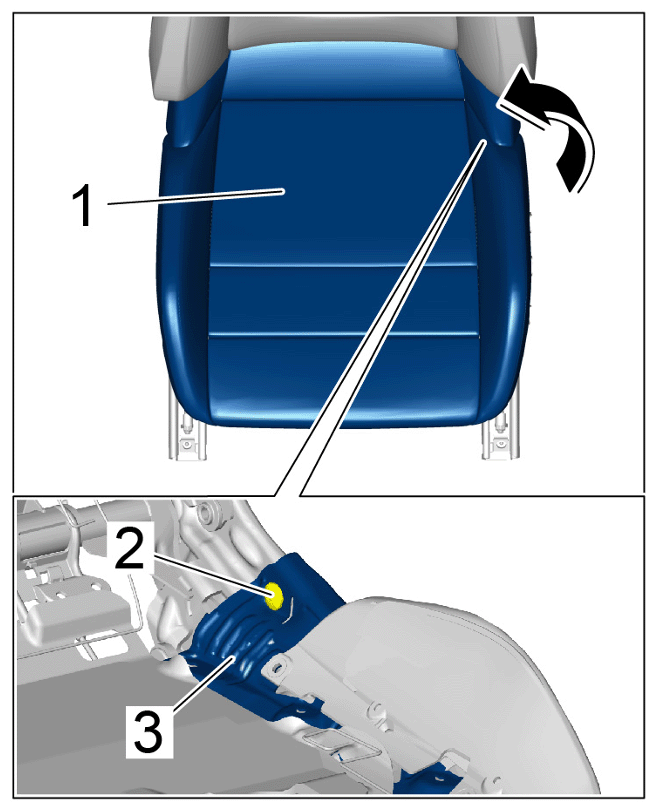

Screws securing seat shell to rear seat frame	Item 2	Tightening torque	6 Nm (4.4 ftlb.)	+/- 1 Nm (0.7 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Seat cover

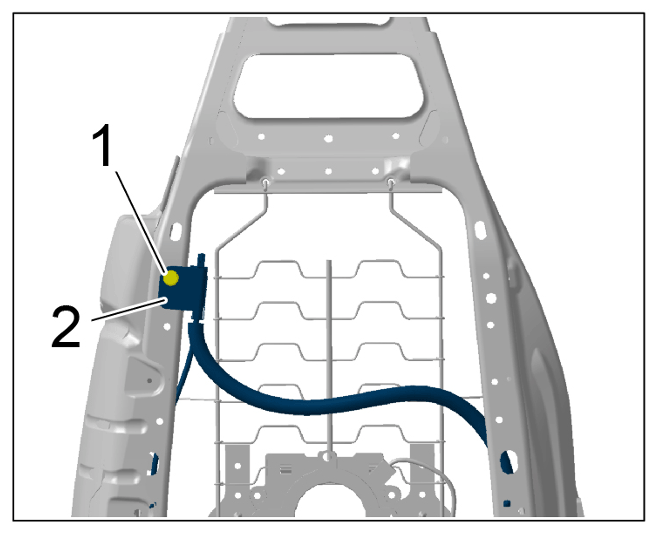

Screw securing bowden cable for backrest release to seat frame	Item 1	Tightening torque	5 Nm (3.7 ftlb.)	+/- 0.2 Nm (0.1 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Bowden cable for backrest release

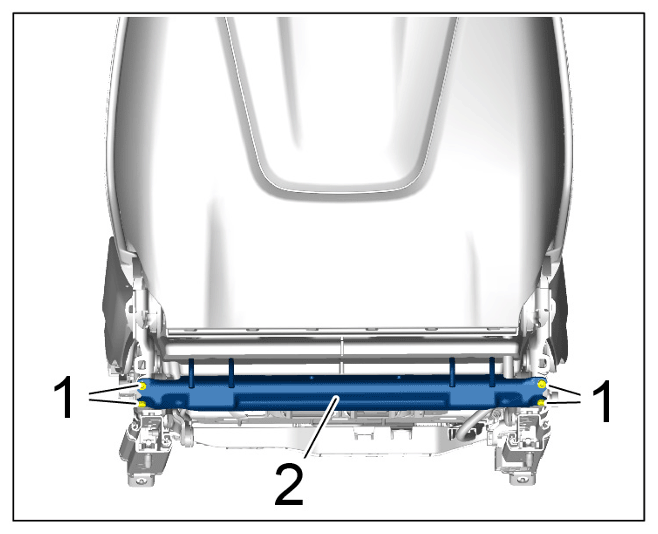

Screws securing ISOFIX to seat frame	item 1	Tightening torque	6 Nm (4.4 ftlb.)	+/- 1 Nm (0.7 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws

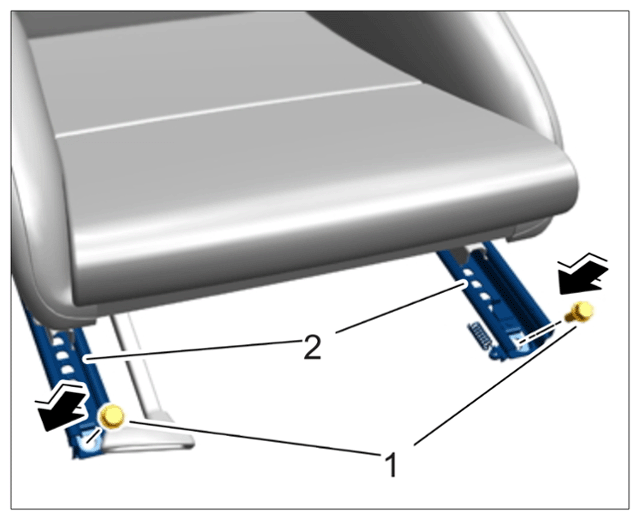

Screws for sports bucket seat	Item 1	Tightening torque	50 Nm (36.9 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Tightening fastening screws at the front

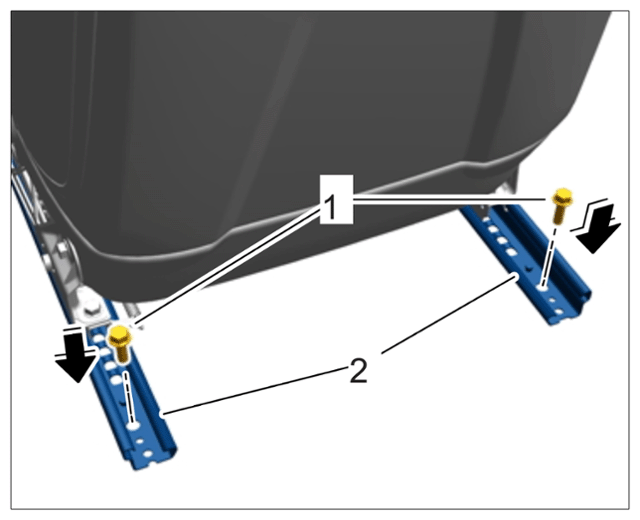

Screws on sports bucket seat	item 1	Tightening torque	50 Nm (36.9 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Securing sports bucket seat at the rear

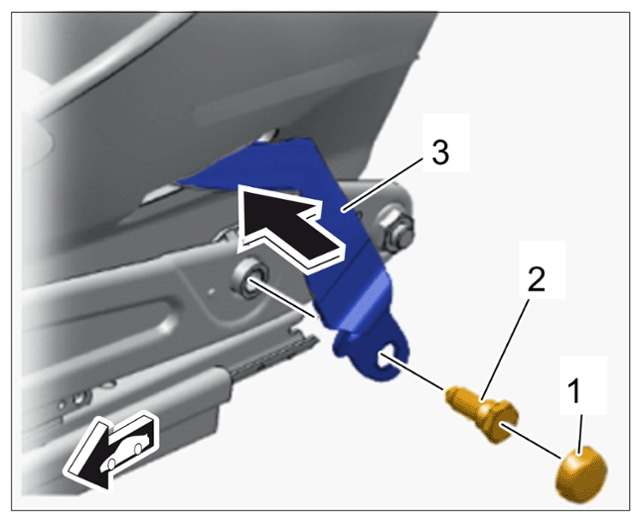

Mounting for seat belt mount on seat frame	Item 2 (7/16" - 20 UNF)	Tightening torque	50 Nm (36.9 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Loosen seat belt mount

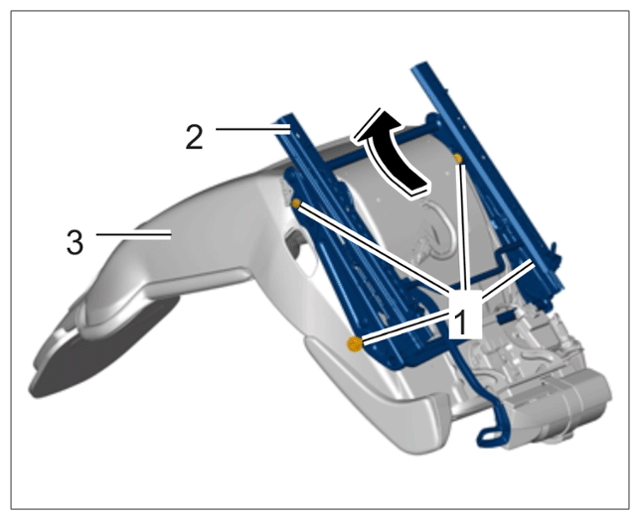

Seat frame to seat shell	Item 1 (M8x40)	Tightening torque	22 Nm (16.2 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Removing seat frame

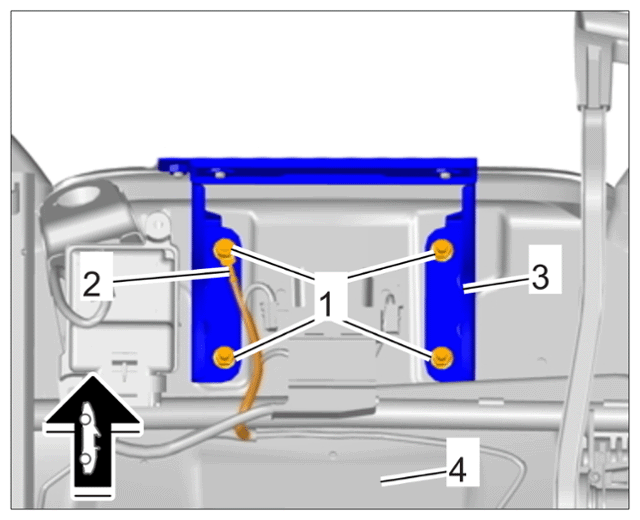

Fastening nut securing fire extinguisher holder to seat shell	item 1 (M6)	Tightening torque	7 Nm (5.2 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Removing bracket
