7X Body-Equipment Inside General -- 992 - 911 CARRERA (992)
>>
WM, 7X00IN40 Technical Values
>>
72 Seat Frame
>>
Backrest Release
Backrest Release
Location
Description
Type
Basic value
Tolerance
Screw for backrest release
Item 1
Tightening torque
5 Nm (3.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

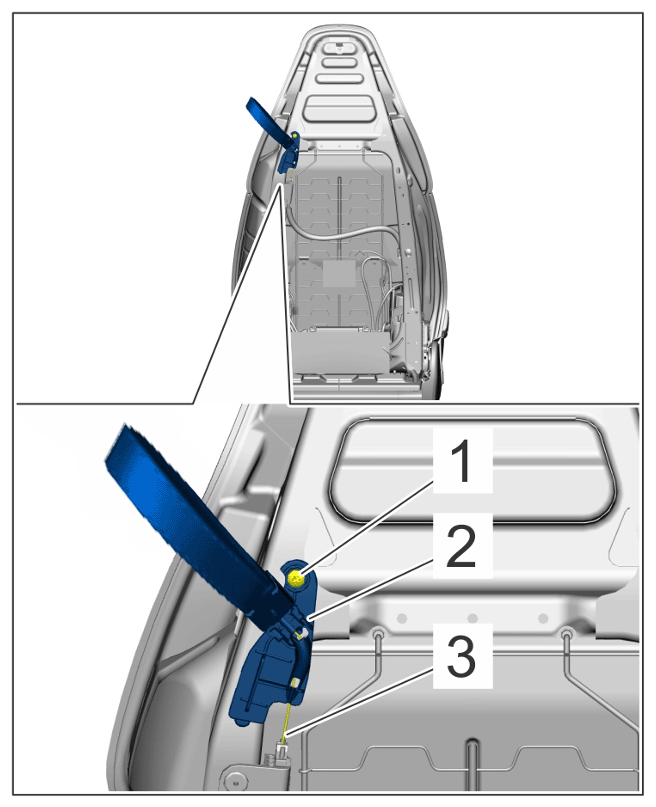

Backrest release
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
