Backrest Cover

Location Description Type Basic value Tolerance
Screw securing backrest cover to seat Item 1 Tightening torque 2, 2 Nm +/- 0.2 Nm (0.15 ftlb.)

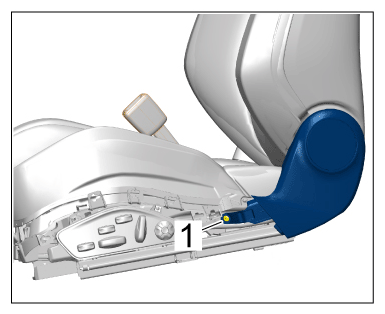

G15534640Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fastening screw
