7X Body-Equipment Inside General -- 992 - 911 CARRERA (992)
>>
WM, 7X00IN40 Technical Values
>>
70 Lining, Insulation
>>

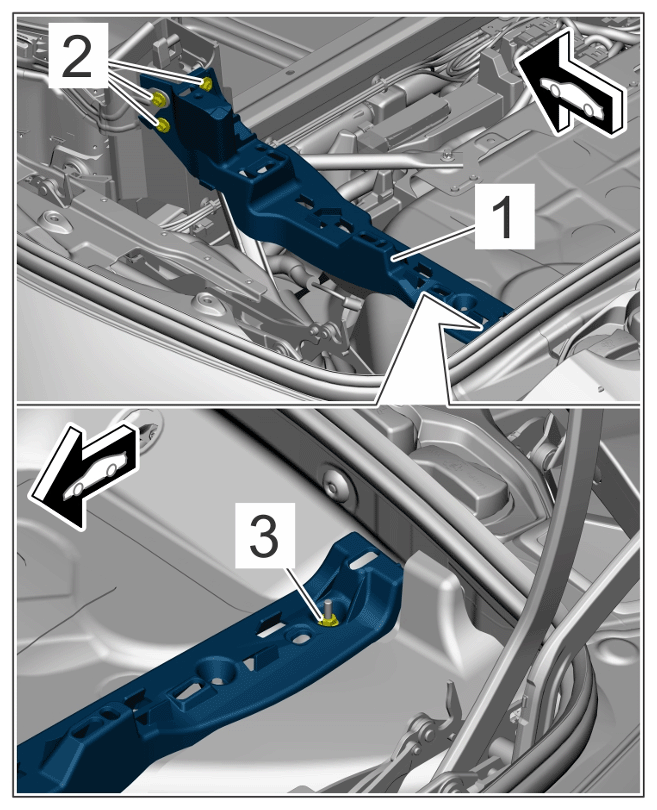

Holder For Rear Cover
Holder For Rear Cover
Location
Description
Type
Basic value
Tolerance
Screws on holder for rear cover
Item 2
Tightening torque
8 Nm (6 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Screws
Nut on holder for rear cover
Item 3
Tightening torque
7 Nm (5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Nut
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
