Front Door Panel

Location Description Type Basic value Tolerance
Rear screw Item 1 Tightening torque 5.6 Nm (4 ftlb.) +/- 0.5 Nm (0.35 ftlb.)
G15534627Courtesy of PORSCHE CARS NORTH AMERICA, INC.

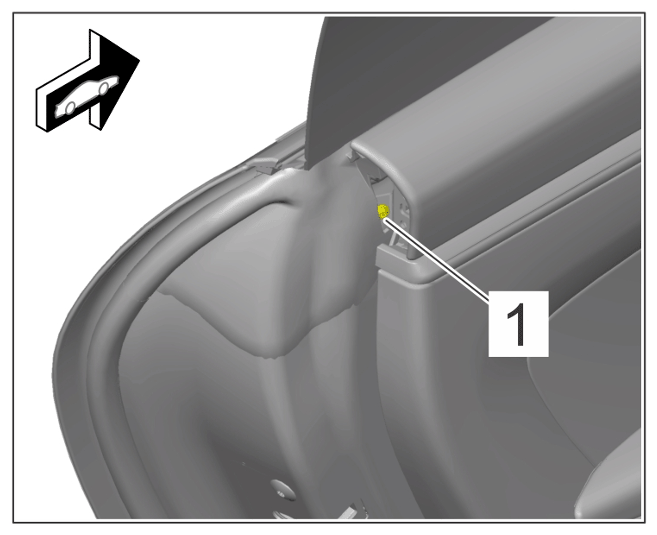

Rear screw
Front screw Item 1 Tightening torque 5.6 Nm (4 ftlb.) +/- 0.5 Nm (0.35 ftlb.)
G15534628Courtesy of PORSCHE CARS NORTH AMERICA, INC.

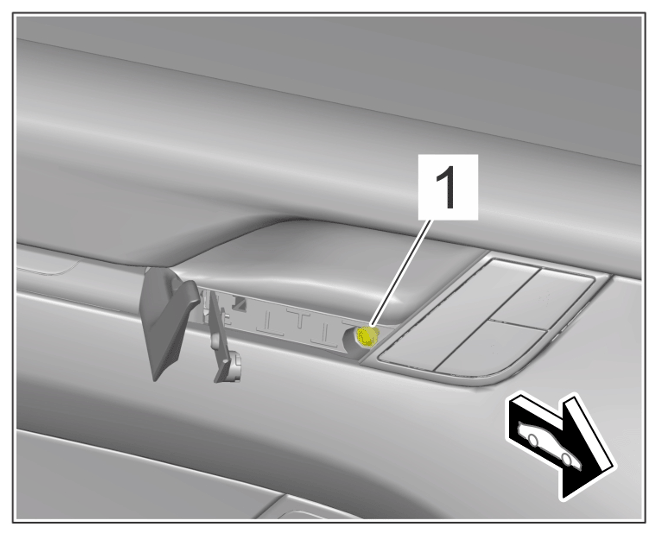

Front screw
