70 Lining, Insulation: Dashboard

Location Description Type Basic value Tolerance
Screws securing dashboard to body Item 1 Tightening torque 3.2 Nm (2.2 ftlb.)

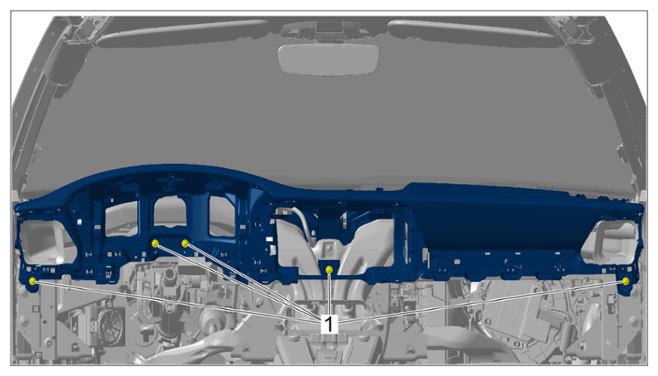

G15534617Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws
