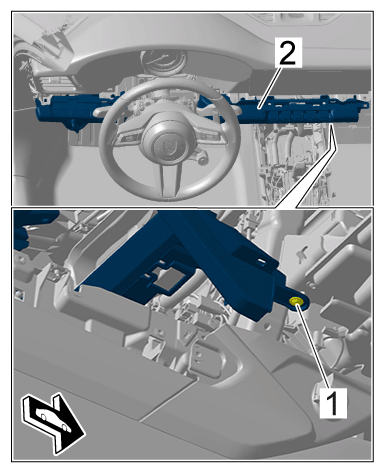

| Screws securing dashboard trim panel to dashboard |
Item 1 |
Tightening torque |
3.2 Nm (2.1 ftlb.) |
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.

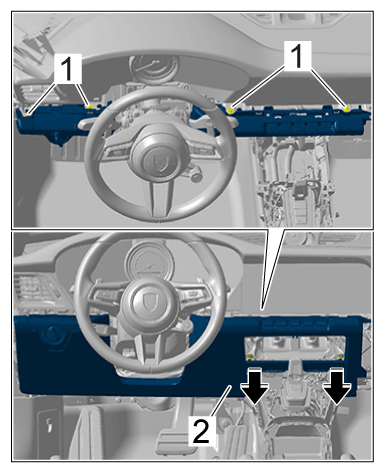

Top screws |
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.

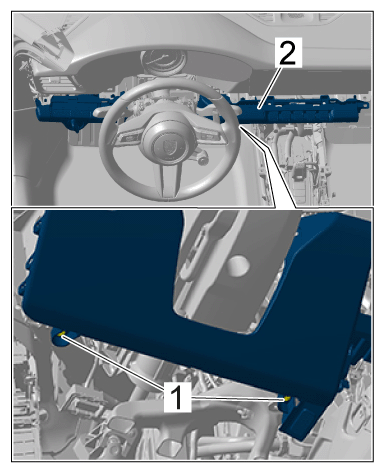

Bottom right screws |
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Bottom left screws |
