Dashboard Moulding On Passenger'S Side

Location Description Type Basic value Tolerance
Screw securing side dashboard moulding on passenger's side to dashboard Item 1 Tightening torque 3.2 Nm (2.4 ftlb.)

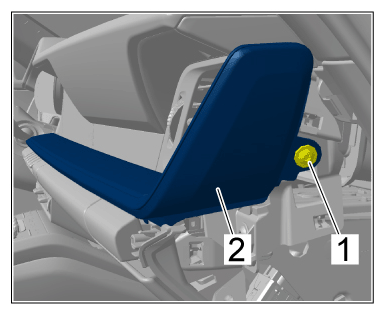

G15534625Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Side screw
Screws in glove compartment securing dashboard moulding on passenger's side Item 1 Tightening torque 3, 2 Nm (2.4 ftlb.)

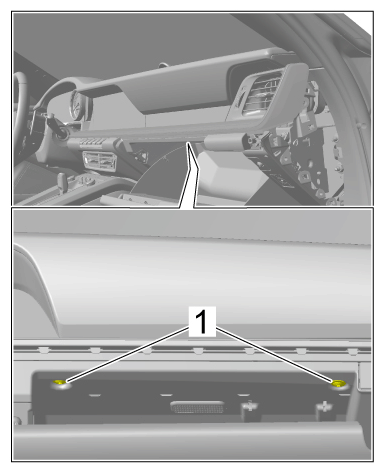

G15534626Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws in glove compartment
