Technical Values

* Location * Description * Type * Basic value. * Tolerance 1 * Tolerance 2
Roof assembly (roof carrier) Item 1 Tightening torque 1.6 Nm (1.2 ftlb.)

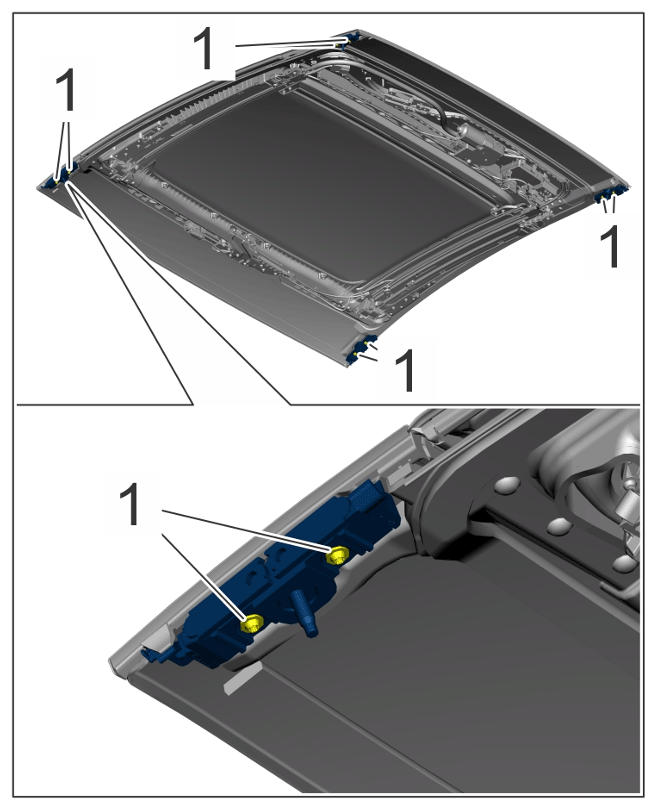

G15533721Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Roof assembly (roof carrier)
Sliding-roof panel lock Item Y Length 2 mm -1 mm

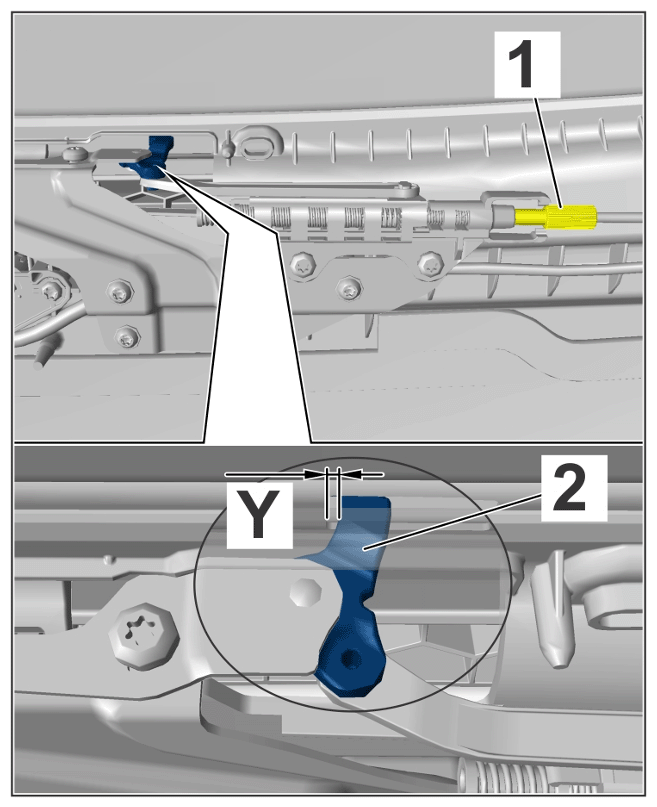

G15533722Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Adjusting locking mechanism in Y direction

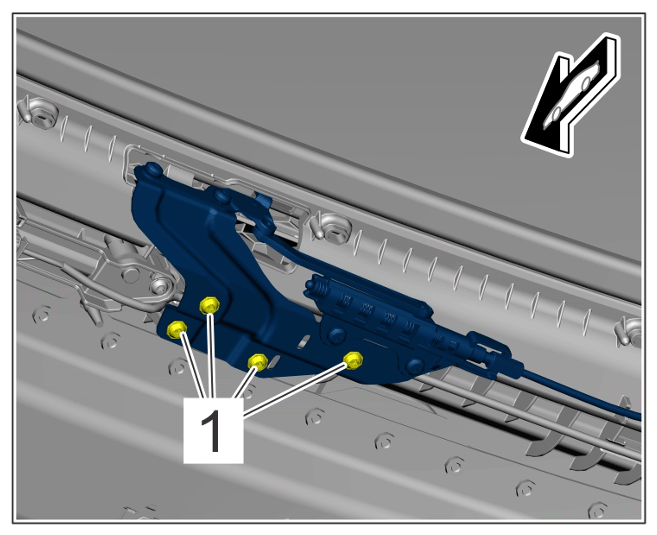

Screws for sliding-roof panel lock retainer plate Item 1 Tightening torque 4 Nm (3 ftlb.)
G15533723Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws

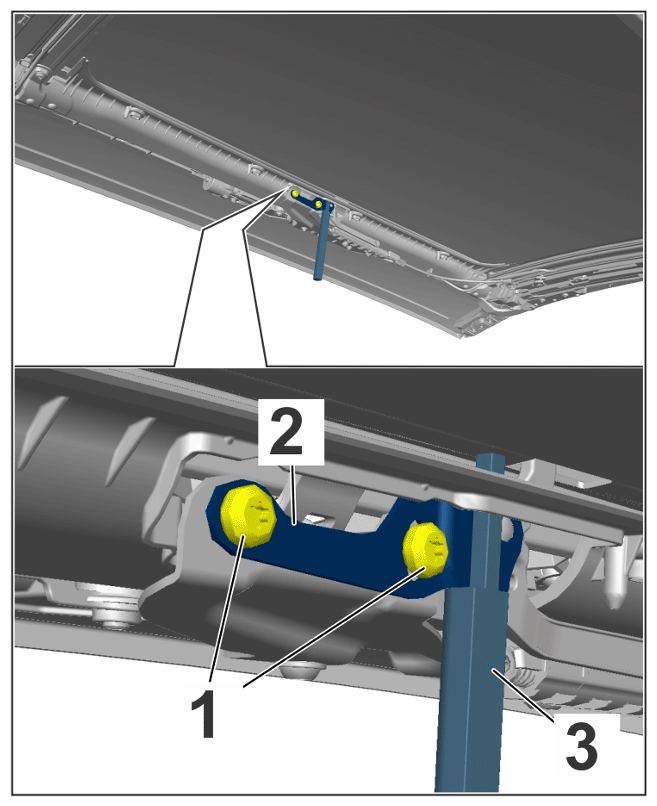

Sliding-roof panel locking bracket hook Item 1 Tightening torque 5 Nm (3.5 ftlb.)
G15533724Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Adjusting locking mechanism in Z direction
Sunroof motor Item 1   3 Nm (2 ftlb.)

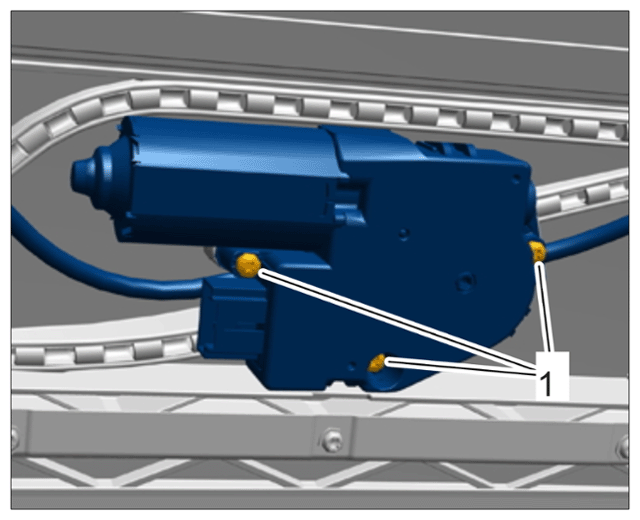

G15533725Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing safety clip
Screw for air deflector bracket Item 1 Tightening torque 2 Nm (1.5 ftlb.)

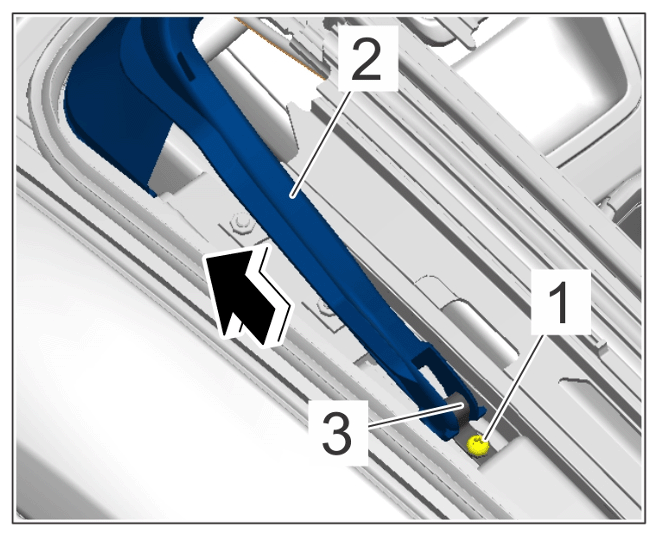

G15533726Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Air deflector bracket

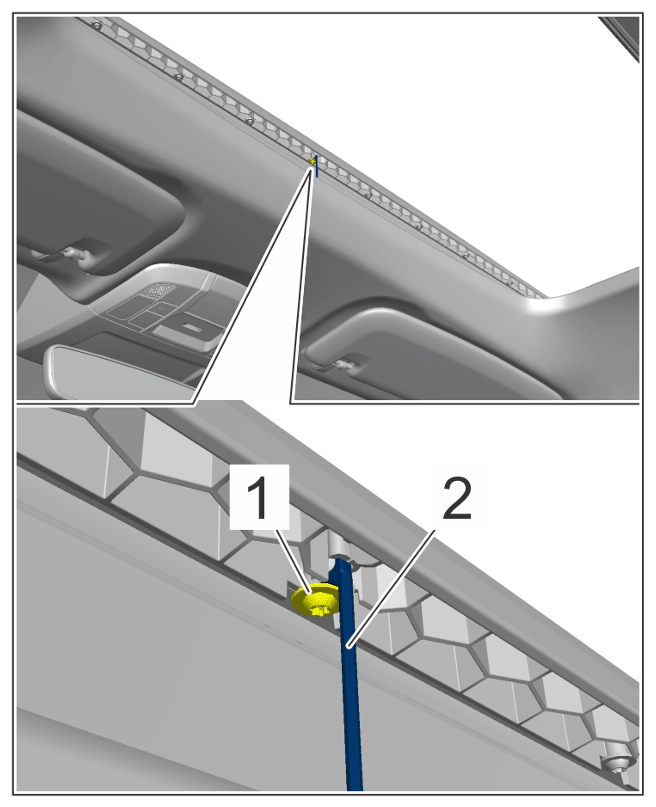

Screw for air deflector cable Item 1 Tightening torque 0.5 Nm (0.35 ftlb.)
G15533727Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Air deflector cable mounting
Air deflector motor Item 1 Tightening torque 3 Nm (2 ftlb.)
G15533728Courtesy of PORSCHE CARS NORTH AMERICA, INC.

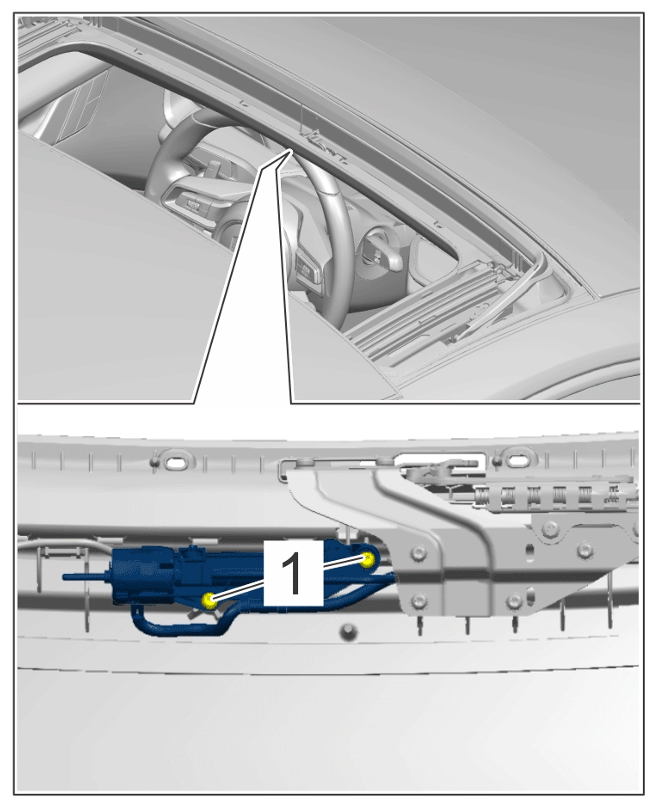

Air deflector motor 4

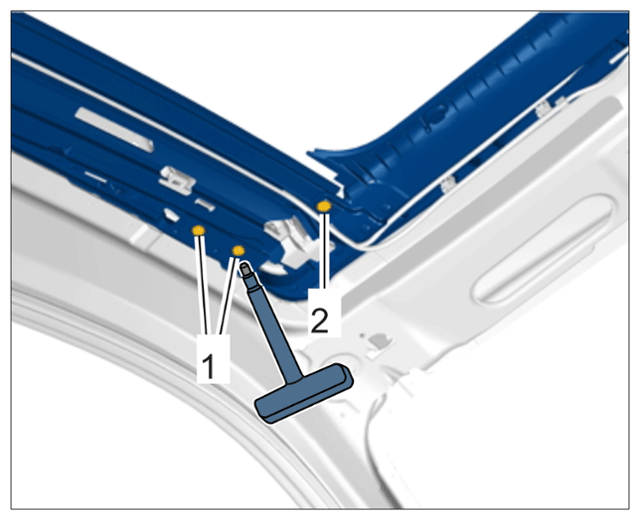

Screw for outer front powered sunroof mechanism Item 1 Tightening torque 3 Nm (2 ftlb.)
G15533729Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Front powered sunroof mechanism
Screw for inner front powered sunroof mechanism Item 2 Tightening torque 3 Nm (2 ftlb.)
G15533730Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Front powered sunroof mechanism

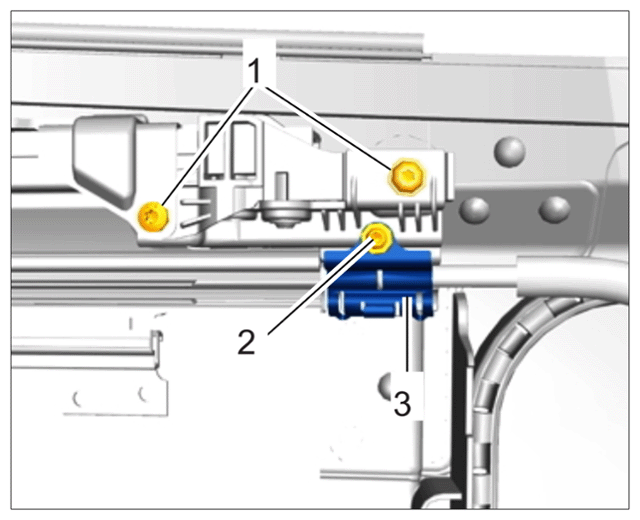

Screw for rear powered sunroof mechanism Item 1 Tightening torque 3 Nm (2 ftlb.)
G15533731Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rear powered sunroof mechanism
Screw securing retaining bracket
to guide tube		 Item 2 Tightening torque 3 Nm (2 ftlb.)
G15533732Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rear powered sunroof mechanism
Screw securing powered sunroof mechanism to assembly frame Item 1 Tightening torque 3 Nm (2 ftlb.)

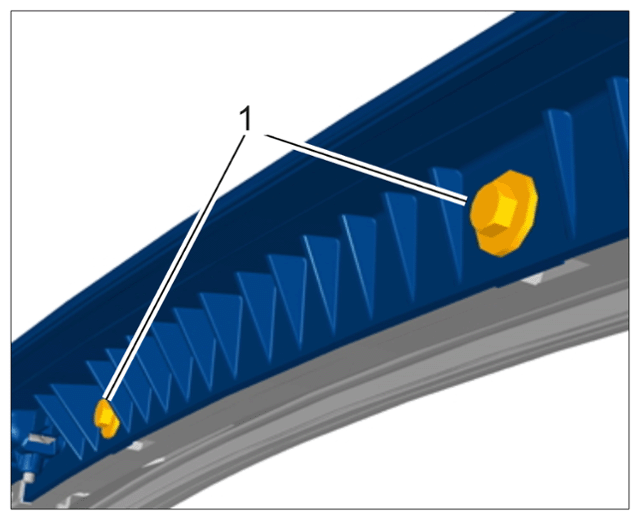

G15533733Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Assembly frame mounting

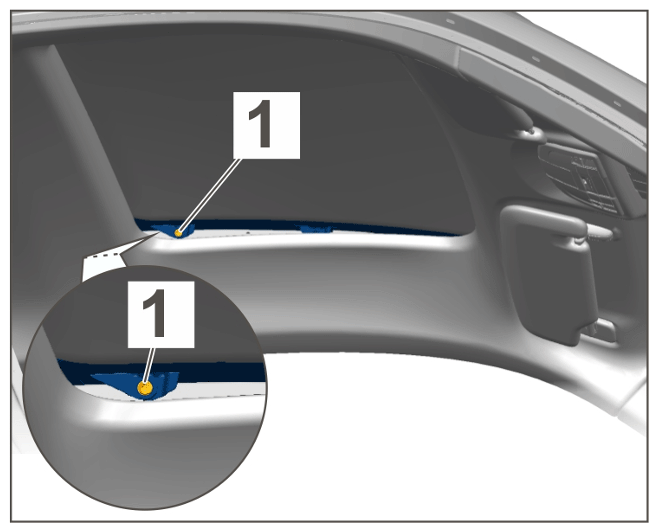

Screw for sliding-roof panel, rear Item 1 Tightening torque 8 Nm (6 ftlb.)
G15533734Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rear screw
Screws for sliding-roof panel, center and front Item 1 Tightening torque 8 Nm (6 ftlb.)
G15533735Courtesy of PORSCHE CARS NORTH AMERICA, INC.

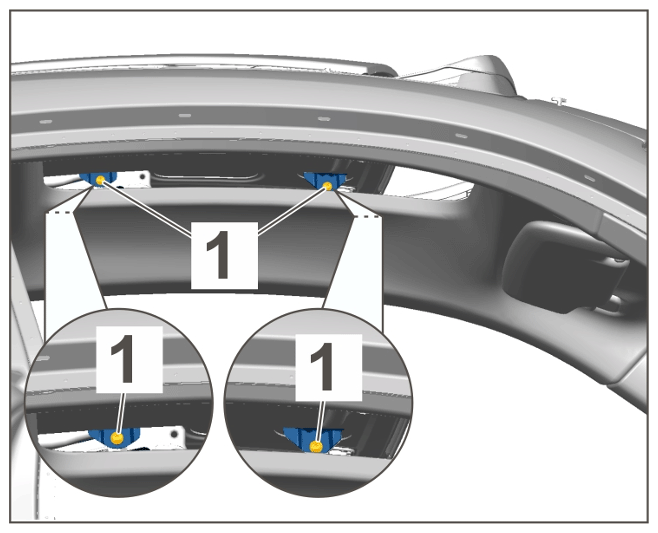

Centre and front screw

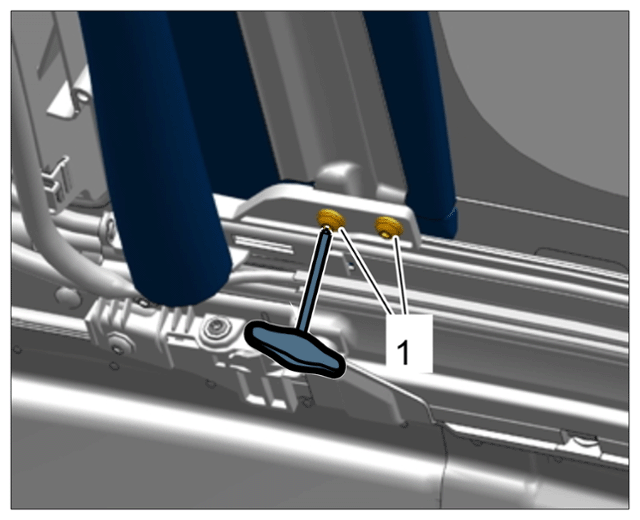

Screws for transverse bow Item 1 Tightening torque 2.5 Nm (1.75 ftlb.)
G15533736Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Transverse bow mounting
Screw for sun blind well Item 1 Tightening torque 3 Nm (2 ftlb.)
G15533737Courtesy of PORSCHE CARS NORTH AMERICA, INC.

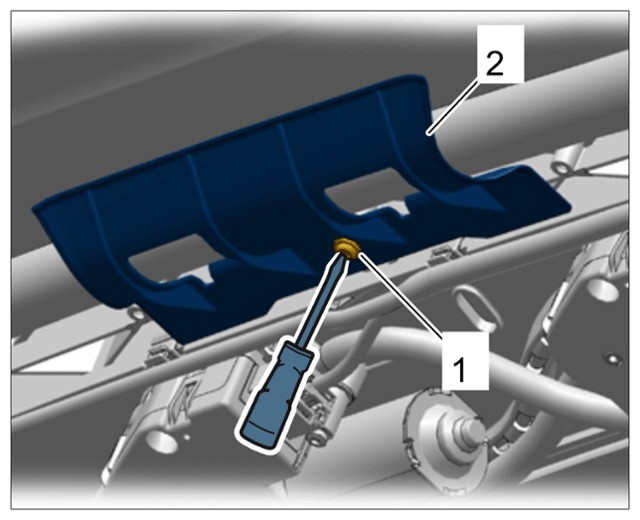

Sun blind well
Sun blind motor Item 1 Tightening torque 3 Nm (2 ftlb.)
G15533738Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing safety clip

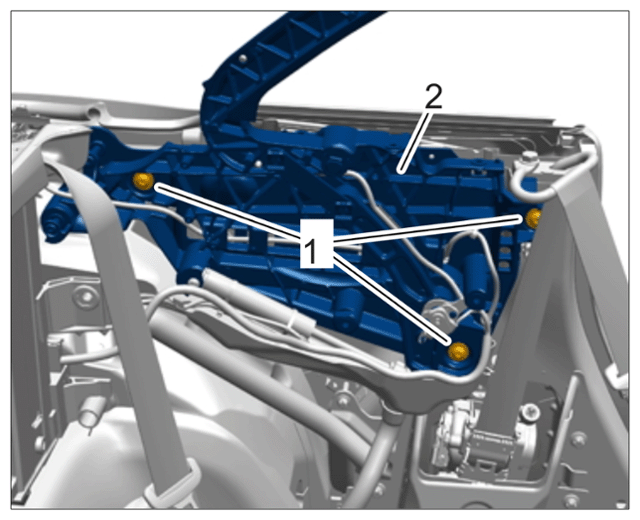

Convertible top support Item 1 Tightening torque 23 Nm (17 ftlb.)
G15533739Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Convertible top support
Rear side window Item 1 Tightening torque 9.7 Nm (7.5 ftlb.)
G15533740Courtesy of PORSCHE CARS NORTH AMERICA, INC.

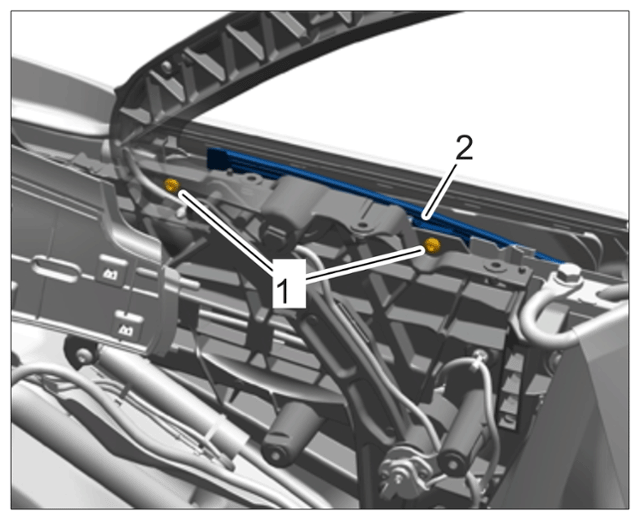

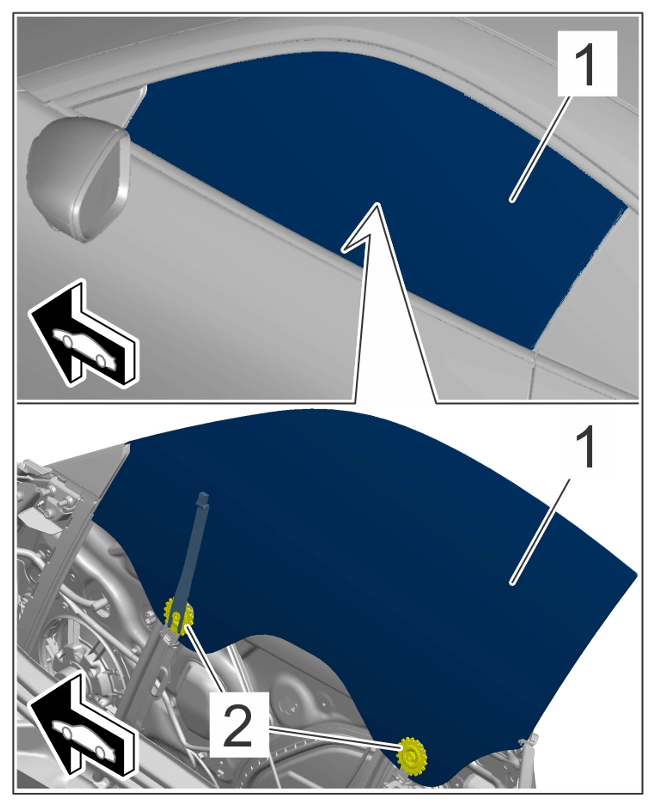

Rear side window

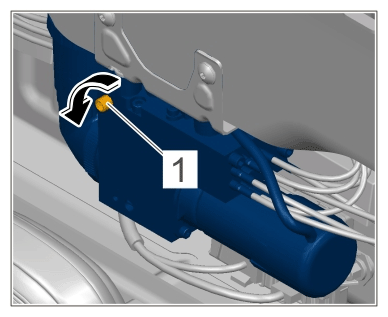

Shut-off screw on hydraulic pump Item 1 Tightening torque 3.5 Nm (2.6 ftlb.)
G15533741Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Hydraulic valve
Hydraulic cylinder Item 3 Tightening torque 8 Nm (6 ftlb.)

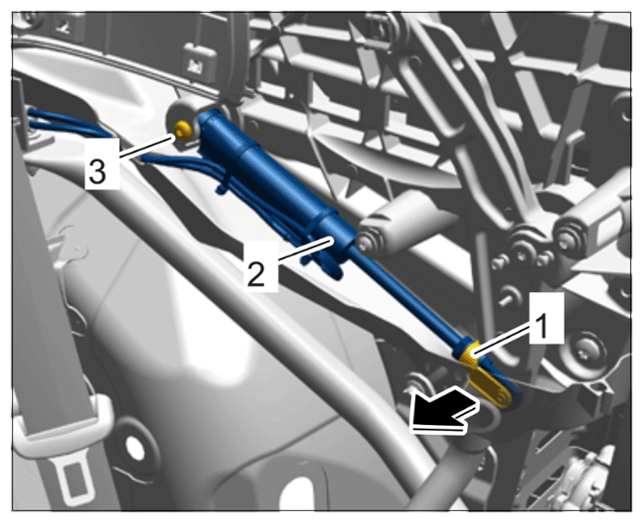

G15533742Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Hydraulic cylinder
Service position of convertible-top compartment lid foam Item A Length 10 cm

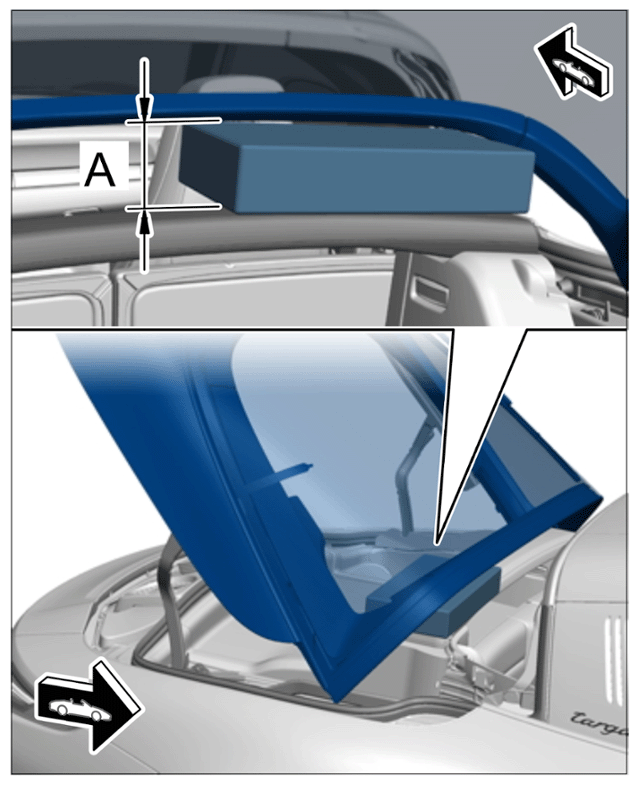

G15533743Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Setting down convertible-top compartment lid

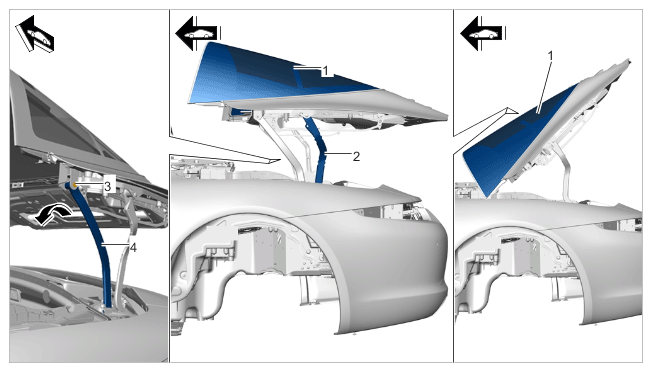

Fastening screw securing strut to convertible-top compartment lid bracket Item 3 Tightening torque 9.7 Nm (7.5 ftlb.)
G15533744Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Positioning glass dome
Front latch   Tightening torque 9.7 Nm (7.5 ftlb.)

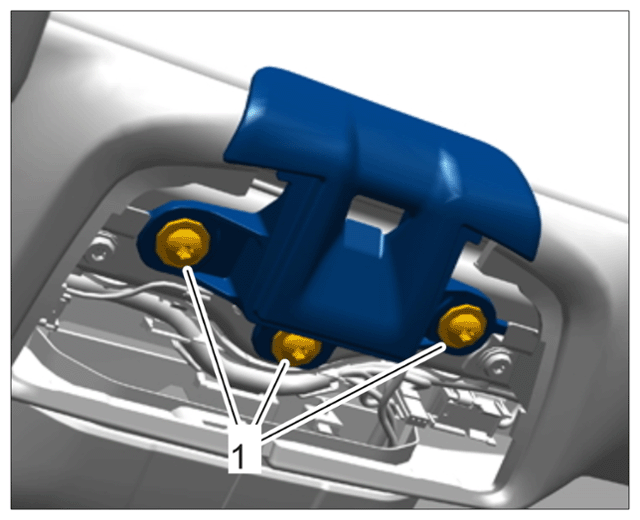

G15533745Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Front latch

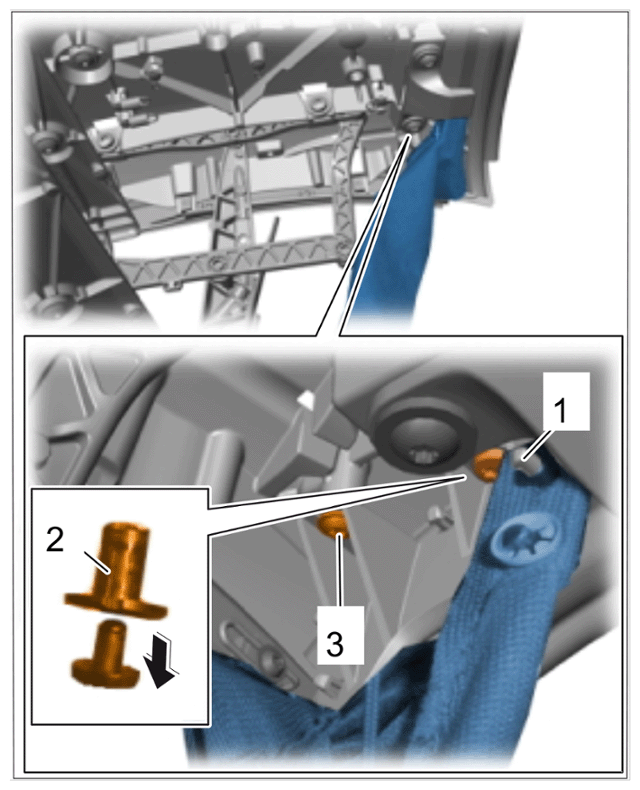

Molded part of convertible top rooflining (at the sides) Item 3 Tightening torque 3.0 Nm (2.0 ftlb.)
G15533746Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Molded part
Clamp on convertible top rooflining (at the sides) Item 4 Tightening torque 1.5 Nm (1 ftlb.)
G15533747Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Clamp on convertible top rooflining (at the sides)

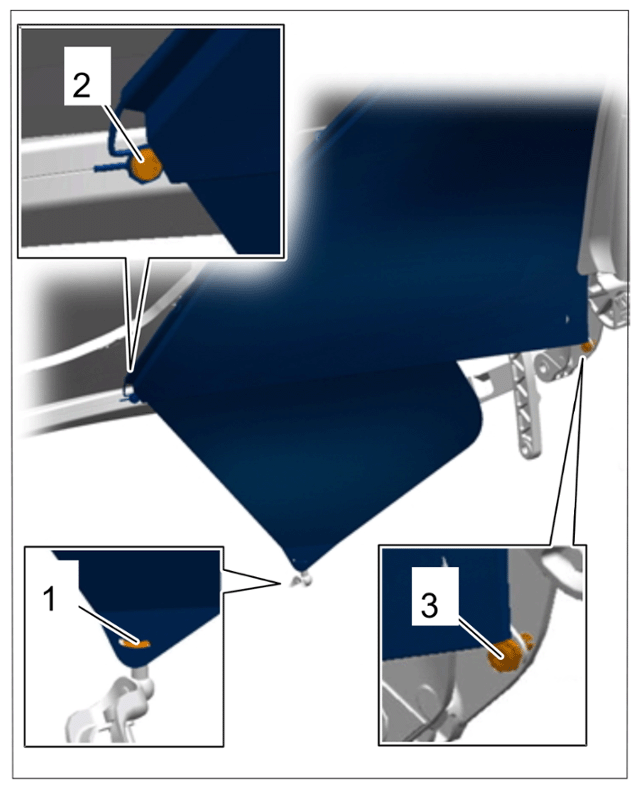

Guide cable for convertible top rooflining (at the sides) Item 2 Tightening torque 9.7 Nm (7.5 ftlb.)
G15533748Courtesy of PORSCHE CARS NORTH AMERICA, INC.

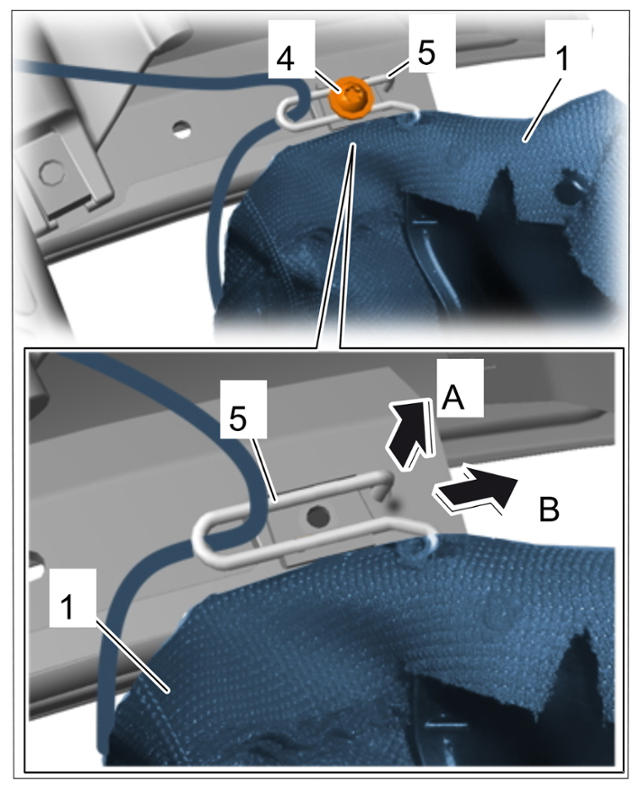

Guide cable for convertible top rooflining (at the sides)
Front convertible top mount   Tightening torque 36 Nm (27 ftlb.)

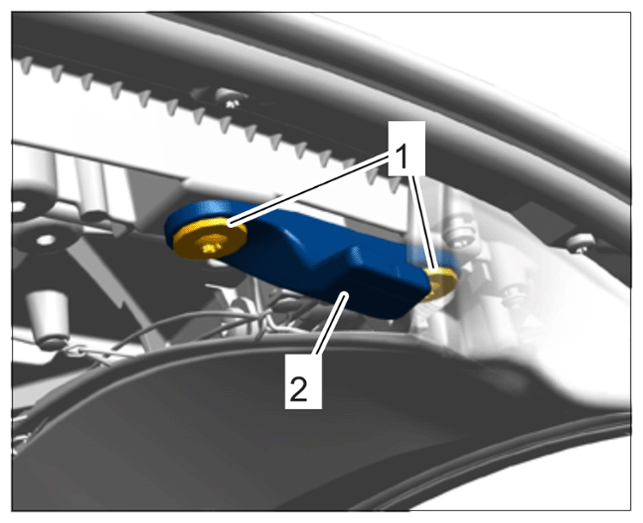

G15533749Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Front convertible top mount
Roof frame Item 2 Tightening torque 23 Nm (17 ftlb.)

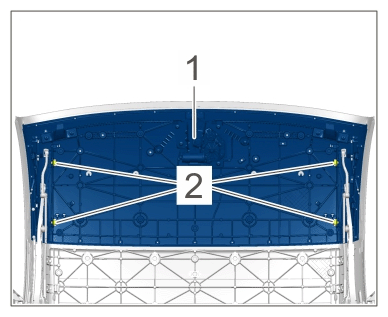

G15533750Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Roof frame
Convertible top lock Item 4 Tightening torque 36 (26.5 ftlb.)
Mm
G15533751Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Convertible top lock
Convertible top lock Item 2 Tightening torque 36 (27 ftlb.)
G15533752Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws		     I  <i 1 1 I
Control cable for convertible top lock Item 2 Tightening torque 2.8 Nm (2 ftlb.)

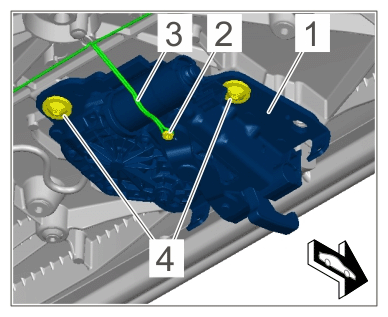

G15533753Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Convertible top lock

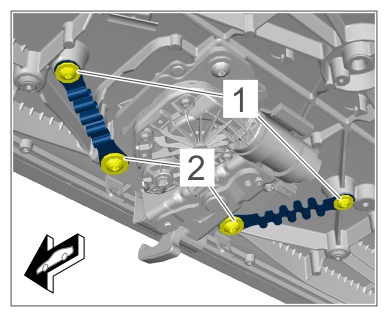

Convertible top lock struts Item 1 Tightening torque 9.7 Nm (7.5 ftlb.)
G15533754Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws
Convertible top lock Item 1 Initial tightening 6 Nm (4.5 ftlb.)

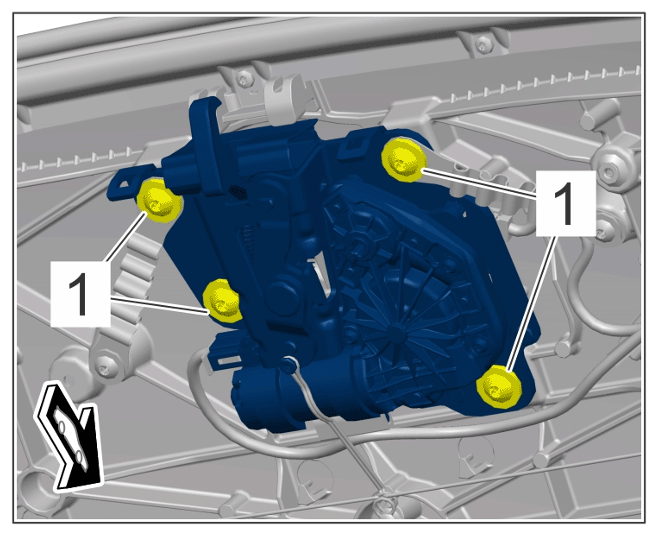

G15533755Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws
Front seal (cowl panel frame) Item 1 Tightening torque 5.6 Nm (4 ftlb.)
G15533756Courtesy of PORSCHE CARS NORTH AMERICA, INC.

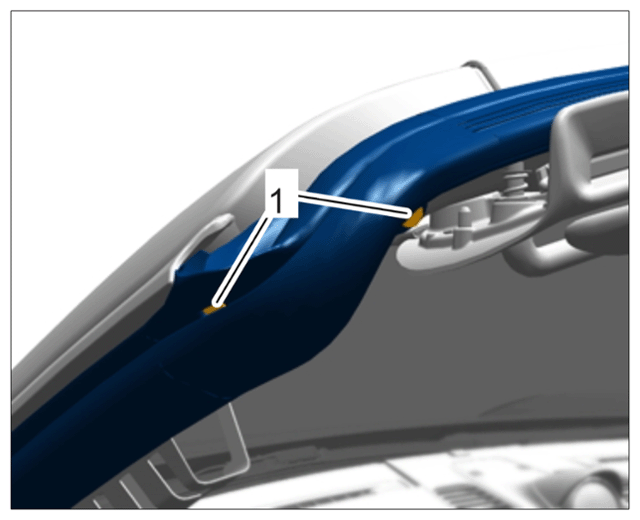

Screws on front seal (cowl panel frame)
Fastening screws securing side trim panel to Targa bar Item 2 Tightening torque 5.6 Nm (4 ftlb.)
G15533757Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Convertible top position
Fastening nuts securing side trim panel to Targa bar Item 4 Tightening torque 5.6 Nm (4 ftlb.)
G15533758Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Convertible top position

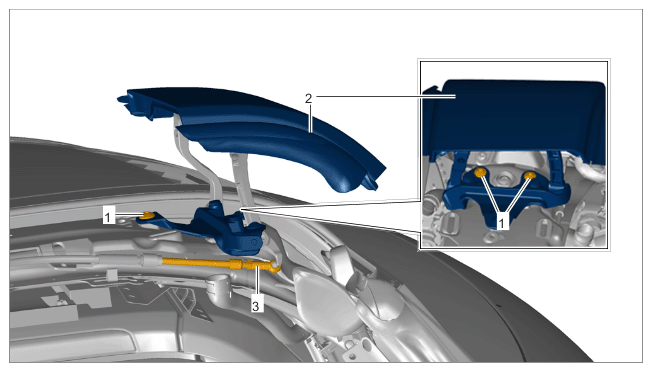

Fastening screws securing trim panel flap to Targa bar Item 1 Tightening torque 5.6 Nm (4 ftlb.)
G15533759Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Trim panel flap mounting
Fastening screws securing center trim panel to Targa bar Item 2 Tightening torque 5.6 Nm (4 ftlb.)
G15533760Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Centre trim panel mounting
Fastening screw for rear clamping strip   Tightening torque 9.7 Nm (7.5 ftlb.)

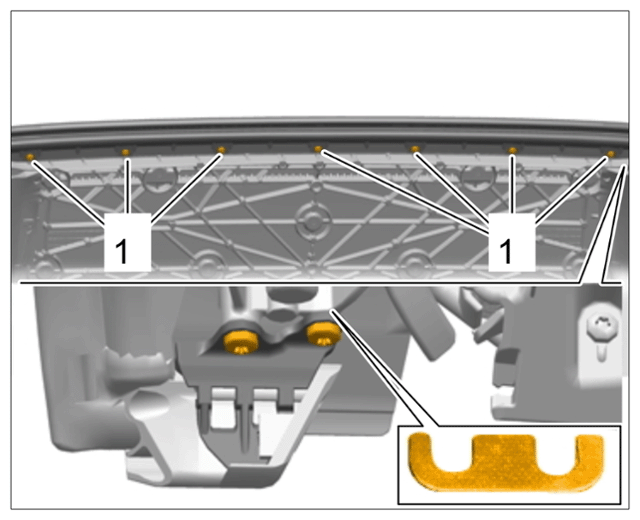

G15533761Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rear seal

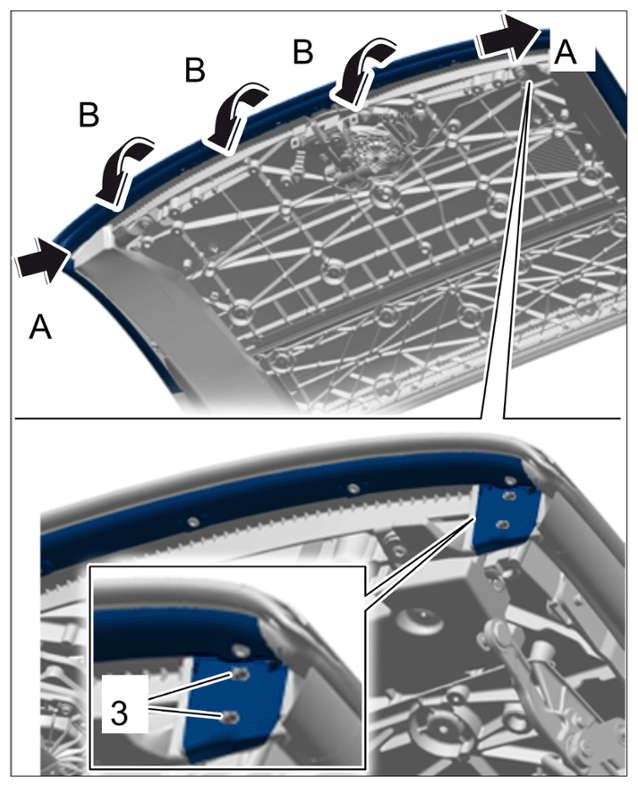

Fastening screw for front convertible top covering tab   Tightening torque 4 Nm (3 ftlb.)
G15533762Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Clipping in front convertible top covering

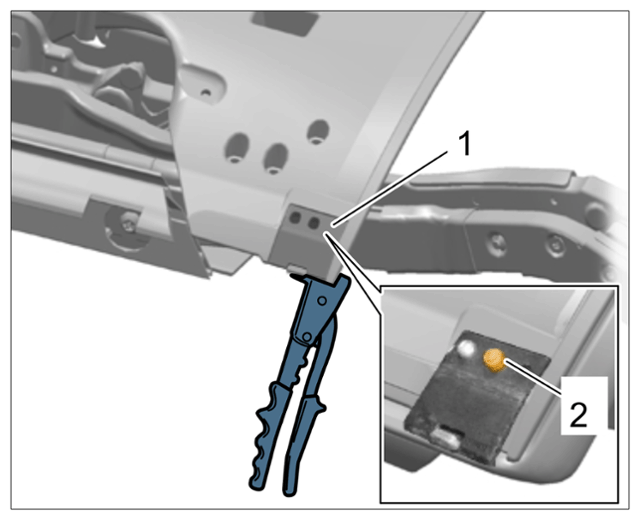

Fastening rivet for tension rope holder Item 2 Diameter 4 x 7 mm
G15533763Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Riveting in tension rope holder
Fastening rivet, side Item 1, 2, 3, 4, Diameter 4x7 mm

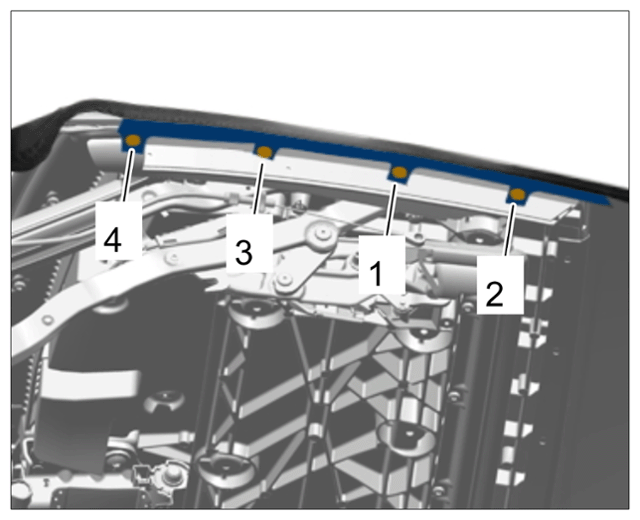

G15533764Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Riveting in convertible top at the sides

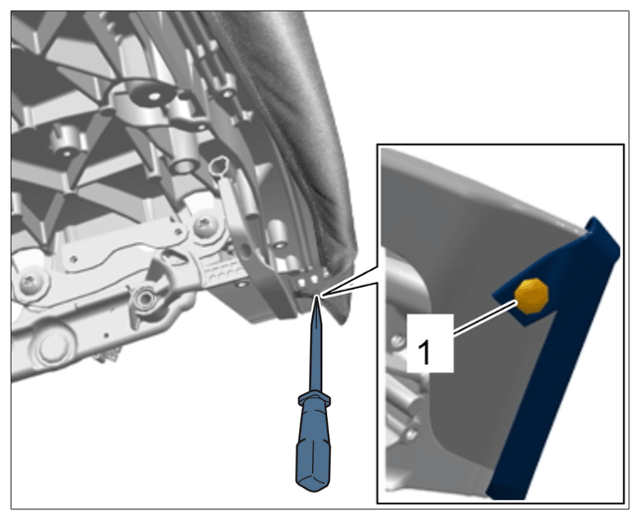

Fastening rivet for rear tab Item 1 Diameter 4 x 8.5 mm
G15533765Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rear convertible top covering tab

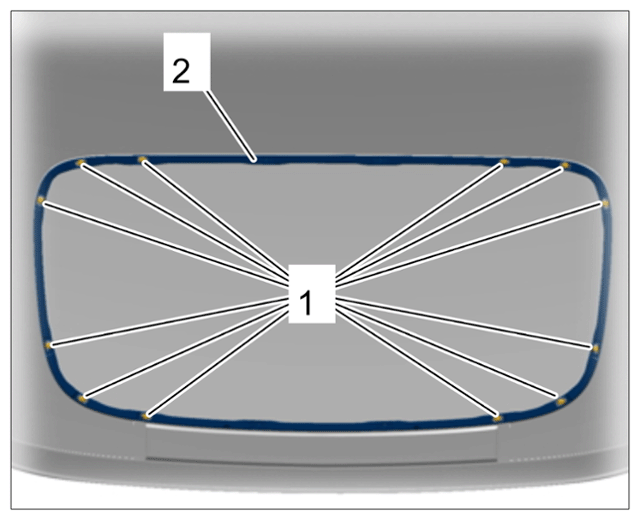

Retaining frame for rear window Item 1 Tightening tore 4.2 Nm (3.2 ftlb.)
G15533766Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Retaining frame for rear window

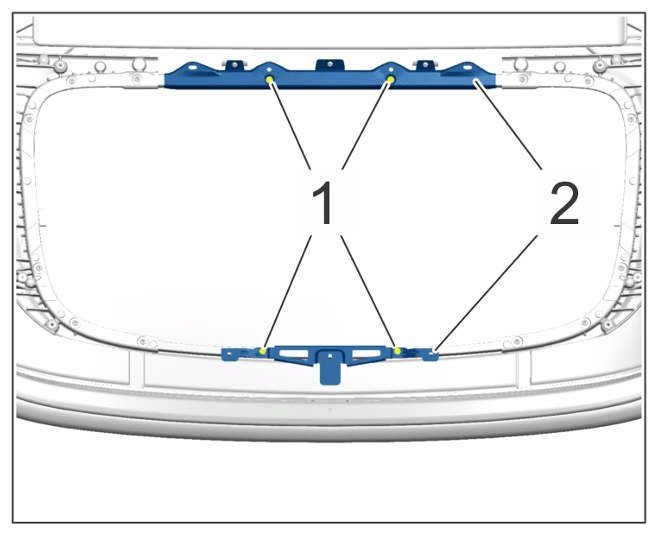

Sections of retaining frame for rear window Item 1 Tightening torque 4.2 Nm
G15533767Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Sections of retaining frame
Screw on hinge Item 3 Tightening tore 4.7 (3.5 ftlb.)
Nm

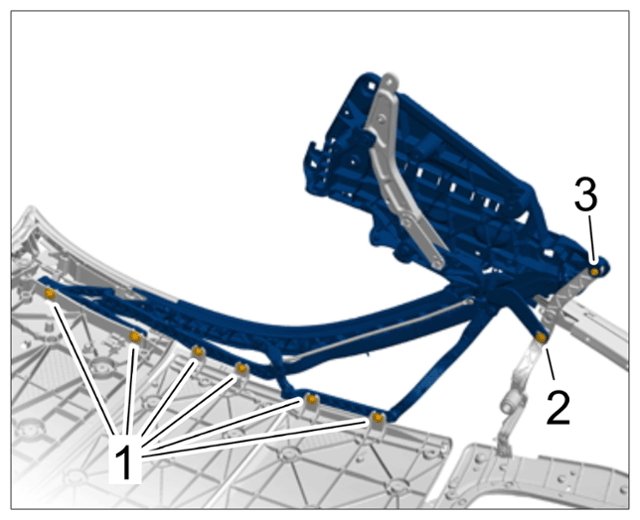

G15533768Courtesy of PORSCHE CARS NORTH AMERICA, INC.

B-pillar for convertible top frame

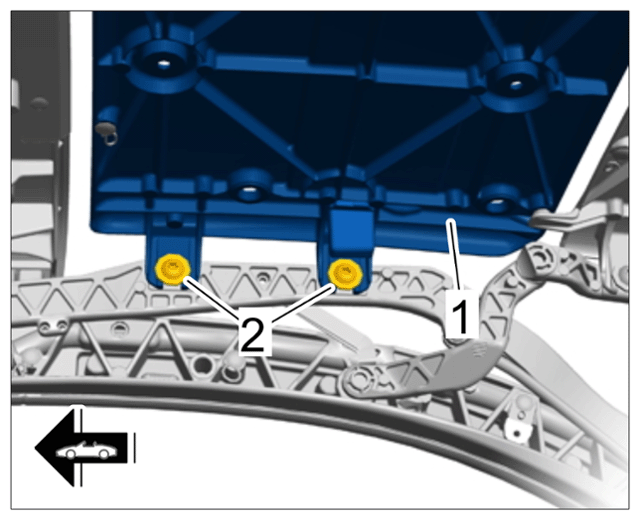

Screw on surface roof strut Item 2 Tightening tore 9.7 Nm (7.2 ftlb.)
G15533769Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw surface roof strut
Screw on center roof strut Item 1 Tightening tore 9.7 Nm (7.2 ftlb.)
G15533770Courtesy of PORSCHE CARS NORTH AMERICA, INC.

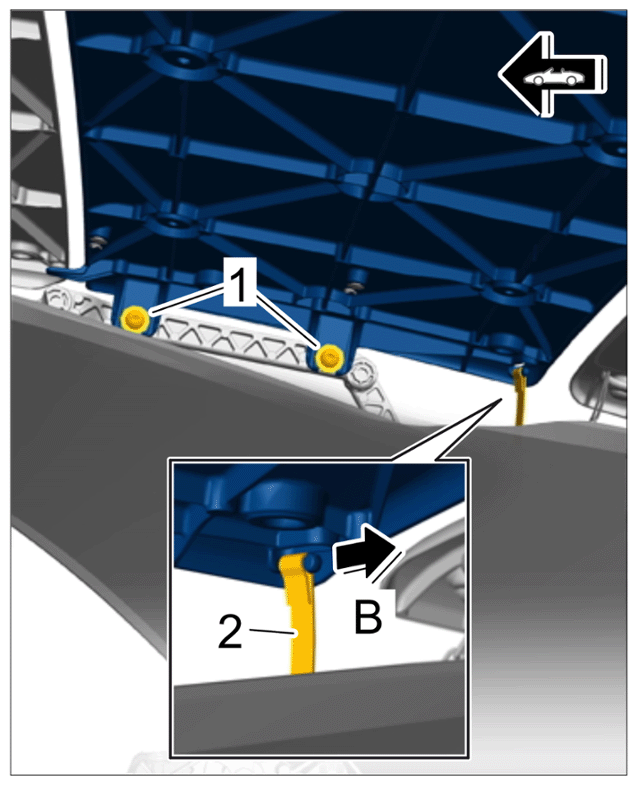

Loosening rear roof strut
Screw on tension bow Item 4 Tightening tore 9.7 Nm (7.2 ftlb.)

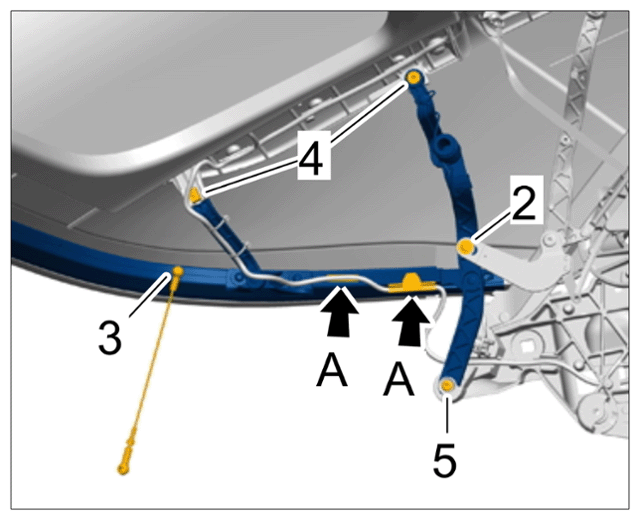

G15533771Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Loosening tension bow
Seal for convertible-top tip   Tightening torque 9.7 Nm (7.5 ftlb.) +/- 1 Nm (0.5 ftlb.)

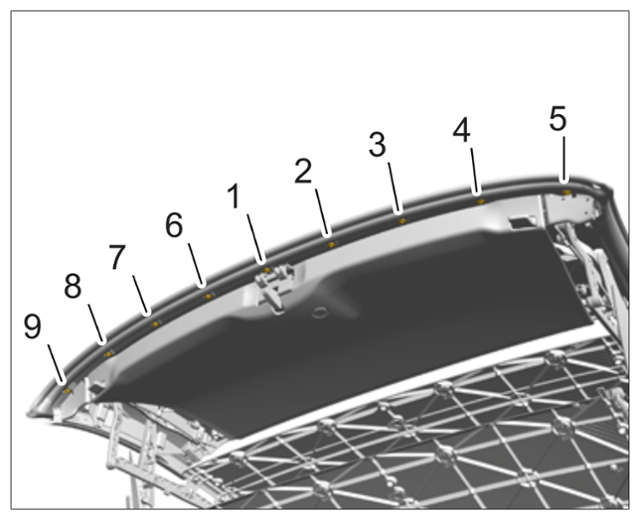

G15533772Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Tightening sequence for screws
Fastening screws securing motor for additional flaps Item 4 Tightening torque 5 Nm (3.5 ftlb.)

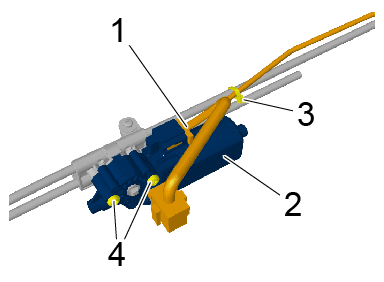

G15533773Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Motor for additional flaps
Top screws Item 1 Tightening torque 9.7 Nm (7.5 ftlb.)
G15533774Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Top screws
Rear screws Item 1 Tightening torque 9.7 Nm (7.5 ftlb.)

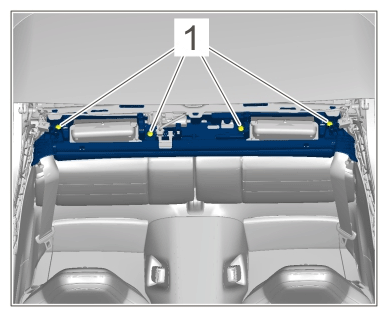

G15533775Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rear screws

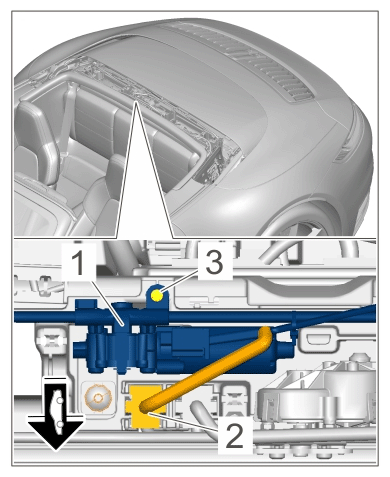

Flap motor Item 3 Tightening torque 2 Nm (1.5 ftlb.)
G15533776Courtesy of PORSCHE CARS NORTH AMERICA, INC.

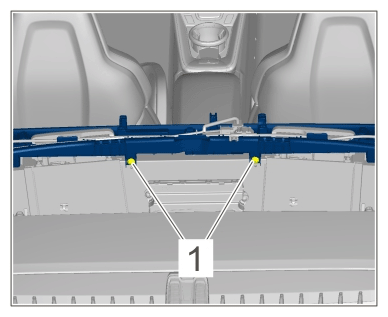

Electric plug connection

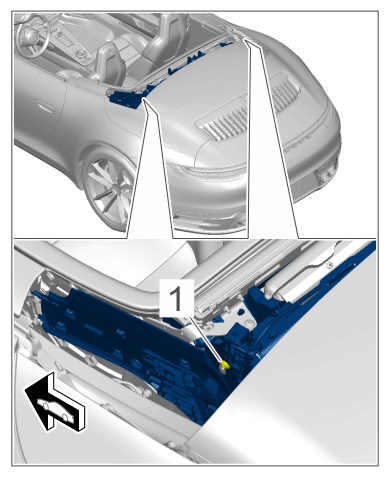

Flap (with drive mechanism) Item 1 Tightening torque 9.7 Nm (7.5 ftlb.)
G15533777Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw

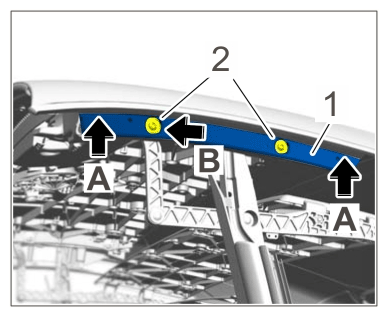

Rail (convertible-top tip) Item 2 Tightening torque 9.7 Nm (7.3 ftlb.)
G15533778Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Front rail
Rail (front) Item 1 Tightening torque 9.7 Nm (7.3 ftlb.)

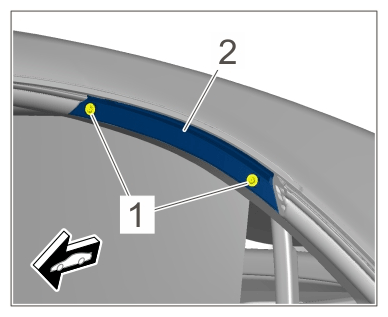

G15533779Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rubber seal with rail (front)

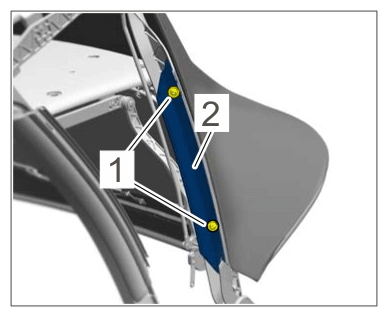

Rail (rear) Item 1 Tightening torque 9.7 Nm (7.3 ftlb.)
G15533780Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rubber seal with rail (rear)
Screw for molded part Item 3 Tightening torque 3.0 Nm (2 ftlb.)
G15533781Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Front convertible top rooflining

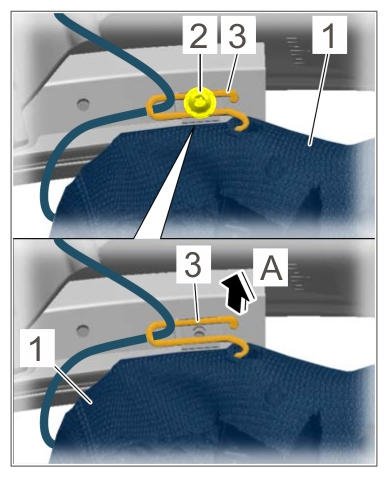

Screw for clamp on convertible top rooflining Item 2 Tightening torque 1.5 Nm (1 ftlb.)
G15533782Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Convertible top rooflining

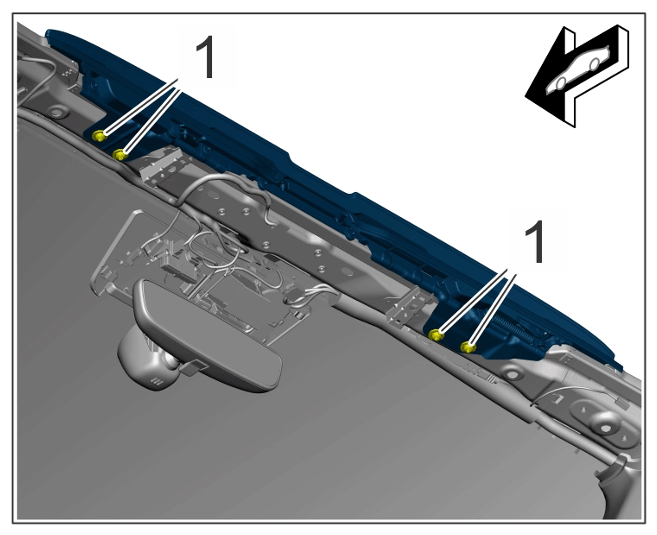

Screws Item 1 Tightening torque 8 Nm (6 ftlb.)
G15533783Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws

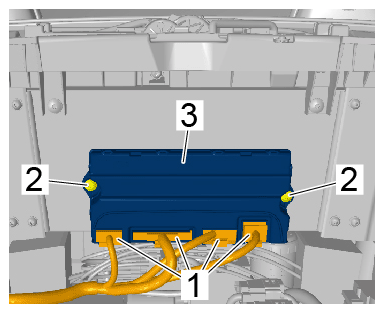

Fastening screws for convertible top potentiometer Item 2 Tightening torque 3 Nm (2.2 ftlb.) + 10 % - 25 %
G15533784Courtesy of PORSCHE CARS NORTH AMERICA, INC.

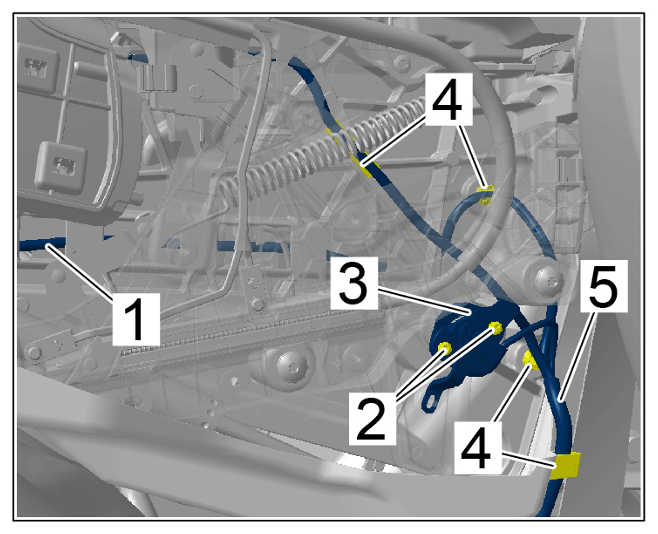

Cable duct
Screws securing hydraulic pump to roll-over protection system Item 1 Tightening torque 9.7 Nm (7.2 ftlb.) +/- 0.9 Nm (0.5 ftlb.)

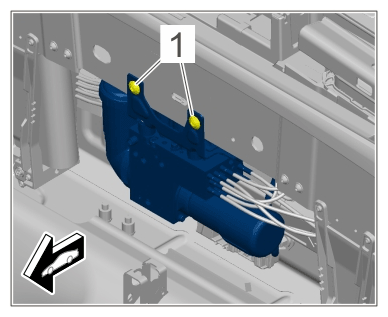

G15533785Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws on hydraulic pump
Screw securing hydraulic pump to roll-over protection system Item 1 Tightening torque 9.7 Nm (7.2 ftlb.) +/- 0.9 Nm (0.5 ftlb.)

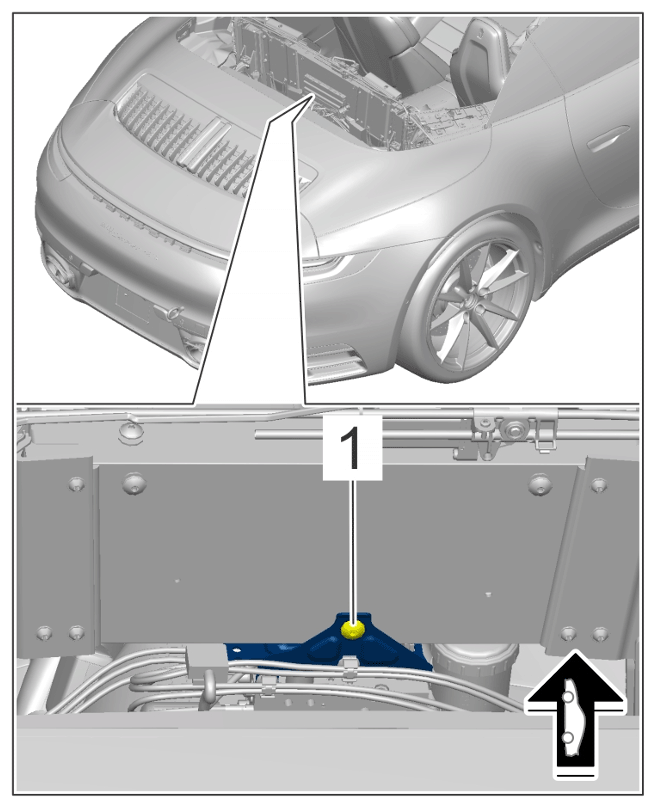

G15533786Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw

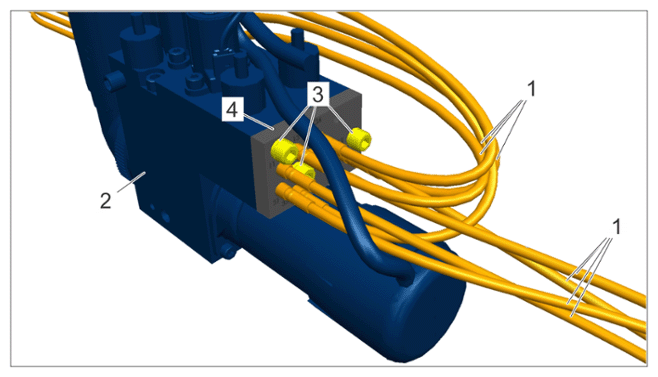

Retainer plate for hydraulic pump Item 3 Tightening torque 10 Nm (7.5 ftlb.)
G15533787Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Hydraulic pump lines
Convertible-top compartment lid Item 1 Tightening torque 8 Nm (6 ftlb.)

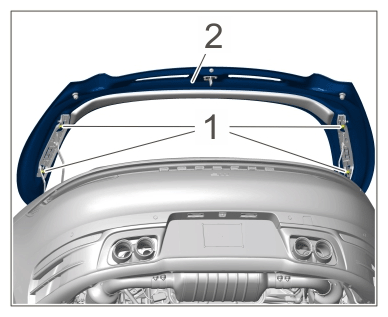

G15533788Courtesy of PORSCHE CARS NORTH AMERICA, INC.

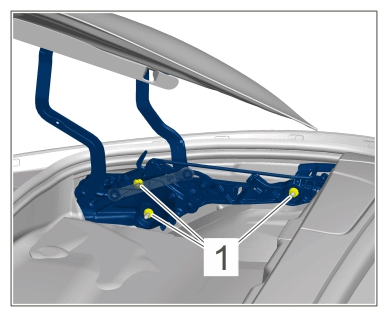

Screws for convertible-top compartment lid
Convertible-top compartment lid hinge Item 1 Tightening torque 20 Nm (15 ftlb.)
G15533789Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Nuts on convertible-top compartment lid hinge
Screws securing convertible top control unit to retaining frame Item 2 Tightening torque 5.6 Nm (4 ftlb.)
G15533790Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric plug connections

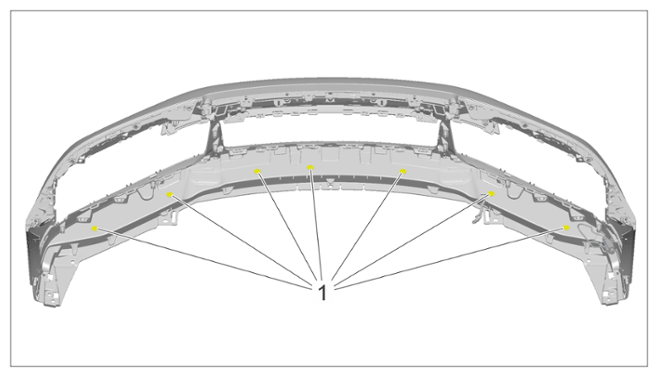

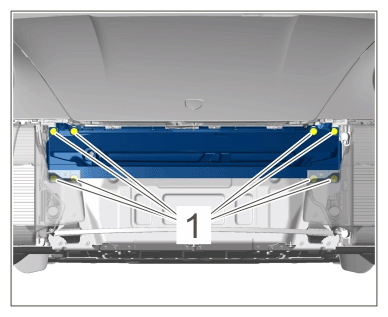

Front bumper Item 1 Tightening torque 55 Nm (41 ftlb.)
G15533791Courtesy of PORSCHE CARS NORTH AMERICA, INC.

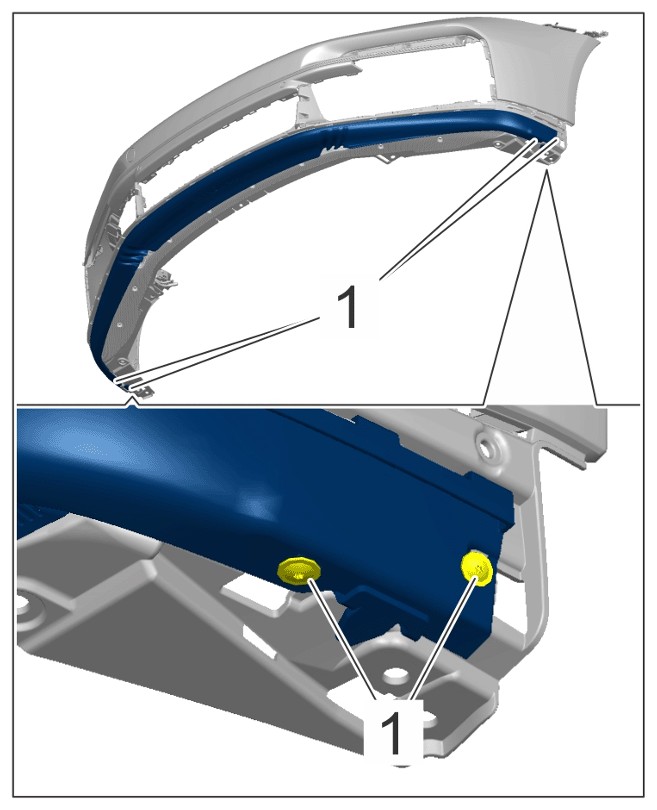

Front bumper
Front bumper to connecting link Item 1 Tightening torque 23 Nm (17 ftlb.)

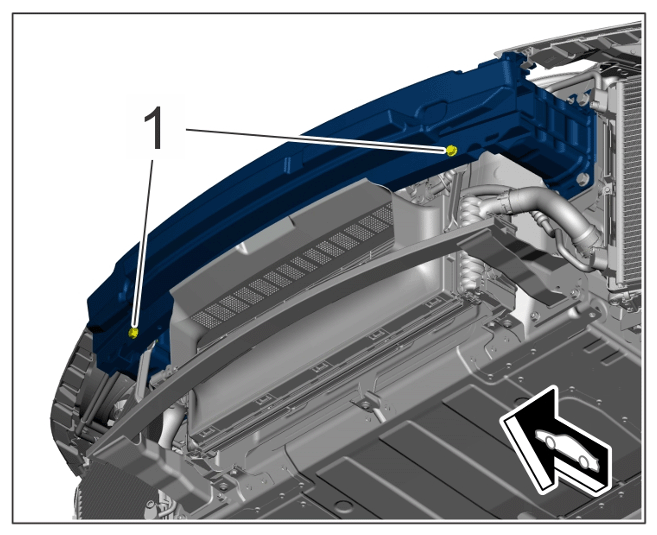

G15533792Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws
Holder for garage door opener control unit Item 1 Tightening torque 3.2 Nm (2.2 ftlb.)

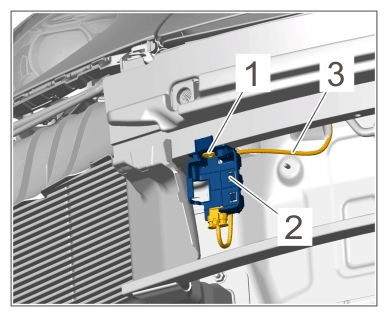

G15533793Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Holder for garage door opener control unit

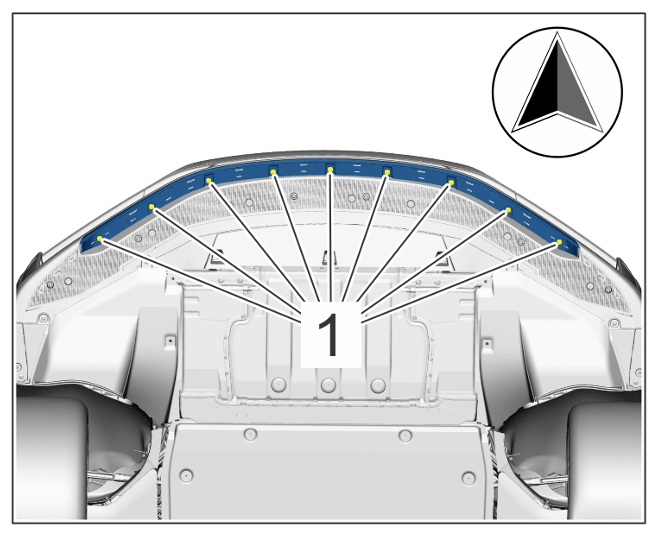

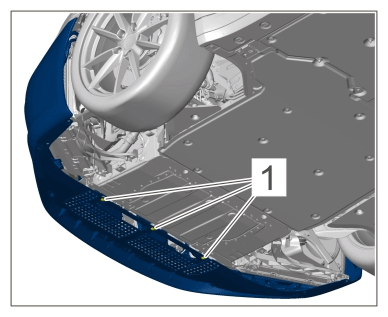

Front apron, bottom Item 1 Tightening torque 3.2 (2.1 ftlb.)
Mm

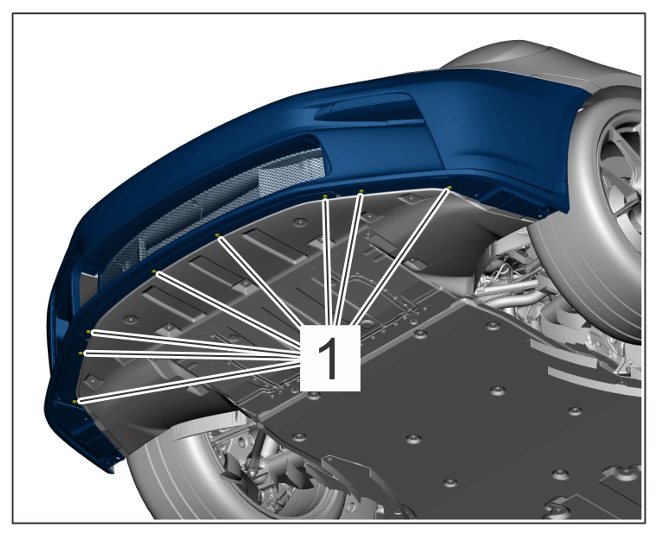

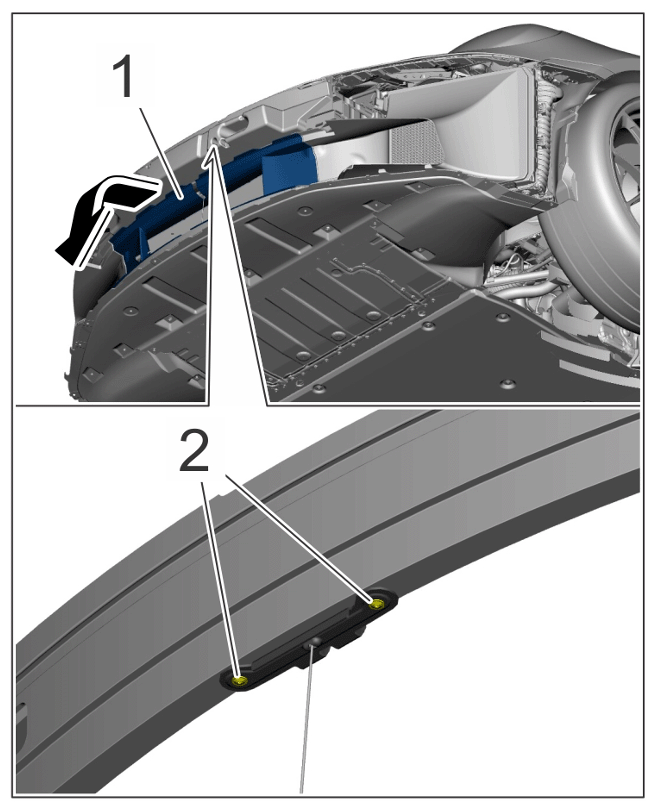

G15533794Courtesy of PORSCHE CARS NORTH AMERICA, INC.

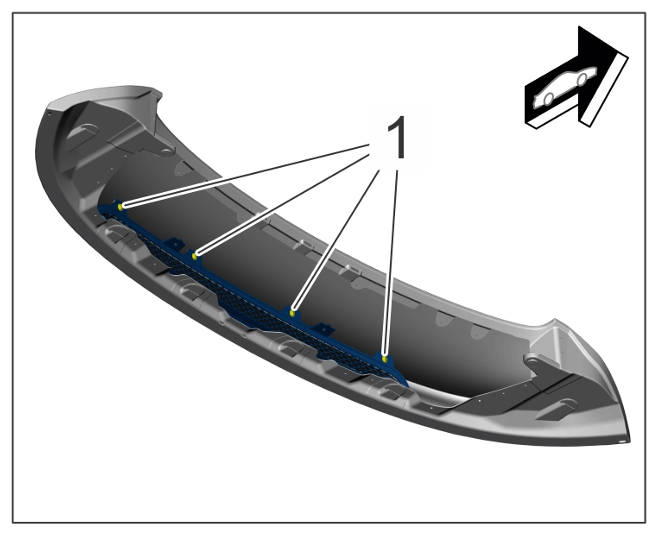

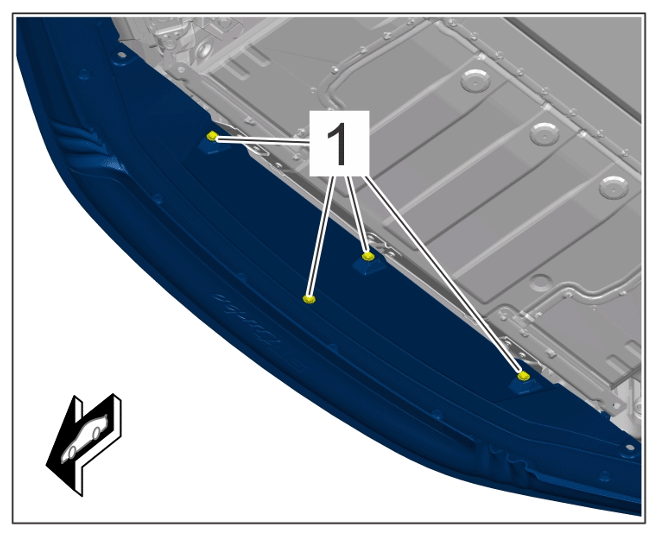

Bottom of front apron
Front apron, bottom Item 1 Tightening torque 3.2 Nm (2.1 ftlb.)
G15533795Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Bottom of front apron

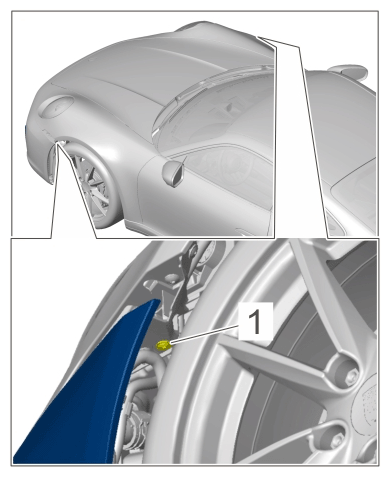

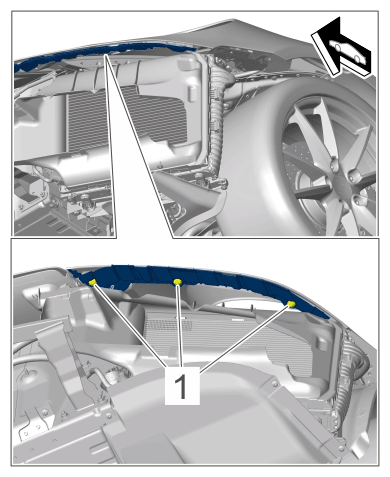

Front apron, sides Item 1 Tightening torque 3.2 Nm (2.1 ftlb.)
G15533796Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Side of front apron
Front apron, top Item 1 Tightening torque 3.2 Nm (2.1 ftlb.)

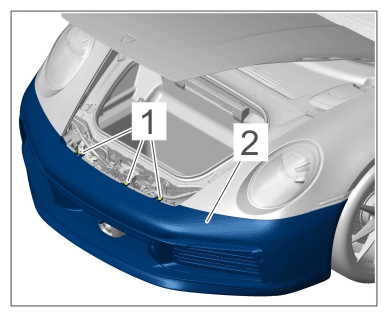

G15533797Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Top of front apron
Lower part of front apron Item 1 Tightening torque 3.2 Nm (2.1 ftlb.)
G15533798Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Lower part of front apron

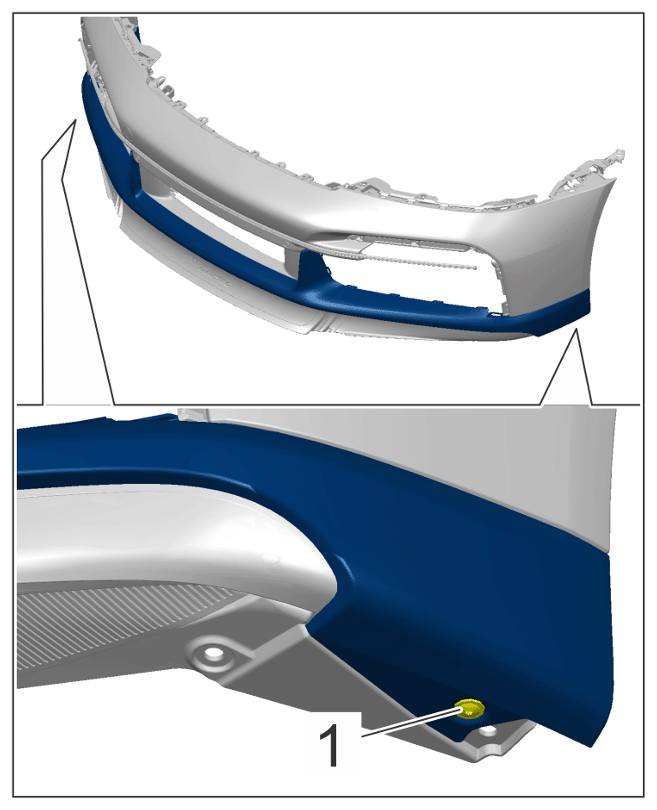

Screw on skid plate (spoiler lip) Item 1 Tightening torque 3.2 Nm (2.4 ftlb.)
G15533799Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw
Retaining strip (inner side) Item 1 Tightening torque 4.5 Nm (3.25 ftlb.)
G15533800Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws for (inner side) retaining strip

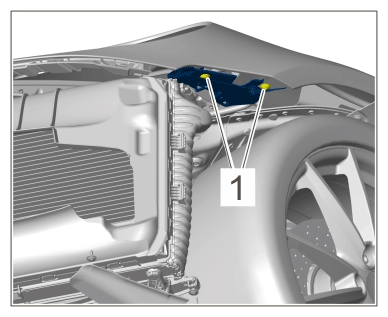

Retaining strip (outer side) Item 1 Tightening torque 4.5 Nm (3.25 ftlb.)
G15533801Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws for (outer side) retaining strip
Retaining strip (center) Item 1 Tightening torque 9.2 Nm (6.6 ftlb.) +/- 0.5 Nm (0.3 ftlb.)

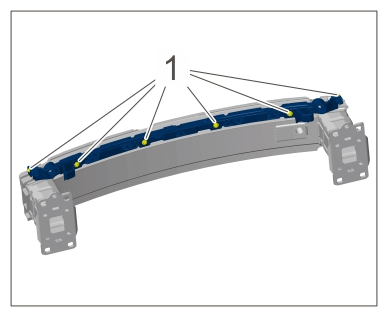

G15533802Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws on (center) retaining strip

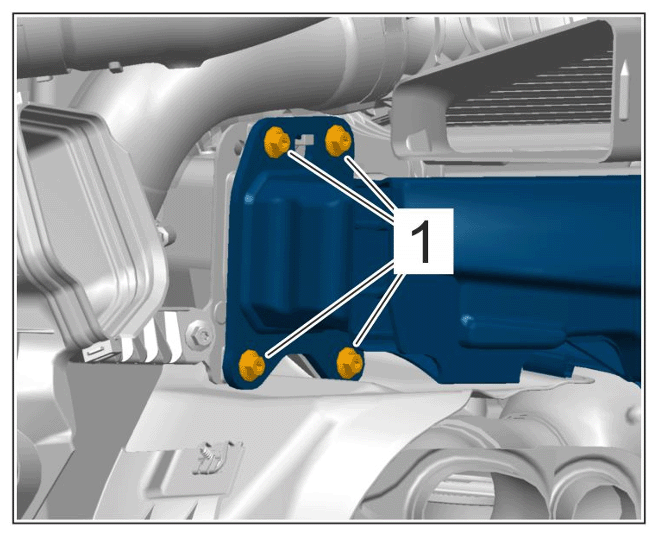

Bumper Item 1 Tightening torque 23 Nm (17 ftlb.)
G15533803Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws on bumper
Rear apron Items 1 and 2 Tightening torque 3.2 Nm (2.2 ftlb.)

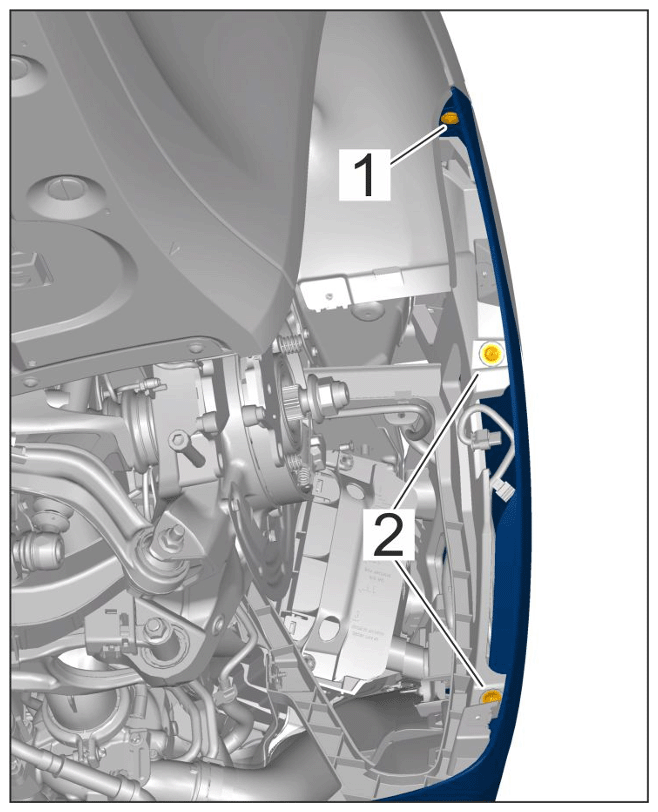

G15533804Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws on rear apron

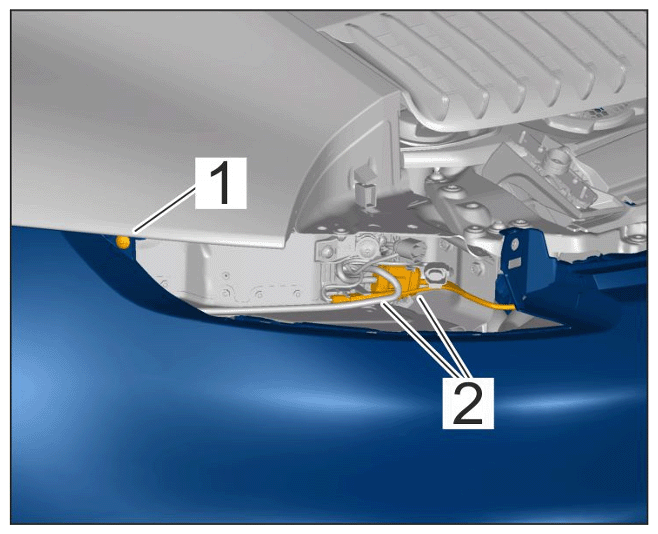

Rear apron Item 1 Tightening torque 7 Nm (5 ftlb.)
G15533805Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw on rear apron
Rear apron, bottom Item 1 Tightening torque 3.2 Nm (2.2 ftlb.)

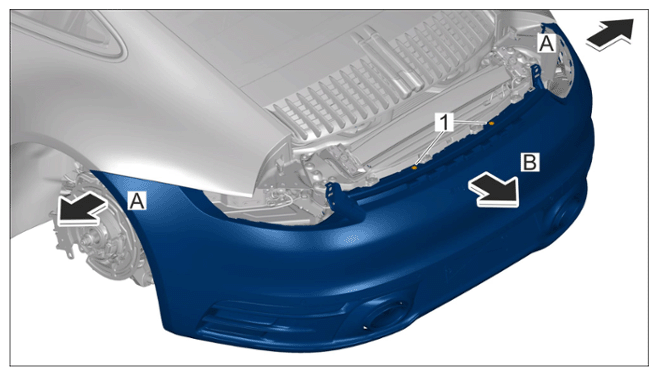

Rear apron, top Item 1 Tightening torque 3.2 Nm (2.2 ftlb.)
G15533806Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws on rear apron, top
Screws on rear skirt Item 1 Tightening torque 3.2 Nm (2.2 ftlb.)
G15533807Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws
Screws on rear skirt Item 1 Tightening torque 3.2 Nm (2.2 ftlb.)

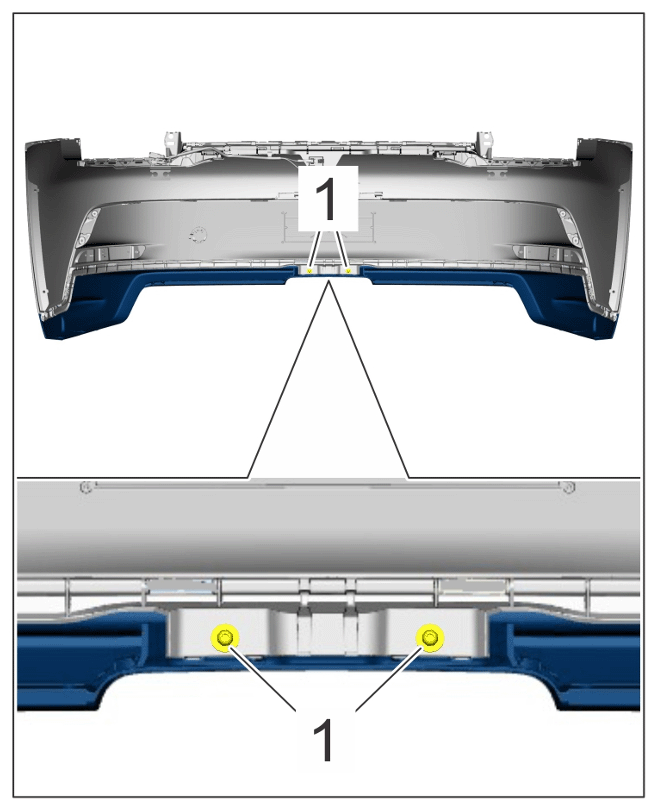

G15533808Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws

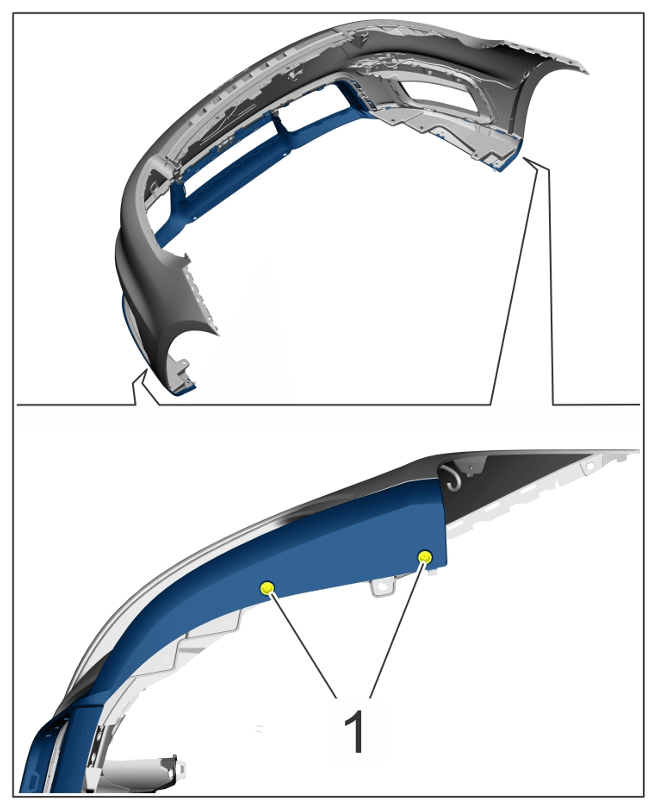

Screws for rear skirt (trim) Item 1 Tightening torque 3.2 Nm (2.2 ftlb.)

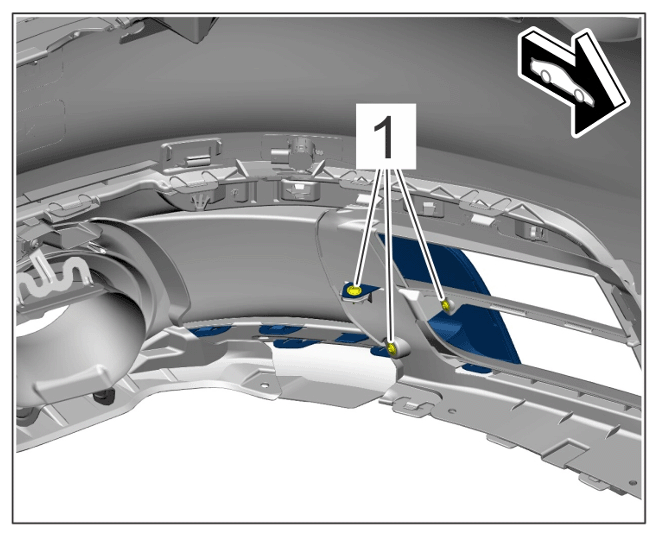

G15533809Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws
Bracket to body Collar nut, M6 Tightening torque 10 Nm (7.5 ftlb.)
Heat shield to bracket Tapping screw Tightening torque 2.5 Nm (1.75 ftlb.)
Rear bracket to longitudinal member Screw, M6x 16 Tightening torque 10 Nm (7.5 ftlb.)
Heat shield on rear bracket Tapping screw Tightening torque 2.5 Nm (1.75 ftlb.)
Cover on rear bracket to body M6
screws		 Tightening torque 10 Nm (7.5 ftlb.)

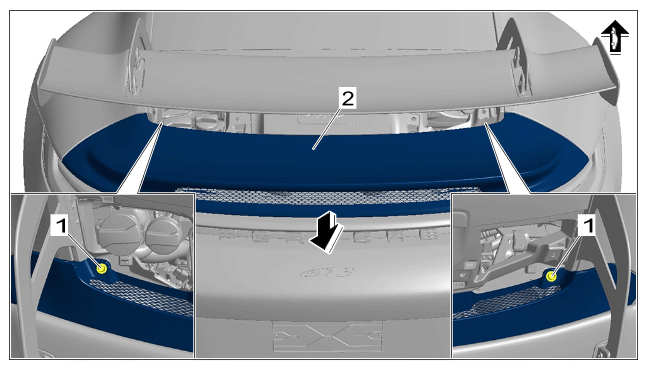

Screws for rear cover Item 1 Tightening torque 33 Nm (24 ftlb.)
G15533810Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rear cover
Hook screws for door window with hook wrench Item 2 Tightening torque 14 Nm (10.5 ftlb.)
G15533811Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Door window glass
Hook screws securing door window glass directly at screw Item 2 Tightening torque 9.7 Nm (7.2 ftlb.)
G15533812Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Door window glass

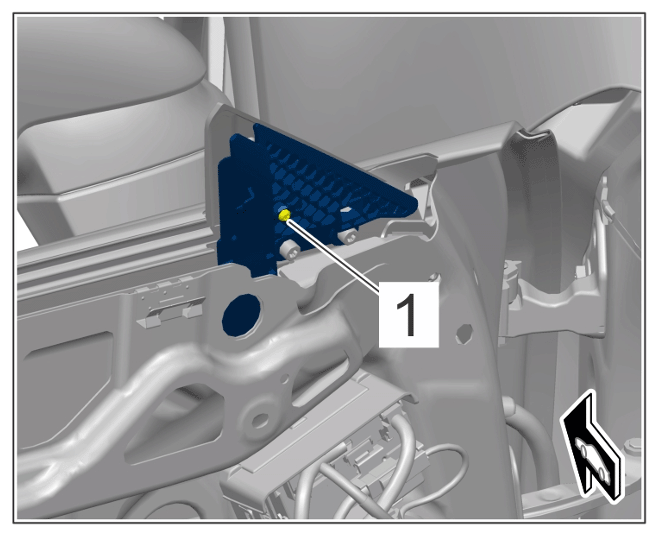

Screw Item 1 Tightening torque 1.4 Nm (1 ftlb.)
G15533813Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw

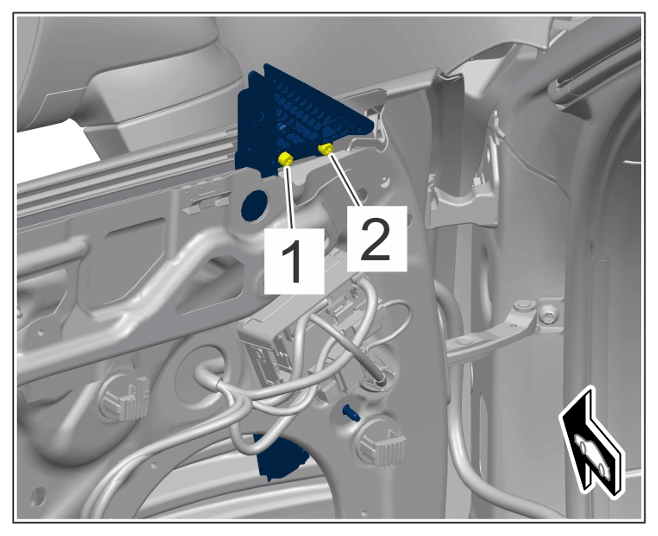

Screws Item 1 and 2 Tightening torque 9.7 Nm (7.2 ftlb.)
G15533814Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws

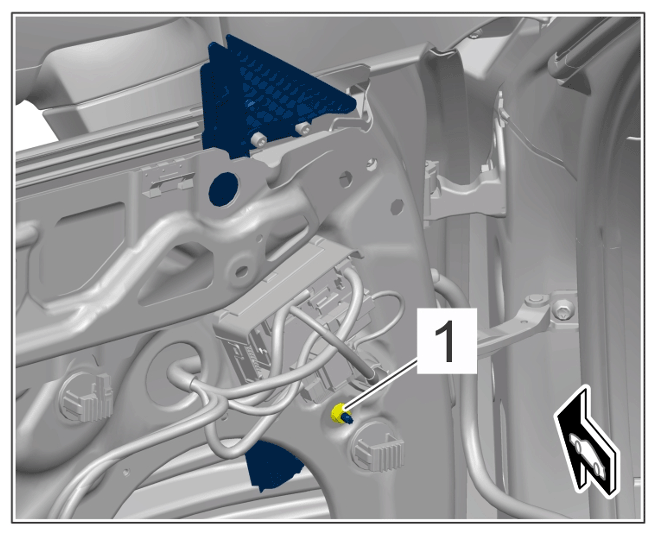

Nut Item 1 Tightening torque 9.7 Nm (7.2 ftlb.)
G15533815Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Nut

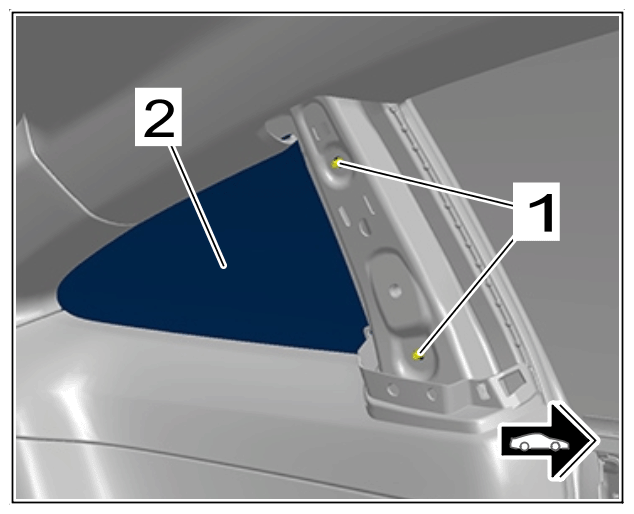

Nuts for side window Item 1 Nuts/Item 2 Side window Tightening torque 9.7 Nm
G15533816Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Nuts for side window

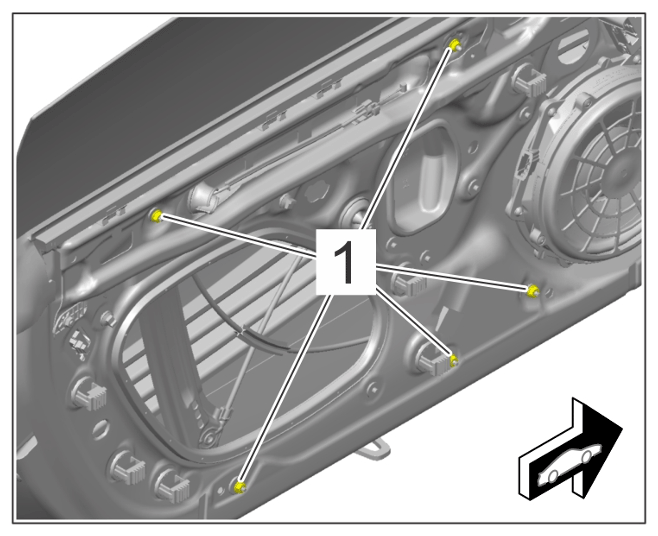

Front power windows mechanism to basic door frame Item 1 Tightening torque 9.7 Nm (7.2 ftlb.)
G15533817Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Nuts

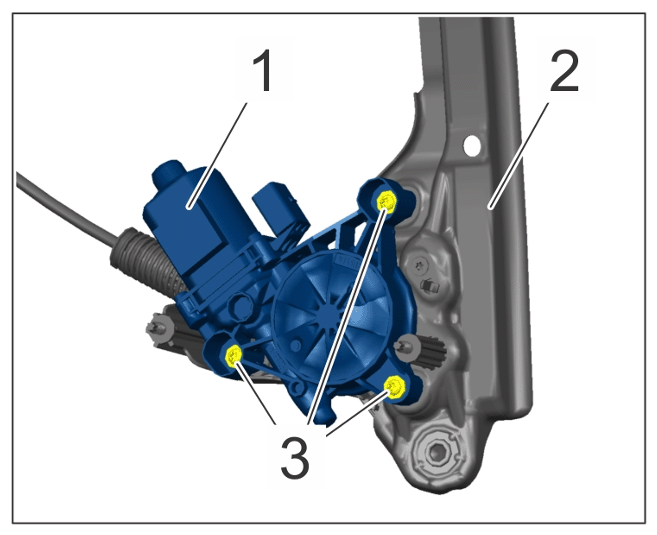

Window regulator motor to front power windows mechanism Item 3 Tightening torque 3.5 Nm (2.5 ftlb.)
G15533818Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws

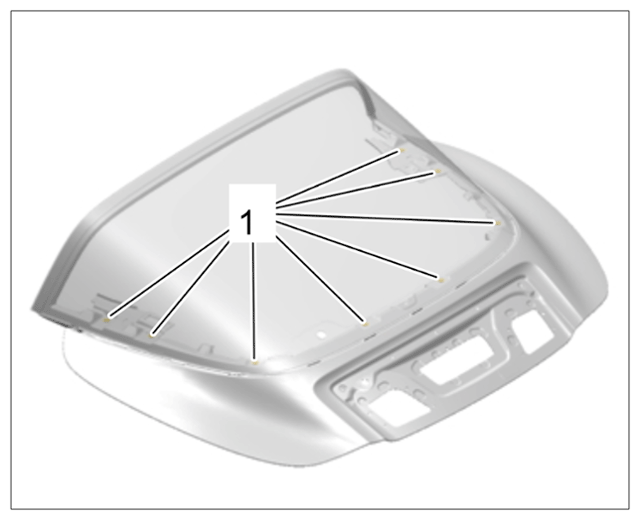

Nuts for rear window Item 1 Tightening torque 9.7 Nm (7.2 ftlb.)
G15533819Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rear window
Front spoiler (lip) Item 1 Tightening torque 3.2 Nm (2.4 ftlb.)
G15533820Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws

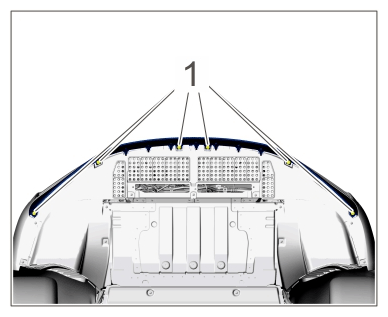

Front spoiler Item 1 Tightening torque 3.2 Nm (2.4 ftlb.)
G15533821Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws for front spoiler
Front spoiler Item 1 Tightening torque 3.2 Nm (2.4 ftlb.)
G15533822Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws

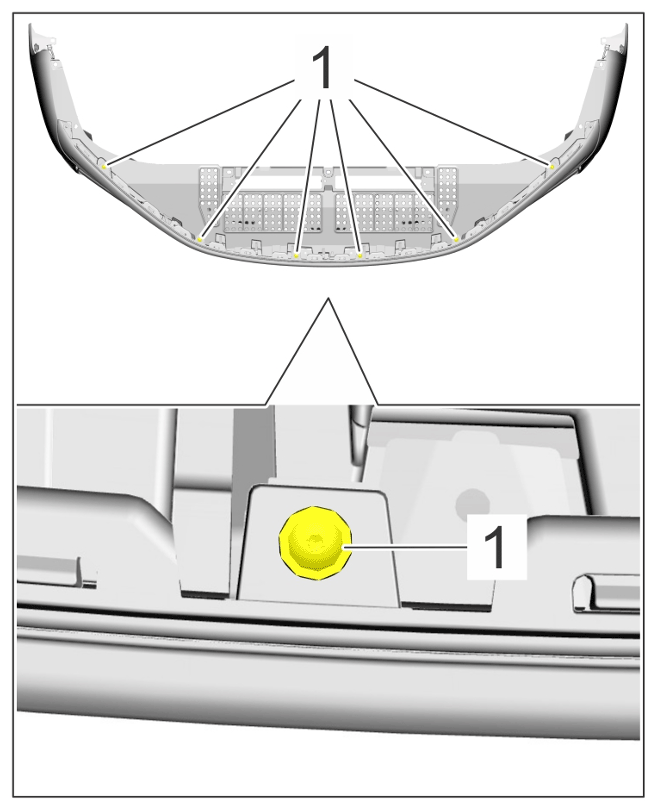

Front spoiler (lip) Item 1 Tightening torque 3.2 Nm (2.4 ftlb.)
G15533823Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws
Front spoiler from side Item 1 Tightening torque 3.2 Nm (2.4 ftlb.)
G15533824Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws

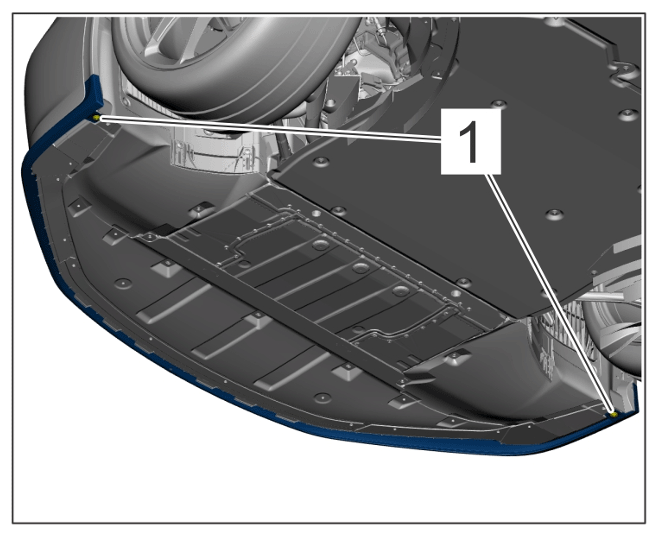

Front spoiler (center) Item 1 Tightening torque 3.2 Nm (2.4 ftlb.)
G15533825Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws

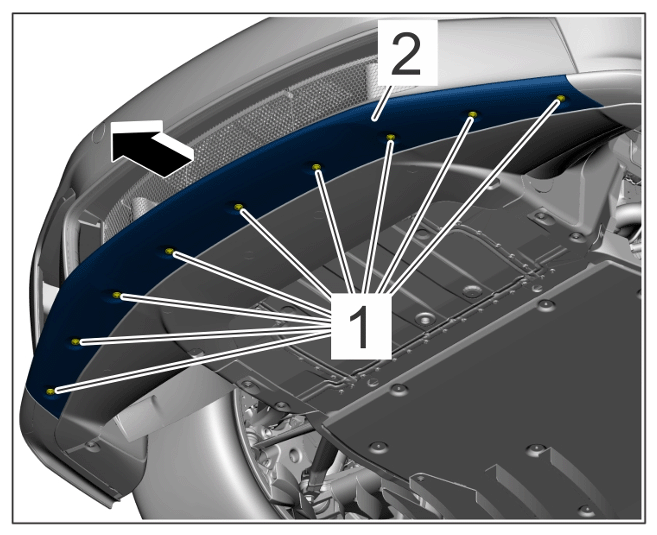

Front spoiler (center) screws Item 1 Tightening torque 3.2 Nm (2.4 ftlb.)
G15533826Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Front spoiler (center part)
Front spoiler (from side) Item 1 Tightening torque 2.5 Nm (1.8 ftlb.)

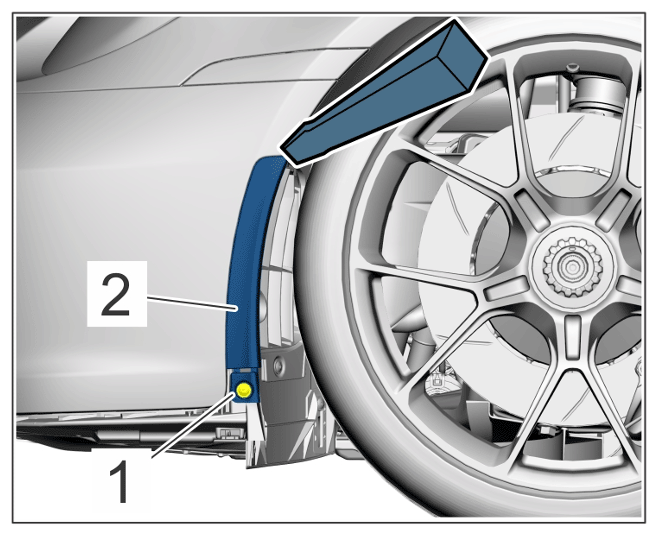

G15533827Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Front spoiler (side)

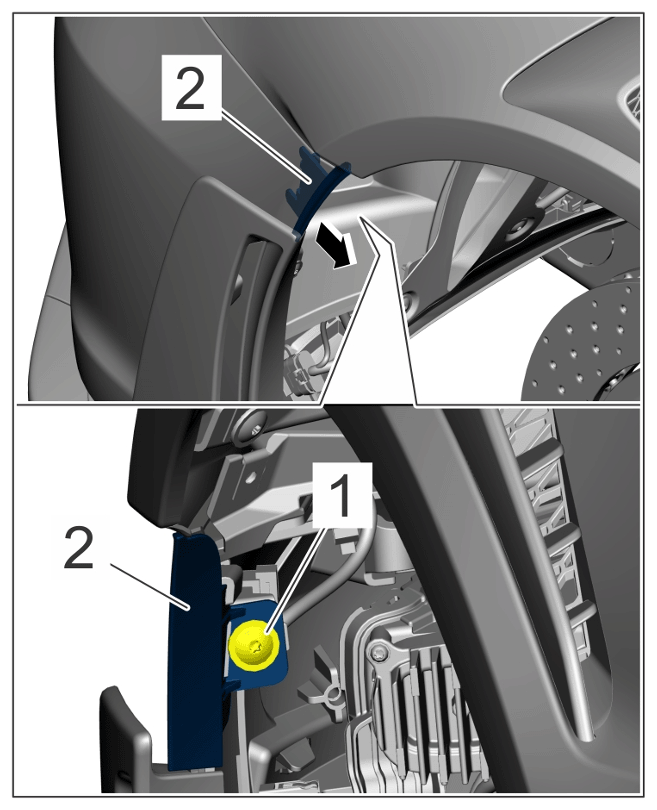

Front spoiler screw (laterally above) Item 1 Tightening torque 3.2 Nm (2.4 ftlb.)
G15533828Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Front spoiler (laterally above)
Front spoiler (laterally below) top screw Item 1 Tightening torque 0.8 Nm (0.6 ftlb.)
G15533829Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws for front spoiler (laterally below)
Front spoiler (laterally below) center screw Item 2 Tightening torque 2.5 Sim (1.8 ftlb.)
G15533830Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws for front spoiler (laterally below)

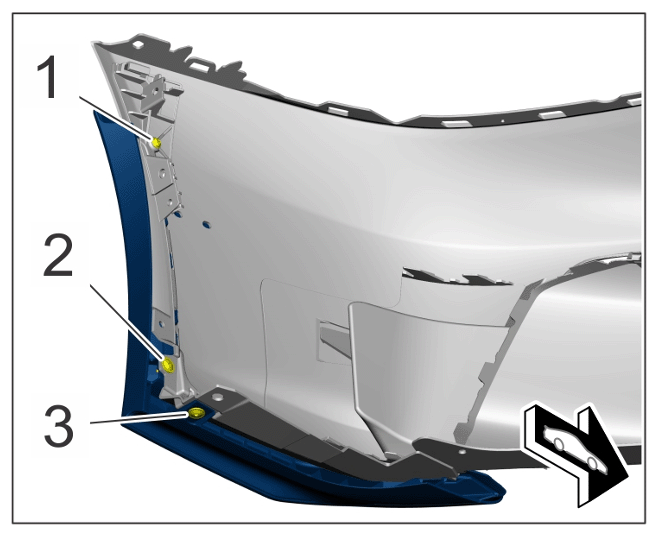

Front spoiler (laterally below) bottom screw Item 3 Tightening torque 2.5 Nm (1.8 ftlb.)
G15533831Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws for front spoiler (laterally below)

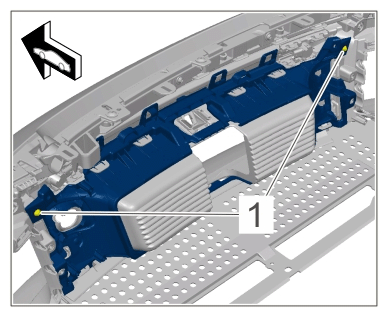

Retaining frame for radiator grille Item 1 Tightening torque 2.5 Nm (1.75 ftlb.)
G15533832Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws for radiator grille retaining frame
Nuts Item 1 Tightening torque 1.3 Nm (0.6 ftlb.) -0.2 Nm (0.1 ftlb.)

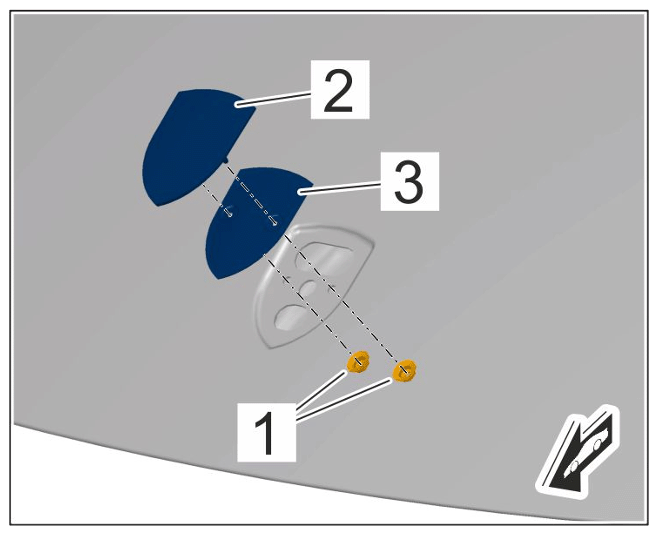

G15533833Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Nuts for front logo

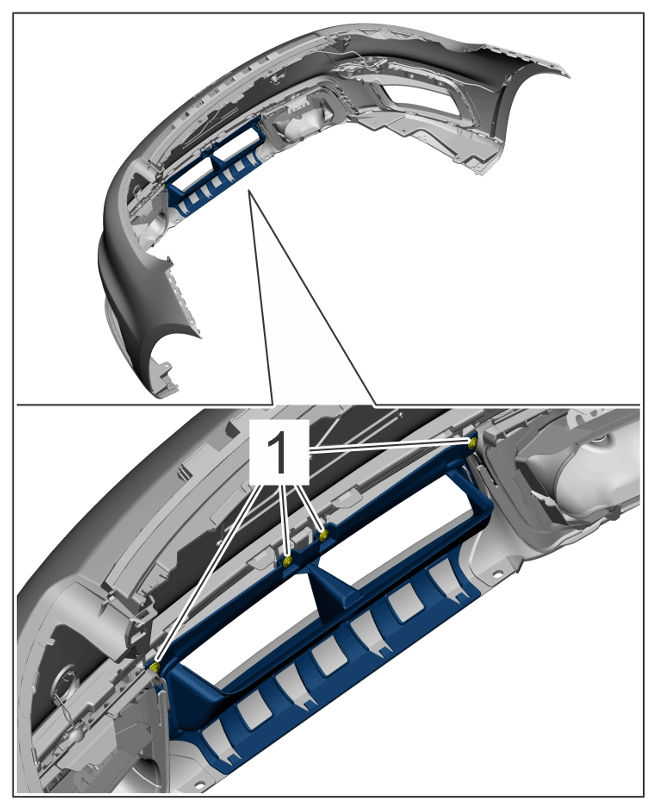

Screws for (center) air outlet Item 1 Tightening torque 3.2 Nm (2.1 ftlb.)
G15533834Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws

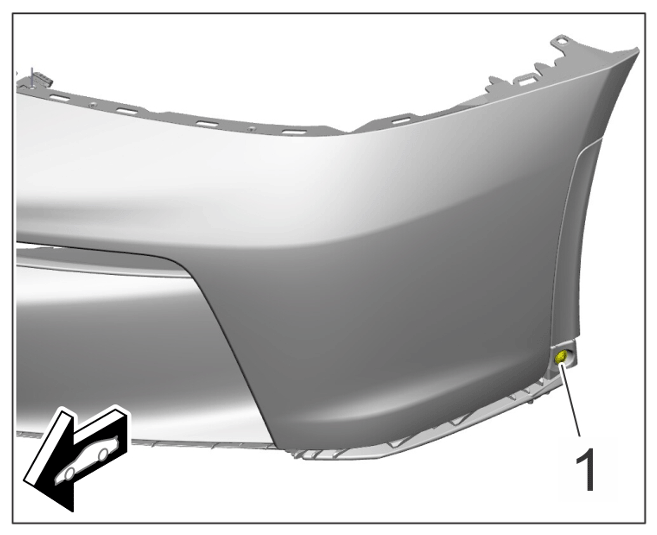

Screw for air intake Item 1 Tightening torque 2.5 Nm (1.75 ftlb.)
G15533835Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw

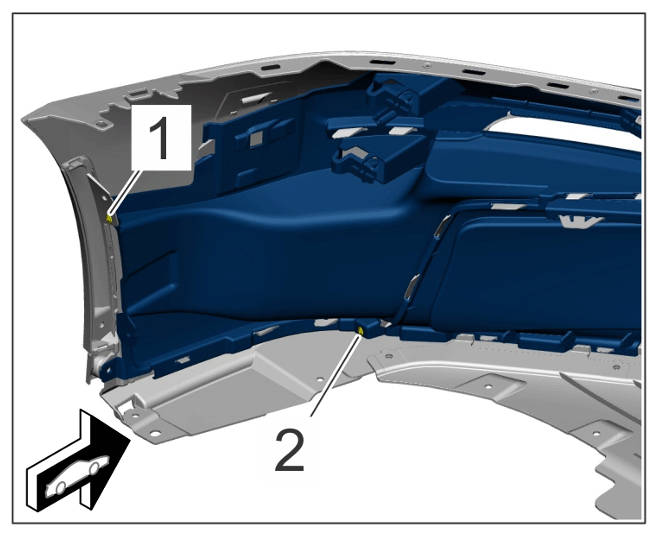

Screw for air intake Item 1 Tightening torque 2.5 Nm (1.75 ftlb.)
G15533836Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws
Screw for air intake Item 2 Tightening torque 2.8 Nm (2.2 ftlb.)
G15533837Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws

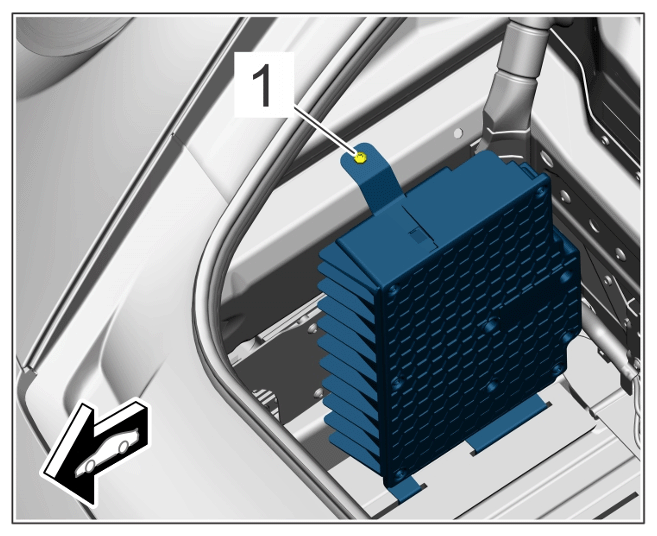

Screw securing front spoiler air supply module Item 1 Tightening torque 2.8 Nm (2.1 ftlb.)
G15533838Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw

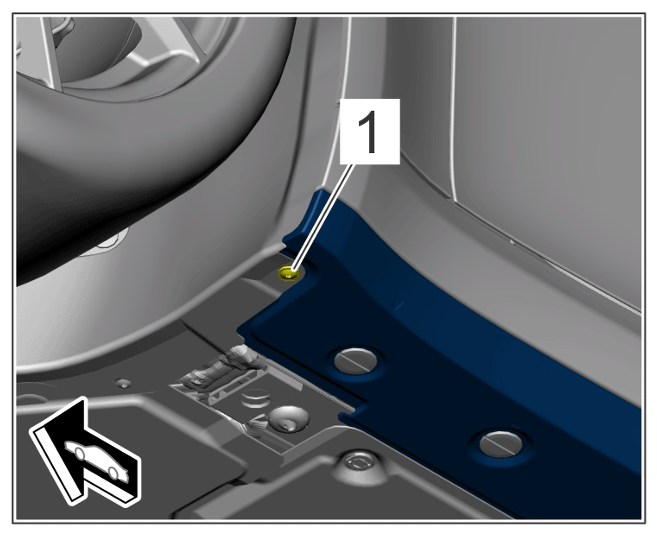

Front door entry guard Item 1 Tightening torque 3.2 Nm (2.4 ftlb.)
G15533839Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw

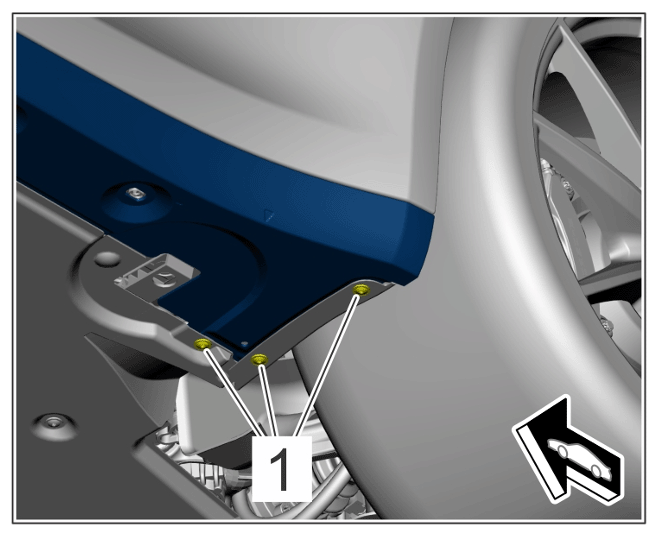

Rear door entry guard item 1 Tightening torque 3.2 Nm (2.4 ftlh >
G15533840Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws

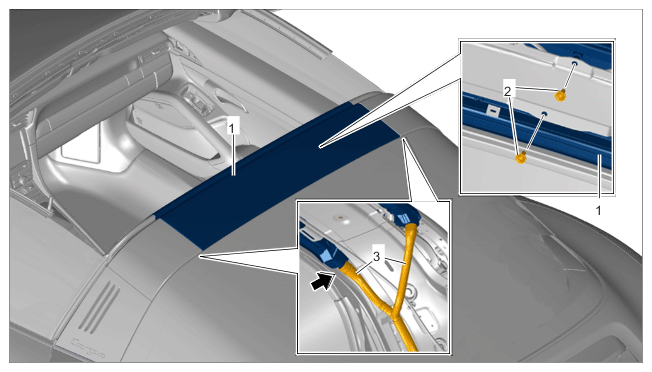

Centre trim panel for Targa bar to body Item 2 Tightening torque 4.5 Nm (3.25 ftlb.)
G15533841Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Centre trim panel for Targa bar
Screws securing trim panel for Targa flaps to body Item 1 Tightening torque 6 Nm (4.5 ftlb.)
G15533842Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws for trim panel flap
Screws securing Targa bar trim panel at the side to body Item 2 Tightening torque 9.7 Nm (7.5 ftlb.)
G15533843Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws on trim panel at the side

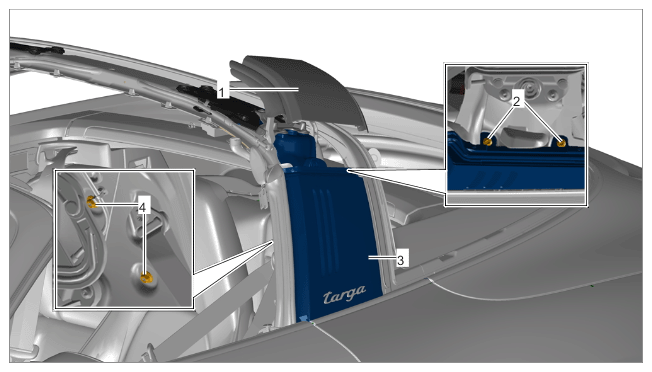

Nuts securing Targa bar trim panel at the side to body Item 4 Tightening torque 5.5 Nm (4 ftlb.)
G15533844Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Convertible top position
Ventilation grille Item 1 Tightening torque 8 Nm (5.9 ftlb.)

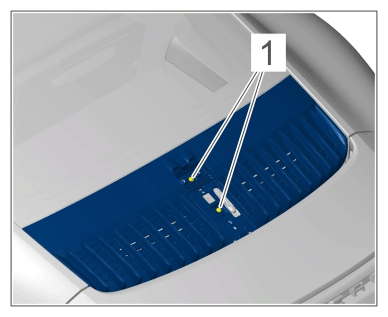

G15533845Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws for ventilation grille
Screws for ventilation grille (rear lid) Item 2 Tightening torque 8 Nm (5.9 ftlb.)
G15533846Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws

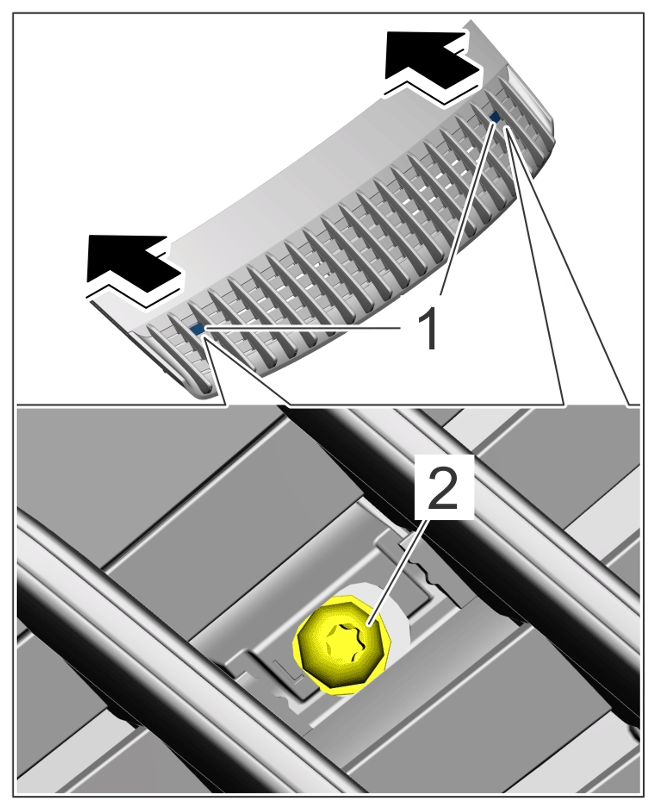

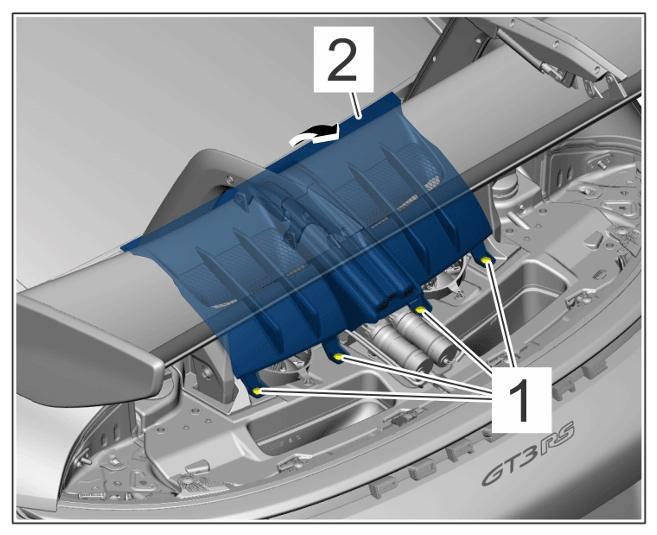

Screws for ventilation grille (rear lid) Item 1 M6x20 Tightening torque 8 Nm (5.9 ftlb.)
G15533847Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Ventilation grille (rear lid)
Mounting bracket nuts Item 1 Tightening torque 8 Nm (5.9 ftlb.)
G15533848Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw and nuts

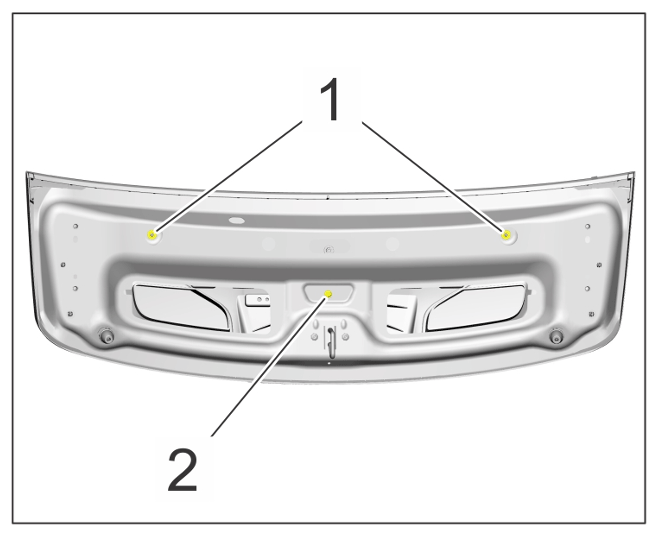

Mounting bracket screw Item 2 Tightening torque 8 Nm (5.9 ftlb.)
G15533849Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw and nuts
Screws securing ventilation grille (to rear spoiler, rear) Item 1 Tightening torque 4.5 Nm (3.25 ftlb.) (3.3 ftlb.)
G15533850Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws

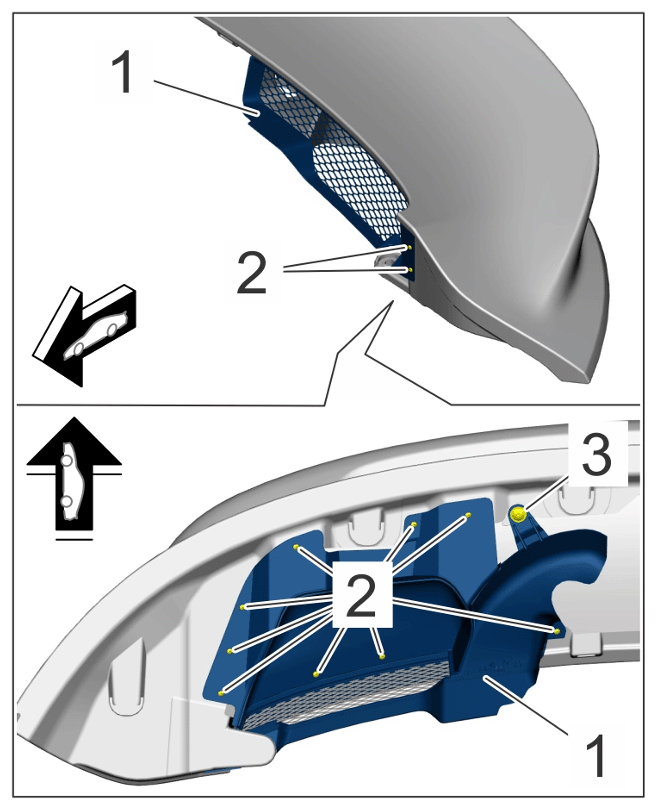

Screw for ventilation grille (air guide) to rear spoiler Item 3 Tightening torque 4.5 Nm (3.3 ftlb.)
G15533851Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Ventilation grille (air guide to rear spoiler)

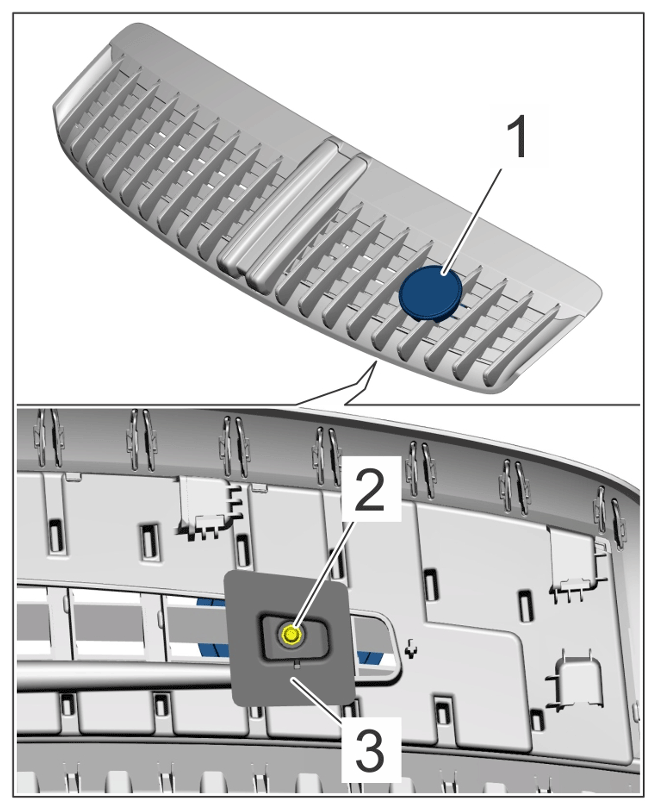

Screw for ventilation grille (badge) Item 2 Tightening torque 3.5 Nm (2.5 ftlb.) (2.6 ftlb.)
G15533852Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw

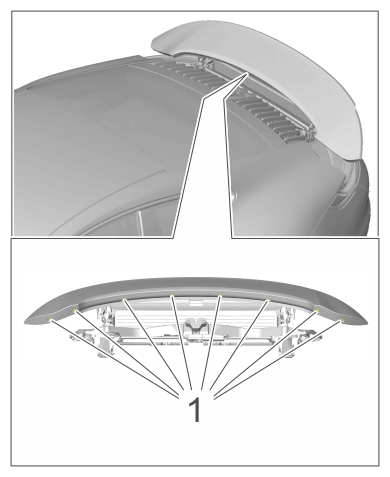

Rear spoiler (upper part) Item 1 Tightening torque 2.2 Nm (1.6 ftlb.)
G15533853Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws
Rear spoiler (upper part) Item 1 Tightening torque 8 Nm (6 ftlb.)

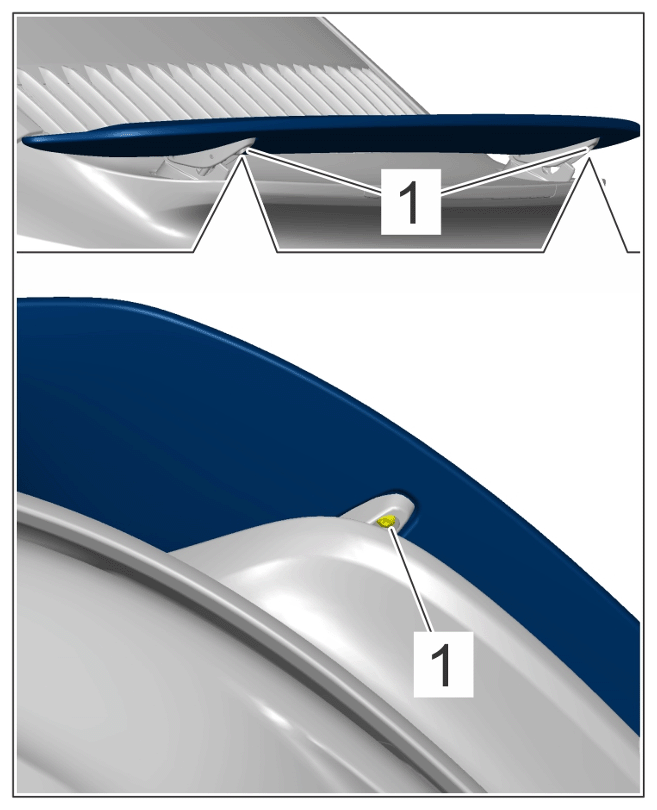

G15533854Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws

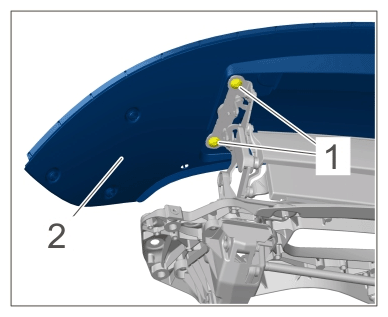

Rear spoiler (lower part) Item 1 Tightening torque 8 Nm (6 ftlb.)
G15533855Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws

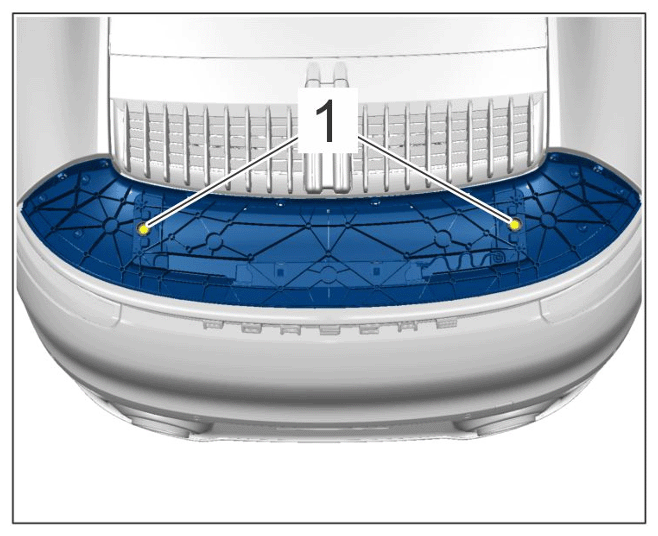

Rear spoiler (lower part) adjusting screw Item 1 Tightening torque 4 Nm (3 ftlb.)
G15533856Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rear spoiler (lower part)
Rear spoiler (lower part) Item 4 Tightening torque 8 Nm (6 ftlb.)
G15533857Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rear spoiler (lower part)

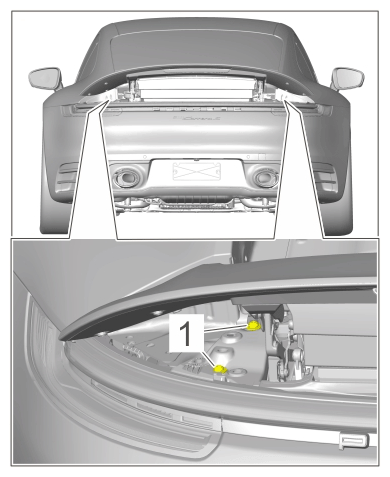

Rear spoiler Item 1 Tightening torque 23.7 Nm (18 ftlb.)
G15533858Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws

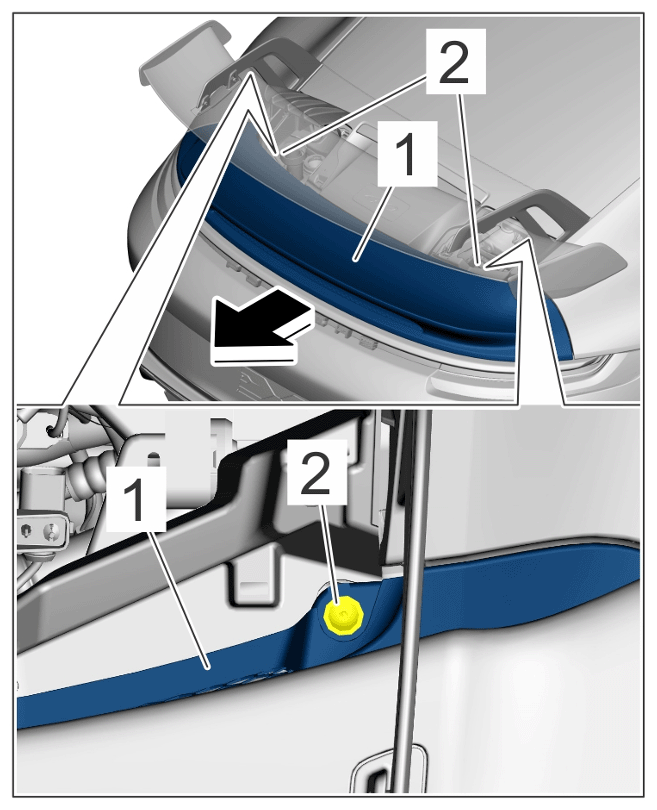

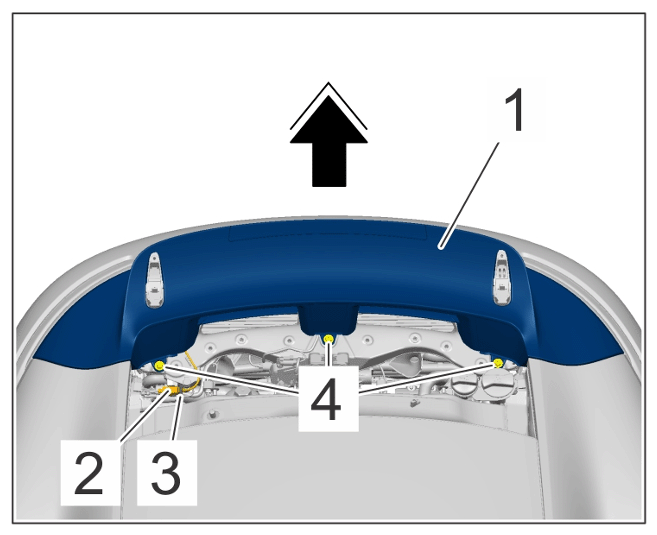

Screws for rear spoiler (lower) Item 2 M8 x 60 replace screws Tightening torque 23 Nm (17 ftlb.)
G15533859Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rear spoiler (lower part) (shown on the 992 GT3)
Rear spoiler (wing struts) Item 1 Initial tightening 16 Nm (12 ftlb.)
G15533860Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rear spoiler (wing struts)
Rear spoiler (wing struts)   Time 10 Minutes
G15533861Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rear spoiler (wing struts)

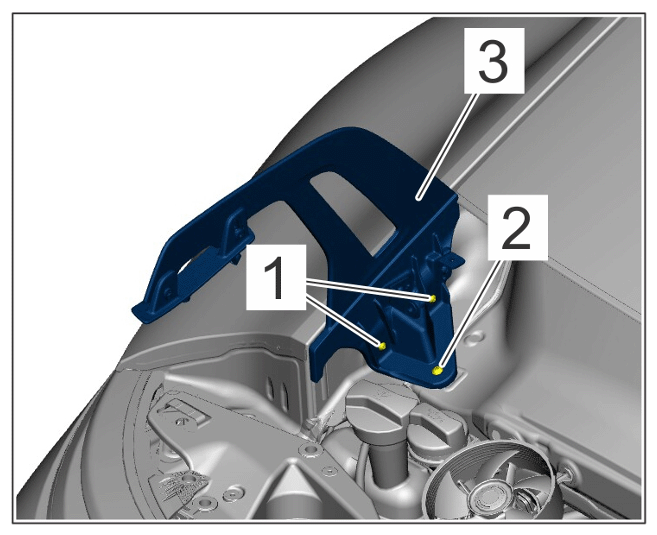

Rear spoiler (wing struts) Item 1 Final tightening 16 Nm (12 ftlb.)
G15533862Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rear spoiler (wing struts)
Rear spoiler (wing struts) Item 2 Tightening torque 9.7 (7.2 ftlb.) 3 Nm
G15533863Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rear spoiler (wing struts)

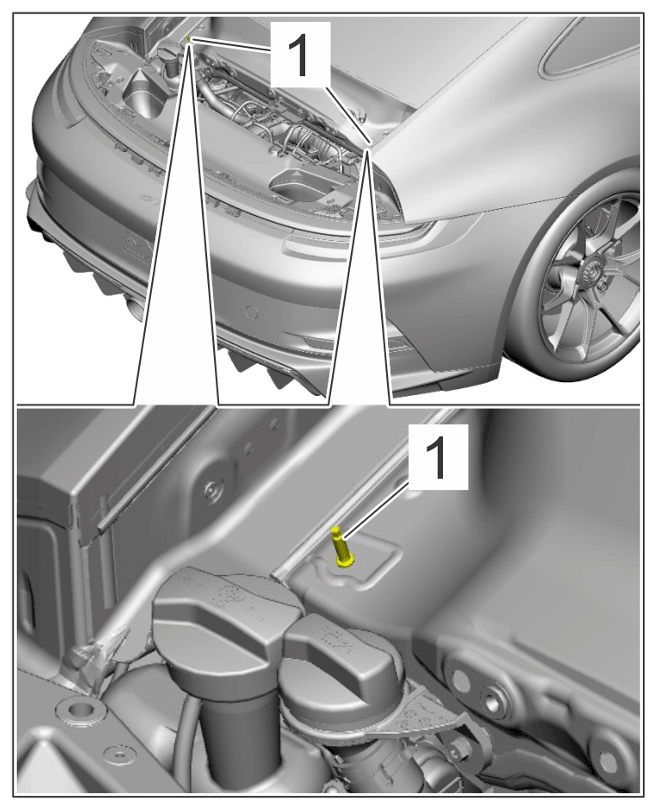

Rear spoiler (wing struts) Item 1 Tightening torque 8 Nm (6 ftlb.)
G15533864Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Stud
Rear spoiler (wing plates) to rear spcoiler (wing) Pressure roller 9886/1 with torque spanner 6-50 Nm (4.5 ftlb.-37 ftlb.) V.A.G.
1331		 Torque 30 Nm (22.1 ftlb.)

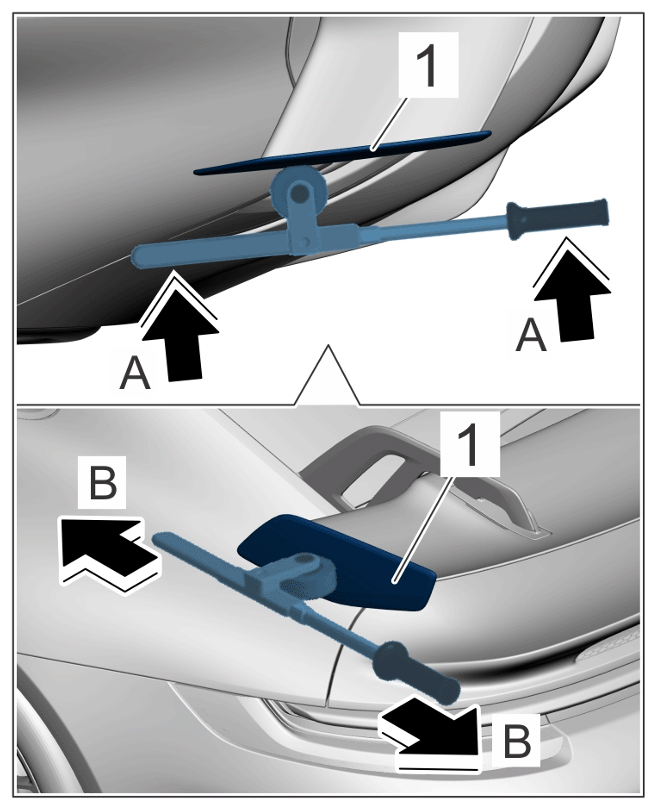

G15533865Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rear spoiler (wing plates)

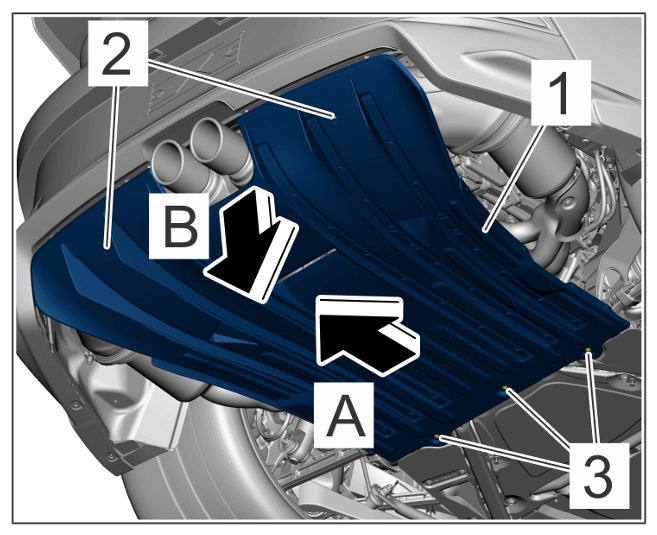

Screws for lower rear spoiler (diffuse r) Item 2 Tightening torque 8 Nm (6 ftlb.)
G15533866Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Lower part of rear spoiler (diffuser)
Screws for lower rear spoiler (diffuse r) Item 3 Tightening torque 8 Nm (6 ftlb.)
G15533867Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Lower part of rear spoiler (diffuser)

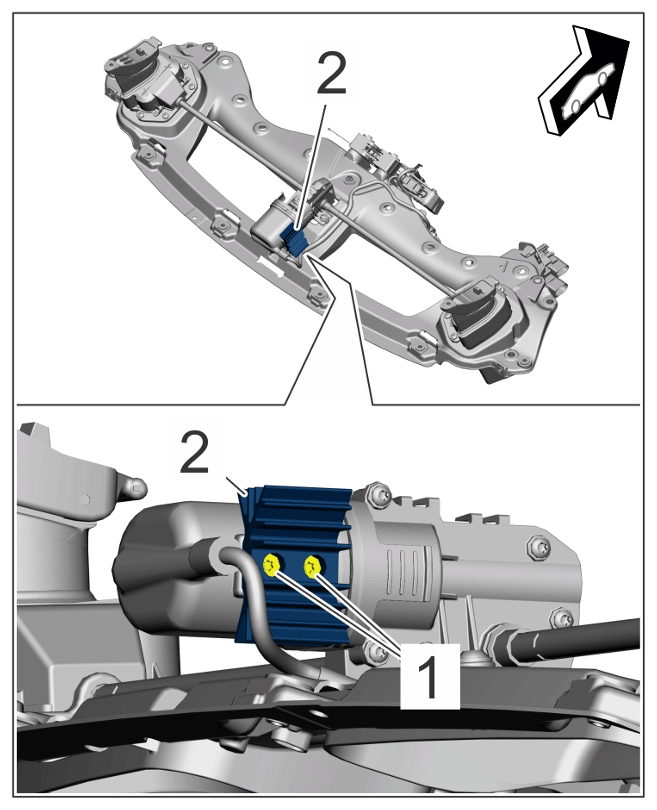

Cooler screws Item 1 Tightening torque 2.5 Nm (1.8 ftlb.)
G15533868Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Cooler
Screws for rear spoiler motor housing Item 1 Tightening torque 1.2 Nm (0.8 ftlb.)
G15533869Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws
Screw for rear spoiler motor housing Item 1 Tightening torque 1.2 Nm (0.8 ftlb.)

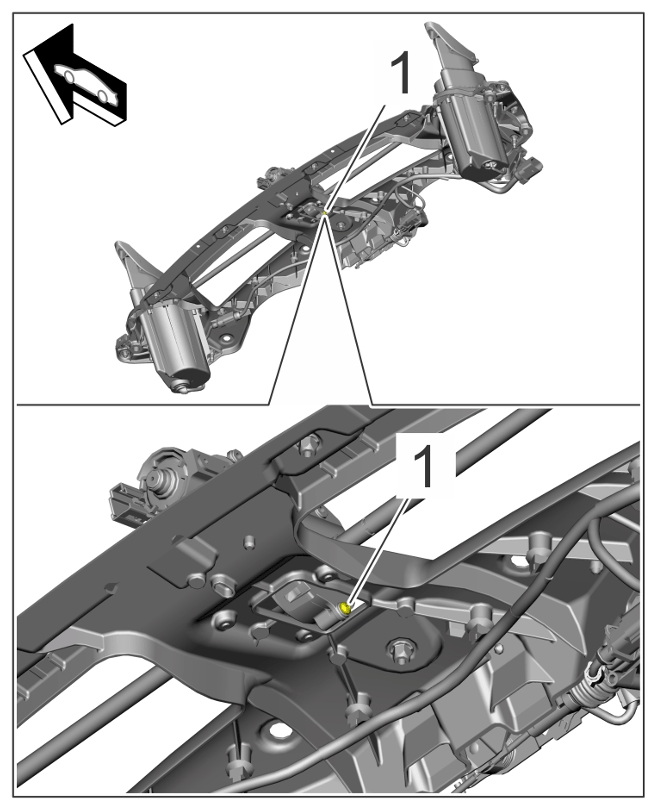

G15533870Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw

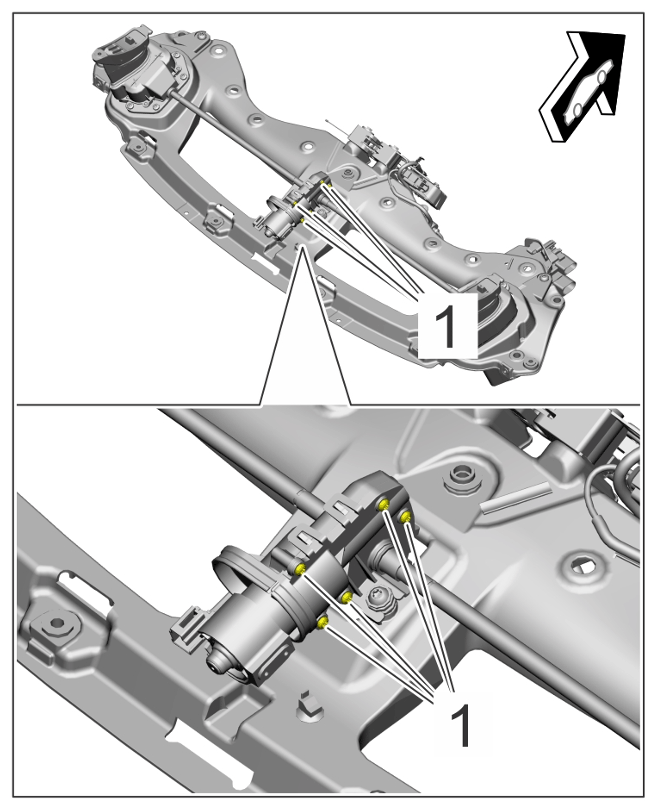

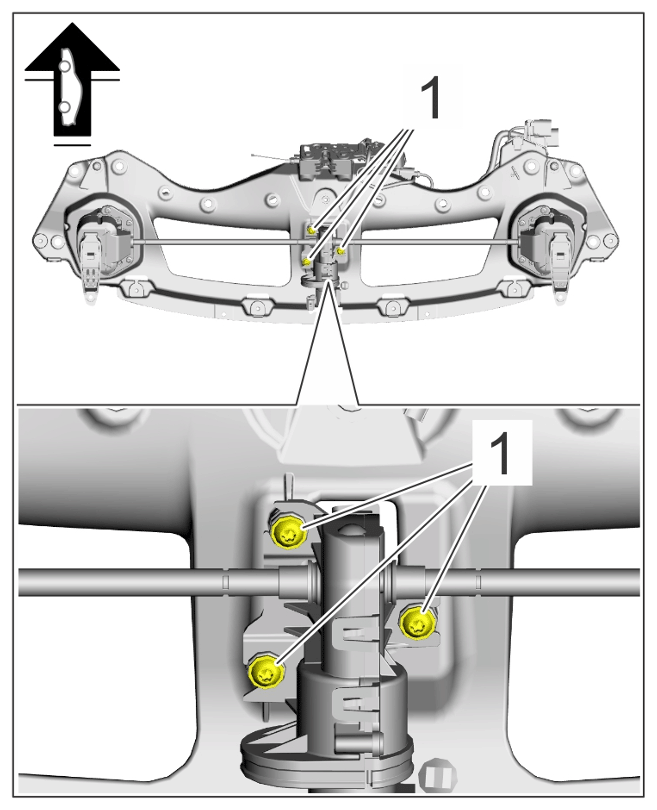

Screws securing rear spoiler motor to spoiler drive Item 1 Tightening torque 5.6 Nm (4.1 ftlb.)
G15533871Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws

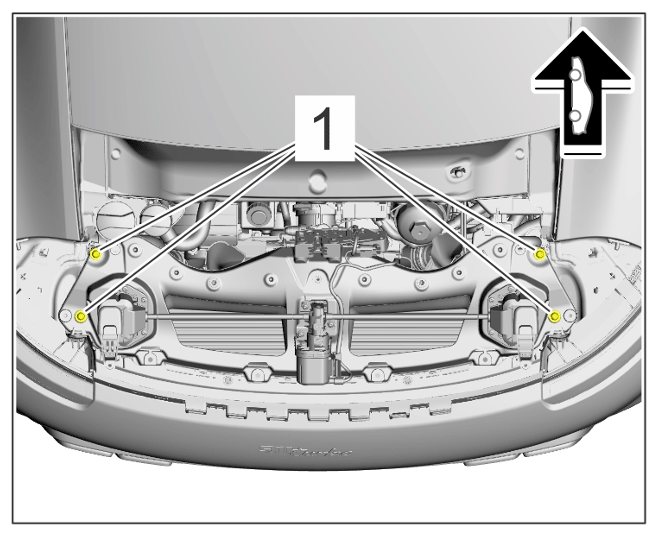

Spoiler drive screws Item 1 Tightening torque 23 Nm (17 ftlb.)
G15533872Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws

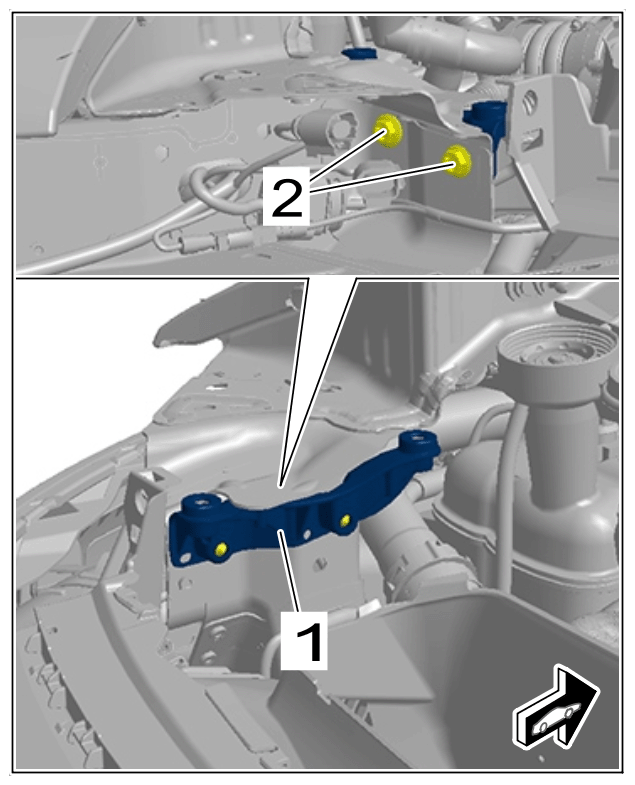

Screw securing bracket for rear spoiler cross member Item 2 Tightening torque 31 Nm (23 ftlb.)
G15533873Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Bracket for rear spoiler cross member
Screws on rear-view mirror housing (upper part) Item 1 Tightening torque 0.5 Nm (0.35 ftlb.) +/- 0.2 Nm (0.1 ftlb.)

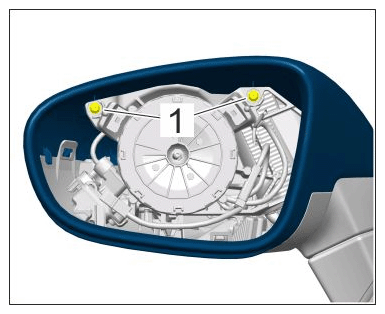

G15533874Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws on rear-view mirror housing (upper part)
Screws on rear-view mirror housing (mirror base) Item 1 Tightening torque 0.5 Nm (0.35 ftlb.) +/- 0.2 Nm (0.1 ftlb.)

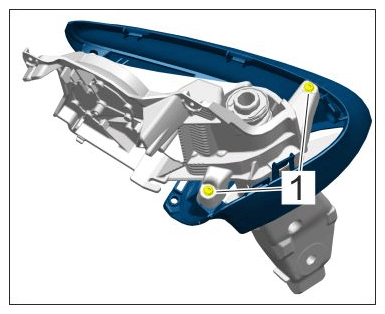

G15533875Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws on rear-view mirror housing (mirror base)
Screw on rear-view mirror housing (lower part) item 1 Tightening torque 0.5 Nm (0.35 ftlb.) +/- 0.2 Nm (0.1 ftlb.)

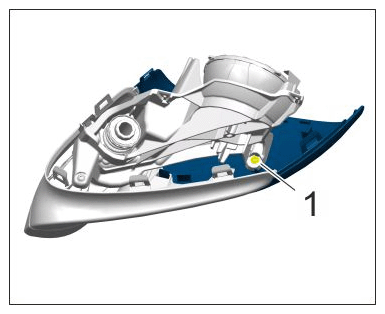

G15533876Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws on rear-view mirror housing (lower part)
Screw on mirror adjusting motor Item 1 Tightening torque 1.0 Nm (0.5 ftlb.) +/-0.1 (0.06 ftlb.1 Nm

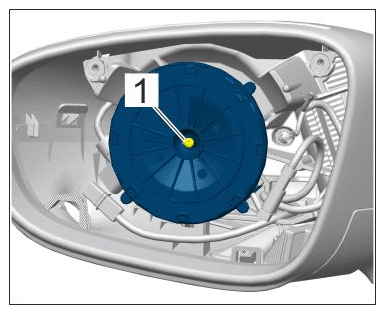

G15533877Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw on mirror adjusting motor
Gap dimension from outer edge of film to radial run-out line   Gap dimension X 2 mm +/-1 mm
G15533878Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Affixing stone guard film

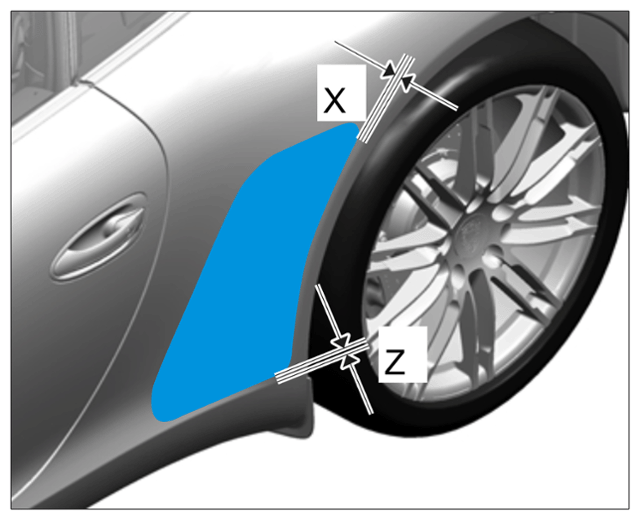

Gap dimension from lower edge of film to upper edge of stone guard film   Gap dimension Z 2 mm +/-1 mm
G15533879Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Affixing stone guard film
Number plate cover, ECE Item 1 Tightening torque 0.8 Nm (0.5 ftlb.)

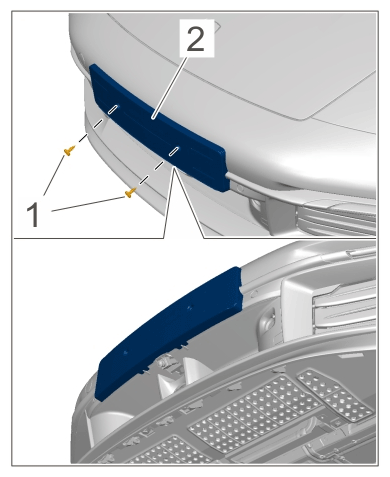

G15533880Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Number plate cover, ECE
Number plate cover, USA/Japan Item 1 Tightening torque 0.8 Nm (0.5 ftlb.)

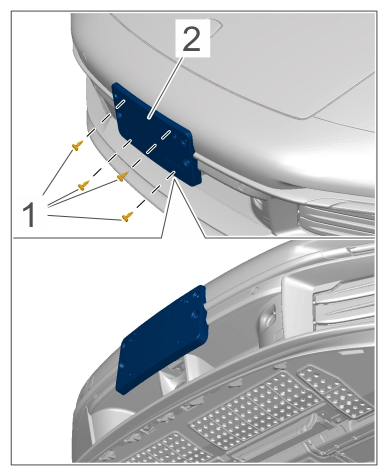

G15533881Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Number plate cover, USA/Japan
Number plate cover, China Item 1 Tightening torque 0.8 Nm (0.5 ftlb.)

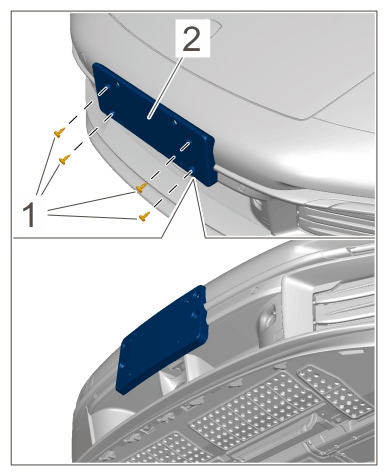

G15533882Courtesy of PORSCHE CARS NORTH AMERICA, INC.

China
Number plate cover, RoW Item 1 Tightening torque 0.8 Nm (0.5 ftlb.)

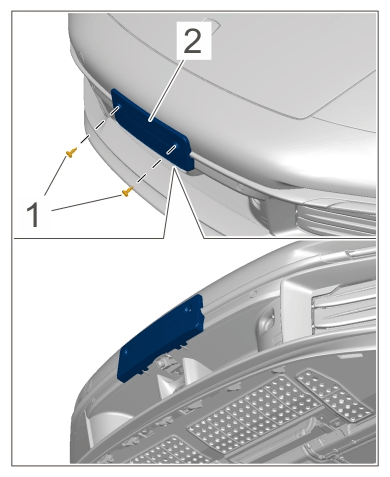

G15533883Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Number plate cover, RoW

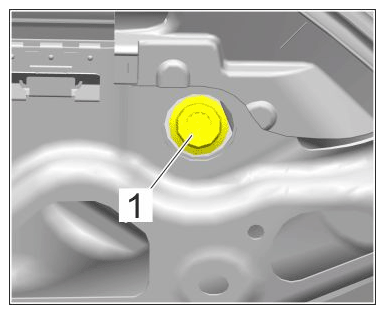

Screw securing rear-view mirror to basic door frame   Tightening torque 23 Nm (17 ftlb.)
G15533884Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Loosening rear-view mirror

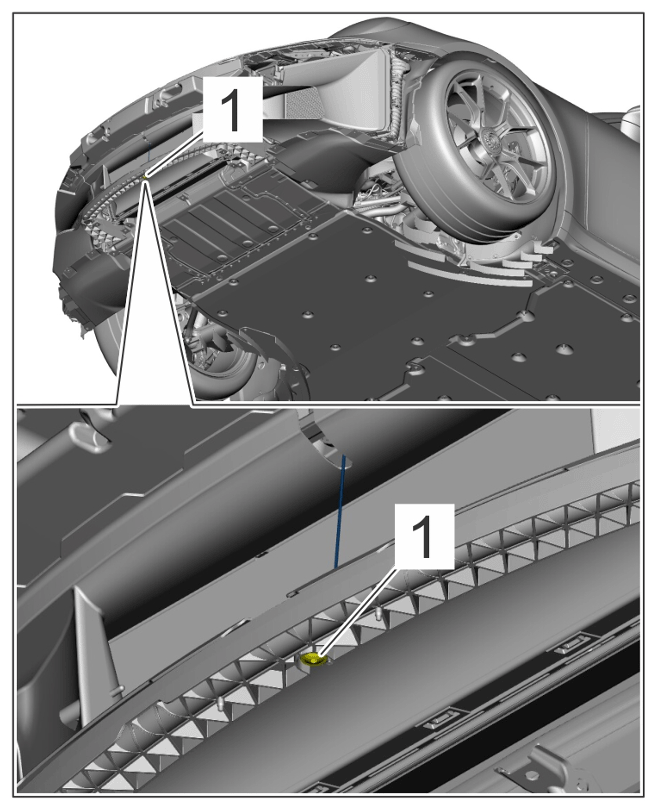

Special installation (tension cable for pedestrian protection) Item 1 Tightening torque 2.5 Nm (2 ftlb.)
G15533885Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw
Special installation (tension cable for pedestrian protection) Item 2 Tightening torque 8 Nm (6 ftlb.)
G15533886Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws

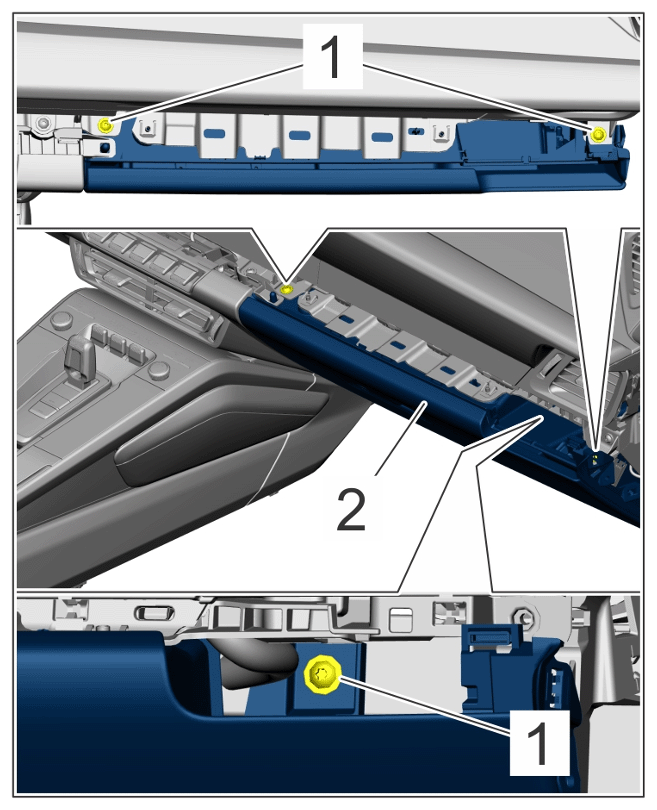

Screws securing top of glove compartment to dashboard Item 1 Tightening torque 3.2 Nm (2.4 ftlb.)
G15533887Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Top screws
Screws securing bottom of glove compartment to dashboard Item 1 Tightening torque 3.2 Nm (2.4 ftlb.)

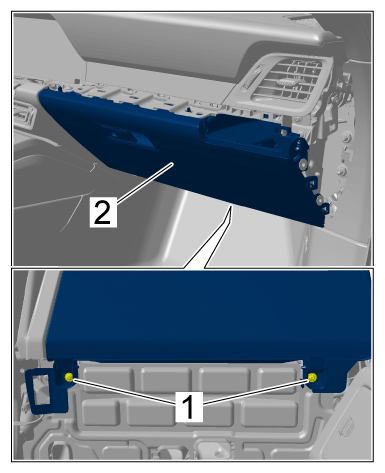

G15533888Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Bottom screws
Screws for securing package boxes (rear) to center console Item 1 Tightening torque 8 Nm (6 ftlb.) +/- 0.9 Nm (0.7 ftlb.)
G15533889Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws

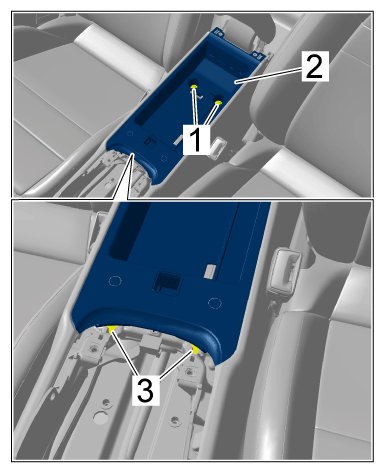

Screws securing center console (upper part) to center console (lower part) Item 1 Tightening torque 3.2 Nm (2.2 ftlb.) +/- 0.3 Nm (0.2 ftlb.)

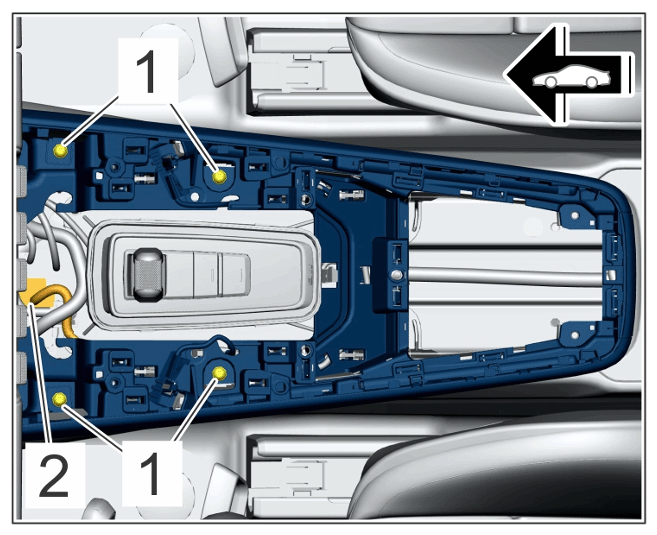

G15533890Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Centre console (upper part)
Screw securing knee cushion to center console (upper part) Item 2 Tightening torque 3.2 Nm (2.2 ftlb.)

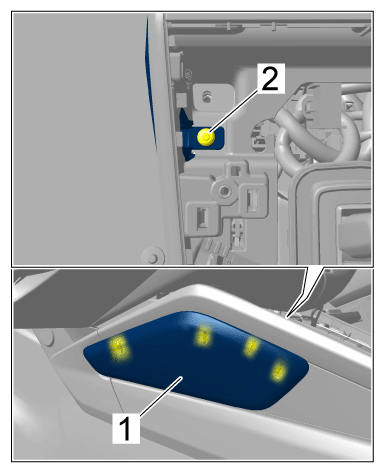

G15533891Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Knee cushion
Screw for sun visor (Coupe) Item 1 Tightening torque 5.5 Nm (4 ftlb.)

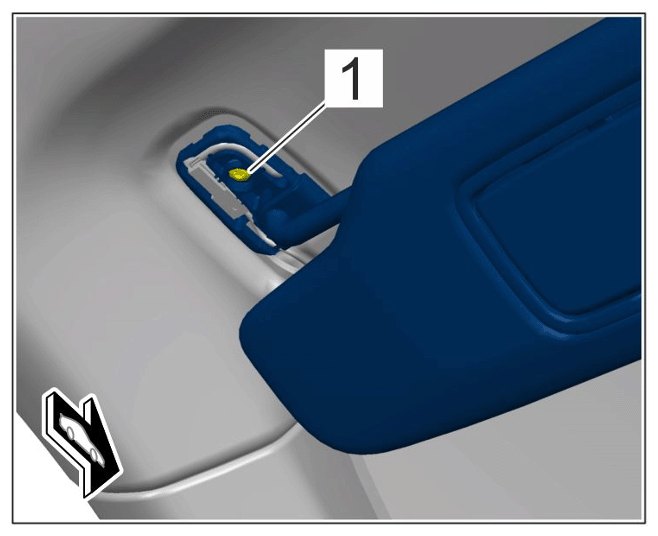

G15533892Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw
Screws for sun visor (Cabriolet) Item 1 Tightening torque 5.5 Nm (4 ftlb.)

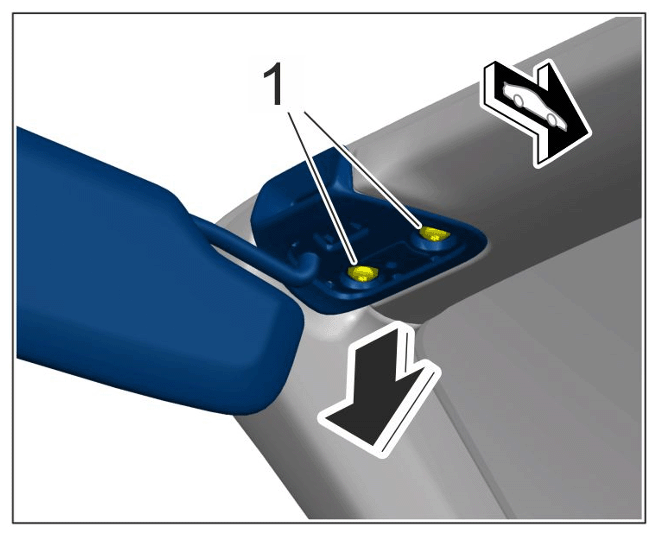

G15533893Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws
Screws securing tunnel support to center tunnel Item 1 Tightening torque 23 Nm (17 ftlb.)
G15533894Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws

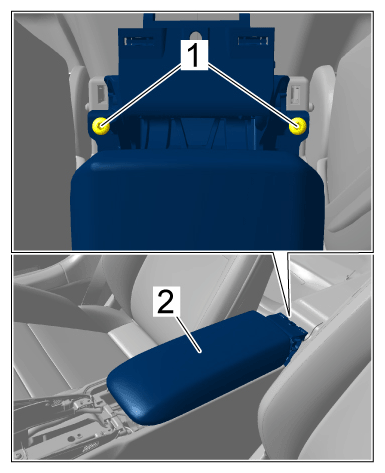

Rear package box cover to center console Item 1 Tightening torque 7.8 Nm (5.7 ftlb.) +/- 0.8 Nm (0.6 ftlb.)

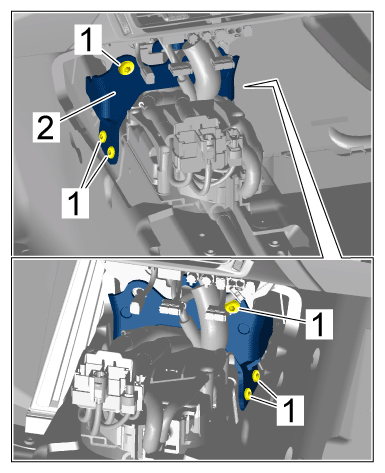

G15533895Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws

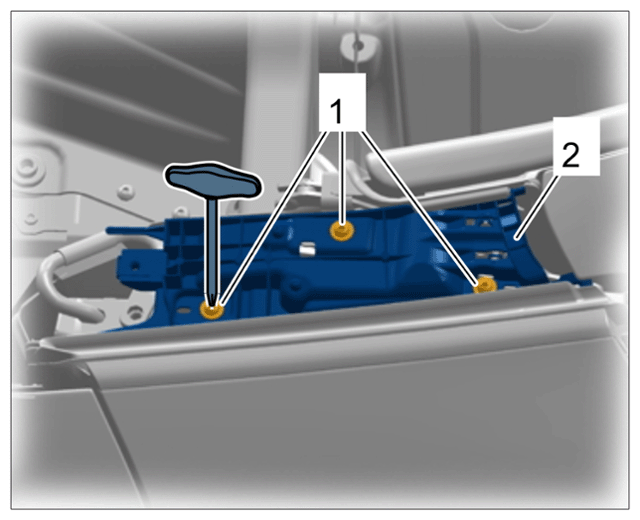

Mounting plate for side trim panel Item 1 Tightening torque 5.7 Nm (4.5 ftlb.) +/- 0.5 Nm (0.3 ftlb.)
G15533896Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Mounting plate for side trim panel

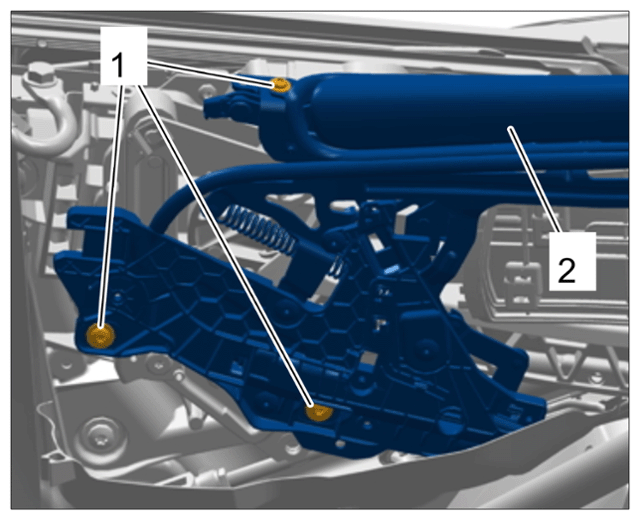

Wind deflector, side Item 1 Tightening torque 9.7 Nm (7.5 ftlb.)
G15533897Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Side wind deflector
Wind deflector, top Item 1 Tightening torque 9.7 Nm (7.5 ftlb.)

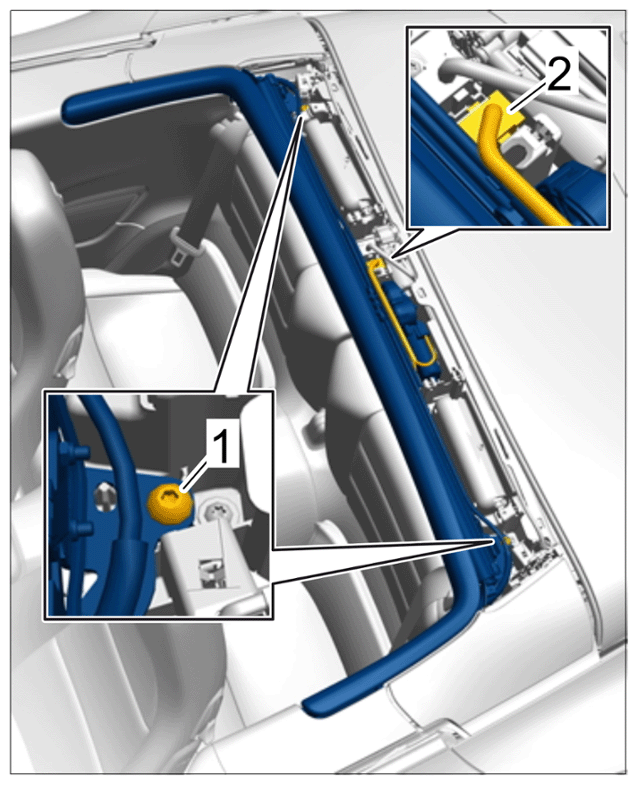

G15533898Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Wind deflector

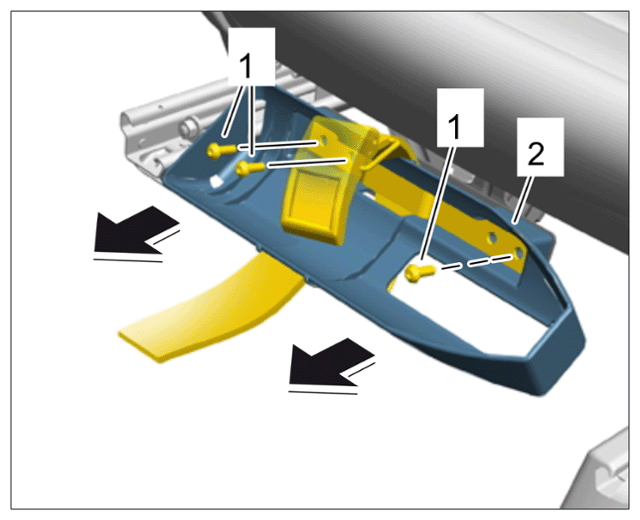

Disassembling fire extinguisher tray (front seat) Item 1 Tightening torque 4 Nm (3 ftlb.)
G15533899Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fire extinguisher tray

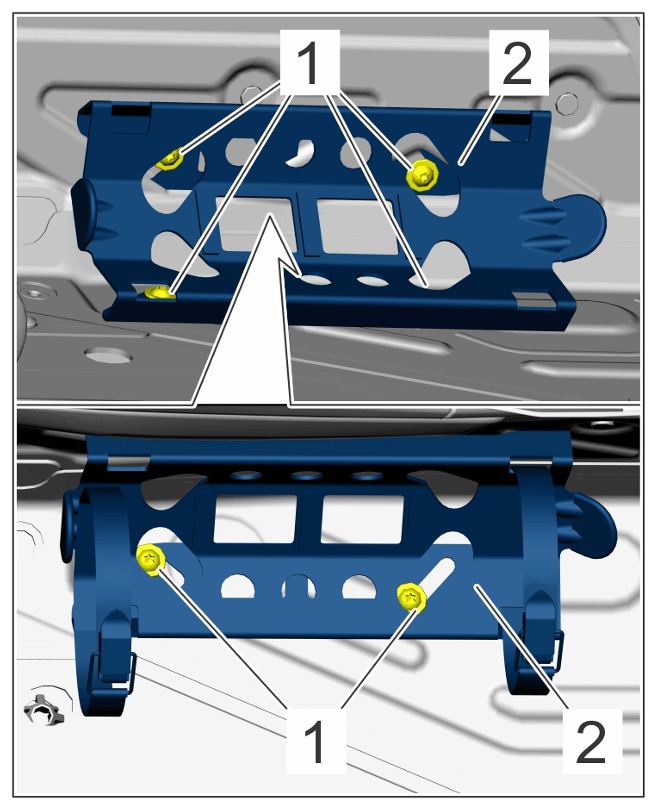

Screws for fire extinguisher holder Item 1 Tightening torque 8 Nm (5.9 ftlb.)
G15533900Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Bolts
Screws for fire extinguisher holder Item 1 Tightening torque 6 Nm (4.4 ftlb.)

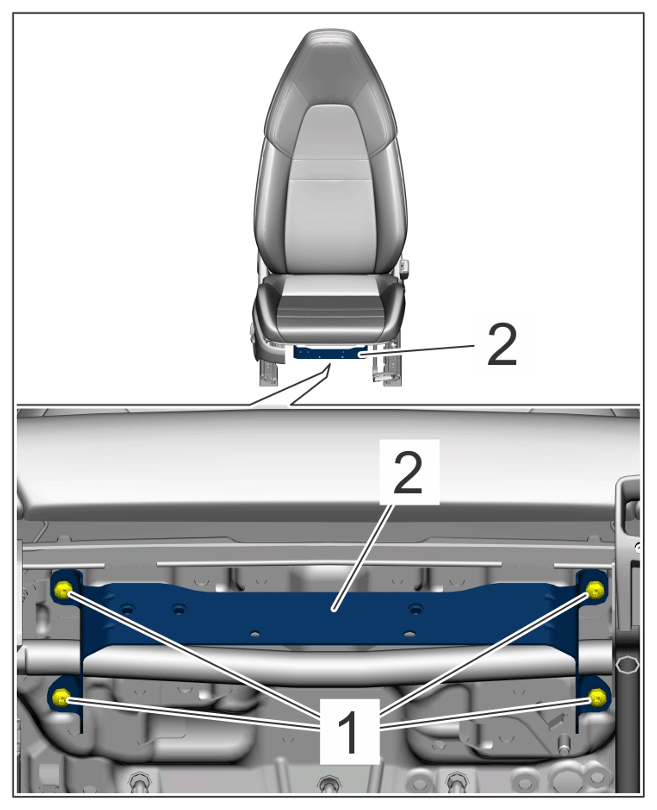

G15533901Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fire extinguisher holder
Screws on fire extinguisher holder for full bucket seat Item 1 Tightening torque 6.5 Nm (4.8 ftlb.)

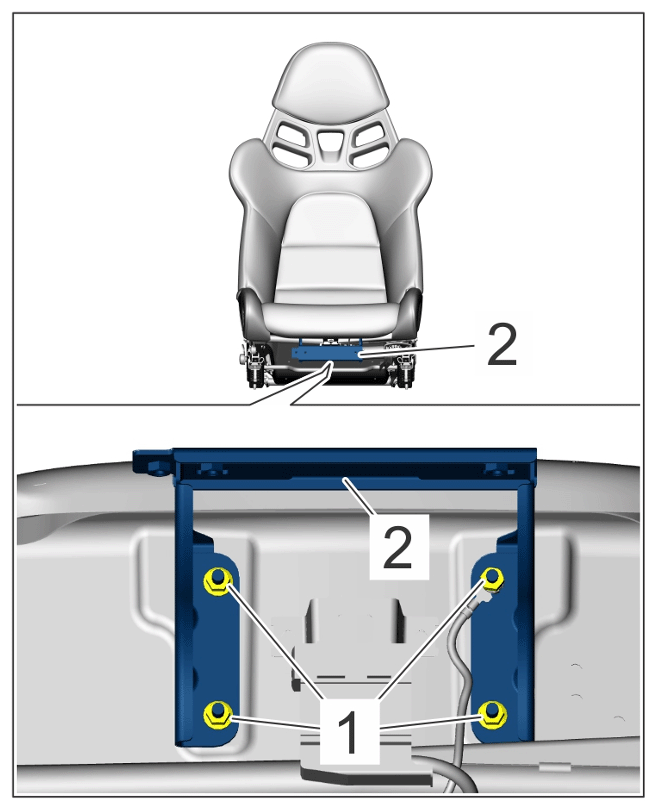

G15533902Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fire extinguisher holder, full bucket seat
Screw securing belt fitting to door sill Item 1 Tightening torque 50 Nm

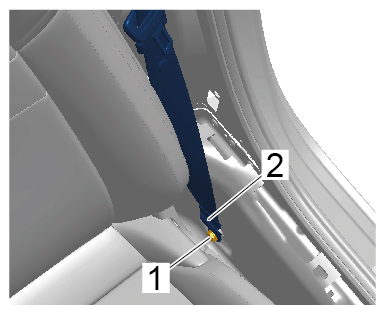

G15533903Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Belt fitting on door sill
Lower belt deflector Item 1 Tightening torque 9.7 Nm
G15533904Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Lower belt deflector
Belt deflector fitting Item 3 Tightening torque 50 Nm

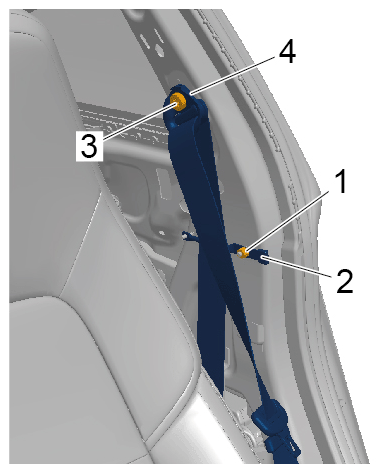

G15533905Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Belt deflector fitting
Electric motor-powered retractor Item 1 Tightening torque 9.7 Nm

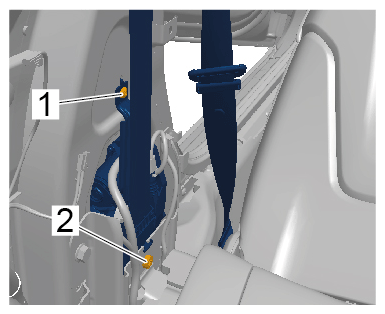

G15533906Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric motor-powered retractor
Belt retractor Item 2 Tightening torque 50 Nm
G15533907Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Belt retractor

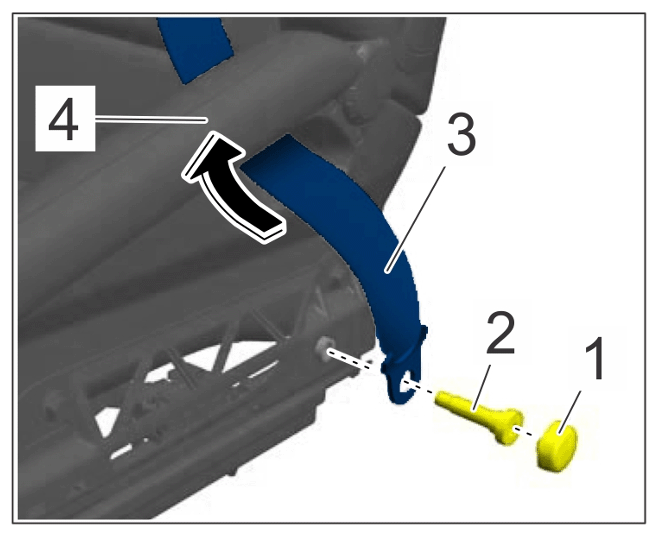

Screw securing belt fitting to seat frame Item 2 Tightening torque 50 Nm
G15533908Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw for belt fitting
Belt deflector Item 1 Tightening torque 50 Nm
G15533909Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Belt deflector
Belt retractor Item 2 Tightening torque 50 Nm

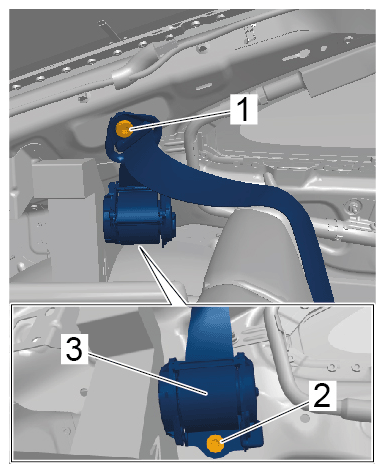

G15533910Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Belt retractor

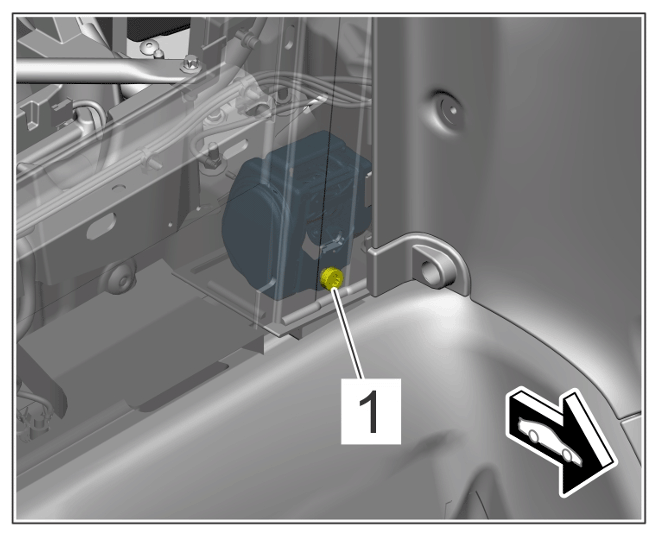

Screw securing belt retractor to roll-over protection system Item 1 Tightening torque 50 Nm
G15533911Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw on belt retractor
Screw securing seat belt mount to rear wheel housing   Tightening torque 50 Nm

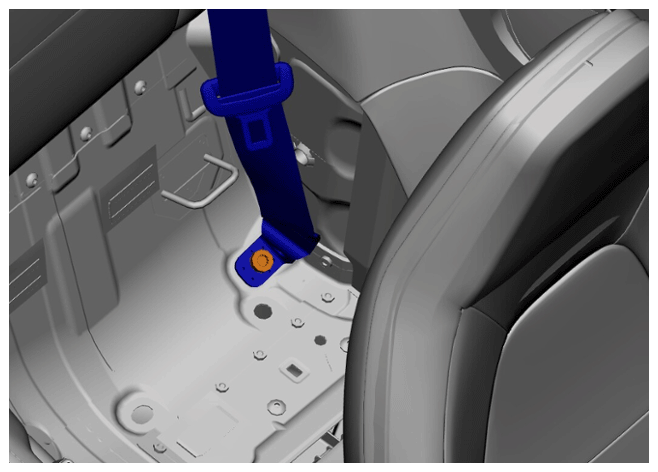

G15533912Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw securing belt fitting to wheel housing rear

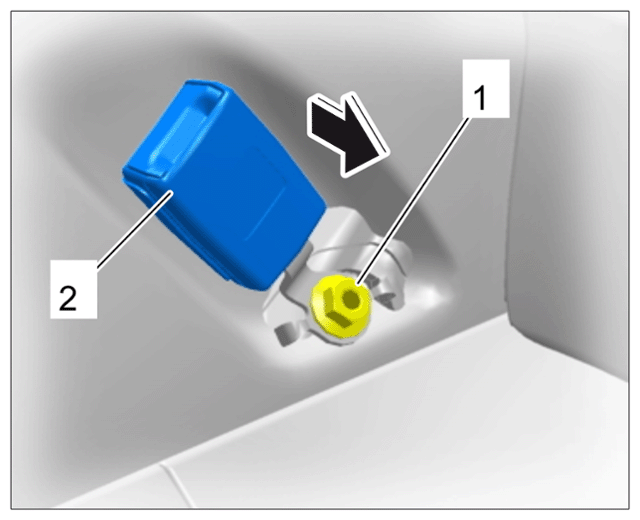

Rear belt lock nut Item 1 Tightening torque 50 Nm
G15533913Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing rear belt lock
1

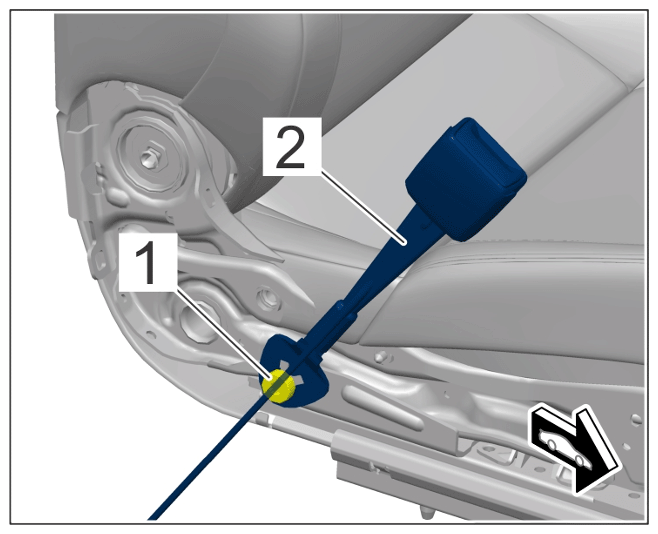

Screw on front belt lock Item 1 Tightening torque 50 Nm (36.9 ftlb.)
G15533914Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw on front belt lock

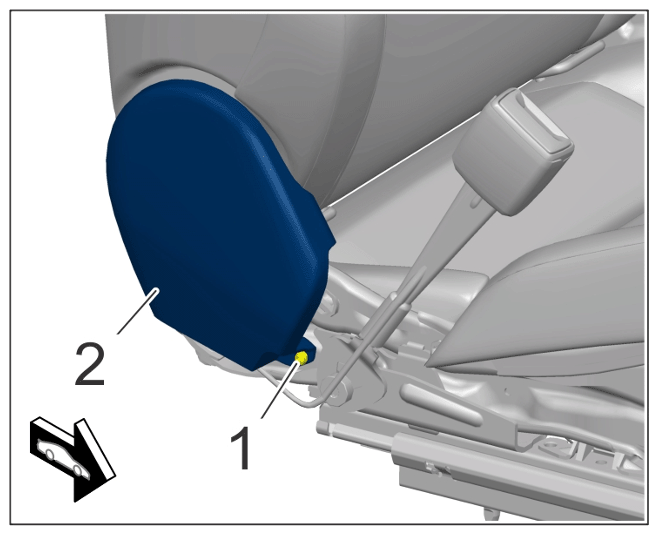

Screw for seat trim Item 1 Tightening torque 2.2 Nm (1.6 ftlb.) +/- 0.2 Nm (0.1 ftlb.)
G15533915Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw for seat trim

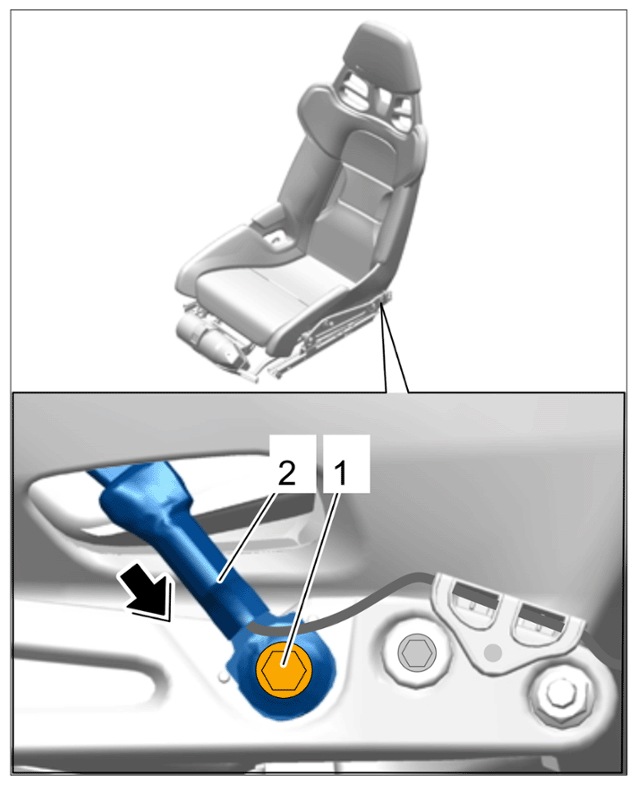

Screw securing belt lock to seat frame Item 1 (7/16" -20 UNF) -Replace screw Tightening torque 50 Nm (36.9 ftlb.)
G15533916Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Remove belt lock

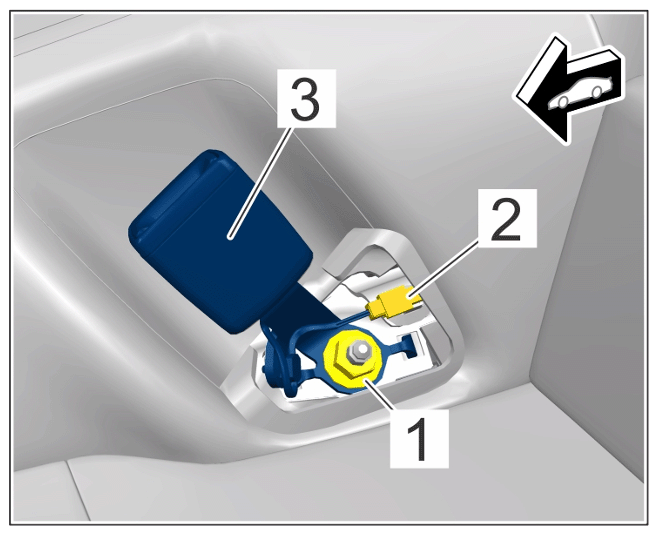

Nut for rear seat-belt buckle Item 1 Tightening torque 40 Nm (30 ftlb.)
G15533917Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Nut

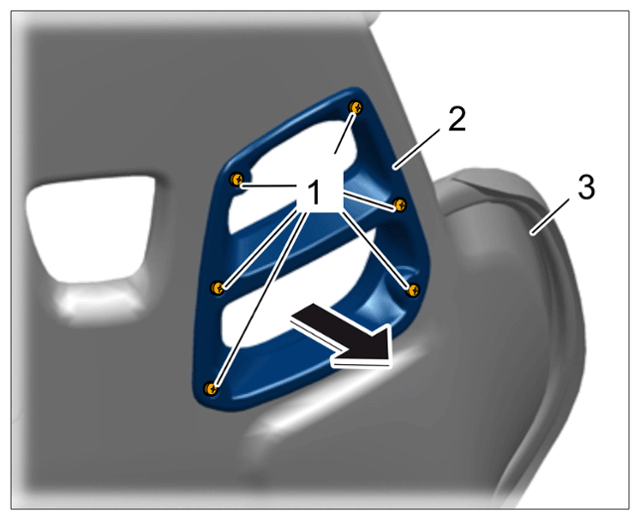

Belt strap guide to seat shell Item 1 (M4x 16) Tightening torque 0.5 Nm (0.5 ftlb.)
G15533918Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing (rear) belt strap guide

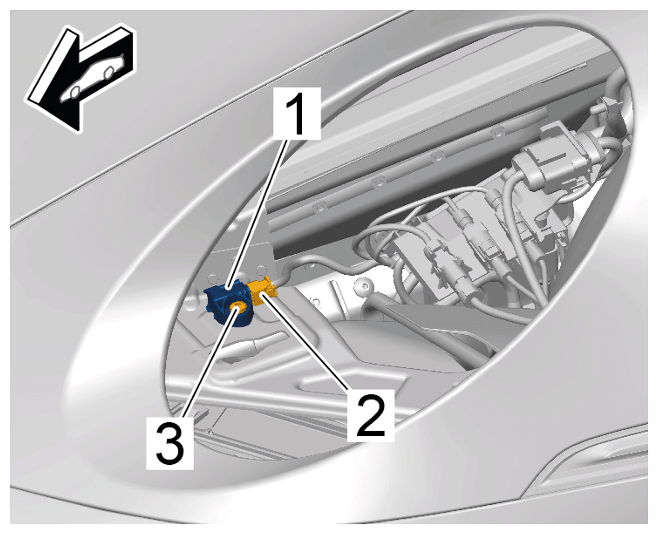

Airbag sensor on headlight mounting Item 3 Tightening torque 9 Nm (6.5 ftlb.)
G15533919Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Airbag sensor on headlight mounting

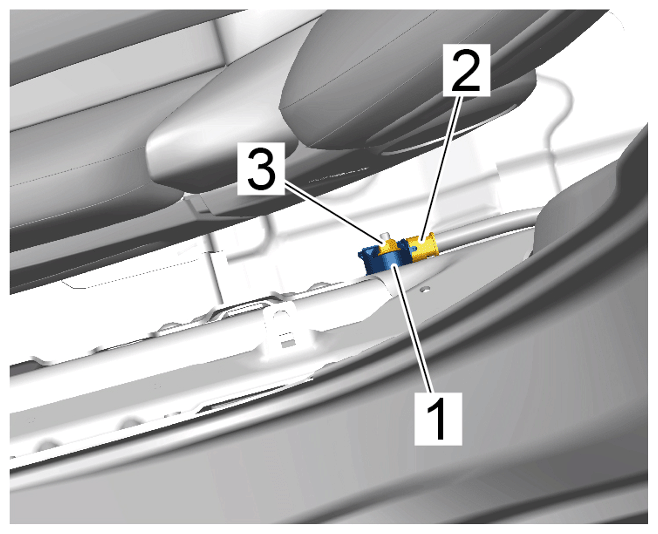

Airbag sensor on inner door sill Item 3 Tightening torque 9 Nm (6.5 ftlb.)
G15533920Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Airbag sensor on inner door sill

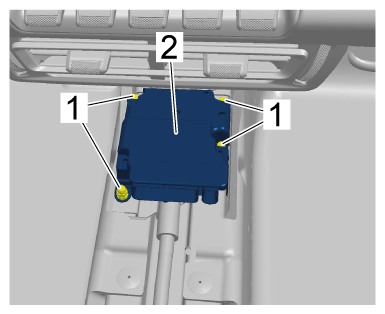

Airbag triggering unit Item 1 Tightening torque 8.5 Nm (6.25 ftlb.)
G15533921Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Airbag triggering unit

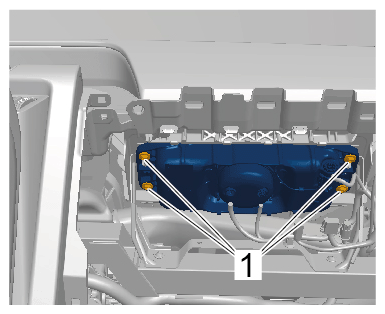

Passenger airbag unit Item 1 Tightening torque 9.7 Nm (7.5 ftlb.)
G15533922Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Passenger airbag unit
Fastening screw for front side airbag on backrest Item 2 Tightening torque 9, 7 Nm (7 ftlb.)

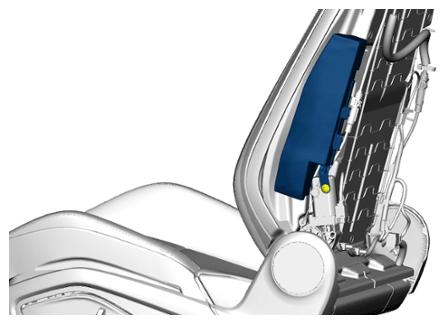

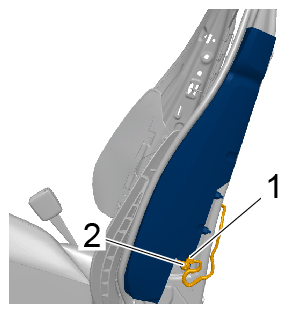

G15533923Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Front side airbag
Fastening screws securing supporting plate on backrest item 1 Tightening torque 9, 7 Nm (7 ftlb.) +/-1, 4 Nm (7 ftlb.)

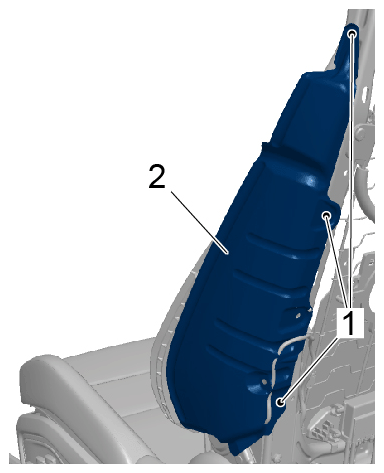

G15533924Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Supporting plate
Fastening nuts securing front side airbag on backrest Item 2 Tightening torque 8 Nm (6 ftlb.)

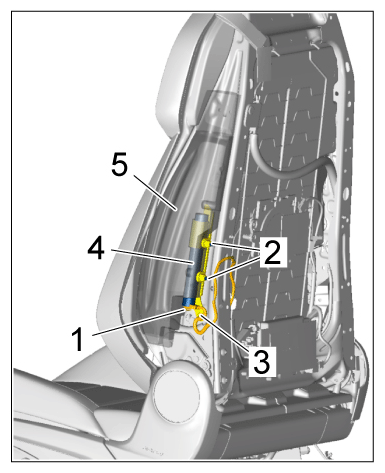

G15533925Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fastening nuts
Screw securing tubular frame holder to seat frame   Tightening torque 9.7 Nm (7 ftlb.)
G15533926Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Airbag holder
Pedestrian protection Item 1 Tightening torque 23 Nm (17 ftlb.)

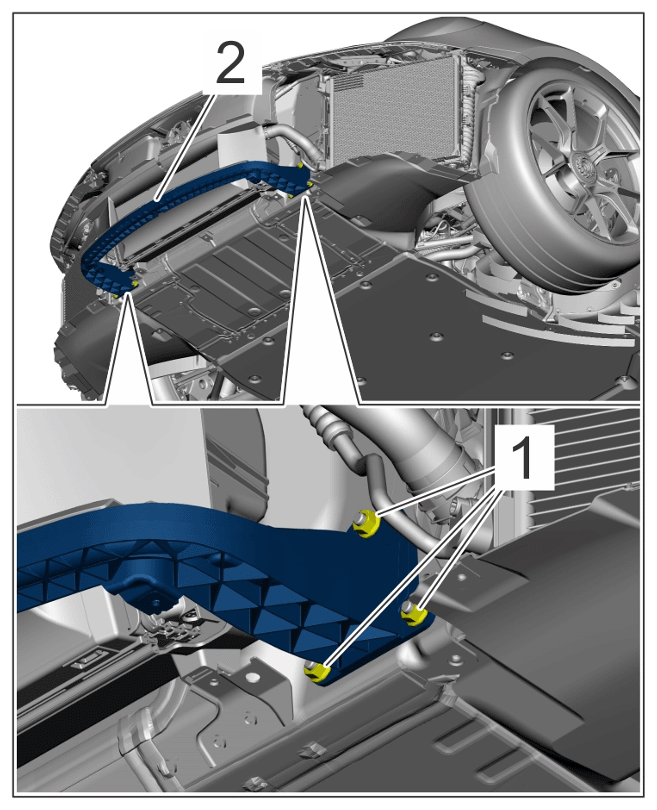

G15533927Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Pedestrian protection

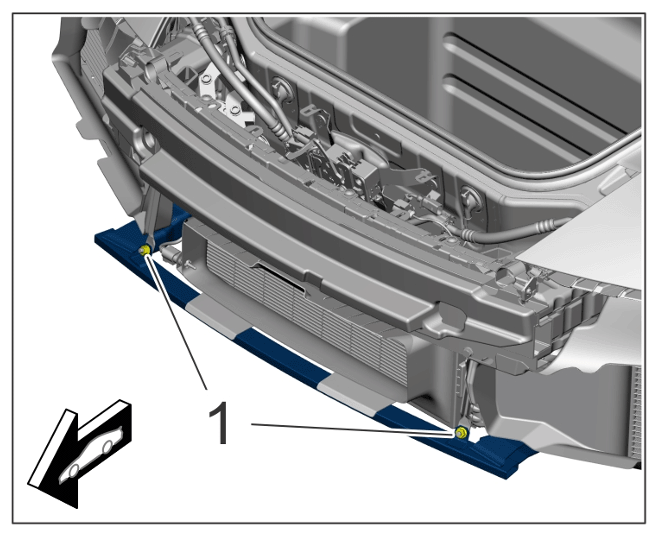

Pedestrian protection to coupling link (Turbo only) Item 1 Tightening torque 23 Nm (17 ftlb.)
G15533928Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Nuts
Outer rear support to roll-over protection system Item 1 Tightening torque 40 Nm (30 ftlb.)

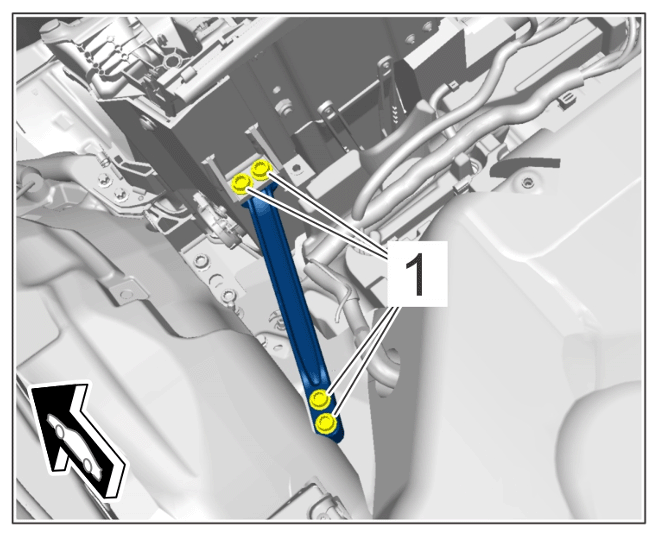

G15533929Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Outer rear support

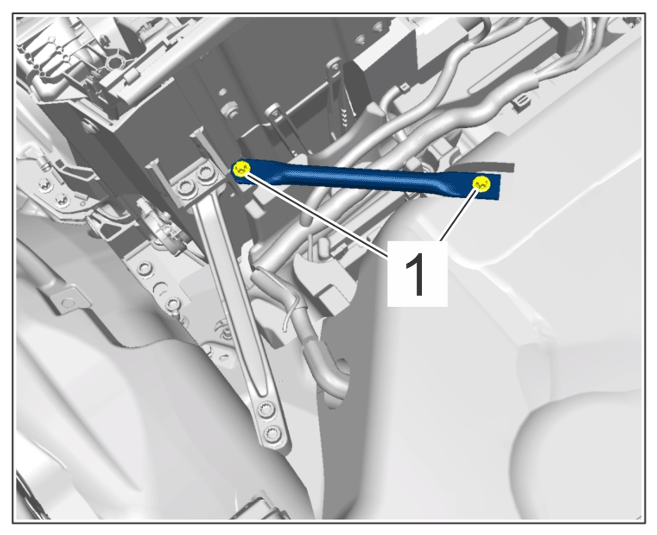

Inner rear support to roll-over protection system Item 1 Tightening torque 20 Nm (15 ftlb.)
G15533930Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Inner rear support
Front support to roll-over protection system Item 1 Tightening torque 40 Nm (30 ftlb.)
G15533931Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Front support
Front support to roll-over protection system Item 2 Tightening torque 20 Nm (15 ftlb.)

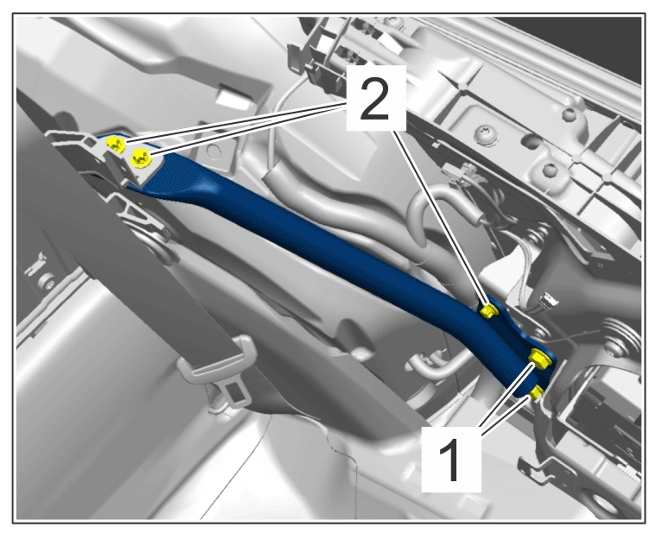

G15533932Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Front support

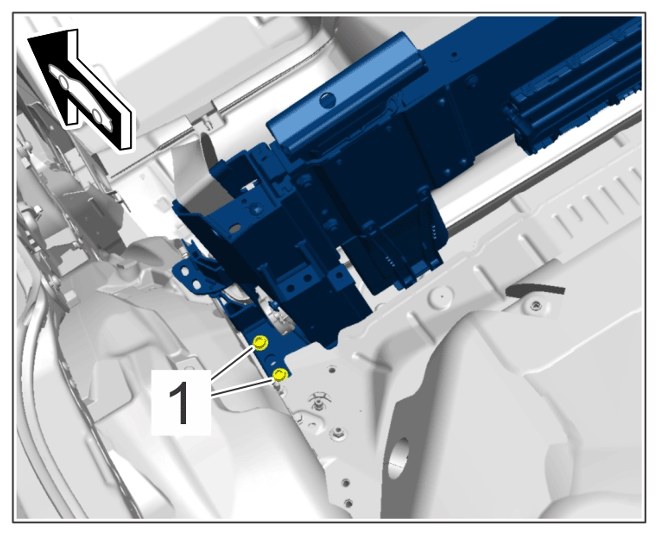

Screws for roll-over protection system Item 1 Tightening torque 40 Nm (30 ftlb.)
G15533933Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Roll-over protection system

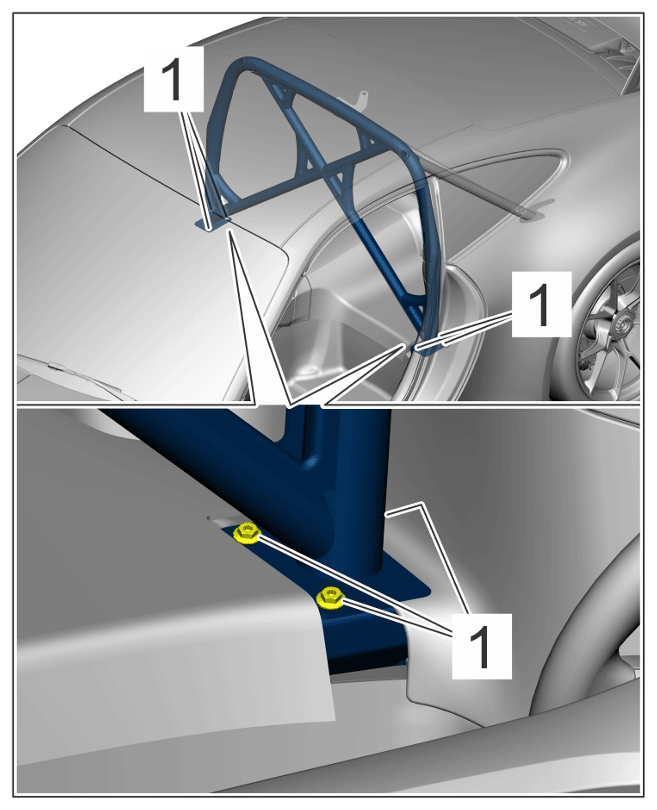

Screws for roll-over bar Item 1 Tightening torque 23 Nm (17 ftlb.)
G15533934Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws

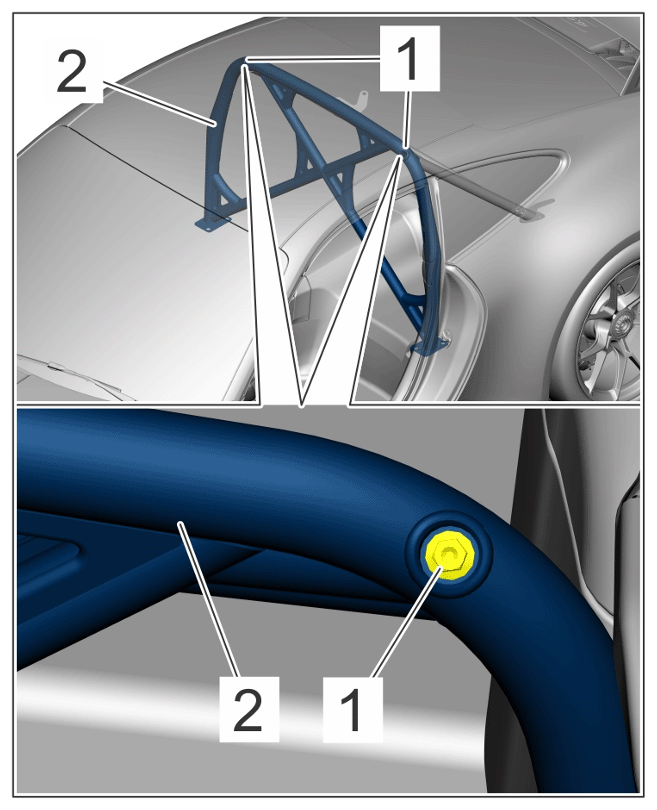

Screws for roll-over bar Item 1 Tightening torque 100 Nm (74 ftlb.)
G15533935Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Roll-over bar
Screws for cross strut Item 1 Tightening torque 55 Nm (41 ftlb.)

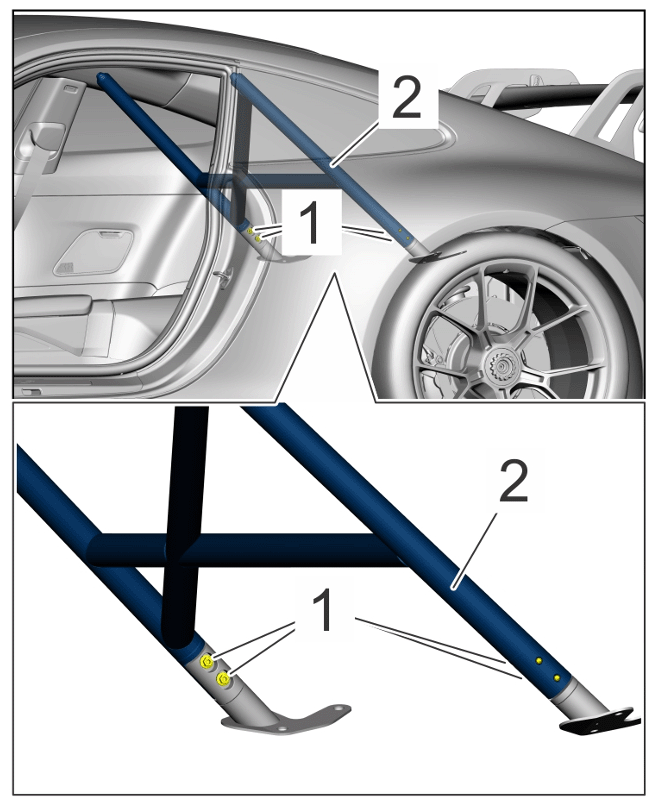

G15533936Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rear cross strut

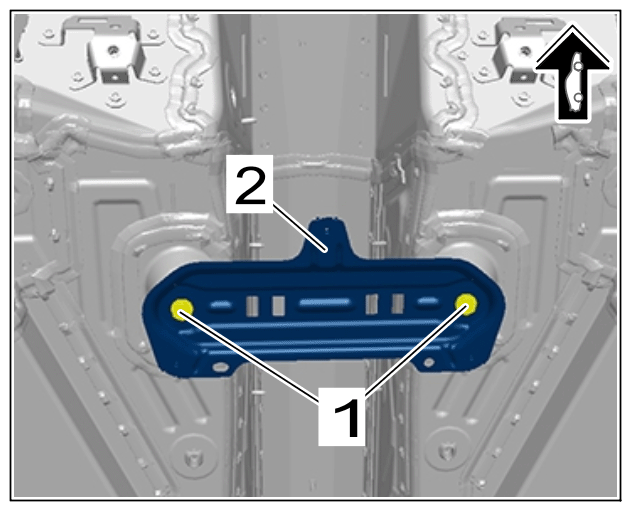

Screw for tunnel strut Item 1 Tightening torque 20 Nm (15 ftlb.)
G15533937Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Tunnel strut
scientia non olet · About LEMON Manuals
