Roll-Over Protection System

Location	Description	Type	Basic value Tolerance
Outer rear support to roll-over protection system	Item 1	Tightening torque	40 Nm (30 ftlb.)

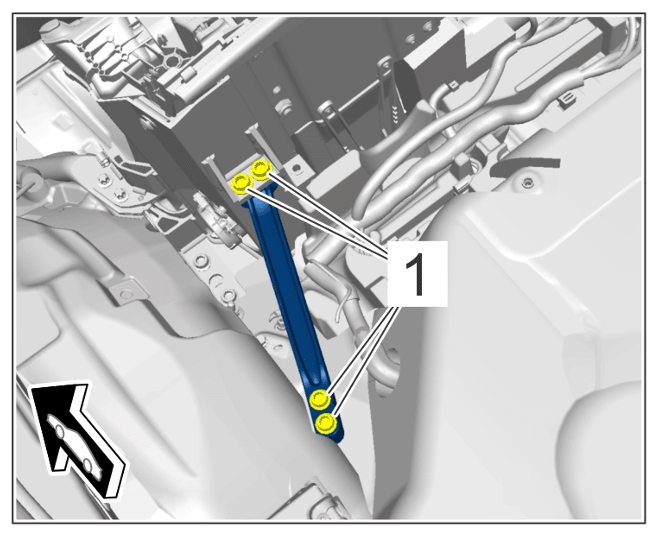

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Outer rear support
Inner rear support to roll-over protection system	Item 1	Tightening torque	20 Nm (15 ftlb.)

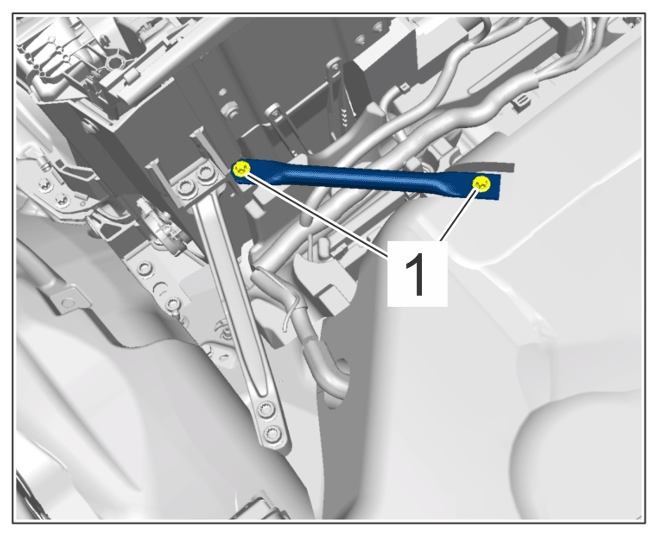

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Inner rear support
Front support to roll-over protection system	Item 1	Tightening torque	40 Nm (30 ftlb.)

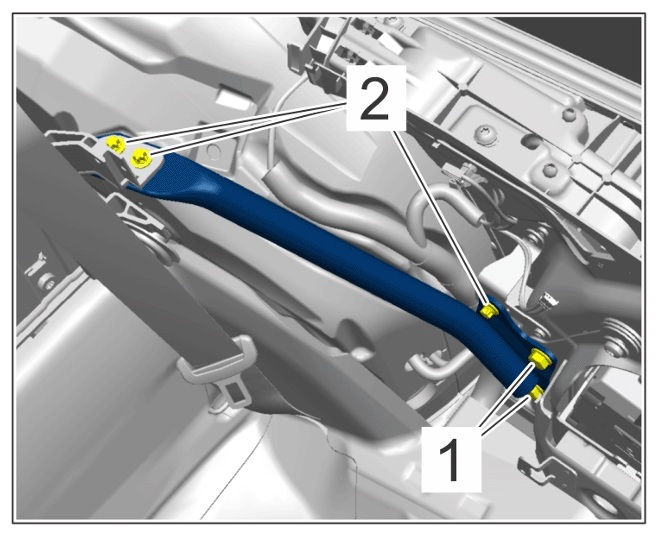

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Front support
Front support to roll-over protection system	Item 2	Tightening torque	20 Nm (15 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Front support
Screws for roll-over protection system	Item 1	Tightening torque	40 Nm (30 ftlb.)

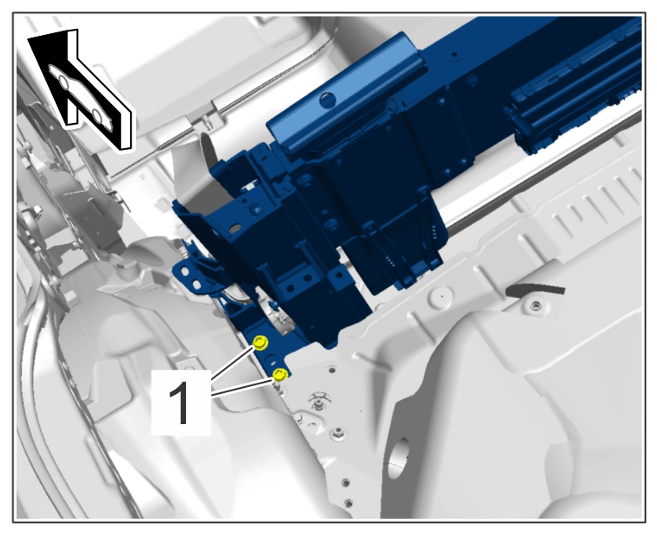

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Roll-over protection system
