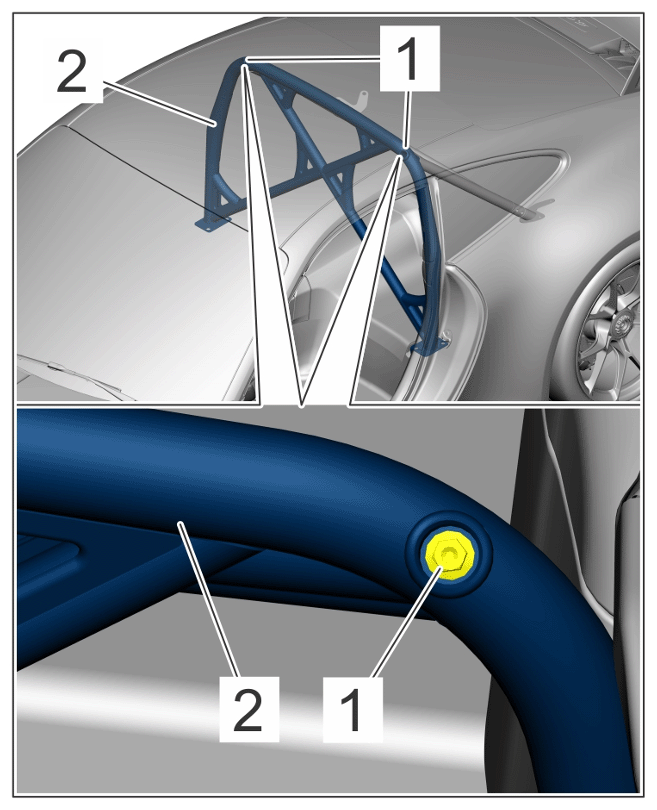

| Screws for roll-over bar |
Item 1 |
Tightening torque |
23 Nm (17 ftlb.) |
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Screws |
|
|
|
|

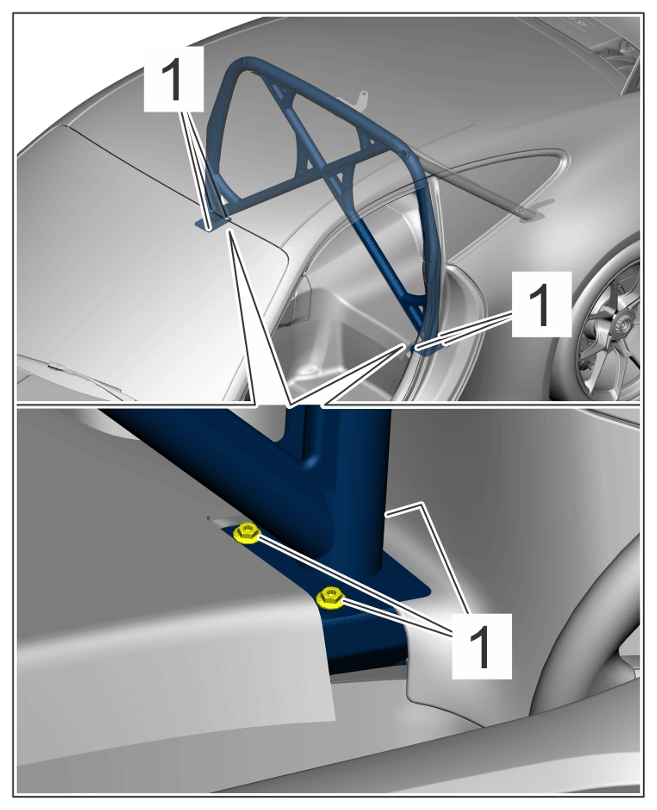

| Screws for roll-over bar |
Item 1 |
Tightening torque |
100 Nm (74 ftlb.) |
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Roll-over bar |
|
|
|
|

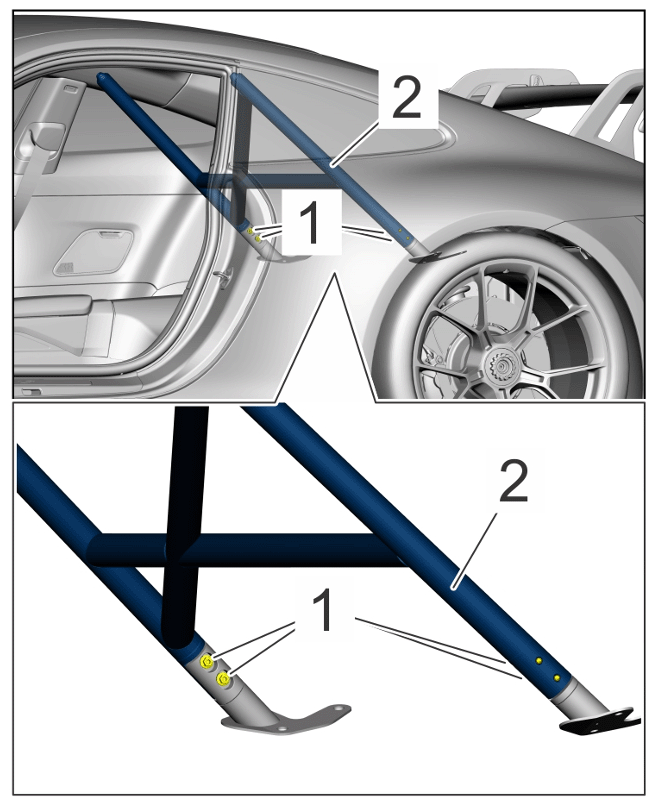

| Screws for cross strut |
Item 1 |
Tightening torque |
55 Nm (41 ftlb.) |
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Rear cross strut |
|
|
|
|
