Reversible Seat-Belt Pretensioner, Front

Location	Description	Type	Basic value	Tolerance

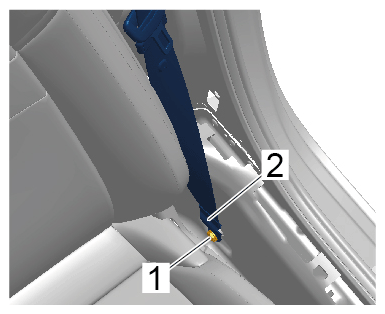

Screw securing belt fitting to door sill	Item 1	Tightening torque	50 Nm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Belt fitting on door sill
Lower belt deflector	Item 1	Tightening torque	9.7 Nm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Lower belt deflector

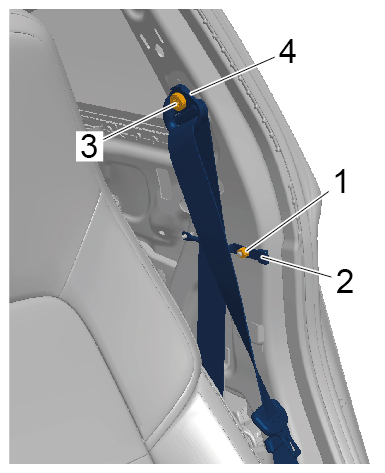

Belt deflector fitting	Item 3	Tightening torque	50 Nm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Belt deflector fitting

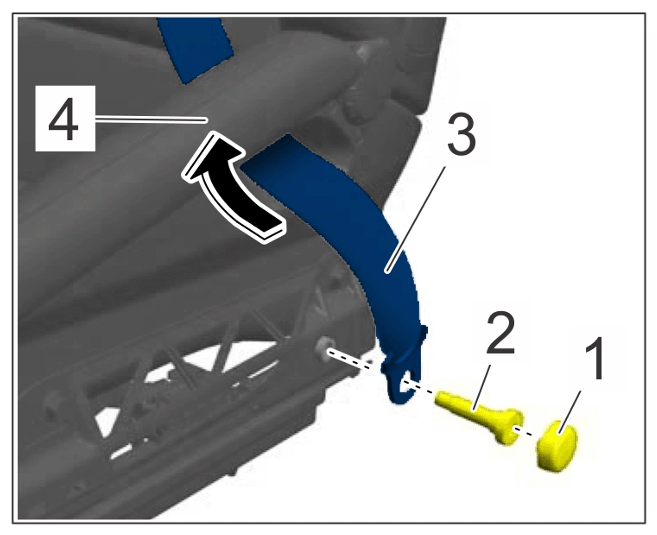

Electric motor-powered retractor	Item 1	Tightening torque	9.7 Nm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Electric motor-powered retractor
Belt retractor	Item 2	Tightening torque	50 Nm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Belt retractor

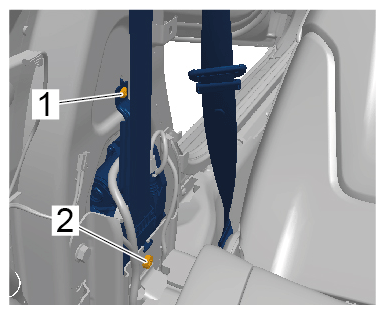

Screw securing belt fitting to seat frame	Item 2	Tightening torque	50 Nm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screw for belt fitting
