Rear Three-Point Belt

Location	Description	Type	Basic value
Belt deflector	Item 1	Tightening torque	50 Nm

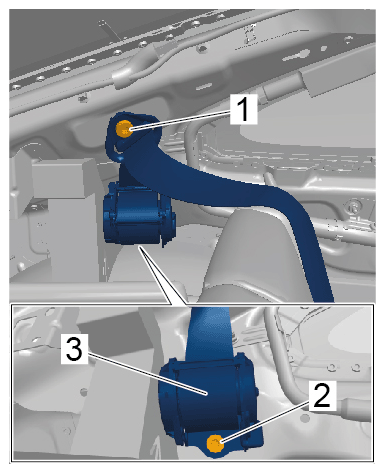

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Belt deflector
Belt retractor	Item 2	Tightening torque	50 Nm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Belt retractor
Screw securing belt retractor to roll-over protection system	Item 1	Tightening torque	50 Nm

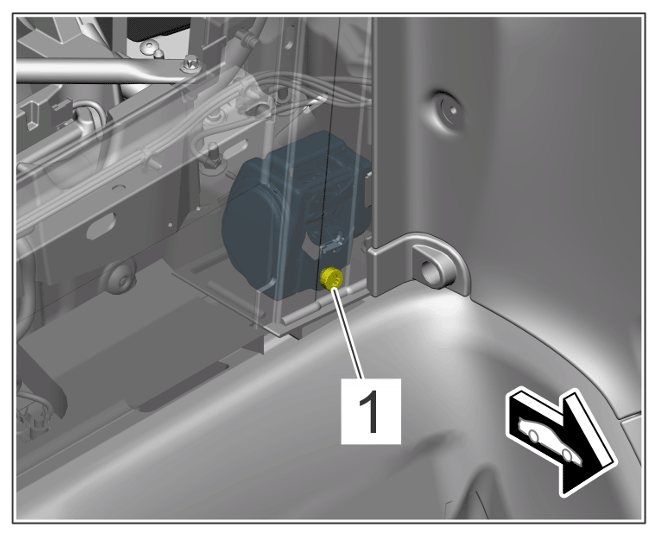

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screw on belt retractor
Screw securing seat belt mount to rear wheel housing		Tightening torque	50 Nm

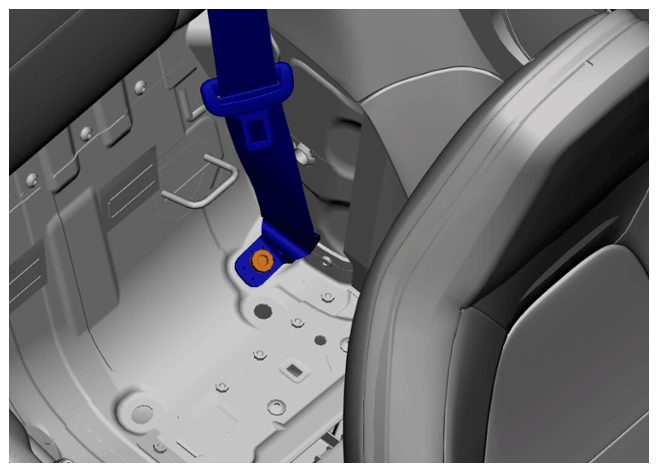

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screw securing belt fitting to wheel housing rear
Rear belt lock nut	Item 1	Tightening torque	50 Nm

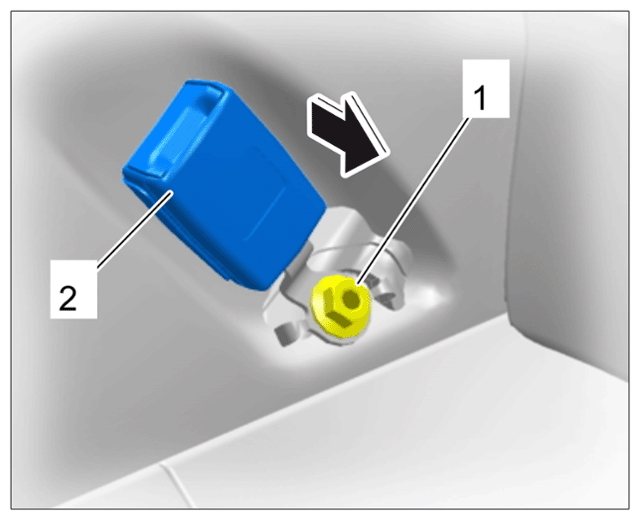

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Removing rear belt lock
