6X Body-Equipment Outside-General -- 992 - 911 CARRERA (992)
>>
WM, 6X00IN40 Technical Values
>>
69 - Occupant Protection
>>
Rear Belt Lock
Rear Belt Lock
Location
Description
Type
Basic value
Tolerance

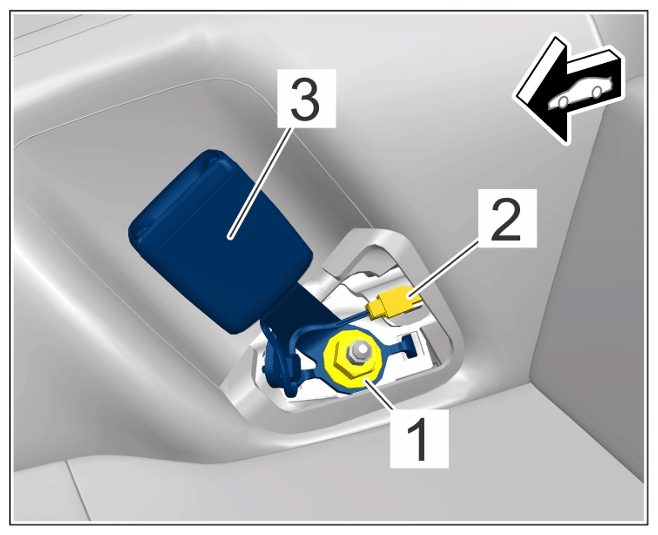

Nut for rear seat-belt buckle
Item 1
Tightening torque
40 Nm (30 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Nut
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
