Front Side Airbag

Location	Description	Type	Basic value	Tolerance

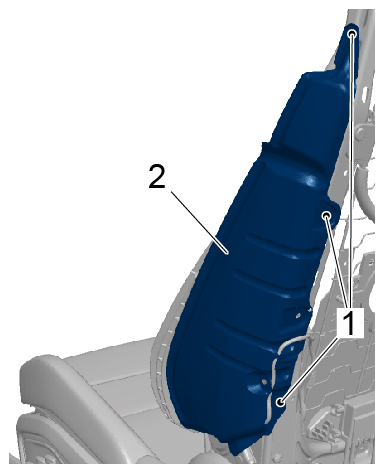

Fastening screw for front side airbag on backrest	Item 2	Tightening torque	9, 7 Nm (7 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Front side airbag

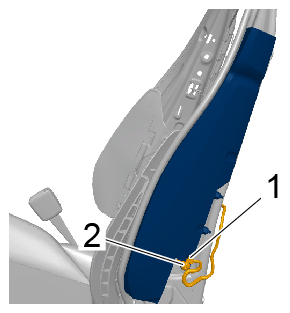

Fastening screws securing supporting plate on backrest	Item 1	Tightening torque	9, 7 Nm (7 ftlb.)	+/- 1, 4 Nm (7 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Supporting plate

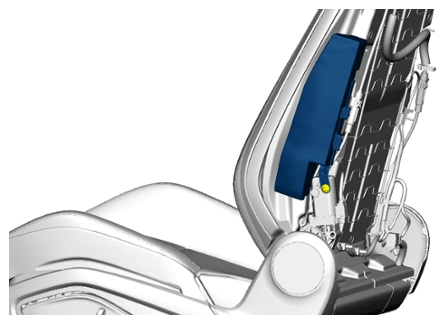

Fastening nuts securing front side airbag on backrest	Item 2	Tightening torque	8 Nm (6 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Fastening nuts

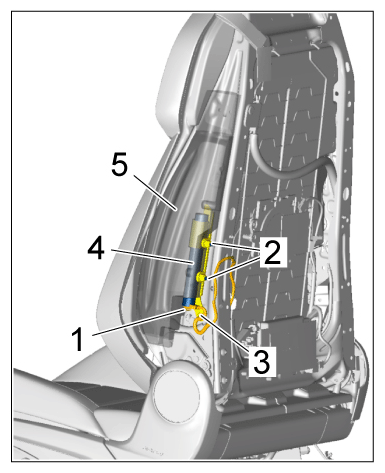

Screw securing tubular frame holder to seat frame		Tightening torque	9.7 Nm (7 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Airbag holder
