Front Belt Lock

Location	Description	Type	Basic value	Tolerance
Screw on front belt lock	Item 1	Tightening torque	50 Nm (36.9 ftlb.)

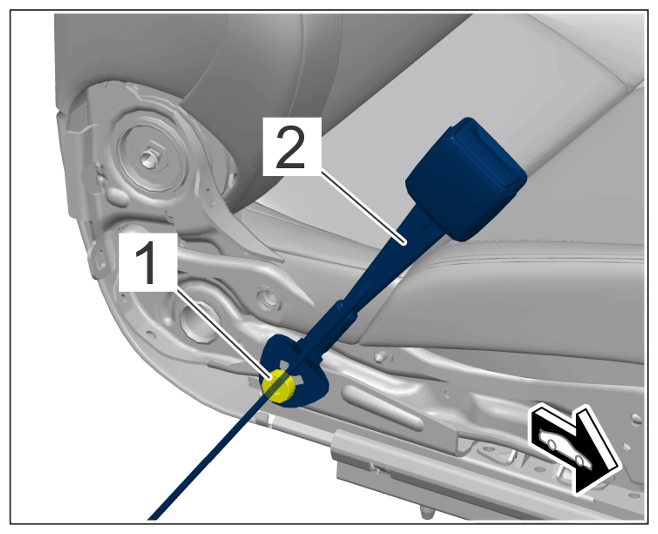

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screw on front belt lock
Screw for seat trim	Item 1	Tightening torque	2.2 Nm (1.6 ftlb.)	+/-0.2Nm (0.1 ftlb.)

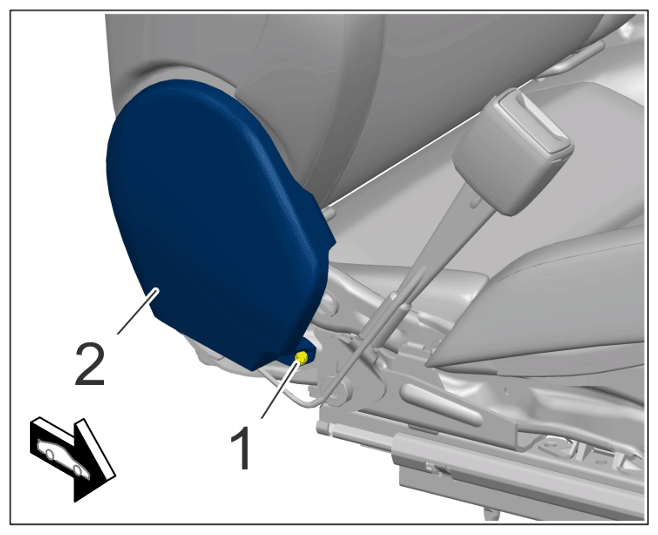

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screw for seat trim
Screw securing belt lock to seat frame	Item 1 (7/16" - 20 UNF) - Replace screw	Tightening torque	50 Nm (36.9 ftlb.)

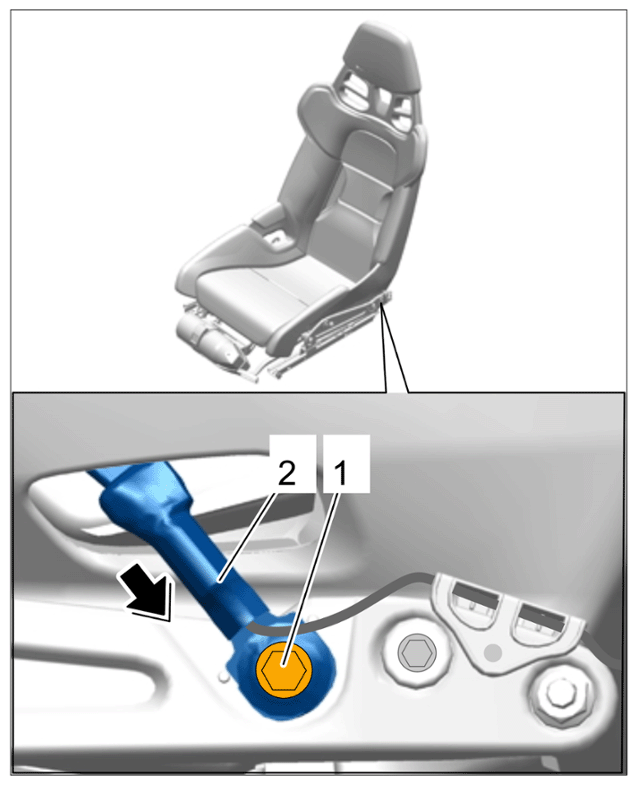

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Remove belt lock
