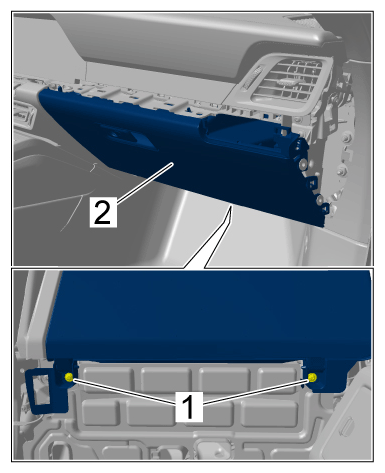

| Screws securing top of glove compartment to dashboard |
Item 1 |
Tightening torque |
3.2 Nm (2.4 ftlb.) |
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Top screws |
|
|
|
|

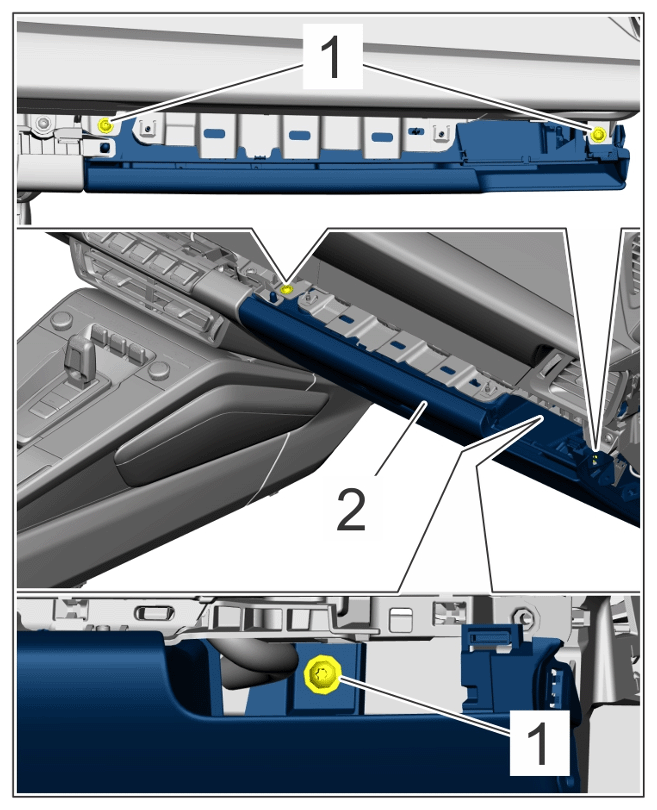

| Screws securing bottom of glove compartment to dashboard |
Item 1 |
Tightening torque |
3.2 Nm (2.4 ftlb.) |
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Bottom screws |
|
|
|
|
