Ventilation Grille

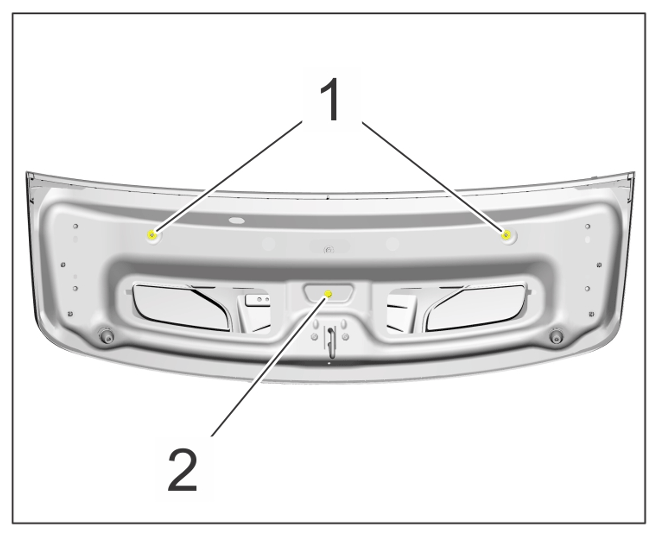

Location	Description	Type	Basic value
Ventilation grille	Item 1	Tightening torque	8 Nm (5.9 ftlb.)

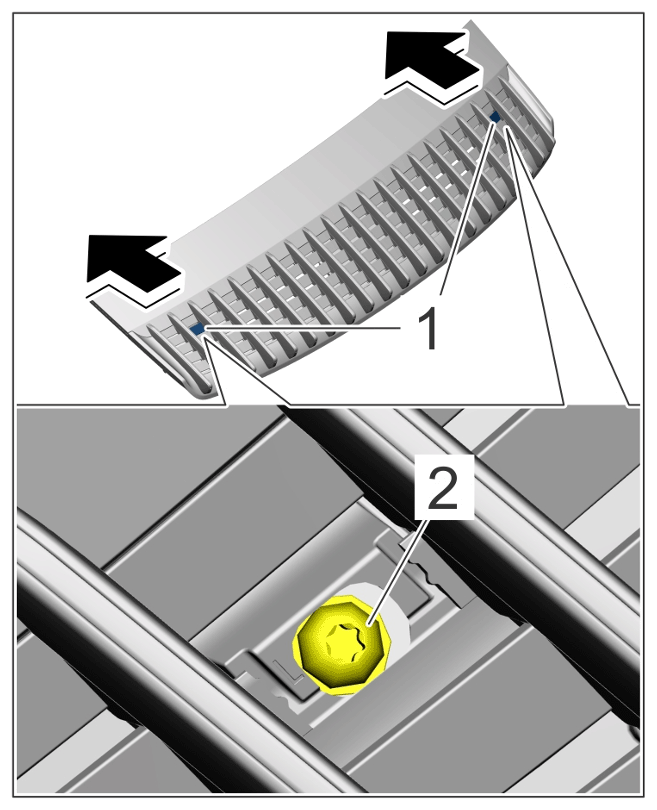

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws for ventilation grille
Screws for ventilation grille (rear lid)	Item 2	Tightening torque	8 Nm (5.9 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws

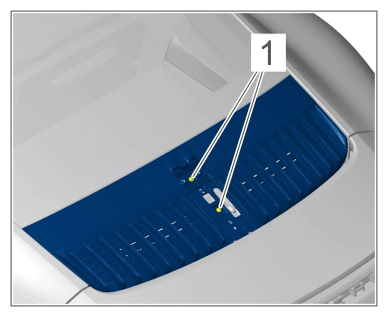

Screws for ventilation grille (rear lid)	Item 1 M6x20	Tightening torque	8 Nm (5.9 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Ventilation grille (rear lid)

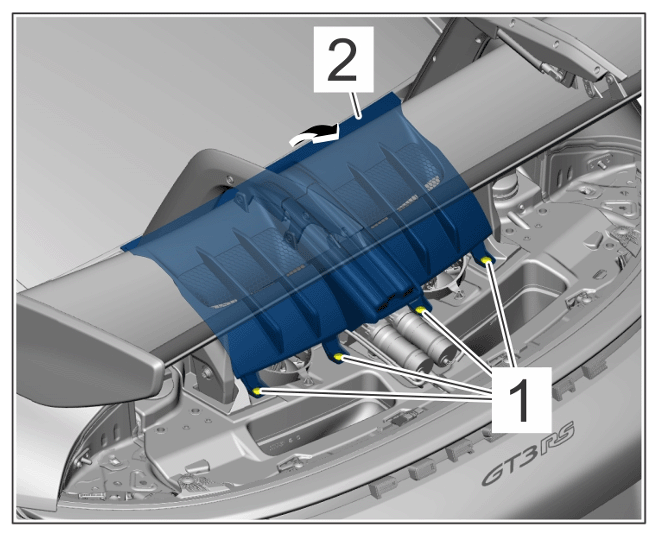

Mounting bracket nuts	Item 1	Tightening torque	8 Nm (5.9 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screw and nuts
Mounting bracket screw	Item 2	Tightening torque	8 Nm (5.9 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screw and nuts

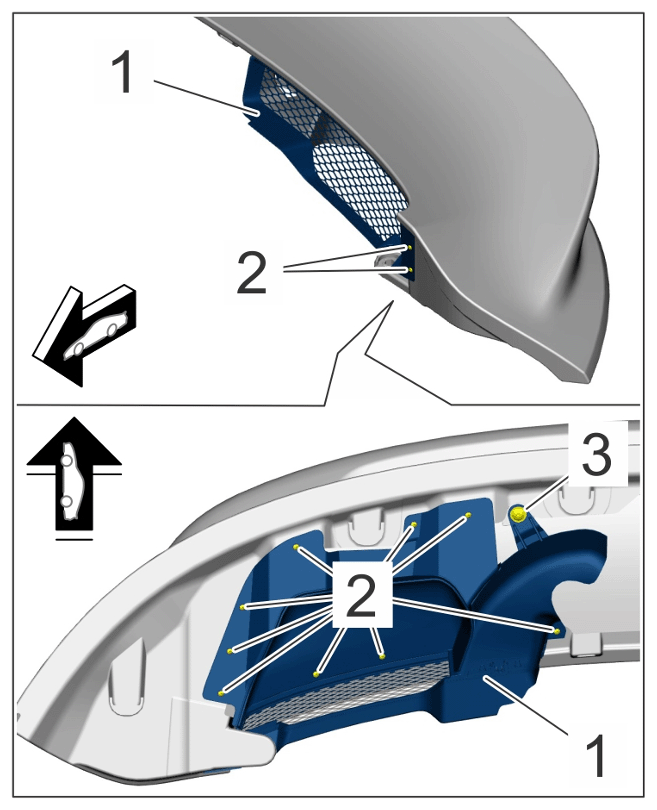

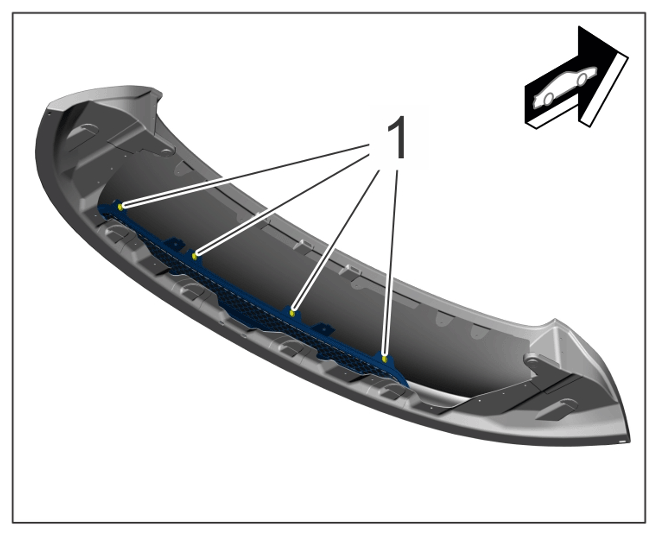

Screws securing ventilation grille (to rear spoiler, rear)	Item 1	Tightening torque	4.5 Nm (3.25 ftlb.) (3.3 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws
Screw for ventilation grille (air guide) to rear spoiler	Item 3	Tightening torque	4.5 Nm (3.3 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Ventilation grille (air guide to rear spoiler)

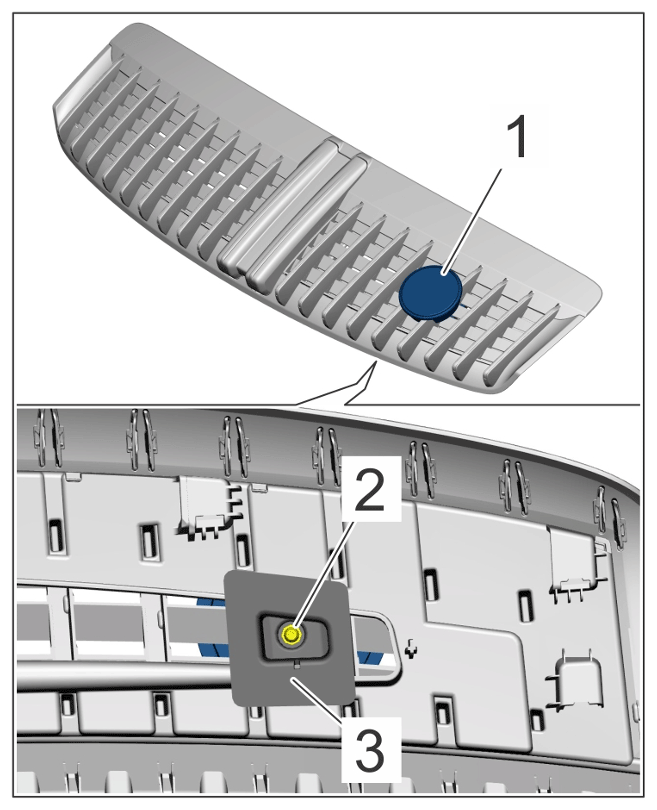

Screw for ventilation grille (badge)	Item 2	Tightening torque	3.5 Nm (2.5 ftlb.) (2.6 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screw
