6X Body-Equipment Outside-General -- 992 - 911 CARRERA (992)
>>
WM, 6X00IN40 Technical Values
>>
66 - Exterior Equipment
>>
Rear Spoiler (Wing Plates)
Rear Spoiler (Wing Plates)
Location
Description
Type
Basic value
Tolerance
Rear spoiler (wing plates) to rear spoiler (wing)
Pressure roller 9886/1 with torque spanner 6-50 Nm (4.5 ftlb. -37 ftlb.) V.A.G. 1331
Torque
30 Nm (22.1 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

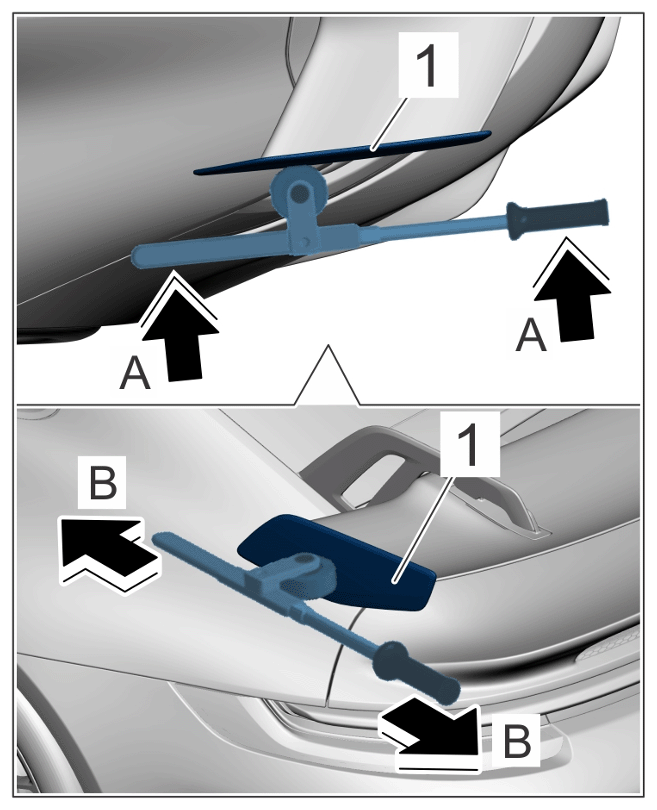

Rear Spoiler (wing plates)
