6X Body-Equipment Outside-General -- 992 - 911 CARRERA (992)
>>
WM, 6X00IN40 Technical Values
>>
66 - Exterior Equipment
>>
Rear Spoiler (Upper Part)
Rear Spoiler (Upper Part)
Location
Description
Type
Basic value
Tolerance

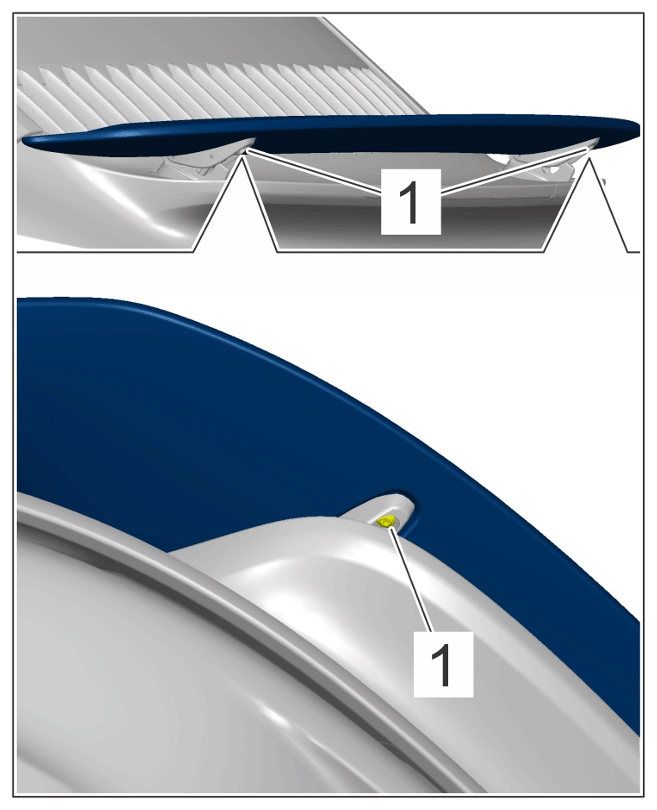

Rear spoiler (upper part)
Item 1
Tightening torque
2.2 Nm (1.6 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Screws

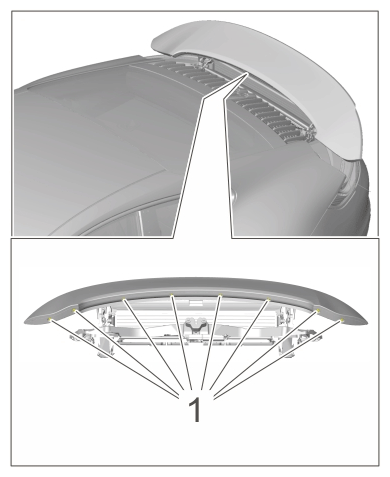

Rear spoiler (upper part)
Item 1
Tightening torque
8 Nm (6 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Screws
