Rear Spoiler (Lower Part)

Location Description Type Basic value Tolerance
Screws for rear spoiler (lower) Item 2 M8 x 60 replace screws Tightening torque 23 Nm (17 ftlb.)

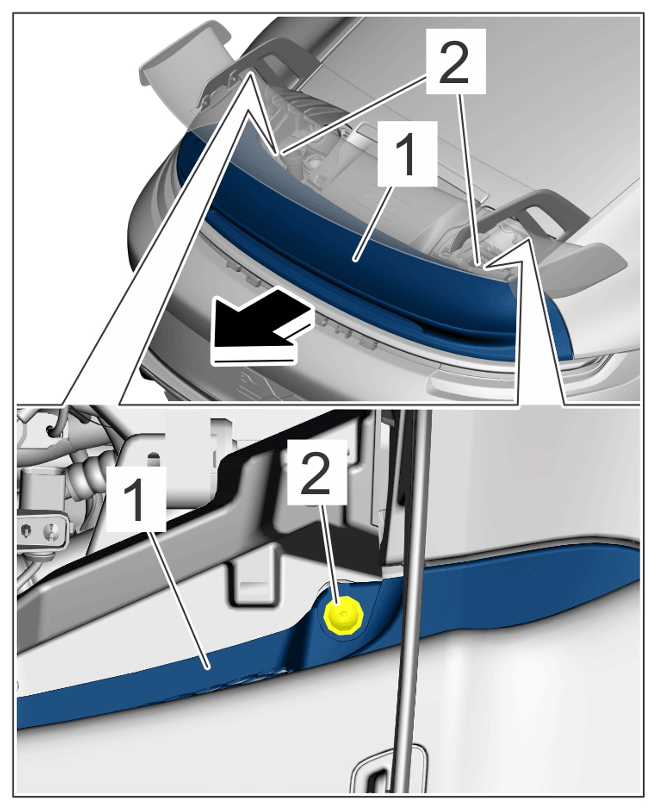

G15534080Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rear spoiler (lower part) (shown on the 992 GT3)
