Front Spoiler

Location	Description	Type	Basic value

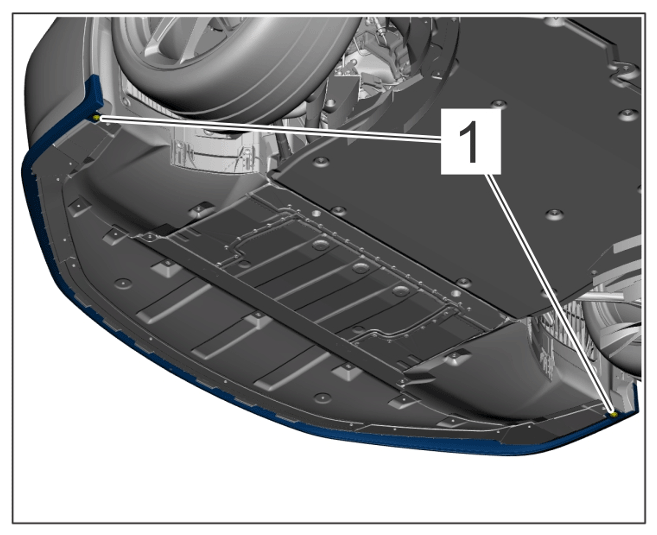

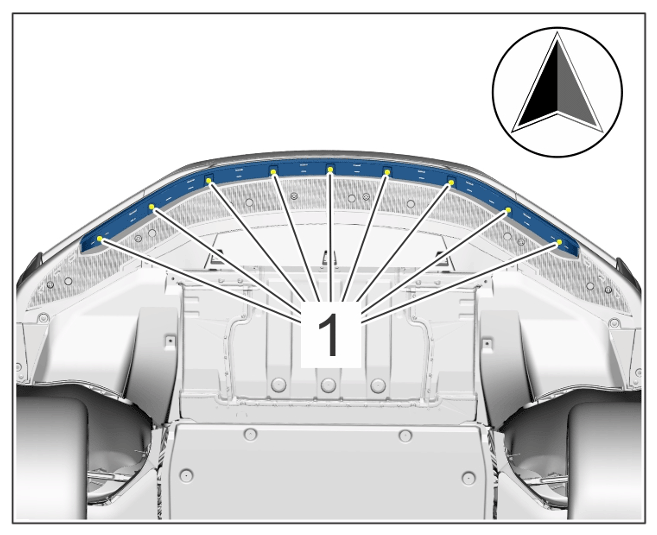

Front spoiler (lip)	Item 1	Tightening torque	3.2 Nm (2.4 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws

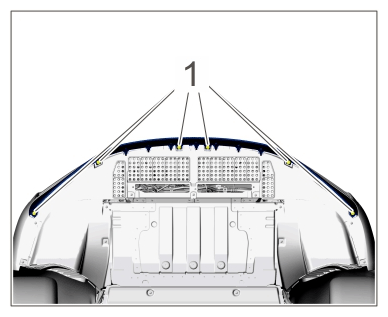

Front spoiler	Item 1	Tightening torque	3.2 Nm (2.4 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws for front spoiler
Front spoiler	Item 1	Tightening torque	3.2 Nm (2.4 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws

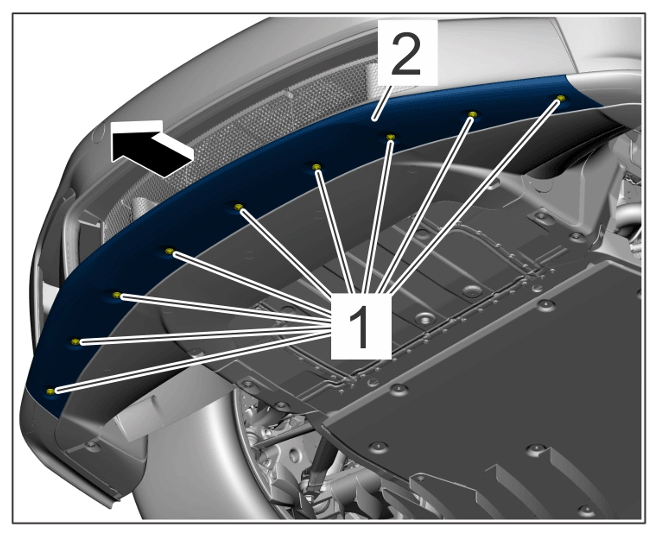

Front spoiler (lip)	Item 1	Tightening torque	3.2 Nm (2.4 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws
Front spoiler from side	Item 1	Tightening torque	3.2 Nm (2.4 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws

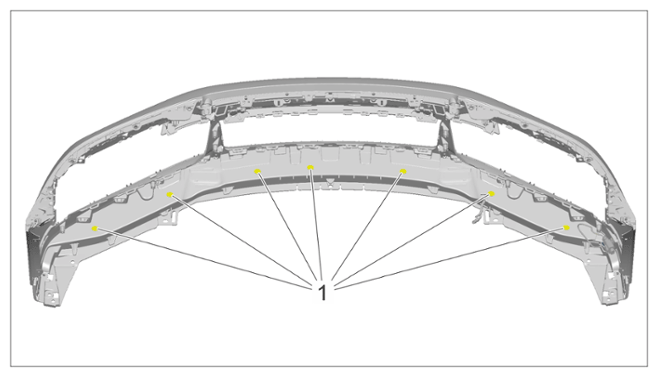

Front spoiler (center)	Item 1	Tightening torque	3.2 Nm (2.4 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws

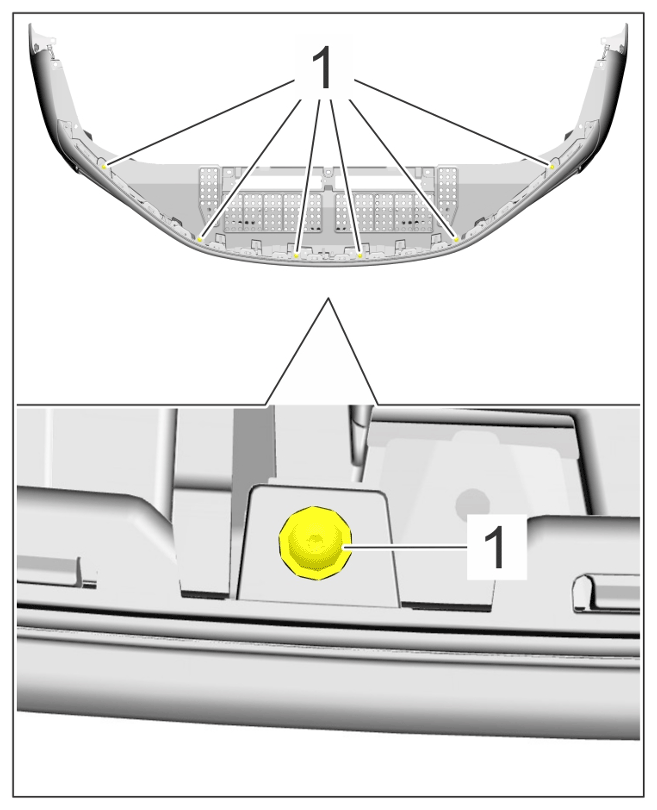

Front spoiler (center) screws	Item 1	Tightening torque	3.2 Nm (2.4 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Front spoiler (center part)

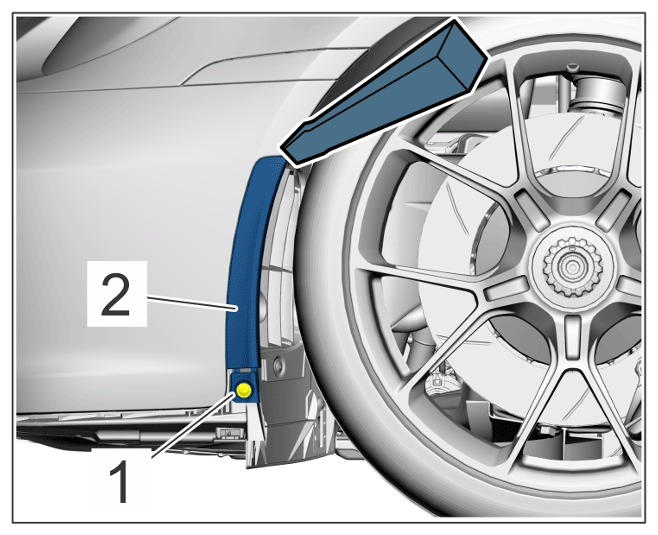

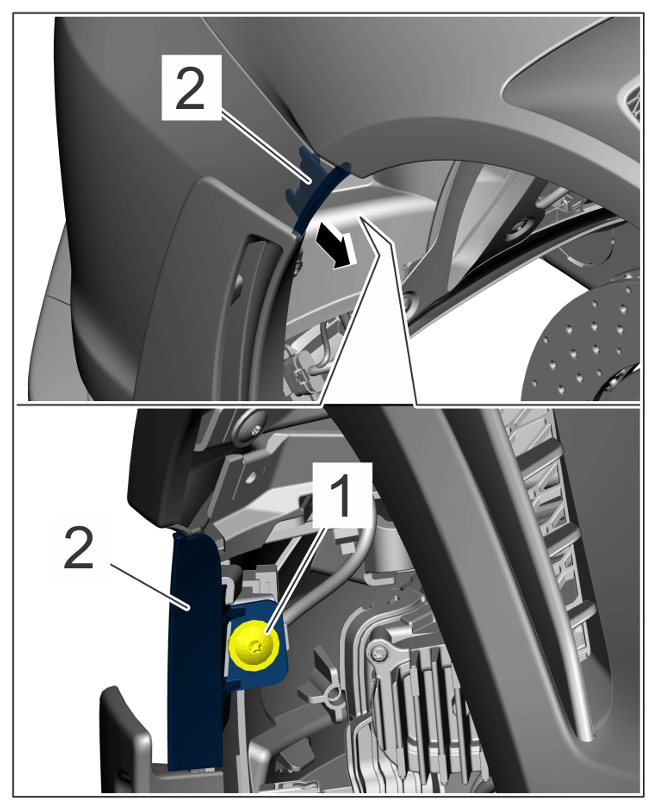

Front spoiler (from side)	Item 1	Tightening torque	2.5 Nm (1.8 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Front spoiler (side)

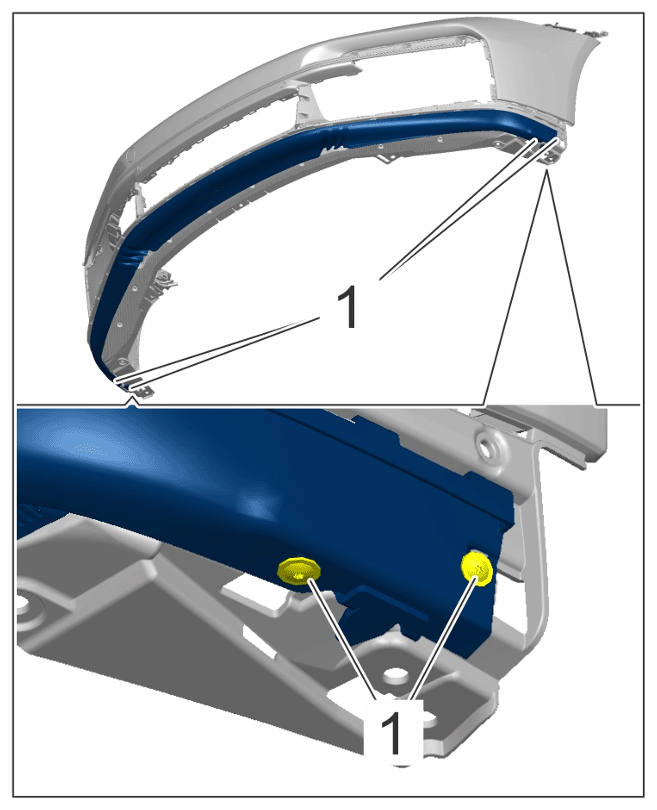

Front spoiler screw (laterally above)	Item 1	Tightening torque	3.2 Nm (2.4 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Front spoiler (laterally above)

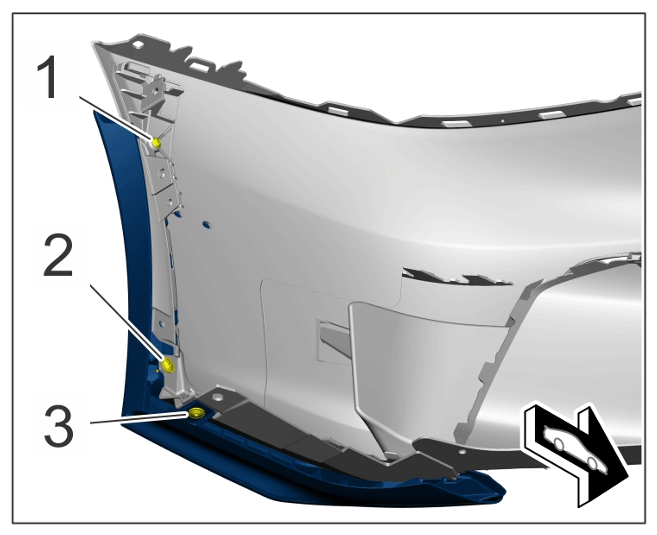

Front spoiler (laterally below) top screw	Item 1	Tightening torque	0.8 Nm (0.6 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws for front spoiler (laterally below)
Front spoiler (laterally below) center screw	Item 2	Tightening torque	2.5 Nm (1.8 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws for front spoiler (laterally below)
Front spoiler (laterally below) bottom screw	Item 3	Tightening torque	2.5 Nm (1.8 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws for front spoiler (laterally below)
