6X Body-Equipment Outside-General -- 992 - 911 CARRERA (992)
>>
WM, 6X00IN40 Technical Values
>>
66 - Exterior Equipment
>>
Front Logo
Front Logo
Location
Description
Type
Basic value
Tolerance
Nuts
Item 1
Tightening torque
1.3 Nm (0.6 ftlb.)
-0.2 Nm (0.1 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

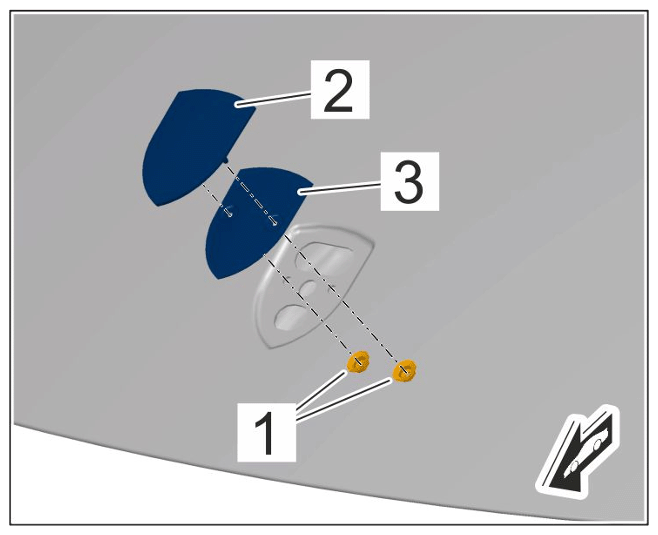

Nuts for front logo
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
