6X Body-Equipment Outside-General -- 992 - 911 CARRERA (992)
>>
WM, 6X00IN40 Technical Values
>>
66 - Exterior Equipment
>>
Air Outlet
Air Outlet
Location
Description
Type
Basic value
Tolerance

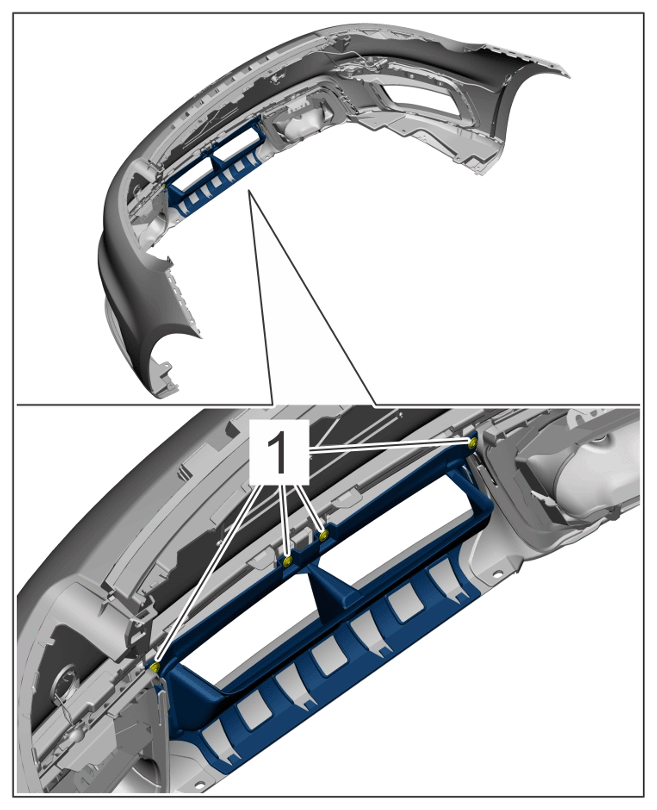

Screws for (center) air outlet
Item 1
Tightening torque
3.2 Nm (2.1 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
