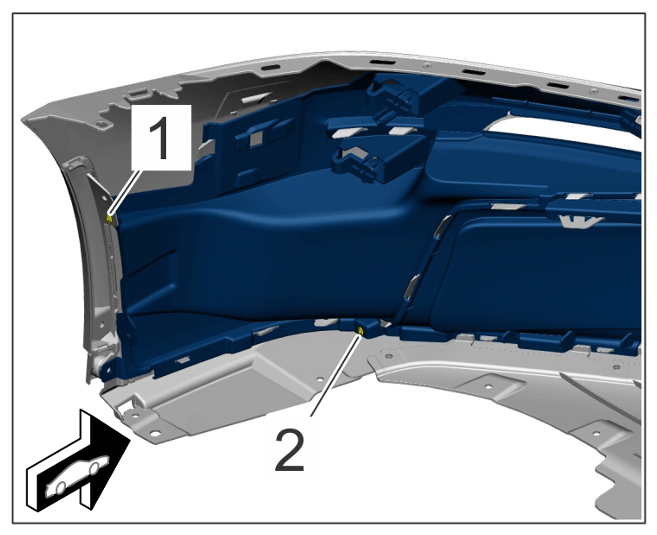

| Screw for air intake |
Item 1 |
Tightening torque |
2.5 Nm (1.75 ftlb.) |
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Screw |
|
|
|
|

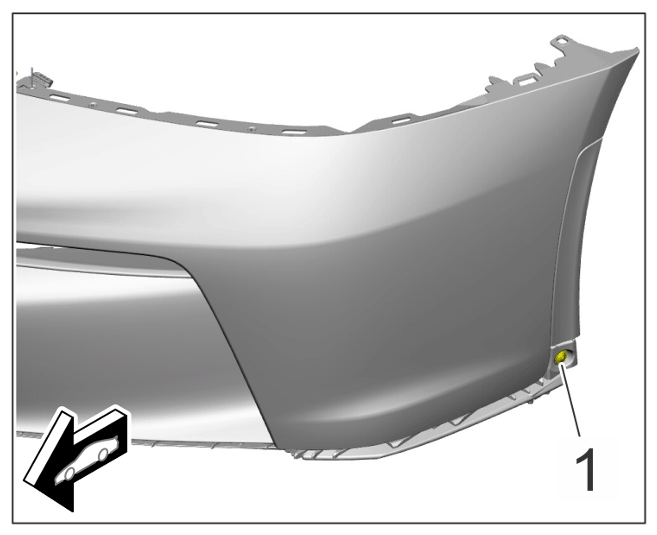

| Screw for air intake |
Item 1 |
Tightening torque |
2.5 Nm (1.75 ftlb.) |
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Screws |
|
|
|
|
| Screw for air intake |
Item 2 |
Tightening torque |
2.8 Nm (2.2 ftlb.) |
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Screws |
|
|
|
|
