Technical Values - Rear Bracket

Mounting in wheel housing and at the sides:

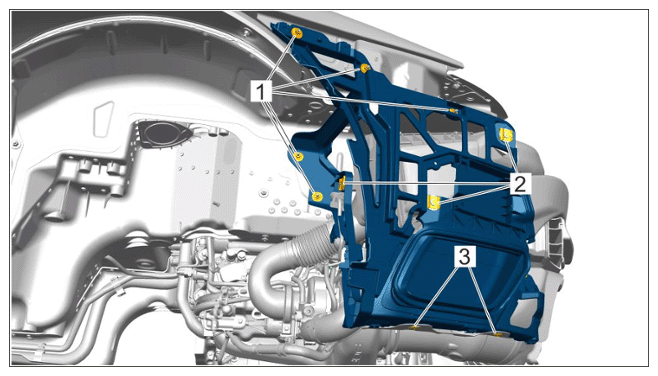

Fig 1: Side Mounting For Rear Bracket Components Location With Torque Specification (Left Side)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Side mounting for rear bracket (view of left side)

1	M6 collar nut for bracket (wheel housing and side) > Tightening torque 10 Nm (7.5 ftlb.)
2	Sheetmetal clips for air cleaner housing
3	Tapping screws for heat shield > Tightening torque 2.5 Nm (1.75 ftlb.)

Rear mounting:

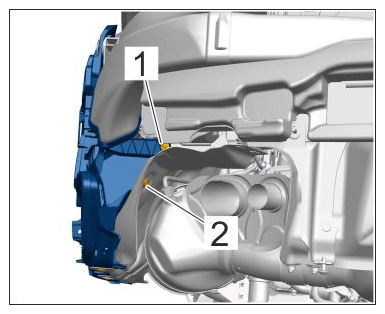

Fig 2: Mounting For Rear And Lower Retaining Frame Components Location With Torque Specification

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Mounting for rear and lower retaining frame

1	M6 screw > Tightening torque 10 Nm (7.5 ftlb.)
2	Tapping screw for rear heat shield > Tightening torque 2.5 Nm (1.75 ftlb.)

Cover on rear bracket:

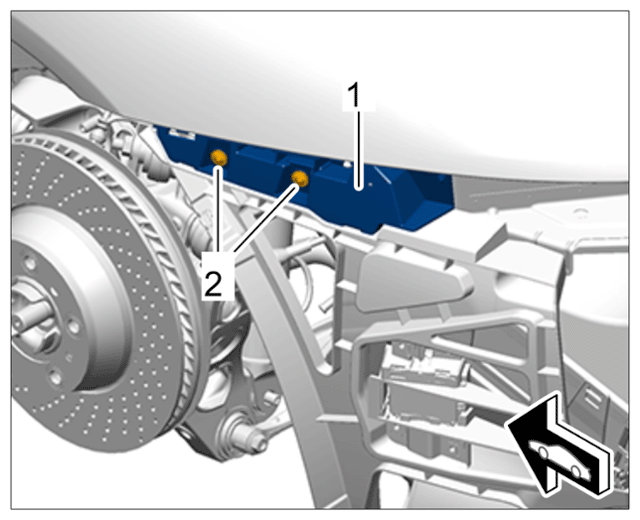

Fig 3: Cover On Bracket Components Location With Torque Specification

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Cover on bracket

1	Cover on bracket
2	M6 screws > Tightening torque 10 Nm (7.5 ftlb.)
