Retaining Strip
| Location | Description | Type | Basic value | Tolerance |
|---|---|---|---|---|

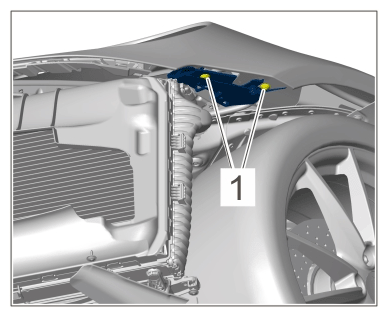

| Retaining strip (inner side) | Item 1 | Tightening torque | 4.5 Nm (3.25 ftlb.) | |
|
Screws for (inner side) retaining s |
trip | |||

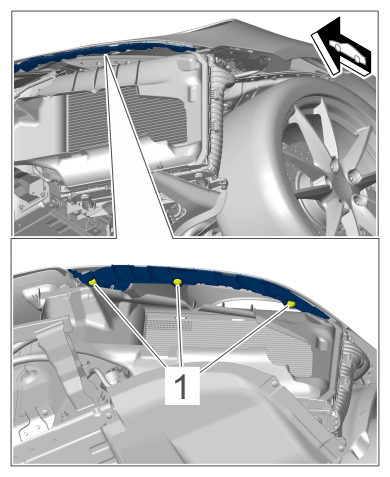

| Retaining strip (outer side) | Item 1 | Tightening torque | 4.5 Nm (3.25 ftlb.) | |
|
Screws for (outer side) retaining strip |
||||

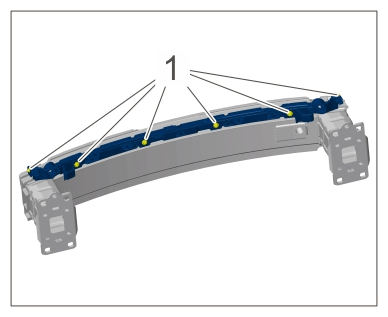

| Retaining strip (center) | Item 1 | Tightening torque | 9.2 Nm (6.6 ftlb.) | +/- 0.5 Nm (0.3 ftlb.) |
|
Screws on (center) retaining strip |
