Trim Panel For Targa Bar

Location	Description	Type	Basic value

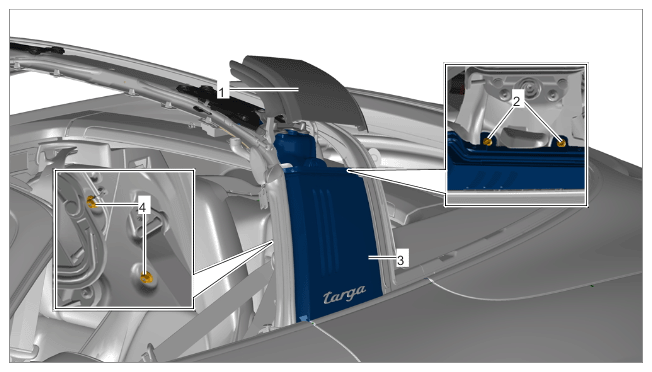

Fastening screws securing side trim panel to Targa bar	Item 2		5.6 Nm (4 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Convertible top position
Fastening nuts securing side trim panel to Targa bar	Item 4	Tightening torque	5.6 Nm (4 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Convertible top position

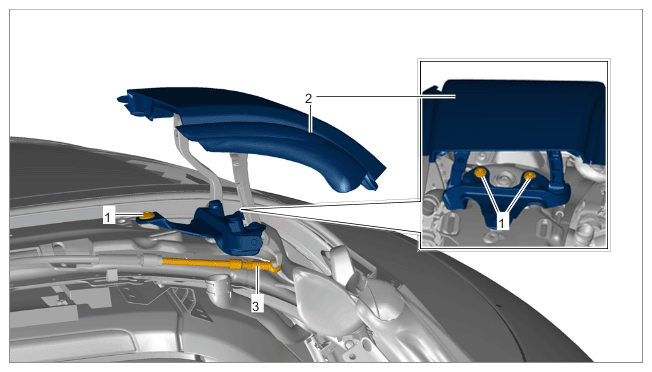

Fastening screws securing trim panel flap to Targa bar	Item 1	Tightening torque	5.6 Nm (4 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Trim panel flap mounting

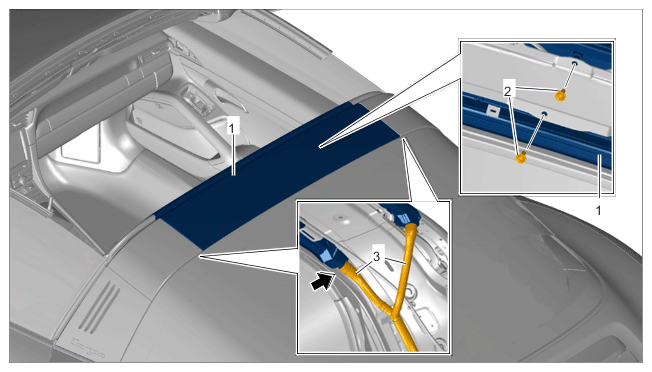

Fastening screws securing center trim panel to Targa bar	Item 2	Tightening torque	5.6 Nm (4 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Centre trim panel mounting

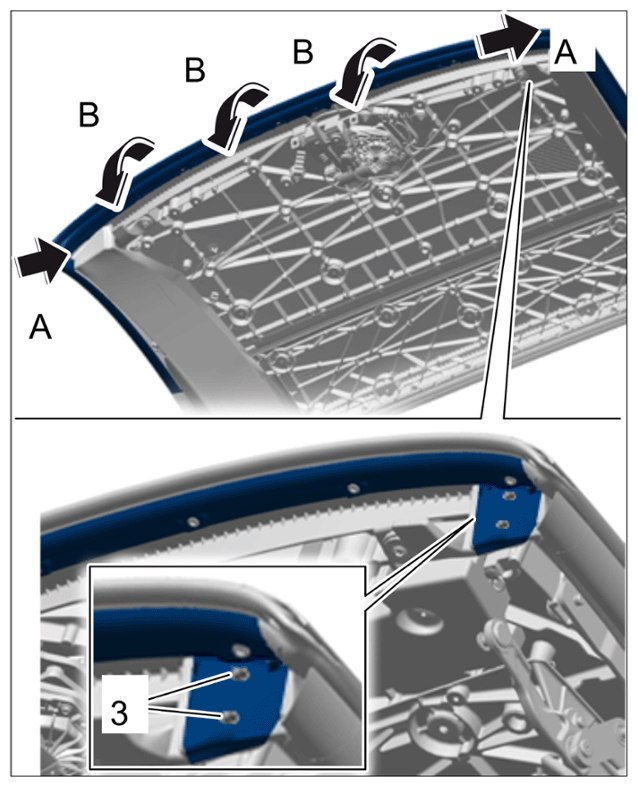

Fastening screw for rear clamping strip		Tightening torque	9.7 Nm (7.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Rear seal

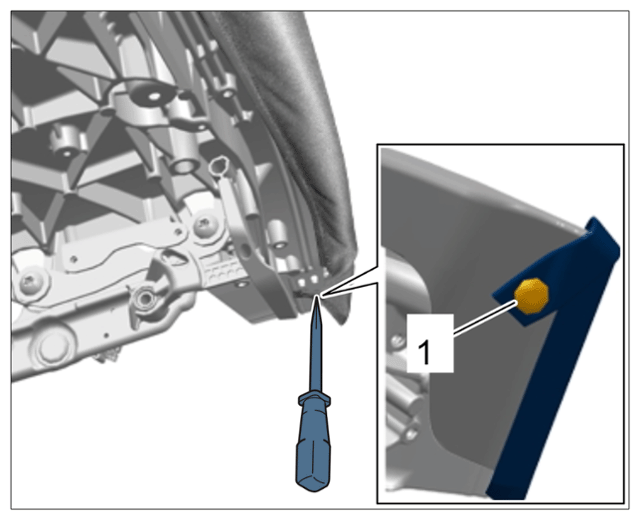

Fastening screw for front convertible top covering tab		Tightening torque	4 Nm (3 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Clipping in front convertible top covering

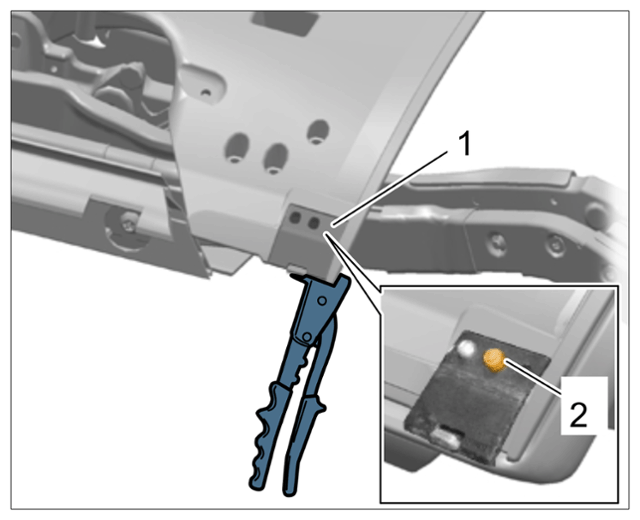

Fastening rivet for tension rope holder	Item 2	Diameter	4x7 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Riveting in tension rope holder

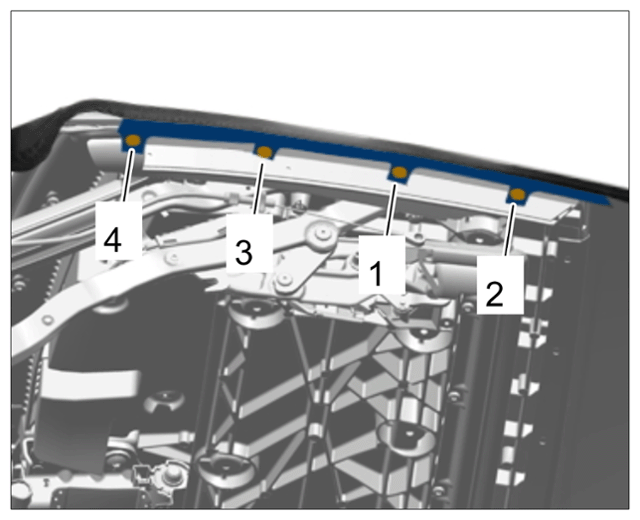

Fastening rivet, side	Item 1, 2, 3, 4,	Diameter	4x7 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Riveting in convertible top at the sides

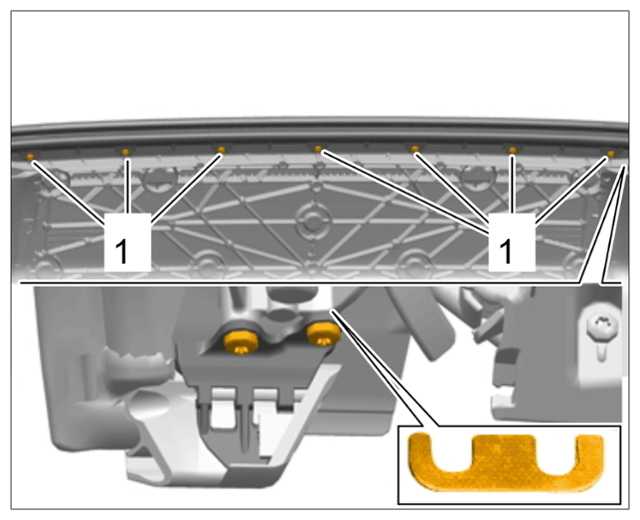

Fastening rivet for rear tab	Item 1	Diameter	4 x 8.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Rear convertible top covering tab
