Rubber Seal With Rail

Location	Description	Type	Basic value
Rail (convertible-top tip)	Item 2	Tightening torque	9.7 Nm (7.3 ftlb.)

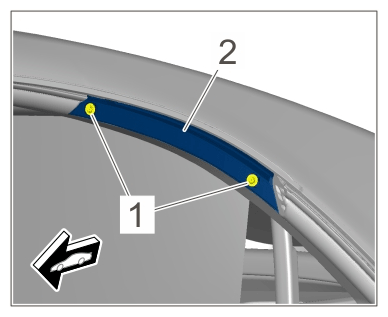

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Front rail
Rail (front)	Item 1	Tightening torque	9.7 Nm (7.3 ftlb.)

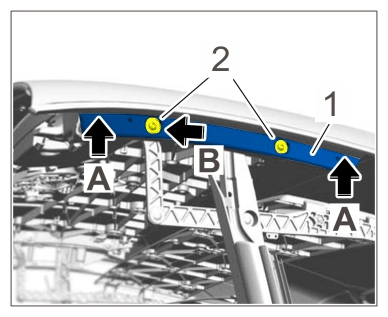

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Rubber seal with rail (front)
Rail (rear)	Item 1	Tightening torque	9.7 Nm (7.3 ftlb.)

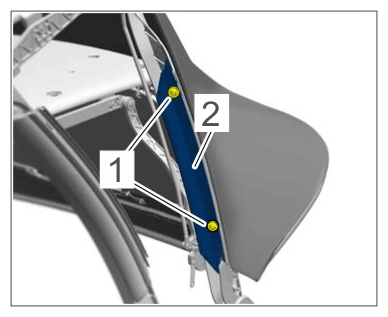

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Rubber seal with rail (rear)
Screw for molded part	Item 3	Tightening torque	3.0 Nm (2 ftlb.)

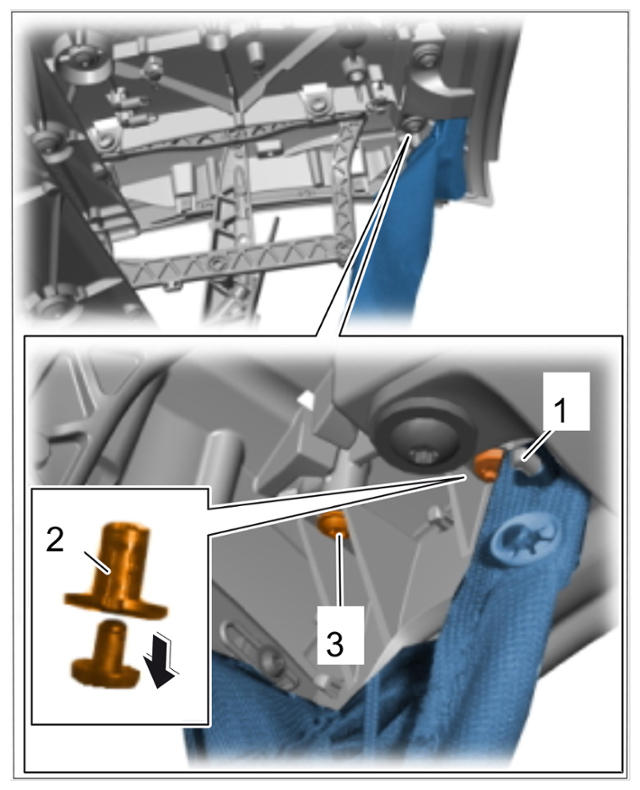

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Front convertible top rooflining
Screw for clamp on convertible top rooflining	Item 2	Tightening torque	1.5 Nm (1 ftlb.)

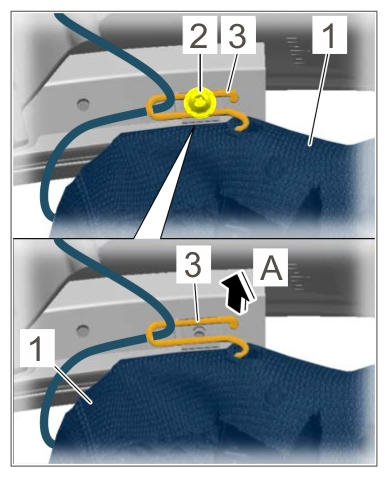

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Convertible top rooflining
