Roof Strut

Location	Description	Type	Basic value
Screw on surface roof strut	Item 2	Tightening torque	9.7 Nm (7.2 ftlb.)

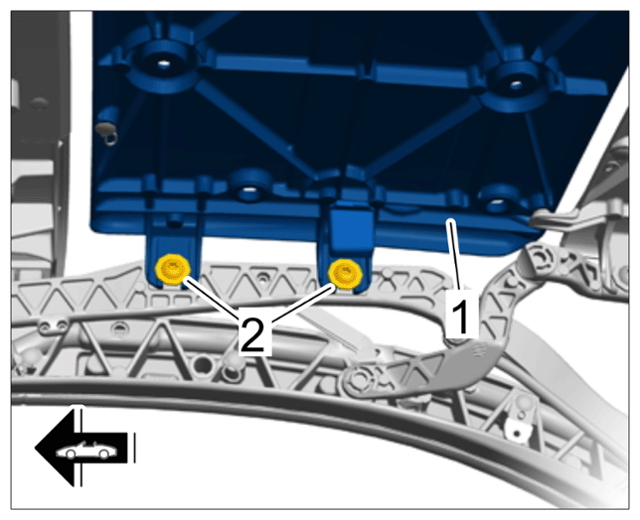

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screw surface roof strut
Screw on center roof strut	Item 1	Tightening torque	9.7 Nm (7.2 ftlb.)

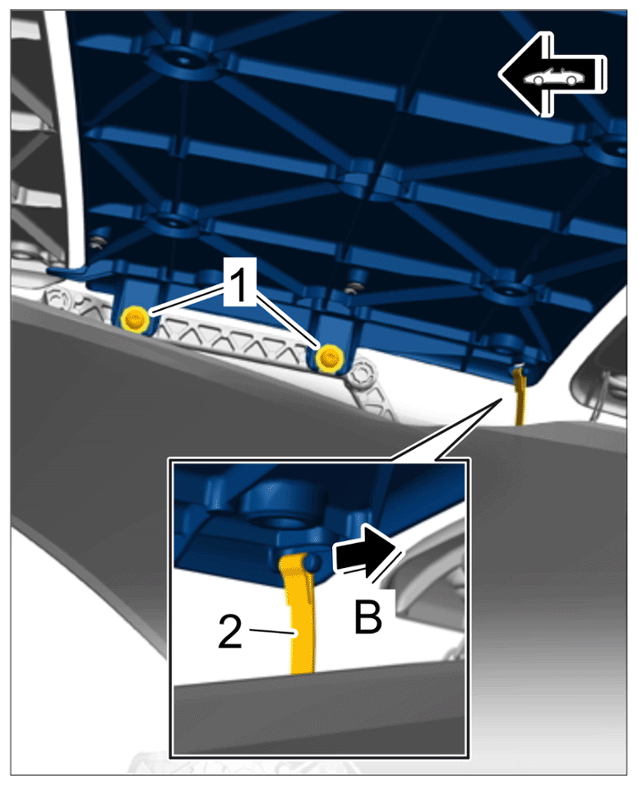

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Loosening rear roof strut
Screw on tension bow	Item 4	Tightening torque	9.7 Nm (7.2 ftlb.)

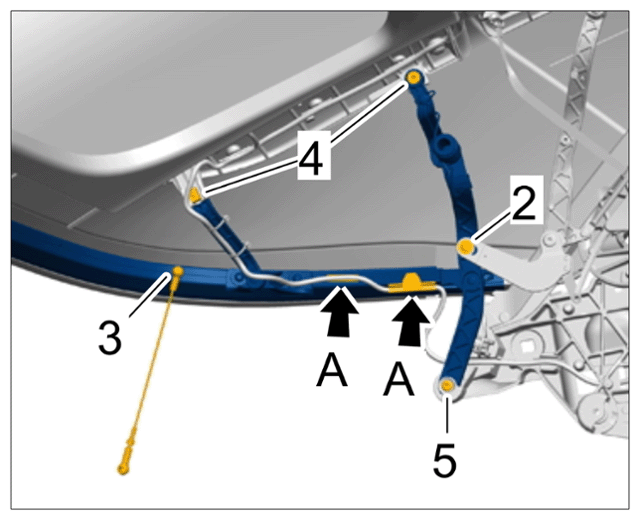

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Loosening tension bow
