6X Body-Equipment Outside-General -- 992 - 911 CARRERA (992)
>>
WM, 6X00IN40 Technical Values
>>
61 - Convertible Top, Hardtop
>>
Roof Frame
Roof Frame
Location
Description
Type
Basic value
Tolerance
Roof frame
Item 2
Tightening torque
23 Nm (17 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

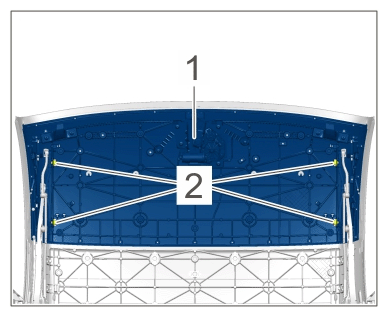

Roof frame
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
