Hydraulic Pump

Location	Description	Type	Basic value	Tolerance
Screws securing hydraulic pump to roll-over protection system	Item 1	Tightening torque	9.7 Nm (7.2 ftlb.)	+/- 0.9 Nm (0.5 ftlb.)

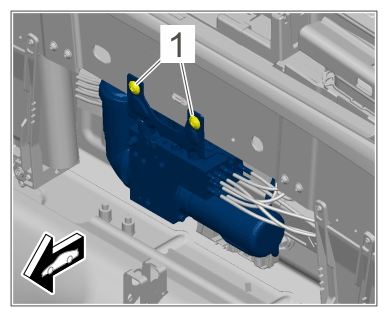

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws on hydraulic pump
Screw securing hydraulic pump to roll-over protection system	Item 1	Tightening torque	9.7 Nm (7.2 ftlb.)	+/- 0.9 Nm (0.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screw
Retainer plate for hydraulic pump	Item 3	Tightening torque	10 Nm (7.5 ftlb.)

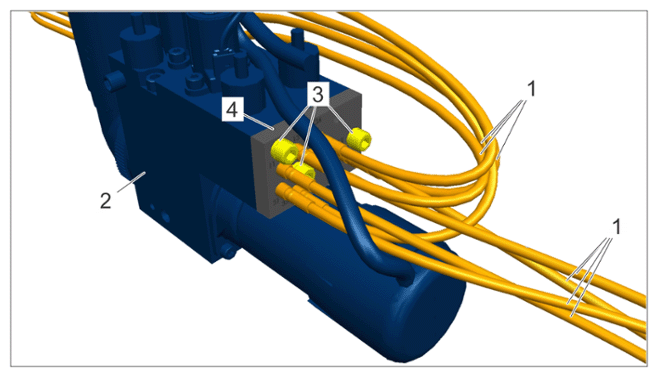

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Hydraulic pump lines
