Front Seal (Cowl Panel Frame]

Location Description Type Basic value Tolerance
Front seal (cowl panel frame) Item 1 Tightening torque 5.6 Nm (4 ftlb.)

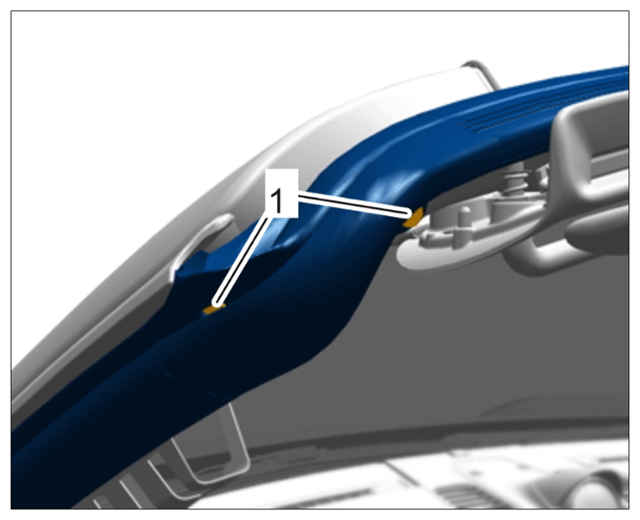

G15533973Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws on front seal (cowl panel frame)
