6X Body-Equipment Outside-General -- 992 - 911 CARRERA (992)
>>
WM, 6X00IN40 Technical Values
>>
61 - Convertible Top, Hardtop
>>
Flap (With Drive Mechanism)
Flap (With Drive Mechanism)
Location
Description
Type
Basic value
Tolerance

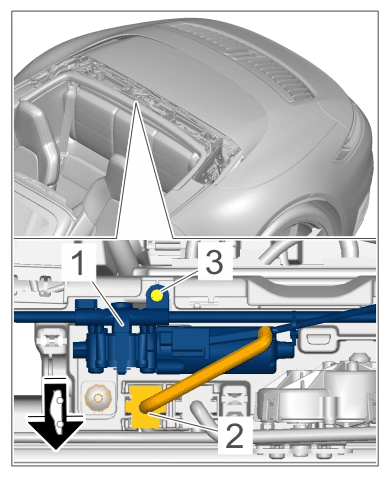

Flap motor
Item 3
Tightening torque
2 Nm (1.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Electric plug connection

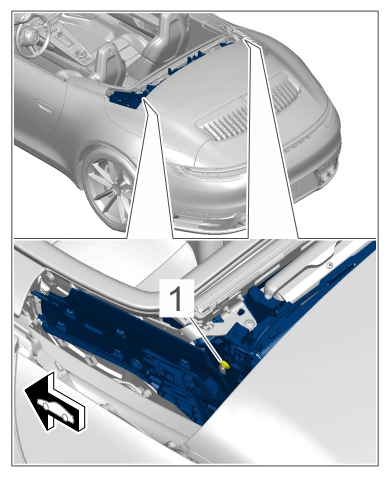

Flap (with drive mechanism)
Item 1
Tightening torque
9.7 Nm (7.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Screw
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
