6X Body-Equipment Outside-General -- 992 - 911 CARRERA (992)
>>
WM, 6X00IN40 Technical Values
>>
61 - Convertible Top, Hardtop
>>
Flap (Module)
Flap (Module)
Location
Description
Type
Basic value
Tolerance

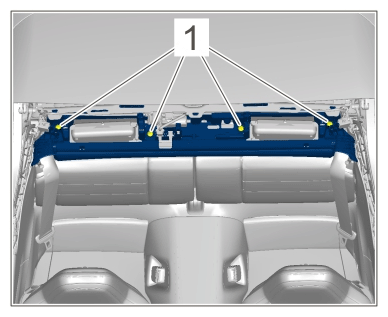

Top screws
Item 1
Tightening torque
9.7 Nm (7.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Top screws

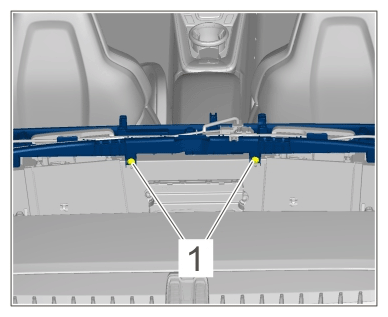

Rear screws
Item 1
Tightening torque
9.7 Nm (7.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Rear screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
