Convertible Top

Location	Description	Type	Basic value
Convertible top support	Item 1	Tightening torque	23 Nm (17 ftlb.)

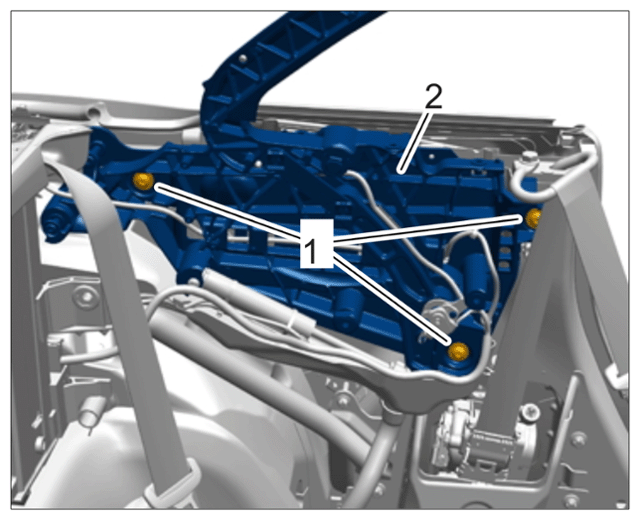

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Convertible top support
Rear side window	Item 1	Tightening torque	9.7 Nm (7.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Rear side window
Shut-off screw on hydraulic pump	Item 1	Tightening torque	3.5 Nm (2.6 ftlb.)

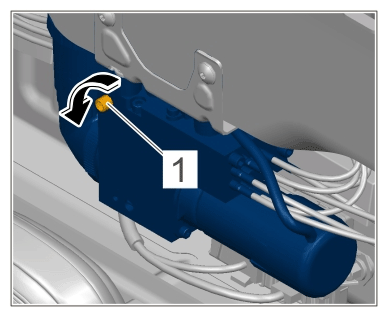

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Hydraulic valve
Hydraulic cylinder	Item 3	Tightening torque	8 Nm (6 ftlb.)

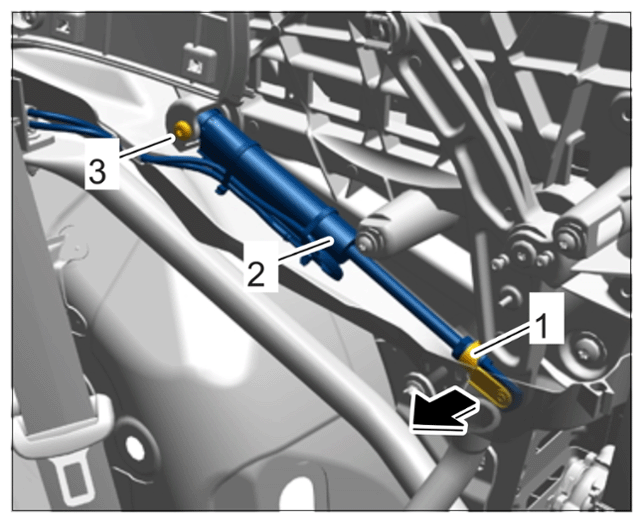

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Hydraulic cylinder
Service position of convertible-top compartment lid foam	Item A	Length	10 cm

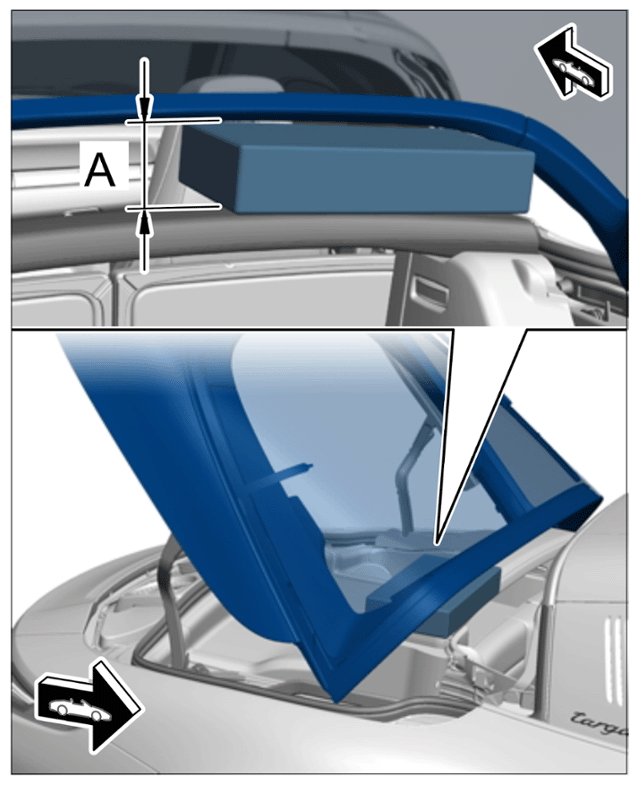

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Setting down convertible-top compartment lid
Fastening screw securing strut to convertible-top compartment lid bracket	Item 3	Tightening torque	9.7 Nm (7.5 ftlb.)

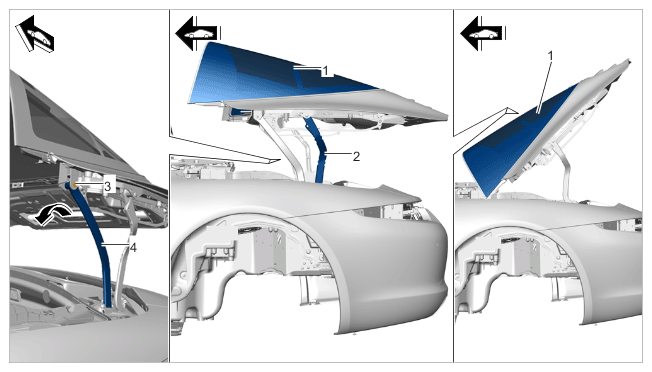

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Positioning glass dome
