Convertible Top Lock

Location	Description	Type	Basic value

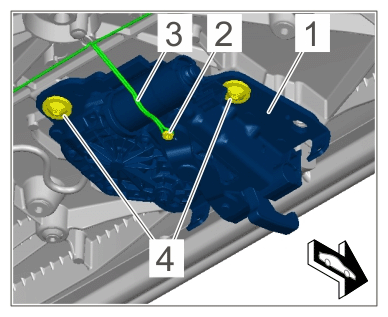

Convertible top lock	Item 4	Tightening torque	36 Nm (26.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Convertible top lock

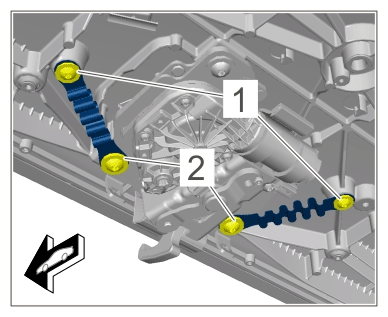

Convertible top lock	Item 2	Tightening torque	36 Nm (27 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws
Control cable for convertible top lock	Item 2	Tightening torque	2.8 Nm (2 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Convertible top lock

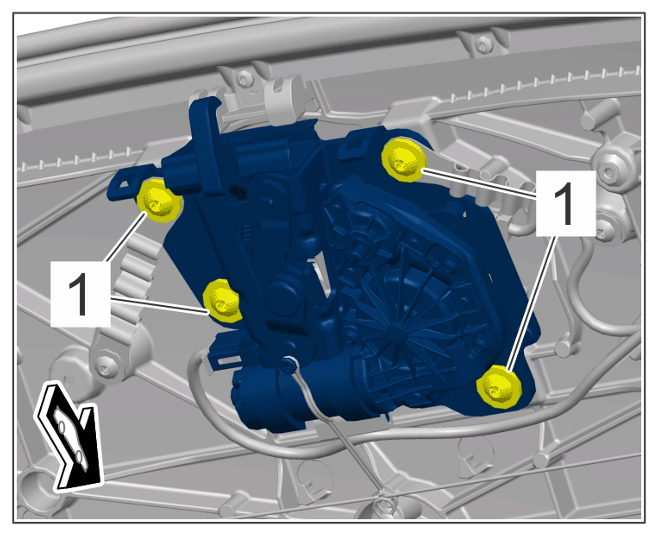

Convertible top lock struts	Item 1	Tightening torque	9.7 Nm (7.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws
Convertible top lock	Item 1	Initial tightening	6 Nm (4.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws
