B-Pillar For Convertible Top Frame

Location Description Type Basic value Tolerance
Screw on hinge Item 3 Tightening torque 4.7 Nm (3.5 ftlb.)

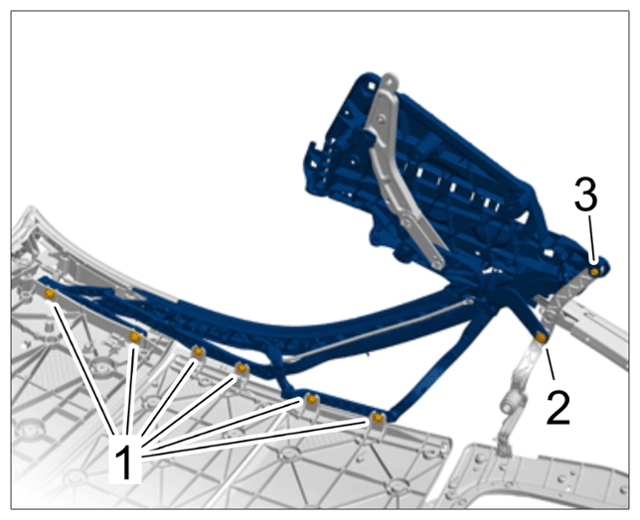

G15533985Courtesy of PORSCHE CARS NORTH AMERICA, INC.

B-pillar for convertible top frame
