Sunroof (Locking-Mechanism)

Location	Description	Type	Basic value	Tolerance
Sliding-roof panel lock	Item Y	Length	2 mm	-1 mm

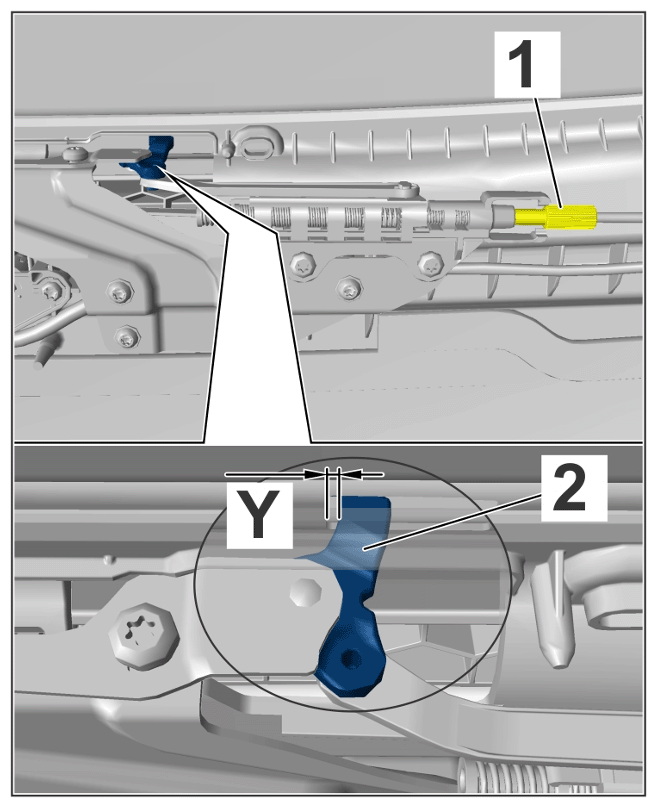

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Adjusting locking mechanism in Y direction
Screws for sliding-roof panel lock retainer plate	Item 1	Tightening torque	4 Nm (3 ftlb.)

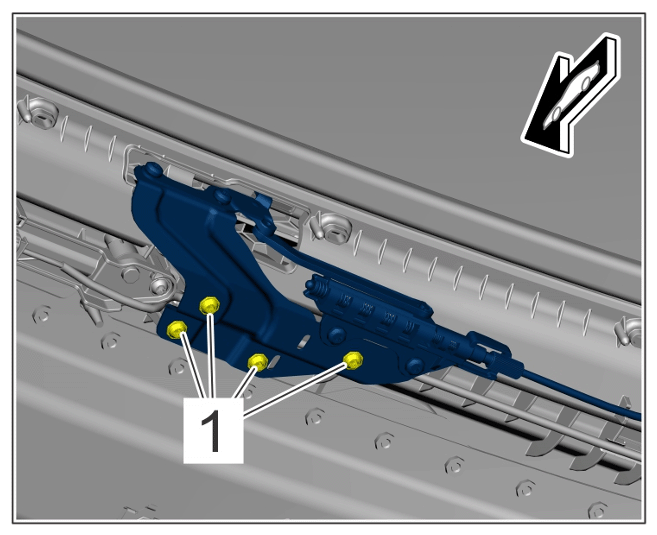

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws
Sliding-roof panel locking bracket hook	Item 1	Tightening torque	5 Nm (3.5 ftlb.)

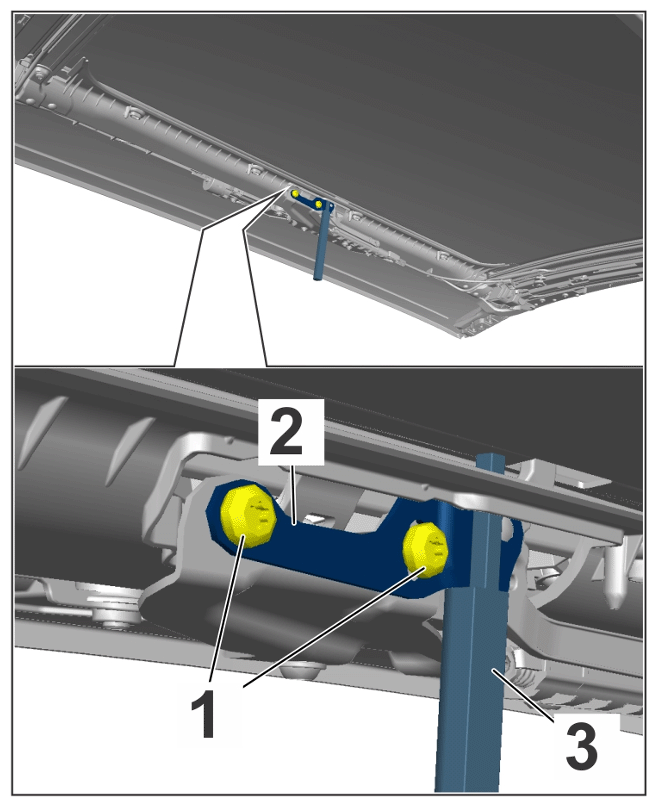

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Adjusting locking mechanism in Z direction
